Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | 1080pcs/carton | Delivery Time : | 7-14days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 60000pcs per day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD311B074GWA4DN |
|
Detail Information |
|||
| Product Name: | RJ45 PCB Connector | Feature: | High Performance |
|---|---|---|---|
| Transformer: | With Transformer | Housing Material: | PBT Black |
| Performance Speed: | 100M BASE-TX | Number Of Positions : | 8 |
| Highlight: | rj45 connector pcb mount,rj45 pcb jack,100M BASE-TX RJ45 PCB Connector |
||
Product Description

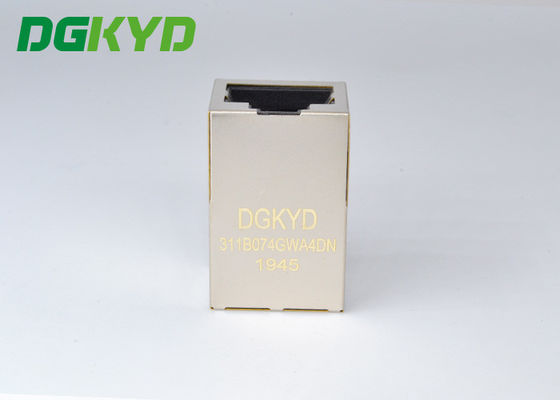

Single port 100M BASE-TX RJ45 Network Connector Without LED TAB-UP 25.4 mm
MATERIAL
Paramters
| Part Number | DGKYD311B074GWA4DN | Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | With Filter | LED Option | Without LED |
| LED Color | N / A | Panel Stops | Without Panel Stops |
| Shielded | Metal shielded | Applies To | Printed Circuit Board |
| Performance Speed | 100M BASE-TX | Grounding Options | Panel Ground and PCB Ground |
| Port Configuration | Single port | Number of Positions | 8 |
| Jack Configuration | 1X 1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6U | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Drawing
