1x1 Tab Down Transformer RJ45 jack/ White rj45 8p8c connectors without Shielded

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-015PNL

Detail Information
Housing Color:	White	Shield:	Unshielded
Orientation:	Tab Down	Performance:	10/100BASET
Grounding To PCB:	NO	Voltage - Maximum:	57v
Highlight:	rj45 lan connector , rj45 lan port , Tab Down Transformer RJ45 jack

Product Description

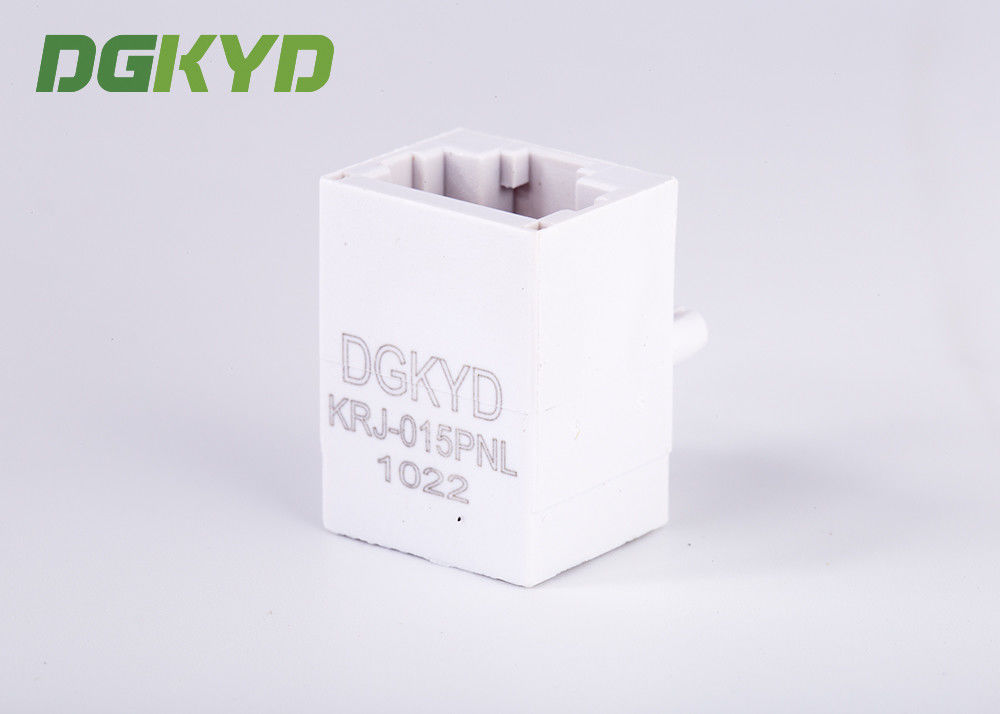

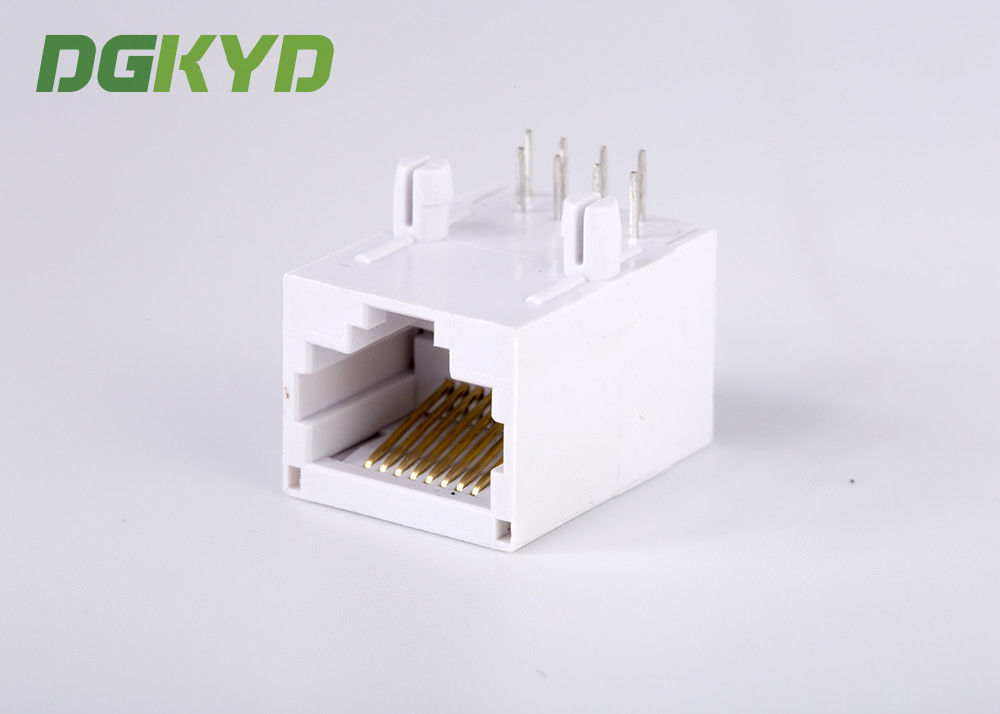

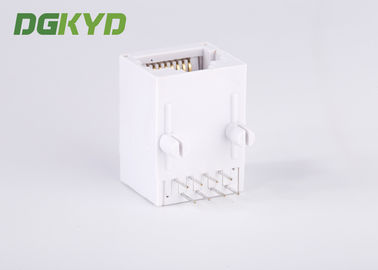

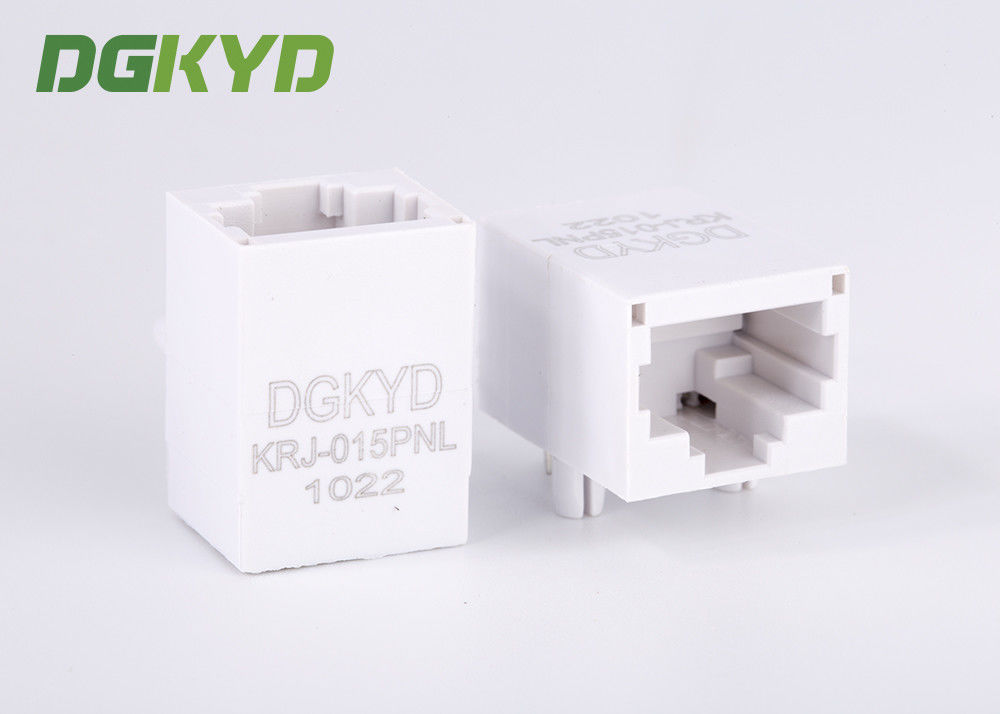

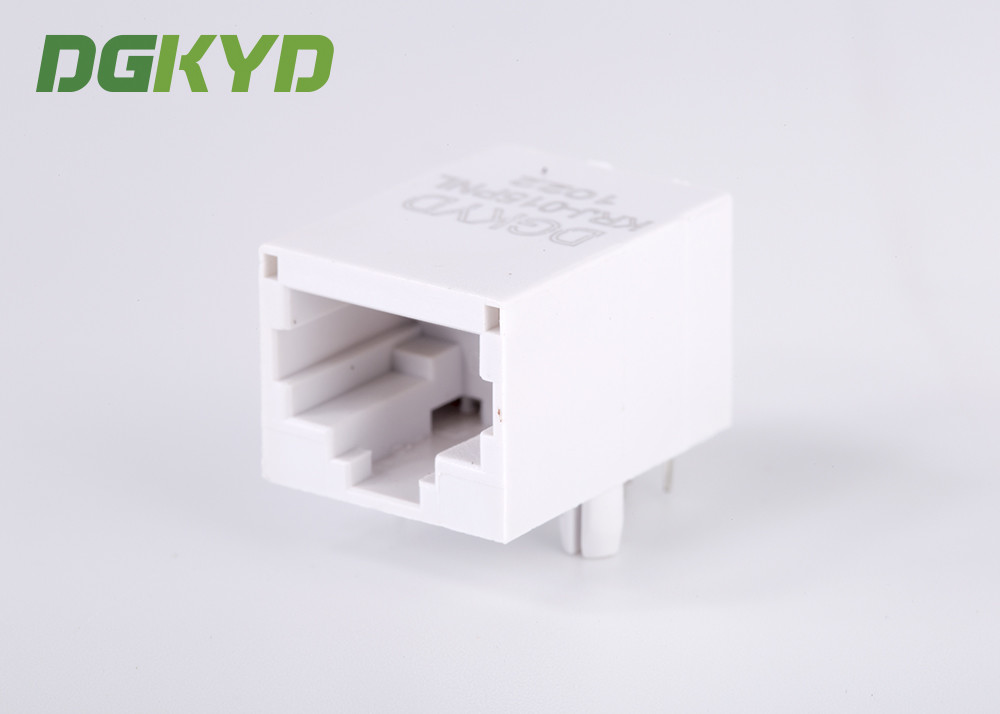

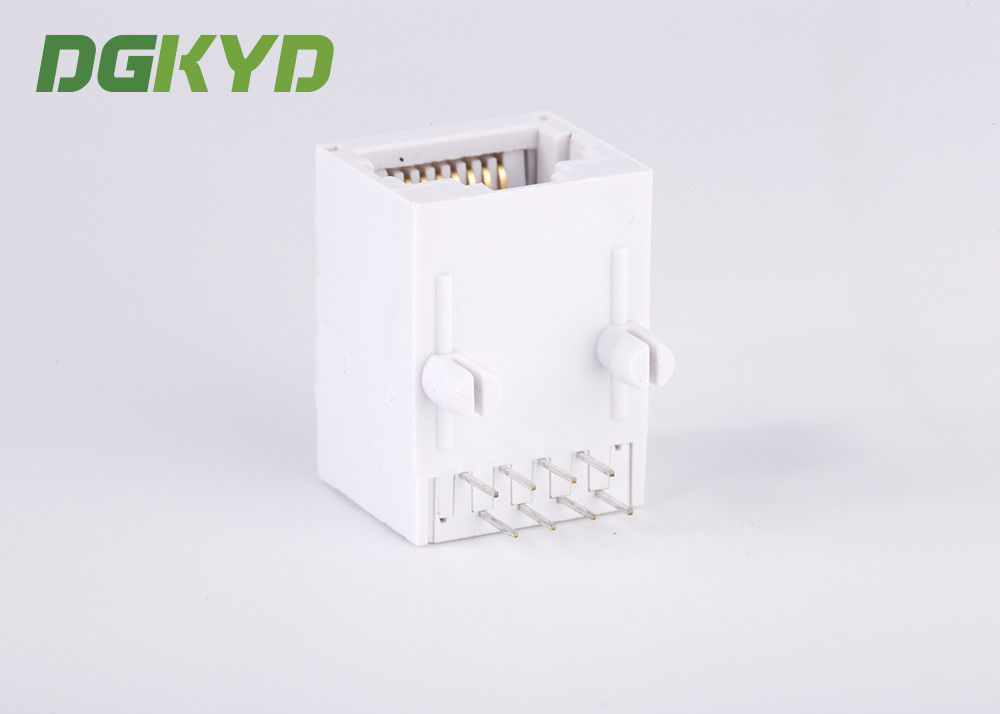

1x1 Tab Down Transformer RJ45 / White rj45 8p8c connectors without Shielded

RJ45 ,in order to keep good touch between gold finger and crystal head,should paint the gold on the

surface,there is 6u,15u,30,50u,usually use 6u,according to customer’s request and cost to proceed, gold finger insert and pull life should be 750 times above.

Descriptions:

10/100Base-Tx RJ45 single port 1X1 Vertical without shield with side entry
Single port 1X1 Tab-Down RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 260℃
Operating temperarure range :0℃ to +70℃
Storage temperature range :-40℃ to +85℃
Number of positions:8
Number of contacts loaded:8
Shield:NO
Rohs compliant
Length:20.6mm
LEDS:NO
Usage:KRJ-015PNL

Material specifications:

Plastic core:Glass fiber filler PBT White(UL94V-0)
Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
Housing:Phenolic, PBT White(UL94V-0)

Electrical Specifications: at 25℃

．Insertion Loss:1-100MHZ -1.0dBmax

．Rturn Loss:1-30MHZ -16.0dBmin

30-60MHZ -14.0dBmin

60-80MHZ -10.0dBmin

．Cross Talk:1-30MHZ -40.0dBmin

30-60MHZ -35.0dBmin

60-80MHZ -30.0dBmin

．CMR:1-100MHZ -35dBmin

．Hi-pot:1500v AC 6S 1mA

．Turn Ratio:1CT:1CT±3%

．OCL:350uH @100KHZ 100Mv 8mA DC

1x1 Tab Down Transformer RJ45 jack/ White rj45 8p8c connectors without Shielded 0

Applications:

• Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,

HomePNA,DSL／ADSL and so on.

For example:
