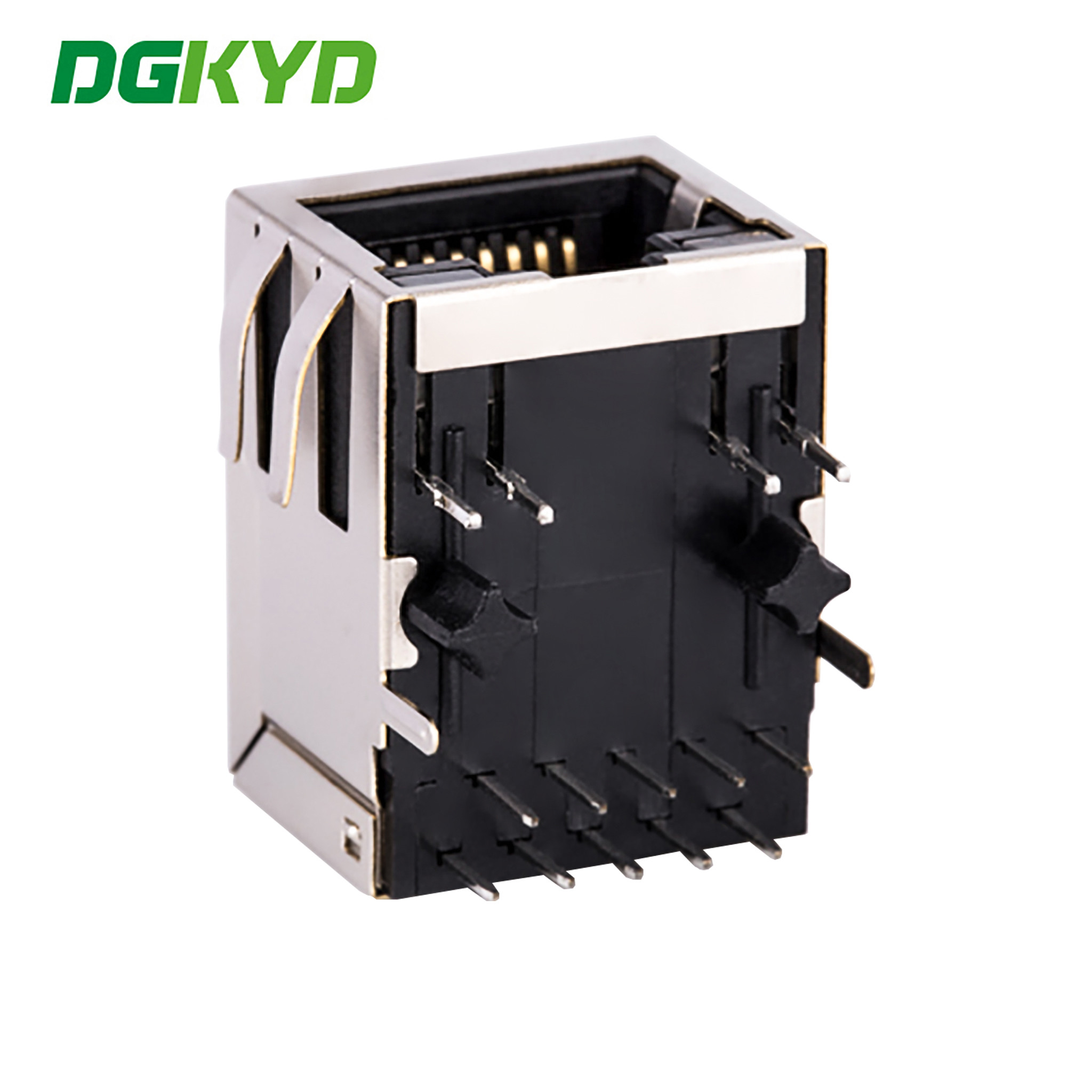

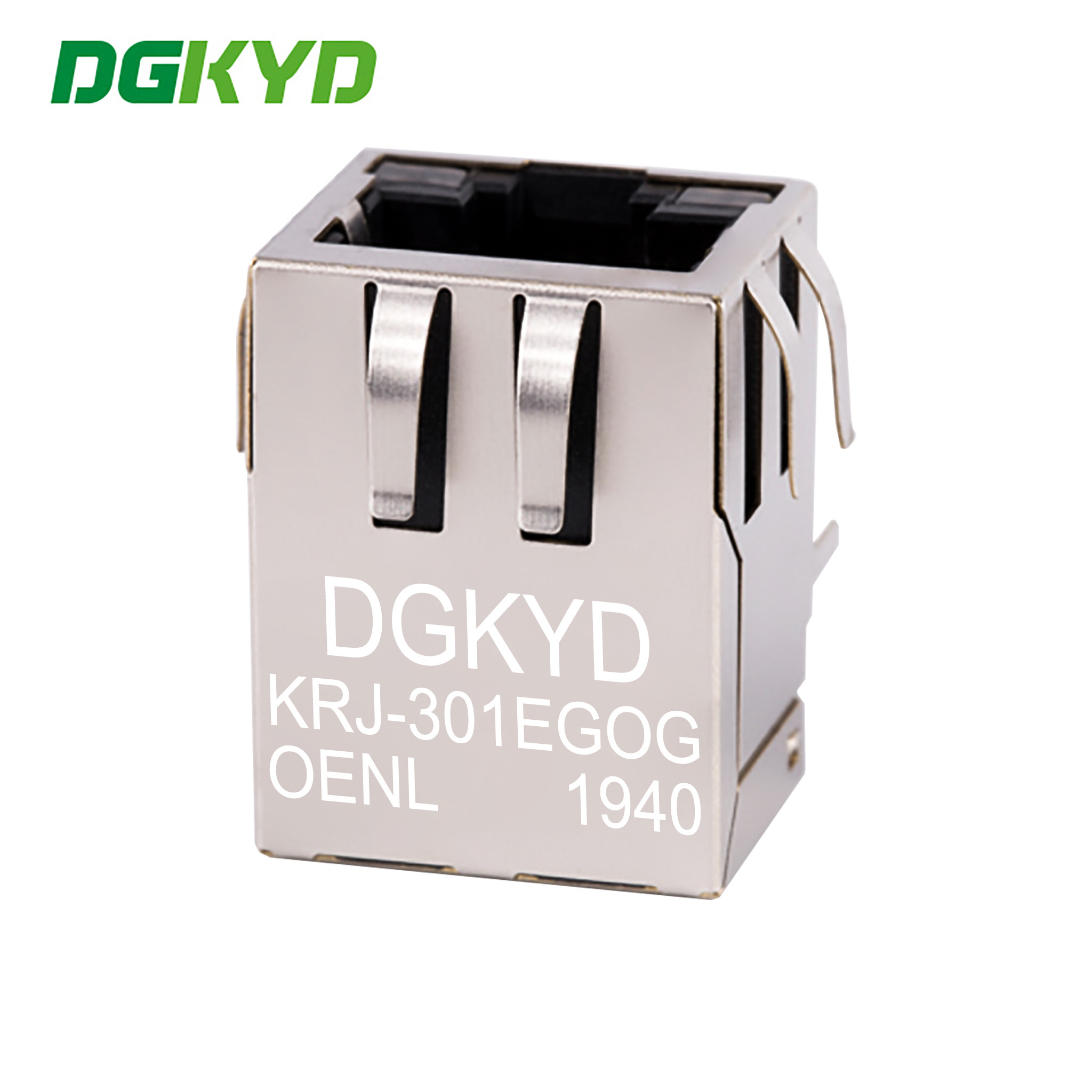

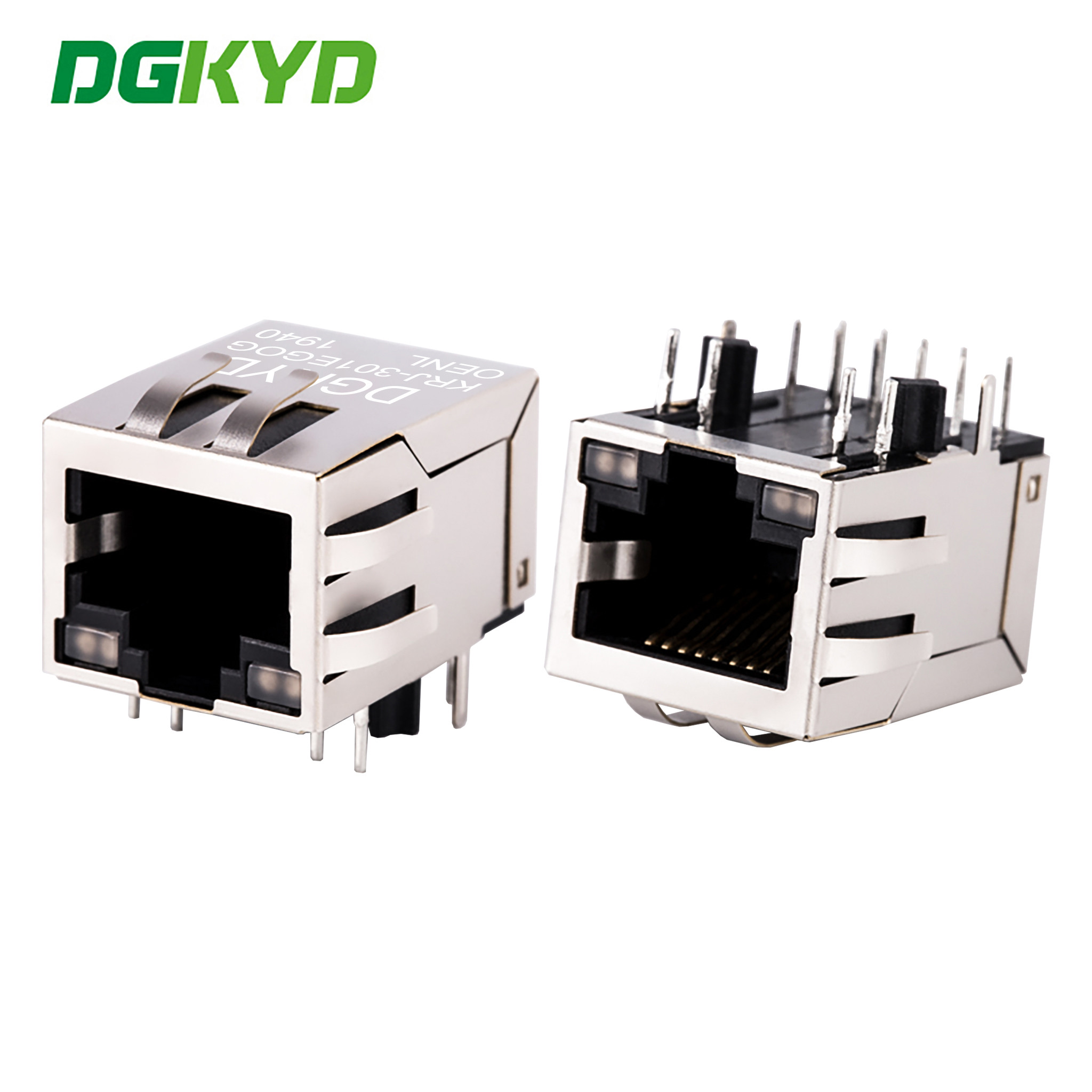

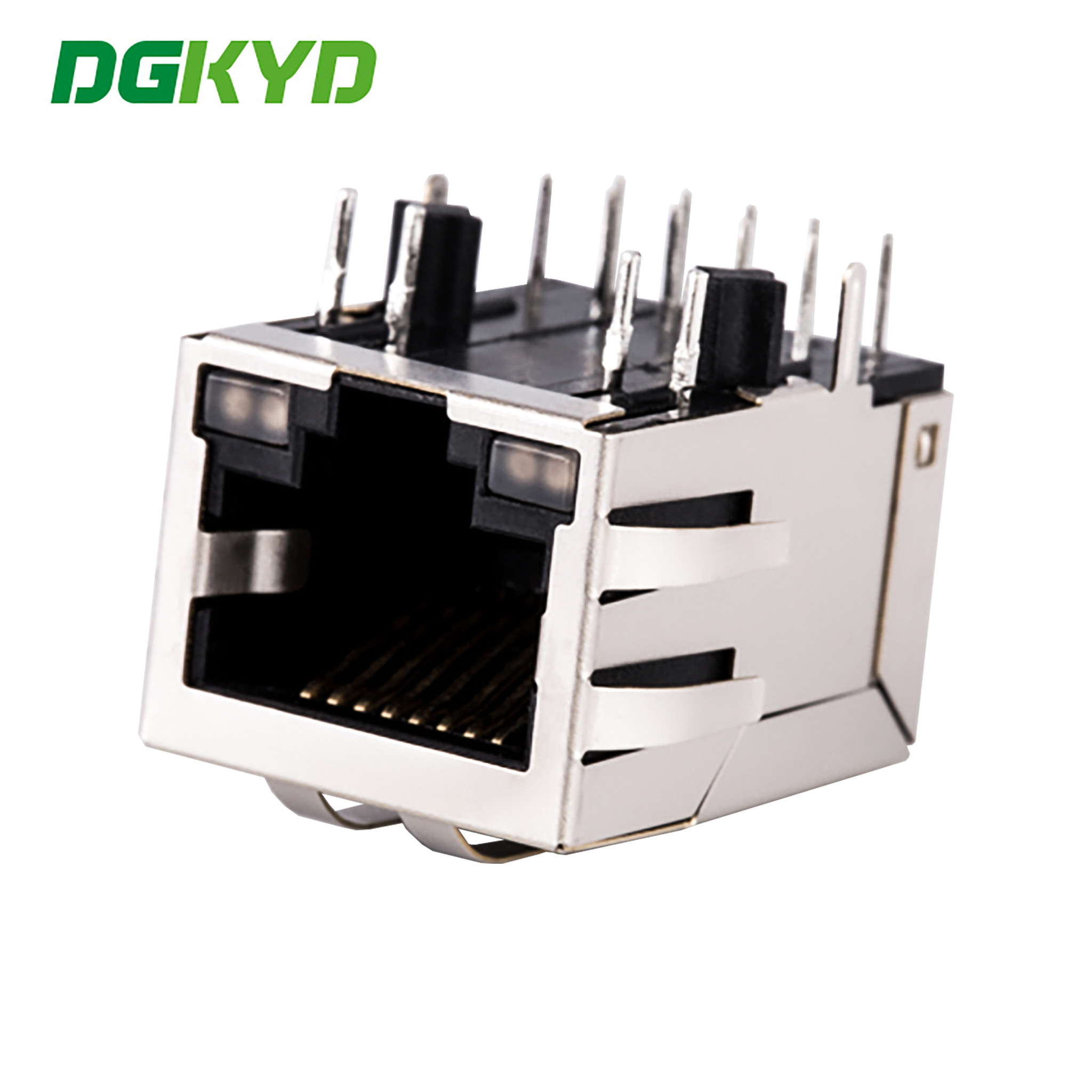

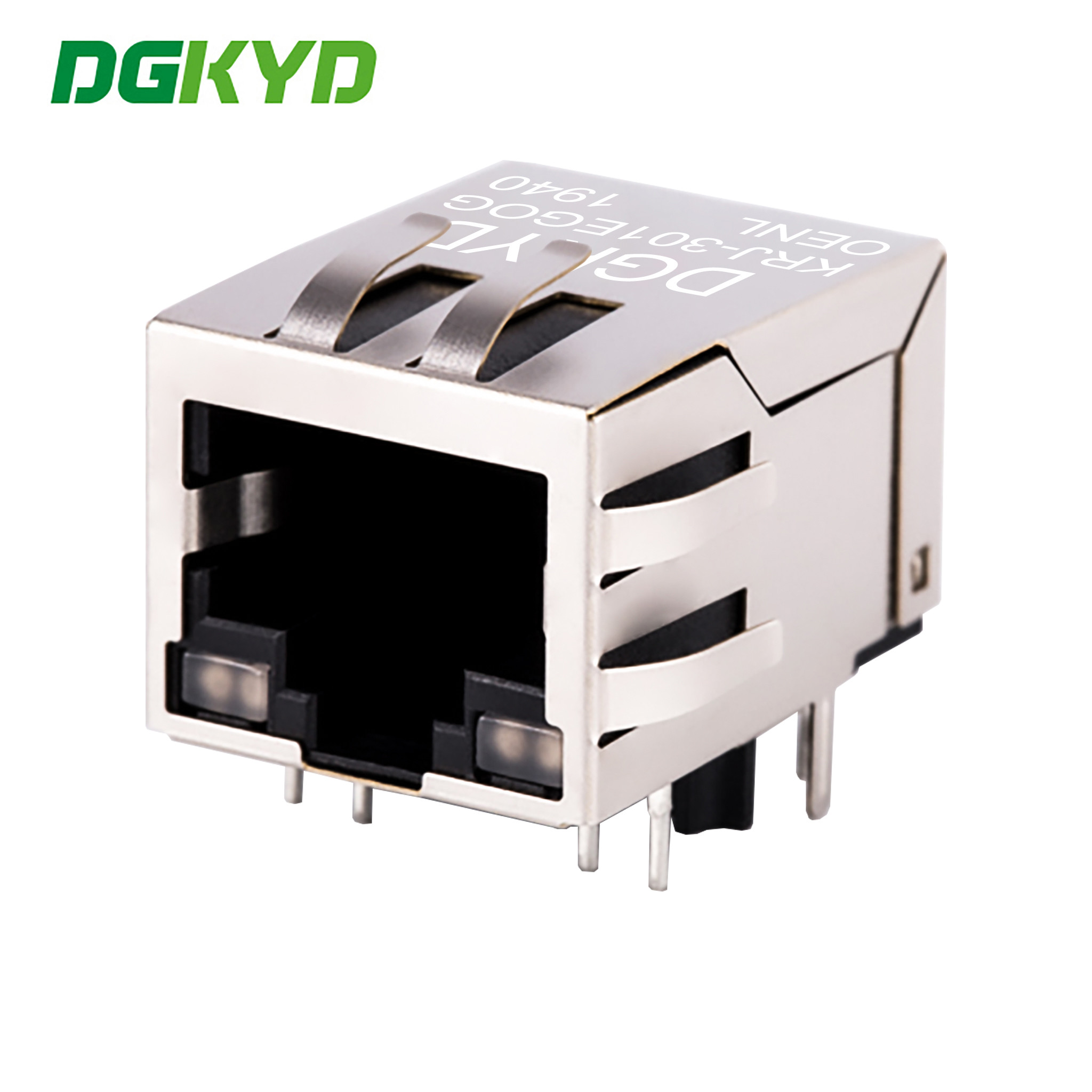

Dual color lamp horizontal network port KRJ-301EGOGOENL Gigabit RJ45 communication connector with lamp and spring clip

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-301EGOGOENL

Detail Information
Application::	Ethernet	Speed::	10/100/1000BASE-T
PCB Mount::	Right Angle Thru-Hole	Standard::	IEEE802.3ab
Encapsulation Method:	Single In-line Package	Operating Temperature:	-40°C~+85°C
Gold Plating On Contact Pins:	6U	Plastic Housing Material:	Black PBT
PCB Mount Style:	DIP	Component Type:	PCB Jack
Shield:	Phosphor Copper Nickel Plating
Highlight:	cat6 rj45 jack , rj45 cat6 connector , Cat6 RJ45 Connector with transformer

Product Description

Dual color lamp horizontal network port KRJ-301EGOGOENL Gigabit RJ45 communication connector with lamp and spring clip

Product Specification Document

KRJ-301EGOGOENL.pdf

Part Number	KRJ-301EGOGOENL	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-DOWN
Filter	With Filter	LED Option	With LED
LED Color	Green/Orange-Green/Orange	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printedout Circuit Board
Port Configuration	1X1 Ports	Number of Positions	10
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Dual color lamp horizontal network port KRJ-301EGOGOENL Gigabit RJ45 communication connector with lamp and spring clip 0

Options include:

Single, Double or Quad sockets
Choice of with or without LEDs
Tab Up, Tab Down, Low Profile, Long Body, and Vertical packages
Standard (0 to 70°C) or Extended (-40 to +85°C) Temperature Ranges
