RJ45 Connector Multi Port 2X4 Socket 8P10C Connector Gigabit Modular Block Interface DGKYD24Q042DB2A5D068
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | 1080pcs/carton | Delivery Time : | 7-14days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 60000pcs per day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD561888AB1A1D9Y1022 |
|
Detail Information |
|||
| Product Name: | Network Switch Connectors | Contacts: | 8 |
|---|---|---|---|
| Transformer: | With Transformer | Housing Material: | PBT Black |
| RJ45 PCB Terminal: | Phosphor Bronze ,Tail-Tin Over Nickl | Jack Configuration: | 1 X 8 |
| Speed: | Cat3/5/5e | Contact Mating Area Plating: | GOLD Flash Plating |
| Operation Temperature: | -40°C~+85°C | Storage Temperature: | -40°C~+85°C |
| Highlight: | rj45 multi port jack,plug modular rj45,RJ45 Female Jack 8 Ports |
||
Product Description

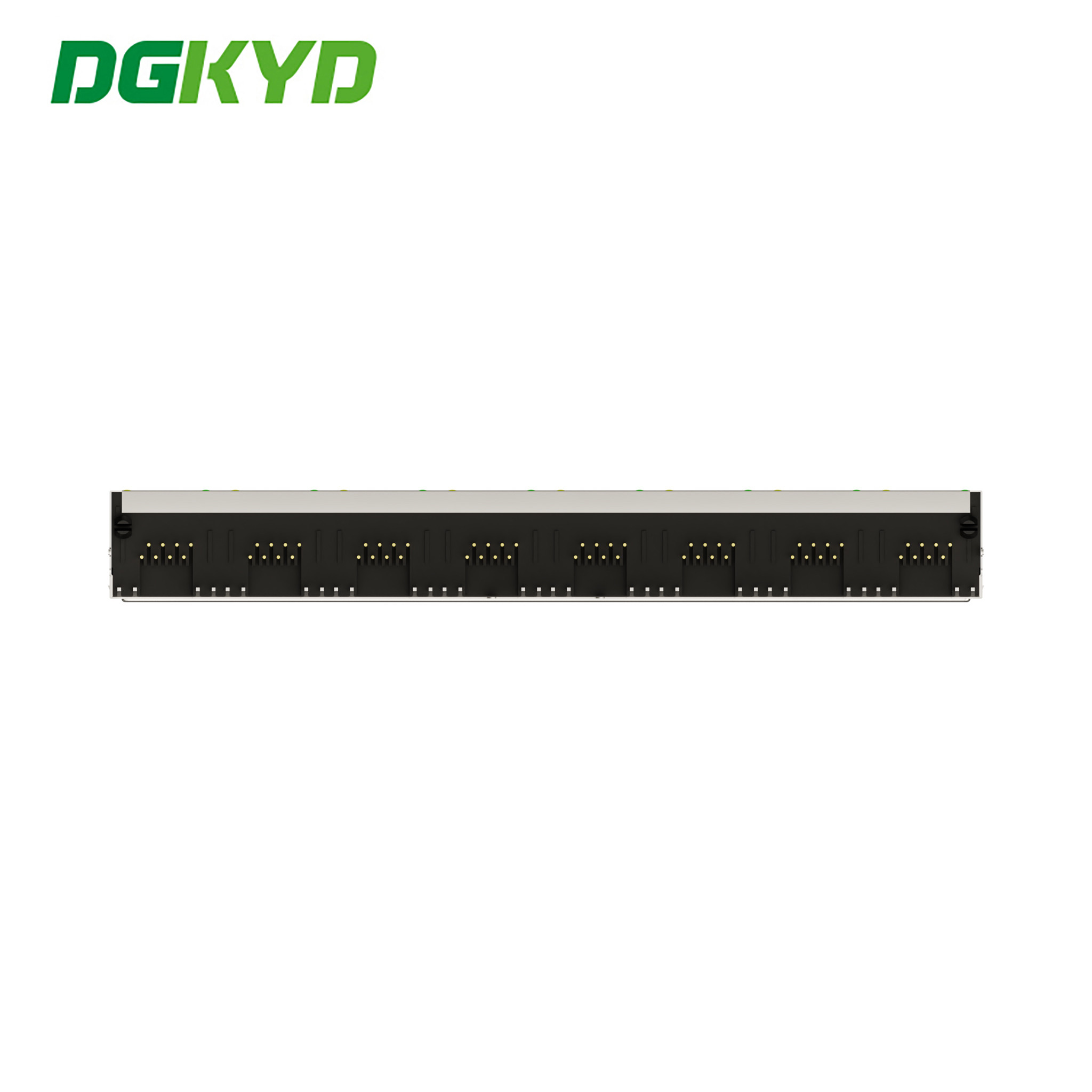

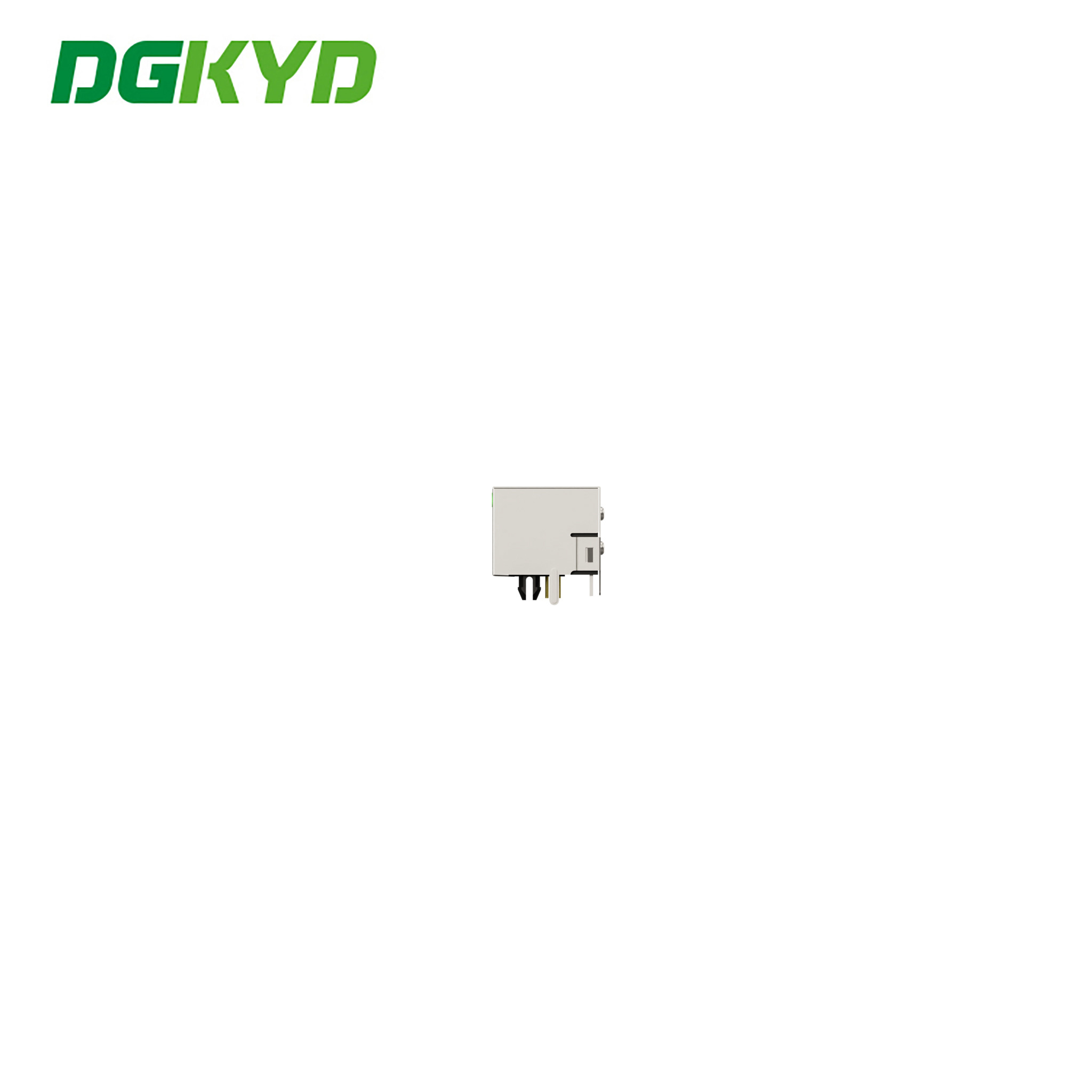

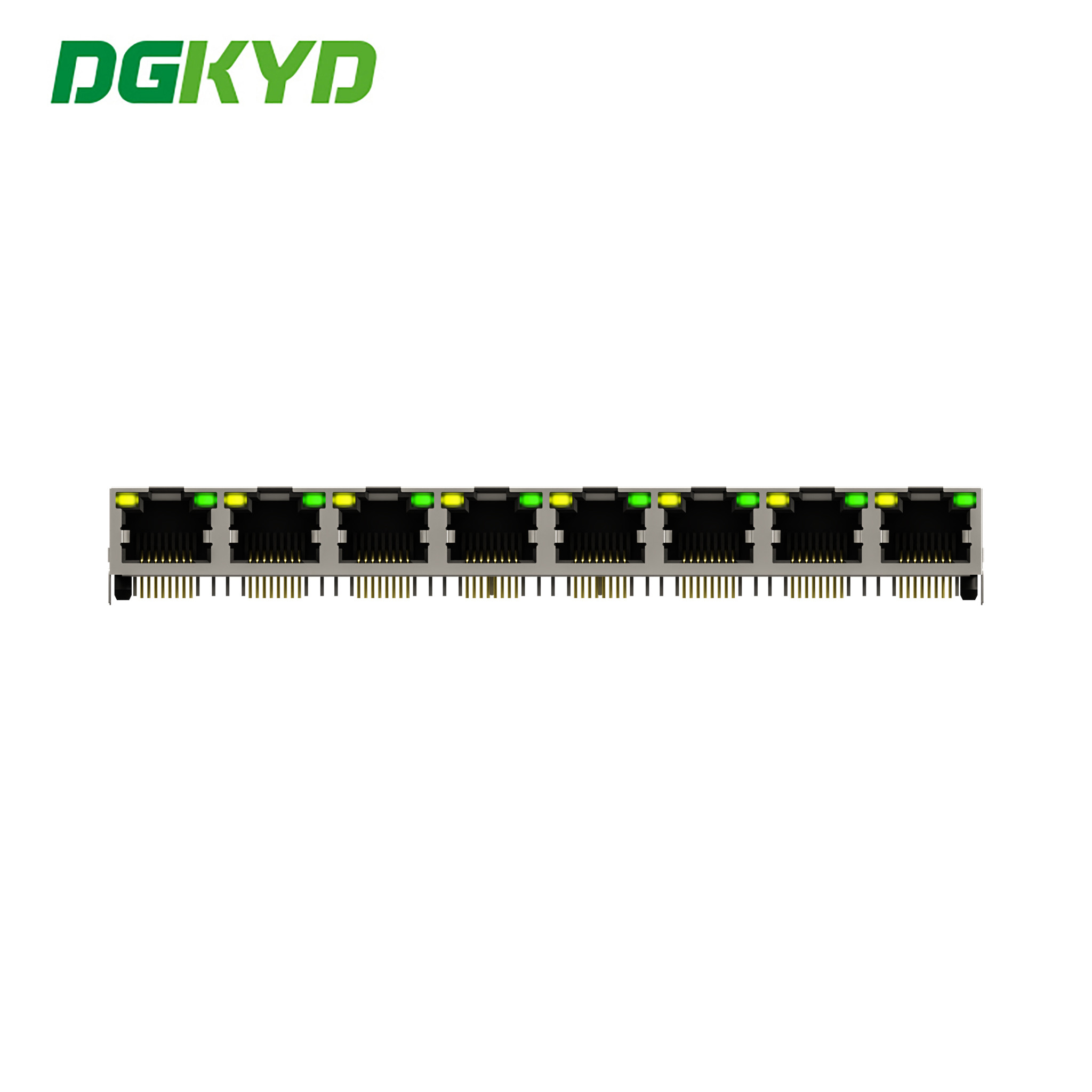

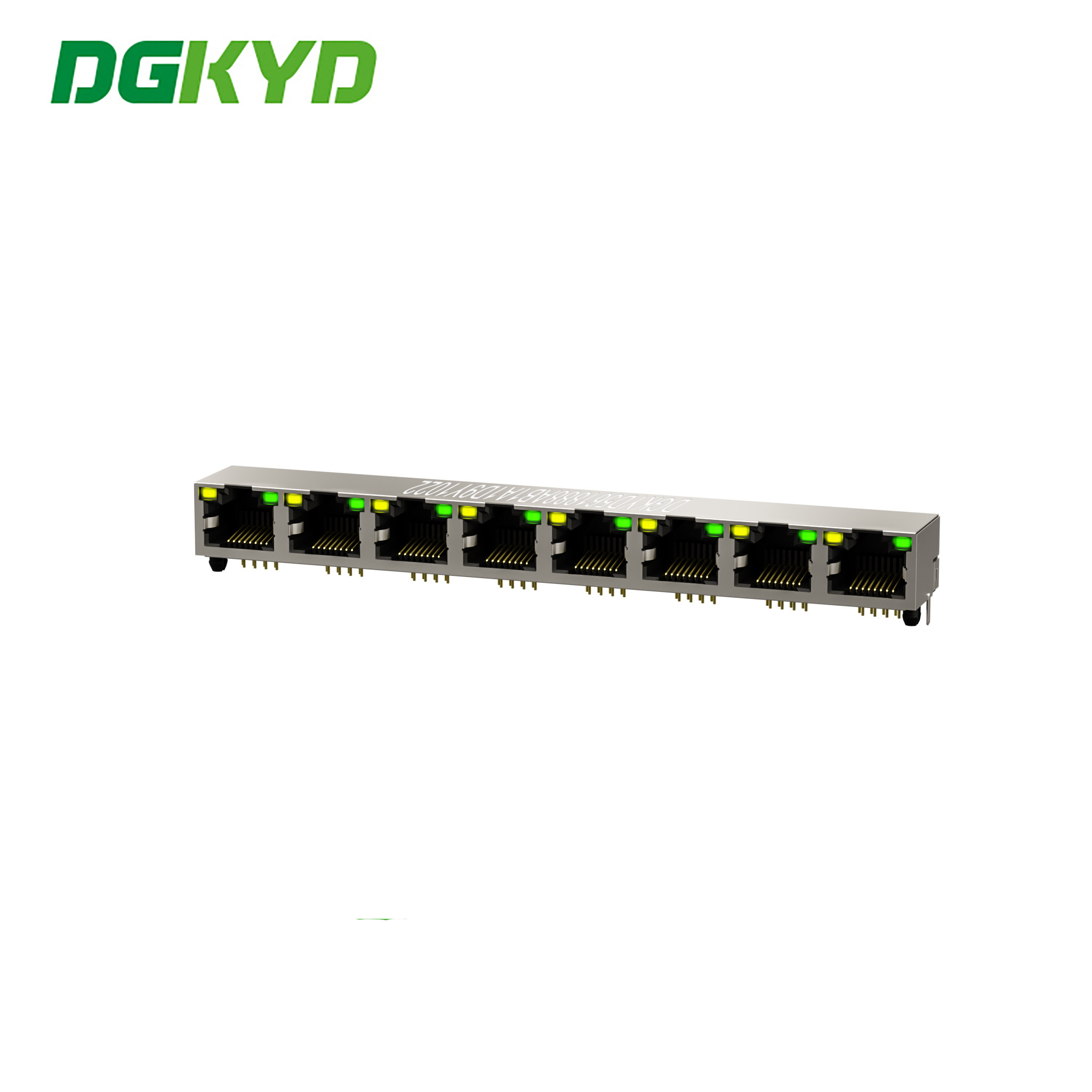

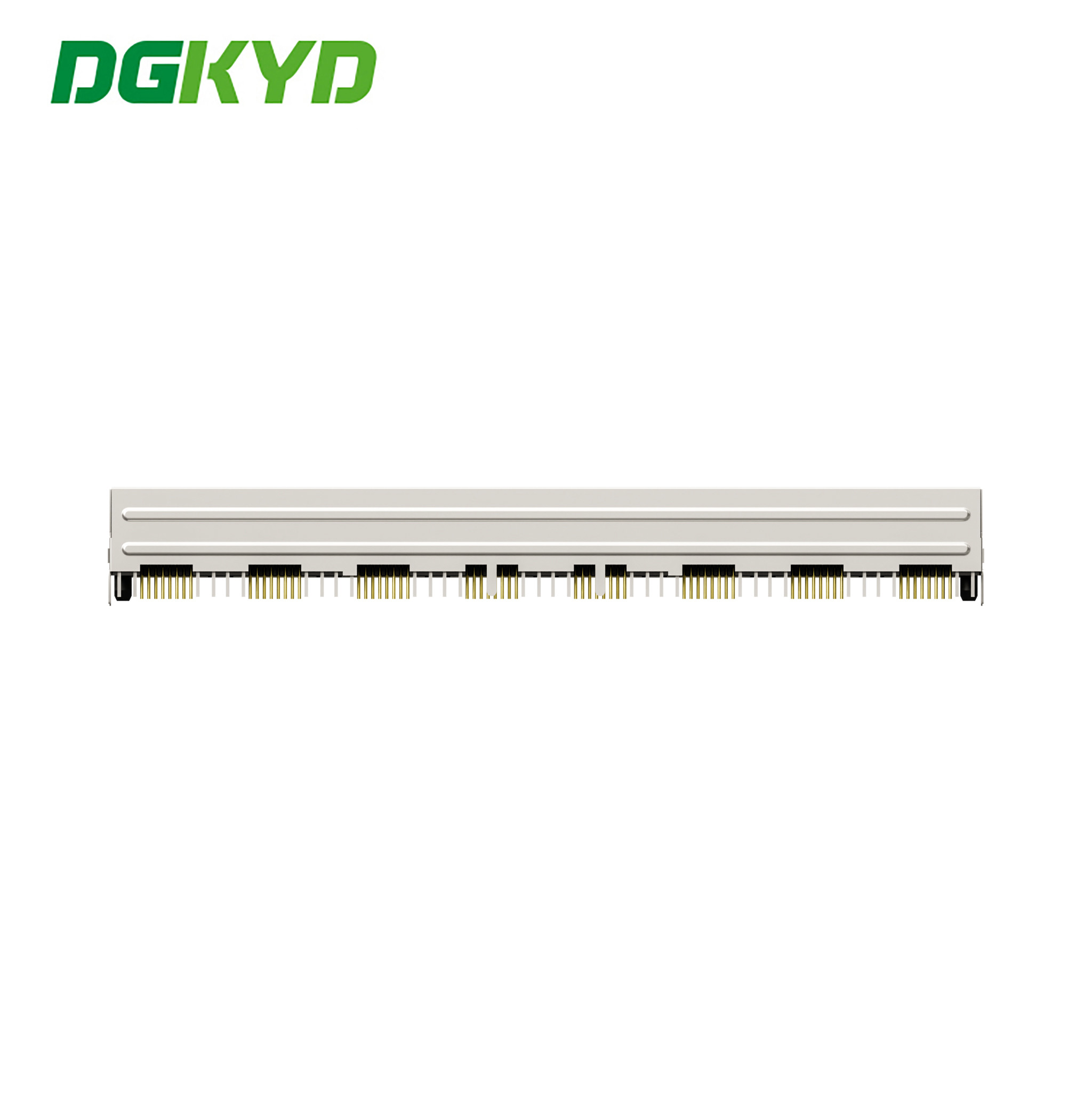

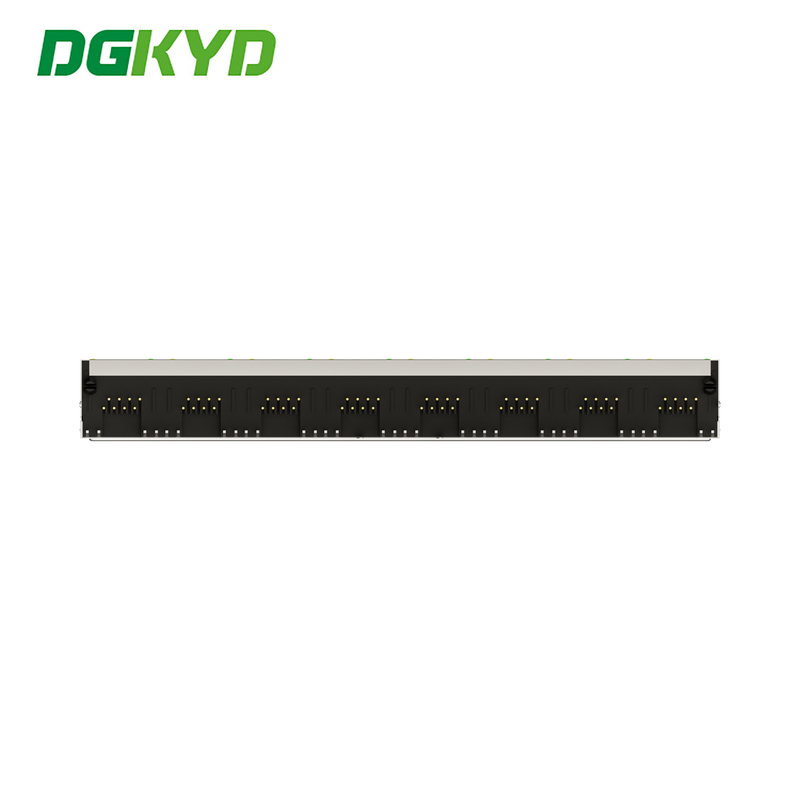

90 Degrees 1x8 RJ45 Female Jack 8 Ports Network Switch Connectors DGKYD561888AB1A1D9Y1022
Product Specification Document
Application
Netwwork, Laptop, Telephone, Router,Printer,Server, LCD and TV panel,
Paramters
| Part Number | DGKYD561888AB1A1D9Y1022 | Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | Without Filter | LED Option | With LED |
| LED Color | L-Yellow / R-Green | Panel Stops | Without Panel Stops |
| Shielded | With metal shield | Applies To | Printedout Circuit Board |
| Port Configuration | 1x8 Ports | Number of Positions | 8 |
| Jack Configuration | 1 x 8 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold Fu | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Our Service
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•DGKYD Is OEM Of FOXCONN For 6 Years
•Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE…
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:1-2 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
DGKYD Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• DGKYD Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
