RJ45 100Mbps Ethernet socket 8P8C module with compact window surface DGKYD5A11B048AA1A8DMZ
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | Negotiation | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD311Q070AB1A4DN |
|
Detail Information |
|||
| Modular Jack & Plug Interface Type: | RJ45 Without Transformer | Port Configuration: | Single |
|---|---|---|---|
| Connector Style: | Jack | Housing Material: | PBT Black |
| Shielded: | None | Transformer Option: | With Magnetic Transformer |
| Plating: | Glod Plating 6u/15u/30u/50u | Latch Orientation: | TOP |
| Highlight: | Gige rj45 connector port,Cat6 rj45 female port,RJ45 Single Port PBT Housing |
||
Product Description

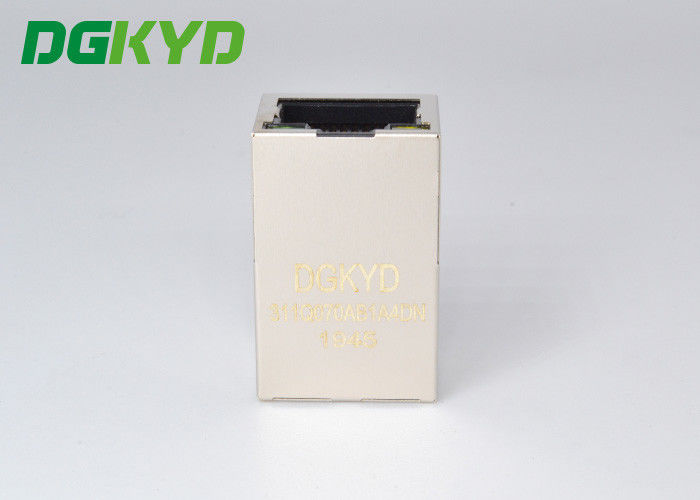

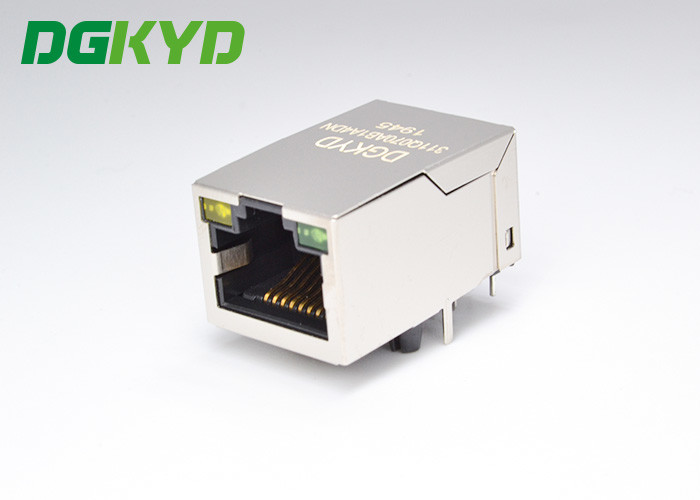

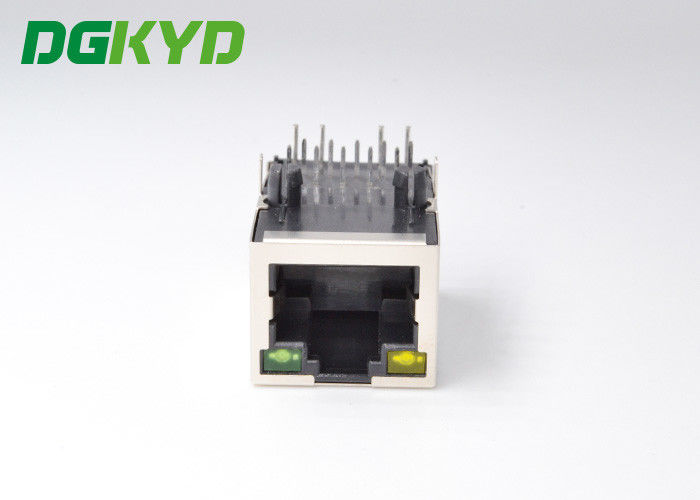

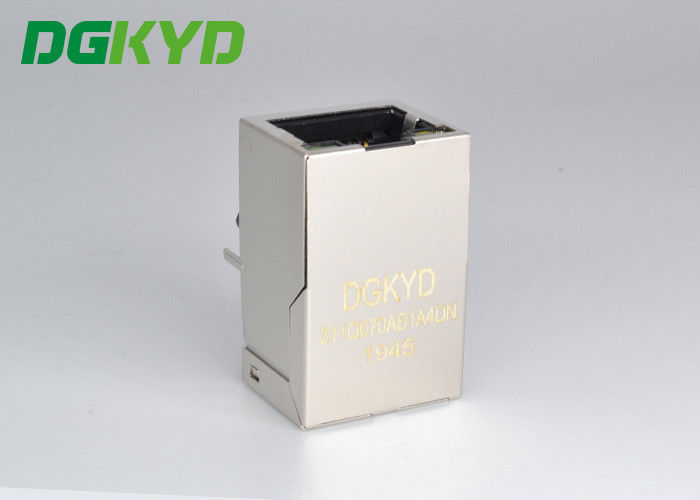

Single port shielded tab-up gige cat6 RJ45 Gigabit network transformer RJ45 connector
Product Specification Document
Applications:
Parameters
| Part Number | DGKYD311Q070AB1A4DN | Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | With Filter | LED Option | With LED |
| LED Color | L-Green / R-Yellow | Panel Stops | With Panel Stops |
| Shielded | Metal shielded | Applies To | Printed Circuit Board |
| Performance Speed | 1000M BASE-TX | Grounding Options | Panel Ground and PCB Ground |
| Port Configuration | Single port | Number of Positions | 10 |
| Jack Configuration | 1X 1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6U | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Drawings
Pictures
