RJ45 100Mbps Ethernet socket 8P8C module with compact window surface DGKYD5A11B048AA1A8DMZ
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | Negotiation | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | 1080 Tray in Carton | Delivery Time : | 20 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD111B479GWA1D |
|
Detail Information |
|||
| Type: | RJ45, Headers And PCB Receptacles | HOUSING: | PBT |
|---|---|---|---|
| Type Of Installation: | PCB Receptacles | LED Color: | No |
| Package: | Carton Pallet | Colour: | Black |
| Plating: | 6u Glod Plating | Brand Name: | DGKYD |
| Storage Temperature: | - 40 ℃ ~ 85 ℃ | Applications Speed: | 10/100 Base-T, AutoMDIX |
| Latch: | TAB-down | ||
| Highlight: | FCC RJ45 8P8C Connector,RoHS RJ45 8P8C Connector,RJ45 8P8C Modular Connector |
||
Product Description

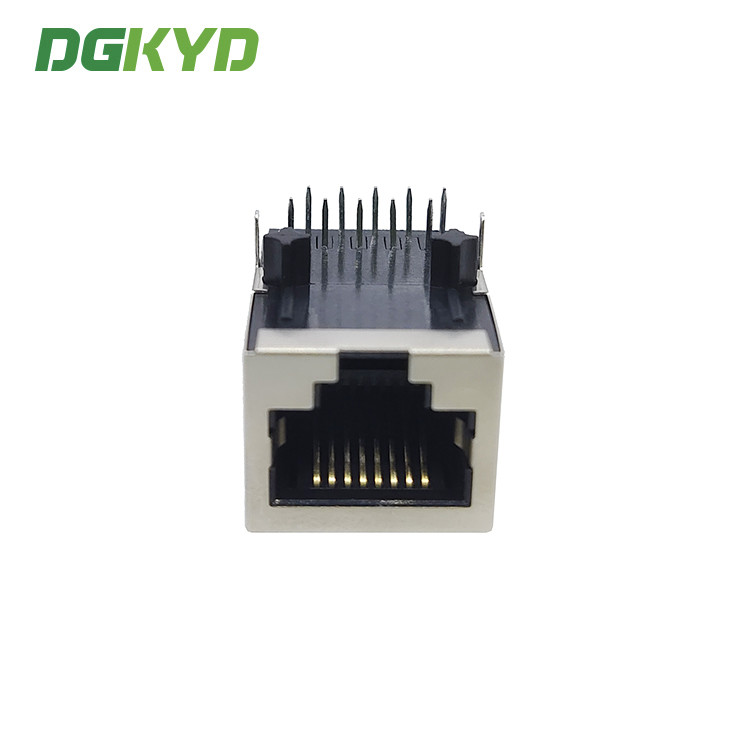

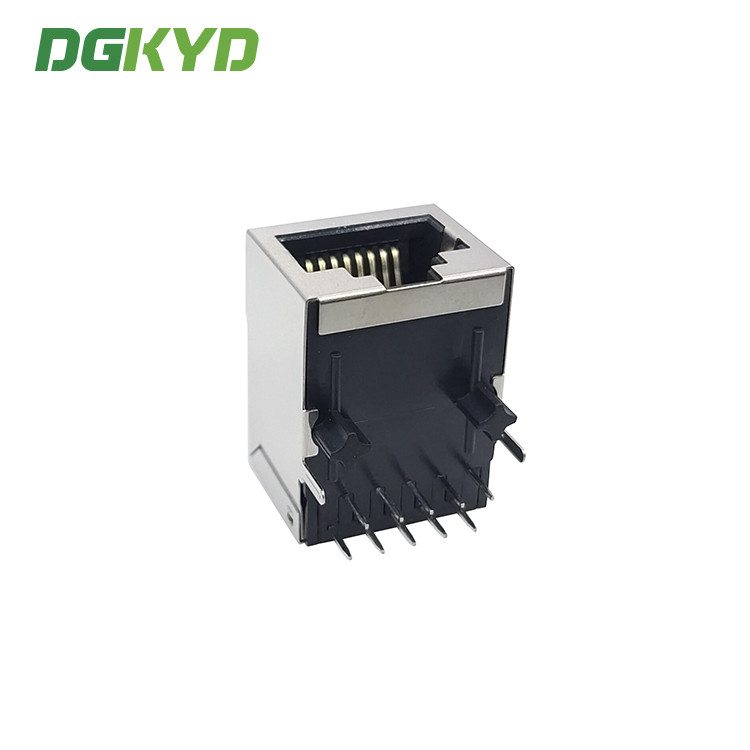

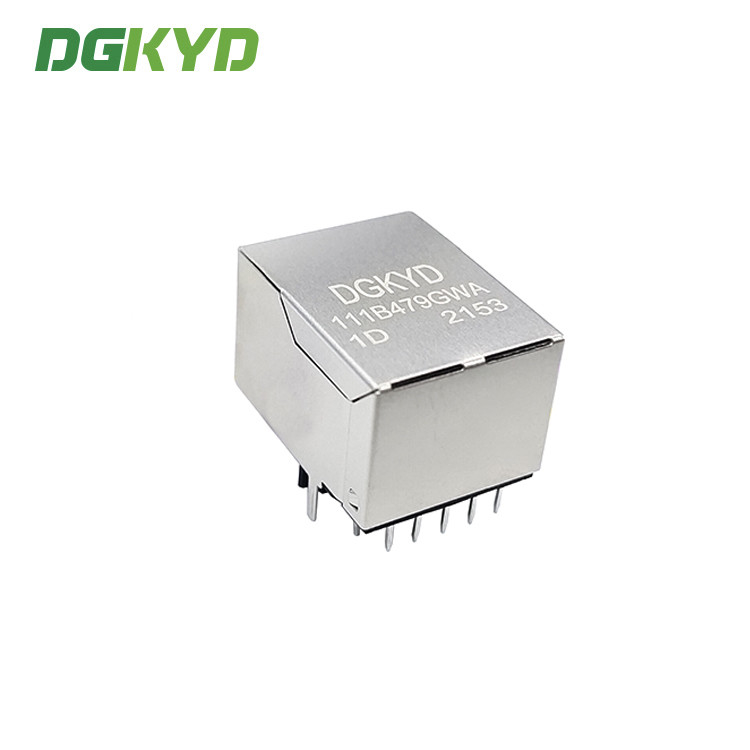

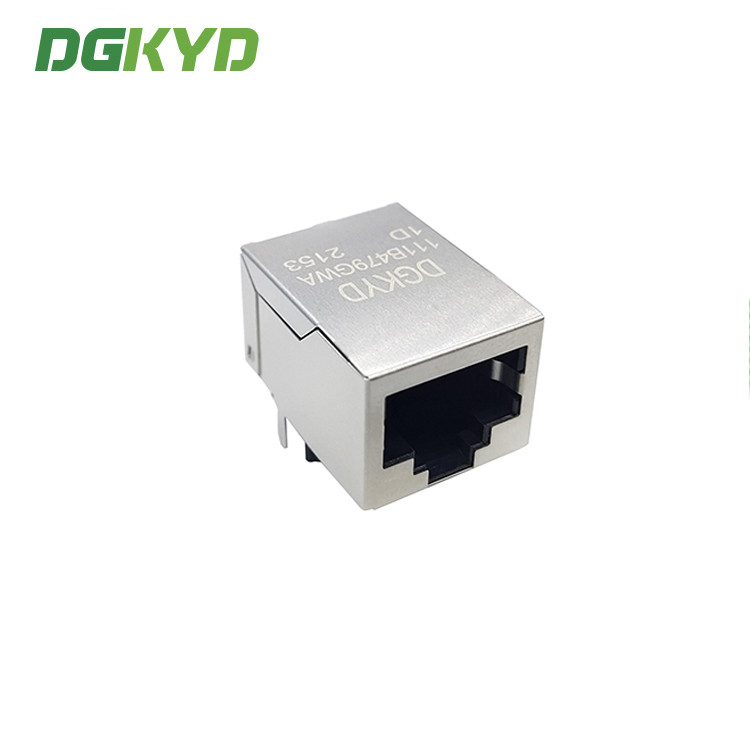

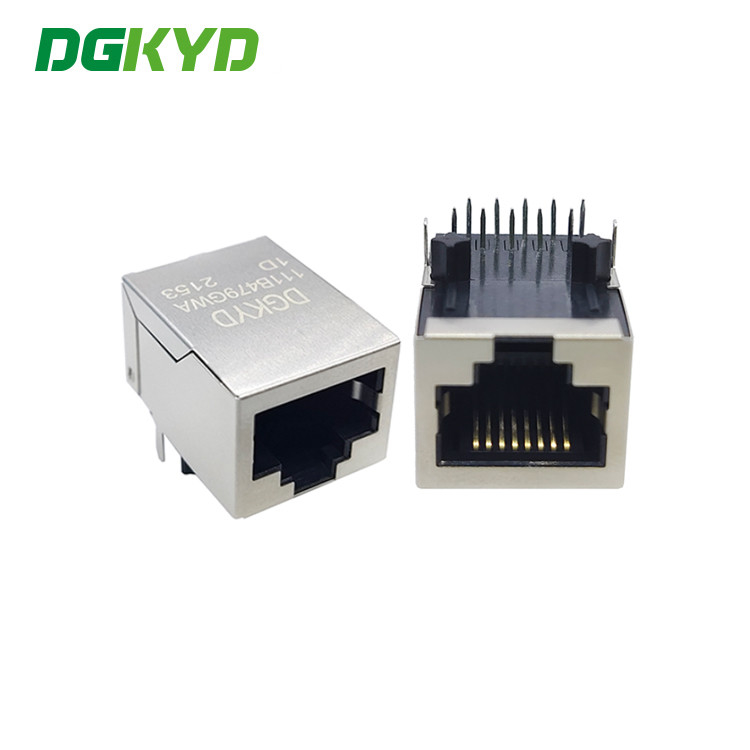

RJ45 8P8C Connector Integrated Circuit Board Electronic Components
RJ45 network port socket 8P8C in-line female socket with LED light integrated circuit board electronic components
Parameters
| Part Number |
DGKYD111B479GWA1D |
Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-down |
| Filter | With Filter | LED Option | Without LED |
| LED Color | No | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000 BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | Single Ports | Number of Positions |
8 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u/15u/30u/50u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
RJ45 type network cable plug is also called crystal plug. It is made of eight cores. It is widely used in the connection of network cables between LAN and ADSL broadband Internet users' network equipment (called Category 5 cable or twisted pair). In specific applications, there are two connection methods (wire sequence) for RJ45 plugs and network cables, which are called T568A wire sequence and T568B wire sequence respectively.
The identification method of the pin number of the RJ45 network cable plug is: hold the plug in your hand, the end with 8 small gold-plated pieces is up, the end with the large rectangular opening for the network cable is down, and the one without the slender plastic bayonet is facing downwards. With your eyes, starting from the first small gilded piece on the left, it is foot 1, foot 2, ..., foot 8.
Drawings
FAQ:
1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
