DGKYD211Q052FD2A5D RJ45 Network Connector Ethernet Filter

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD211Q052FD2A5D

Detail Information
Application:	PCB	Gender:	Female
Housing Material:	PA66 BLACK	Contact Mating Area Plating:	GOLD 6u'' / 15u"/ 30u"/ 50u" For Optional
Latch:	UP	LED Option:	With LED
Number Of Ports:	1 Port	Number Of Contacts:	10PIN
PCB Mount Angle:	SIDE ENTRY
Highlight:	RJ45 Network Connector Ethernet Filter , DGKYD211Q052FD2A5D , PA66 BLACK RJ45 Network Connector

Product Description

DGKYD211Q052FD2A5D RJ45 network connector Ethernet filter RJ45 network interface socket

Part Number	DGKYD211Q052FD2A5D	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	CE /UL/FCC/Reach/RoHS
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	up
Filter	With Filter	LED Option	With LED
LED Color	Green/Yellow	Panel Stops	Without Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100/1000/10G BASE-T	Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single	Number of Positions	10
Jack Configuration	1 x 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PA66 Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

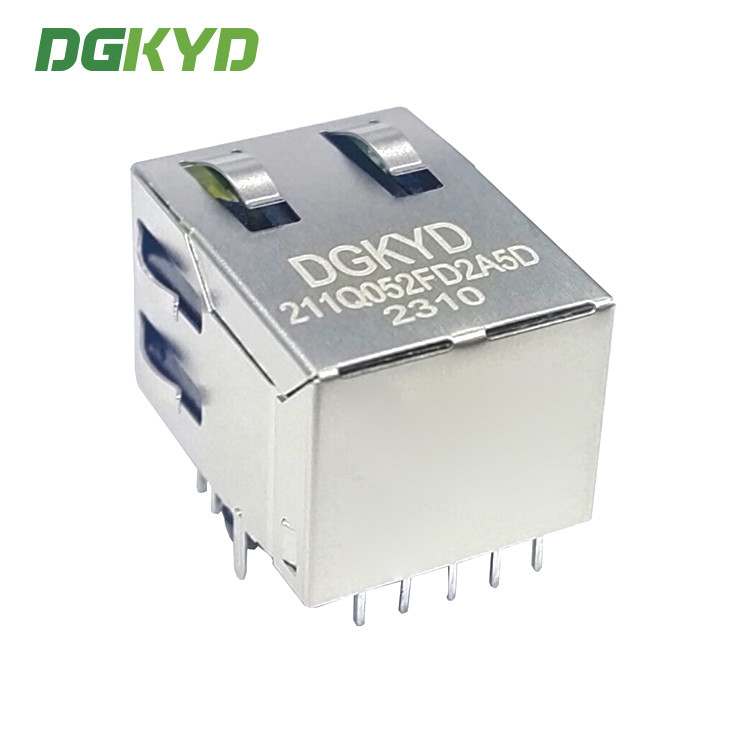

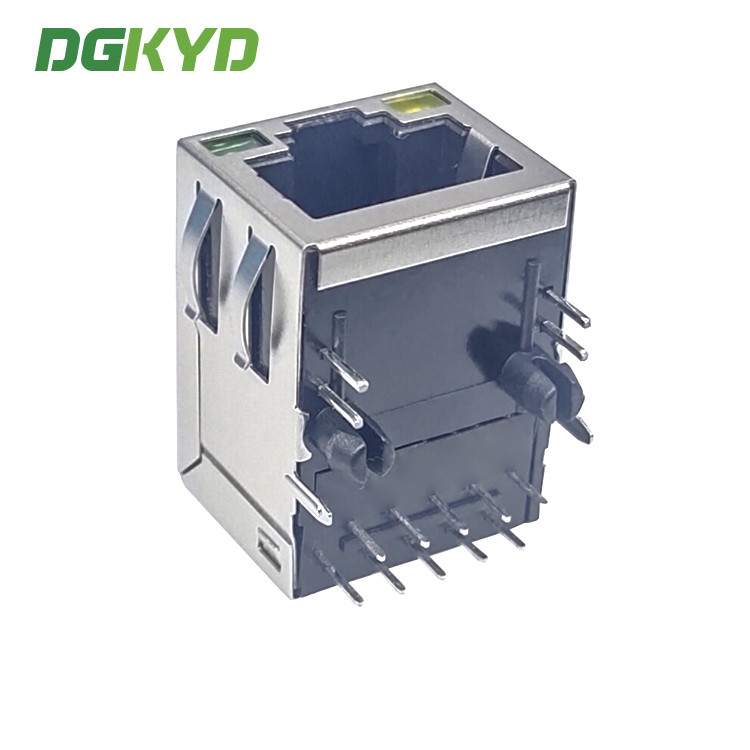

DGKYD211Q052FD2A5D RJ45 Network Connector Ethernet Filter 0

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly,100% test, 0 defect, short lead time are our best advantages
