RJ45 100Mbps Ethernet socket 8P8C module with compact window surface DGKYD5A11B048AA1A8DMZ
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | KRJ-2513NL |
|
Detail Information |
|||
| EMI Fingers: | For Optional | Feature: | High Performance With Magnetics And LED |
|---|---|---|---|
| RJ45 Suitable: | For CAT5&6 Ethernet Cable Or UTP | Application: | Lan,bridge,PC,router,usb Hub Network Rj45 And All Ethernet Devices |
| Gender: | Female RJ45 | Product Name: | RJ45 Ethernet Connector |
| Highlight: | 4 Gang Rj45 Multi Port Jack,KRJ-2513NL Rj45 Multi Port Jack,4 Gang Multiport Rj45 |
||

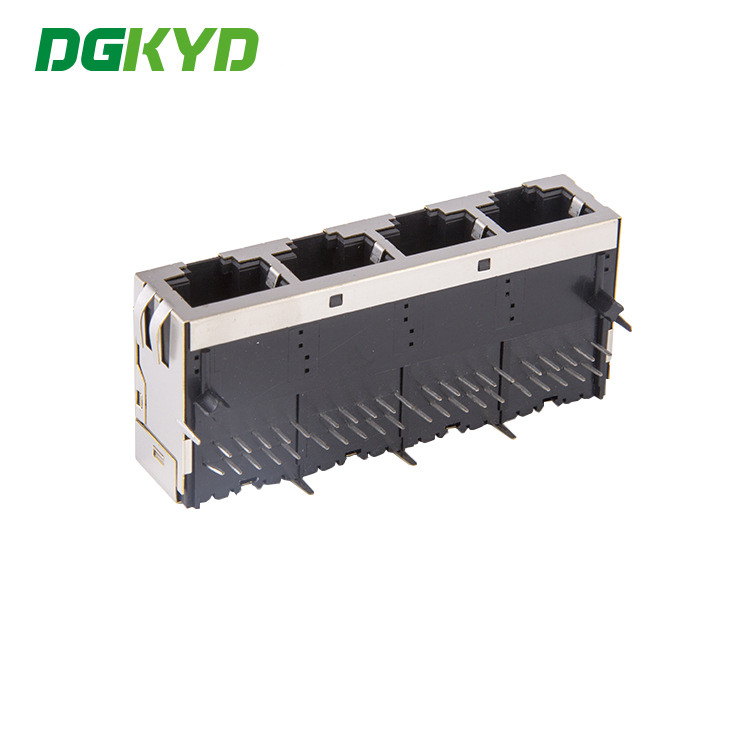

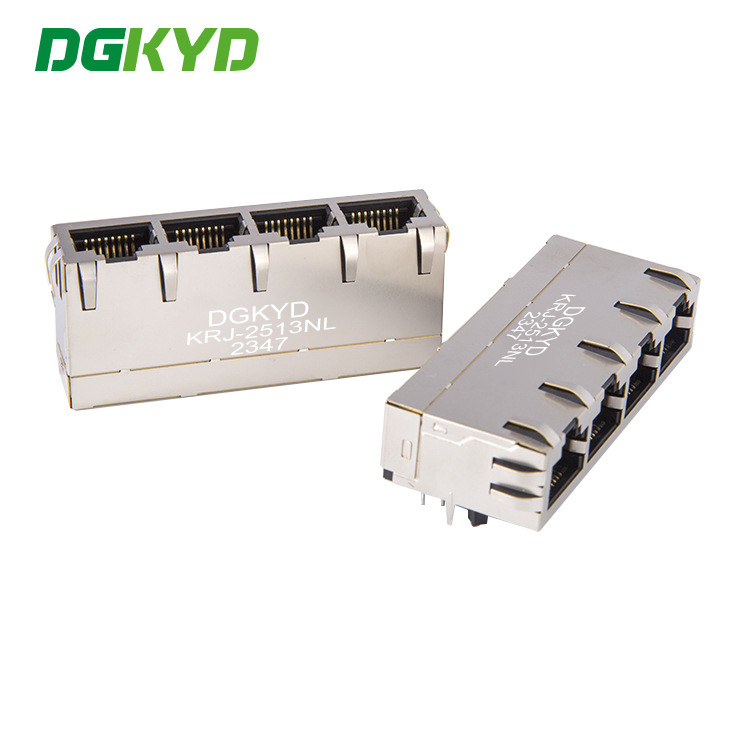

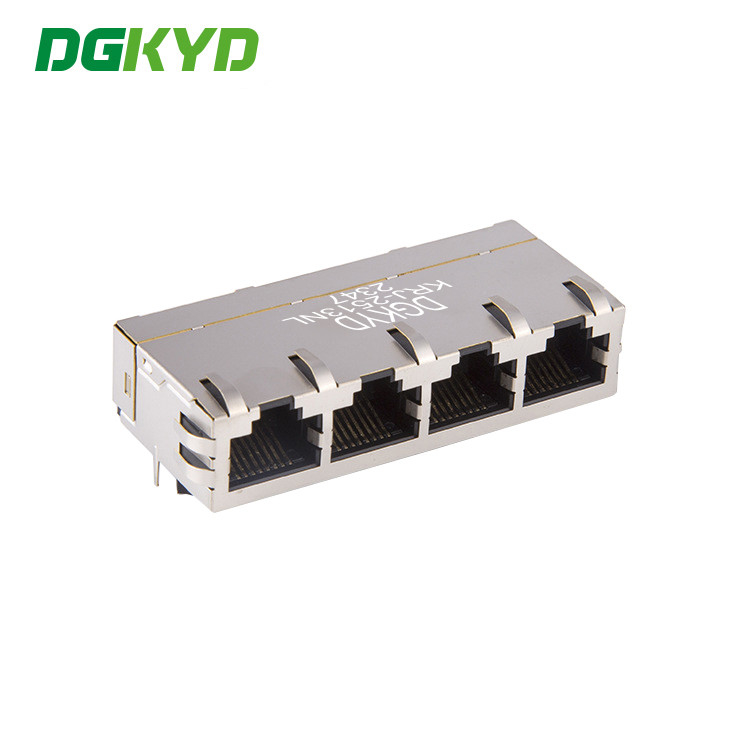

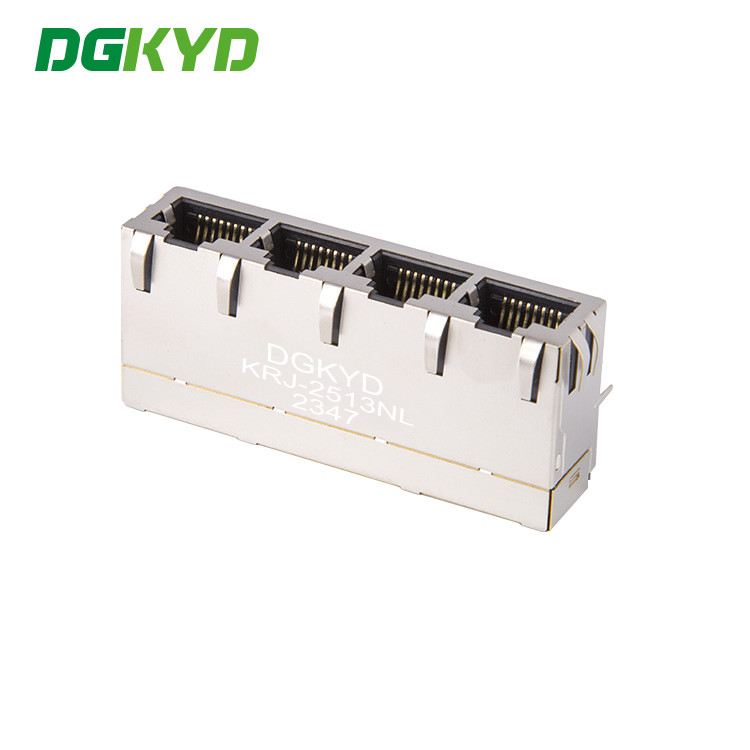

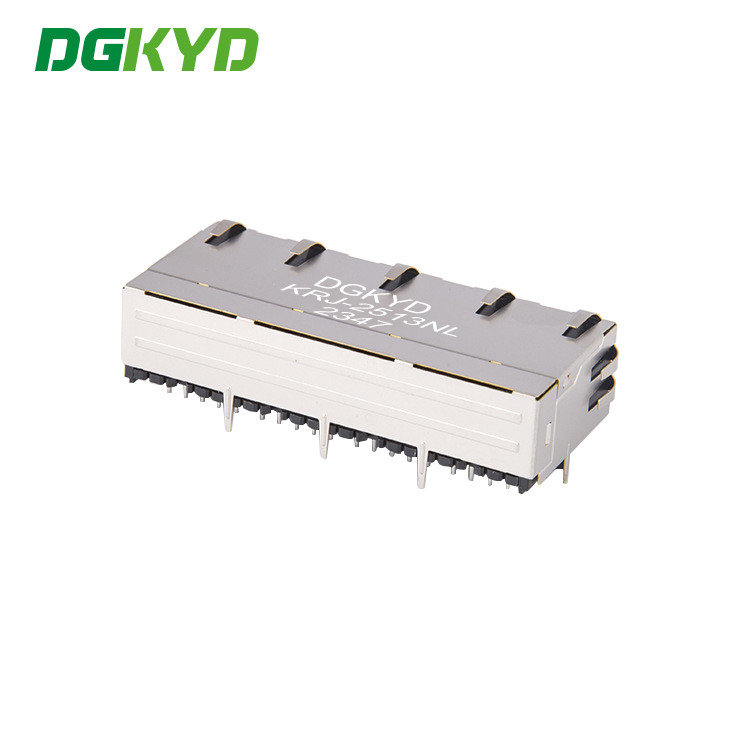

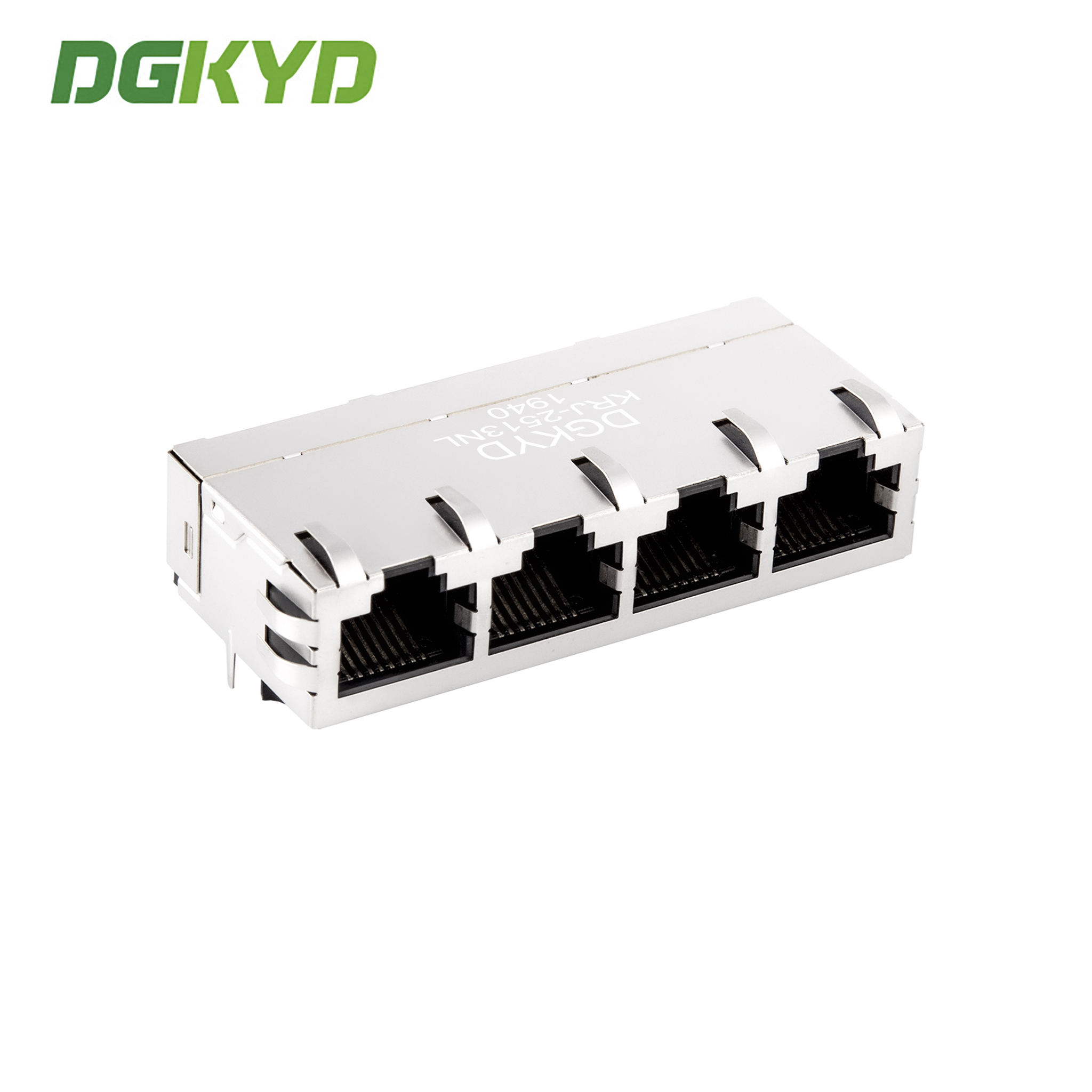

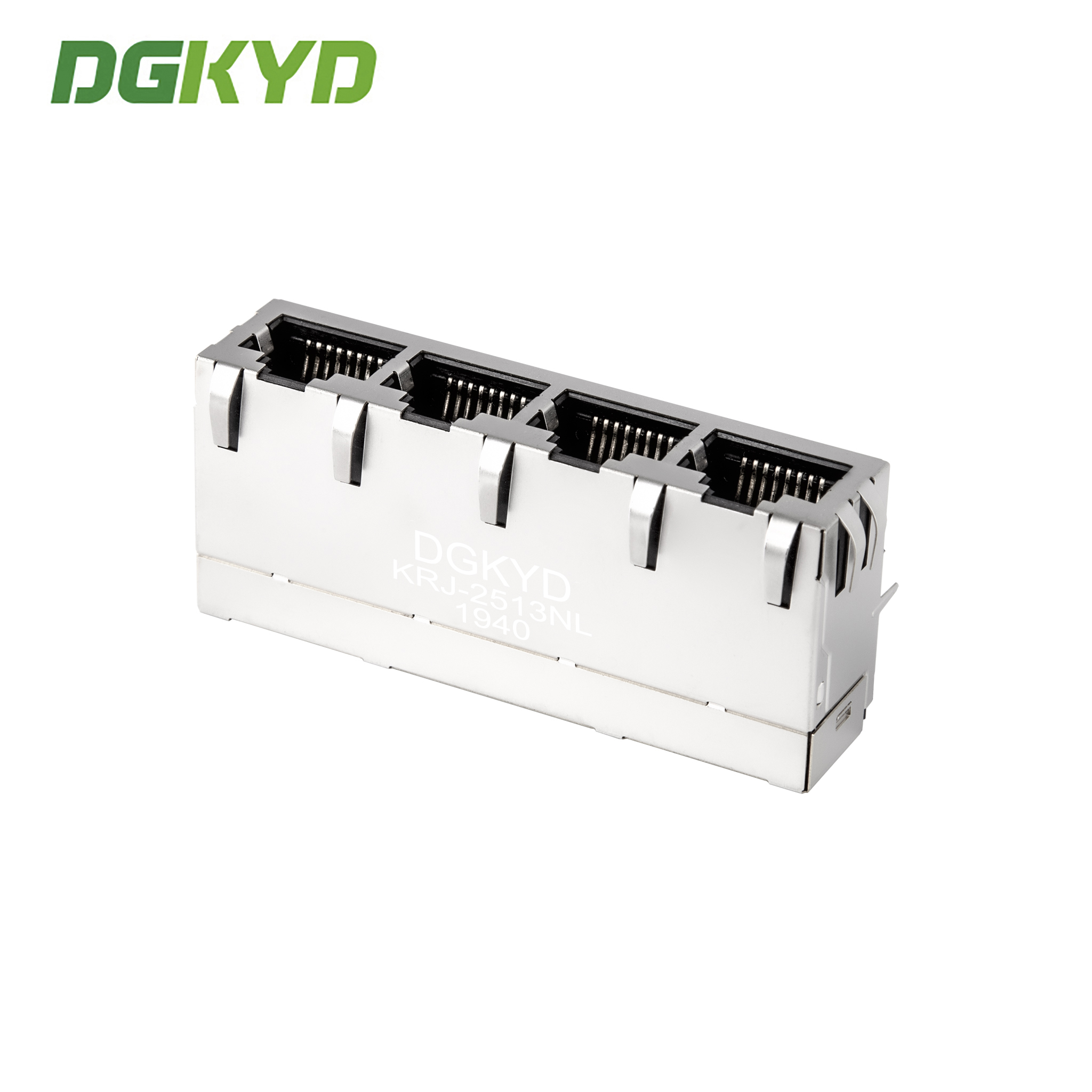

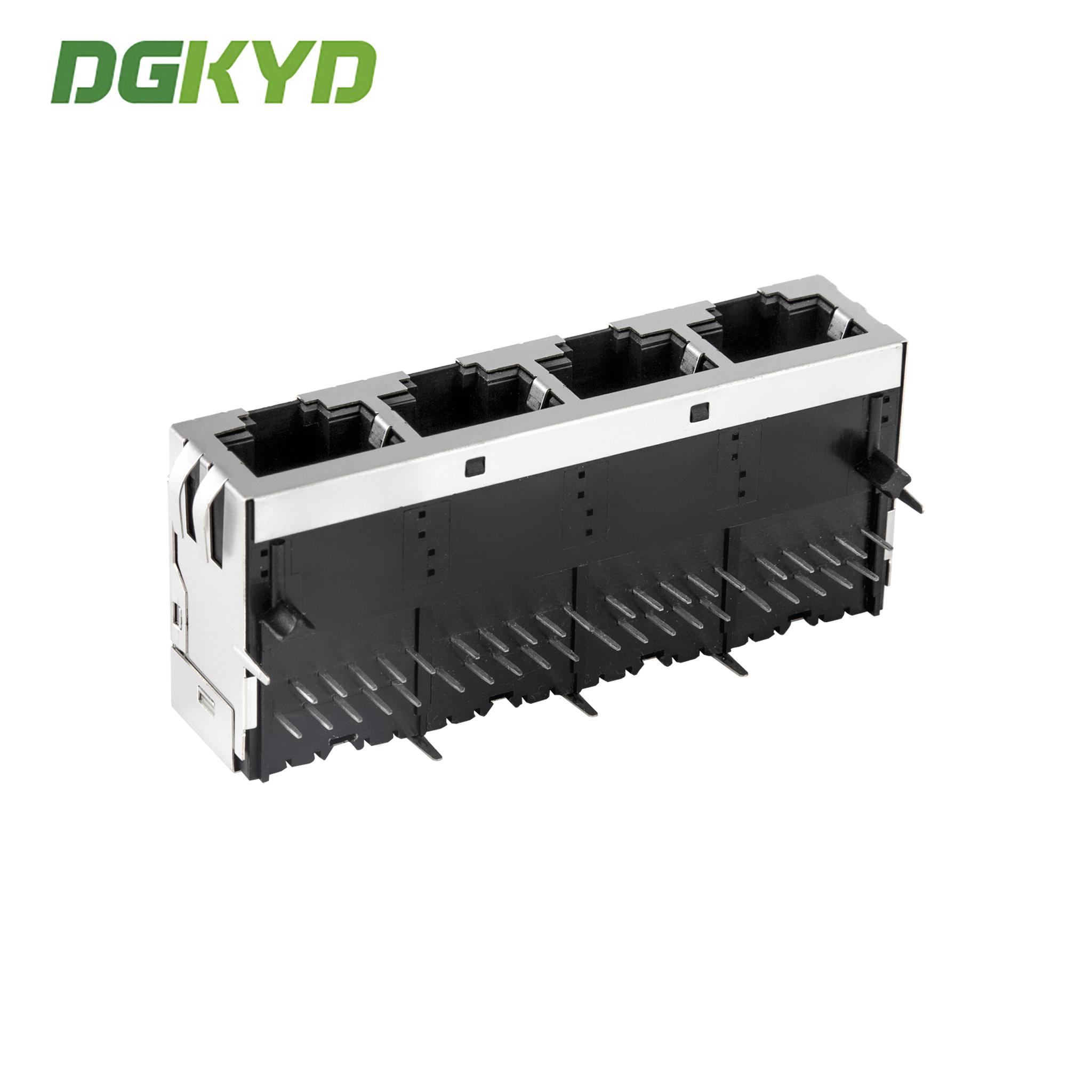

Product Description
Product Specification Document

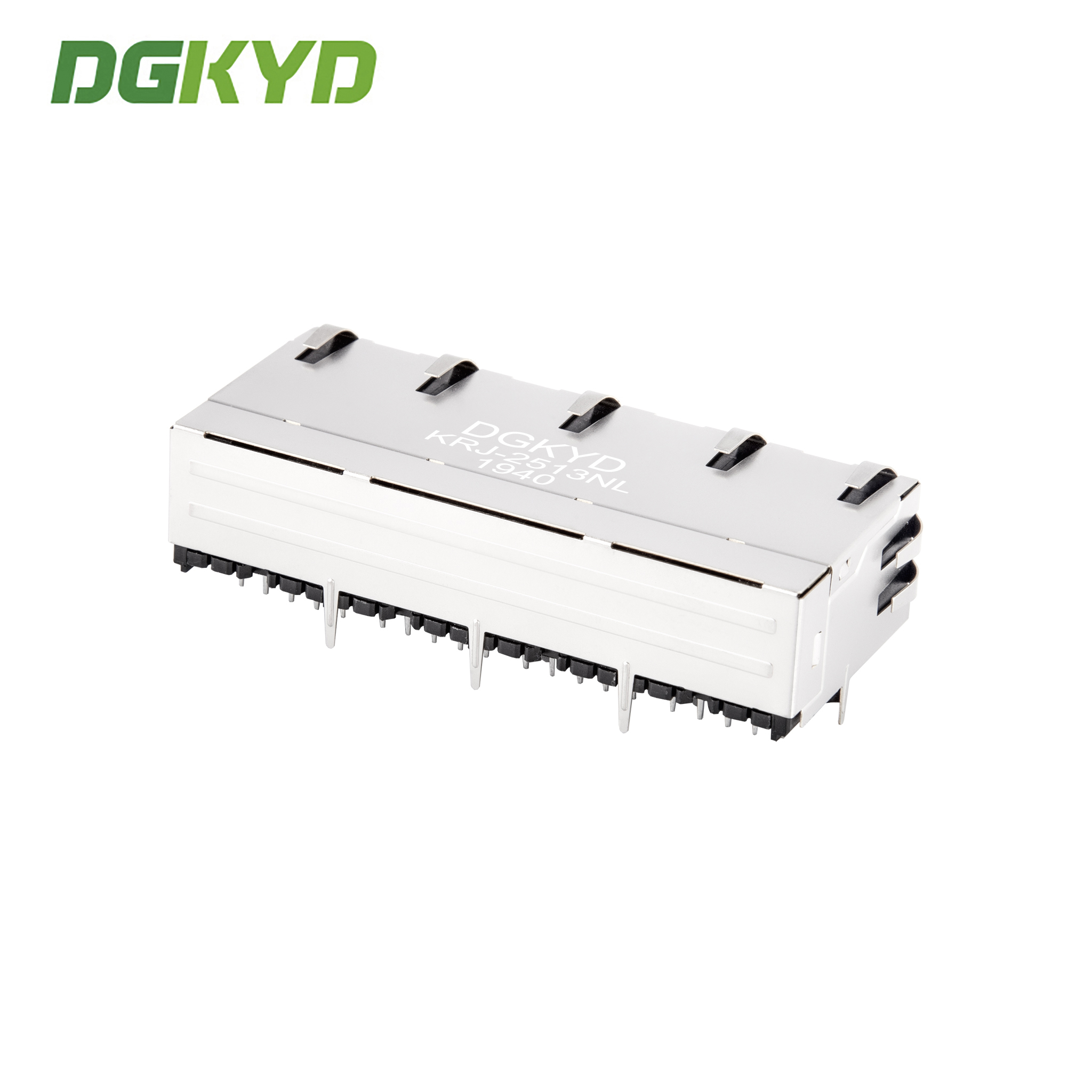

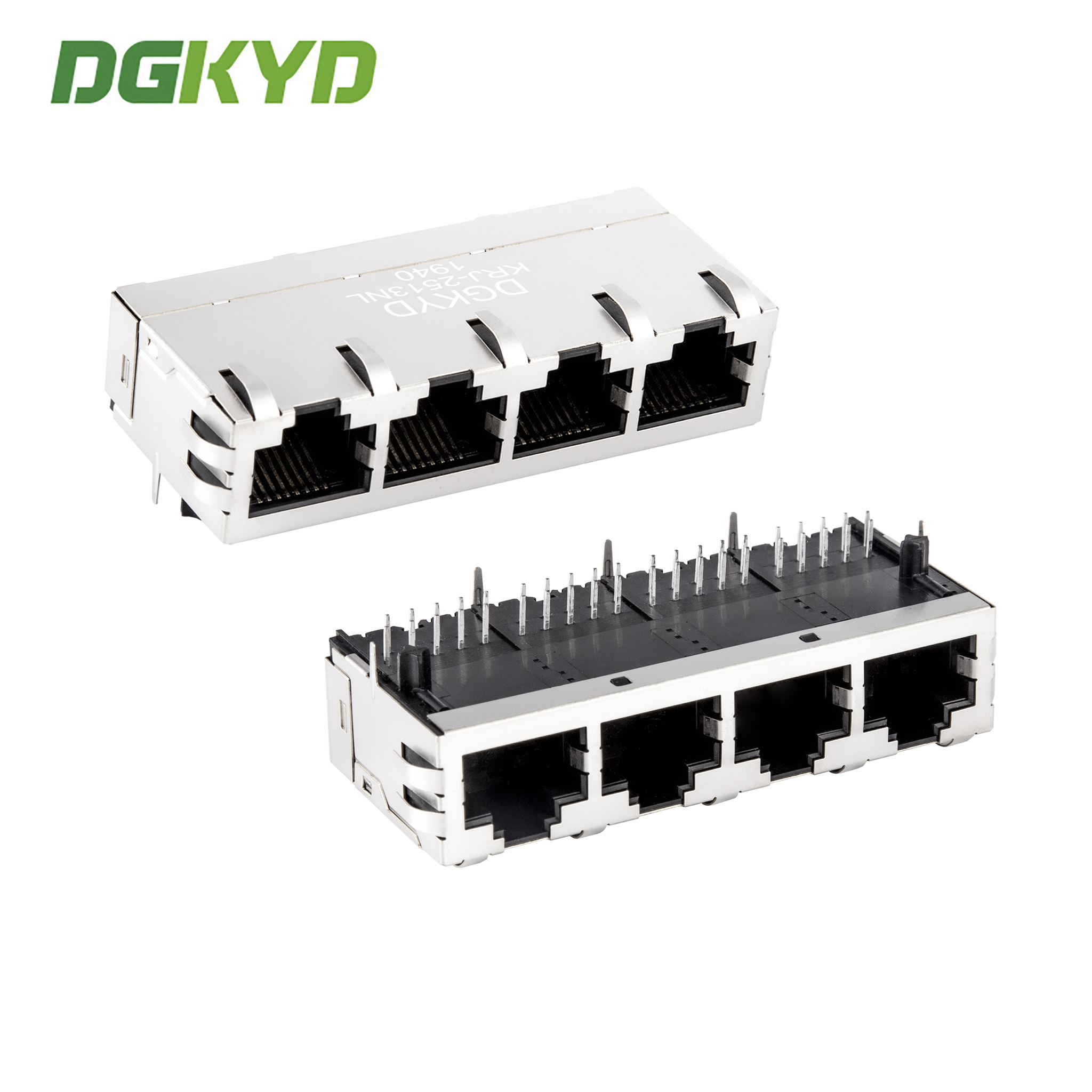

| Part Number | KRJ-2513NL | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | CE /UL/FCC/Reach/RoHS |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | up |
| Filter | With internal filter | LED Option | Without LED |
| LED Color | N/A | Panel Stops | With Panel Stops |
| Shielded | metal shielded | Applies To | Printed Circuit Board |
| Performance Speed | 1000 BASE-TX | Grounding Options | Panel Ground and PCB Ground |
| Port Configuration | 4 port | Number of Positions | 10 |
| Jack Configuration | 1 x 4 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board |
Through Hole-Press-Fit
|
Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
Specifications / Design Features
• Provides a transition point from MRJ21 to RJ45 connectivity
• Versions available to support Gigabit Ethernet
• Versions available to support 10/100/1000 Base-T
• Accommodates shielded and unshielded cabling solutions
• 4 port
• UL listed
