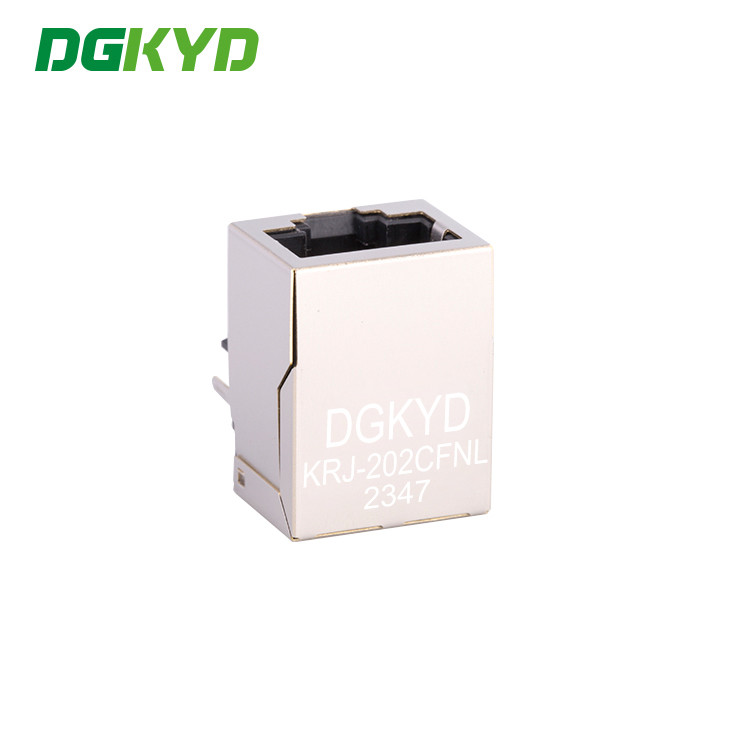

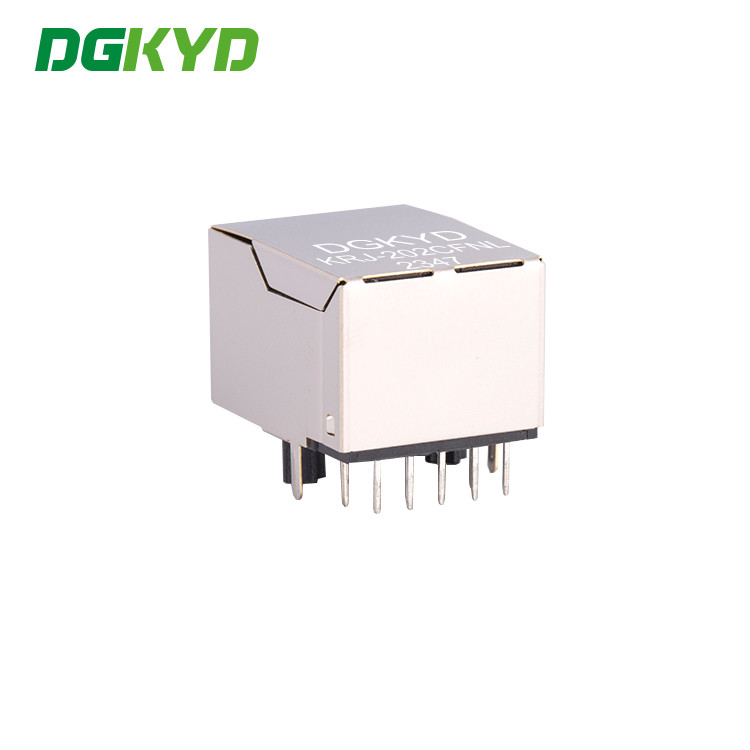

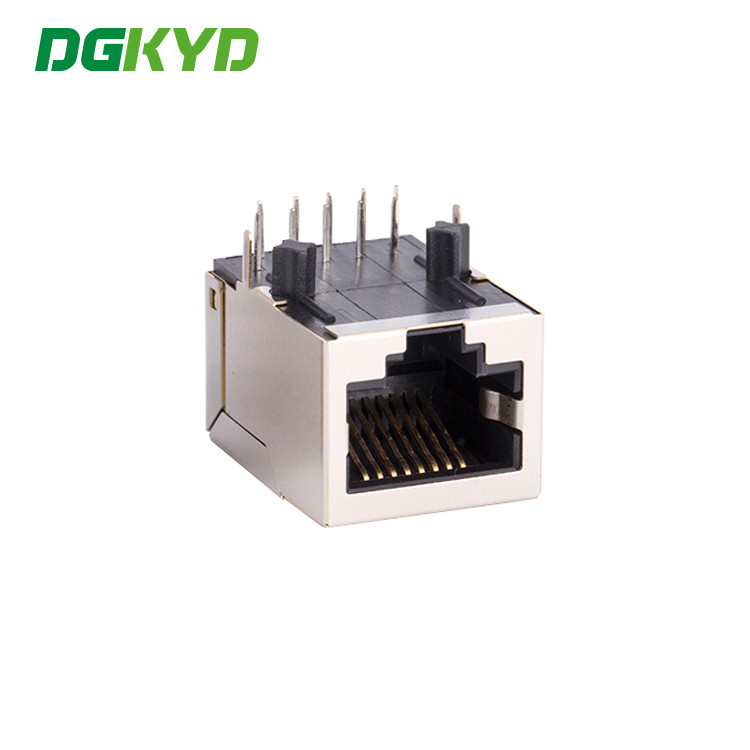

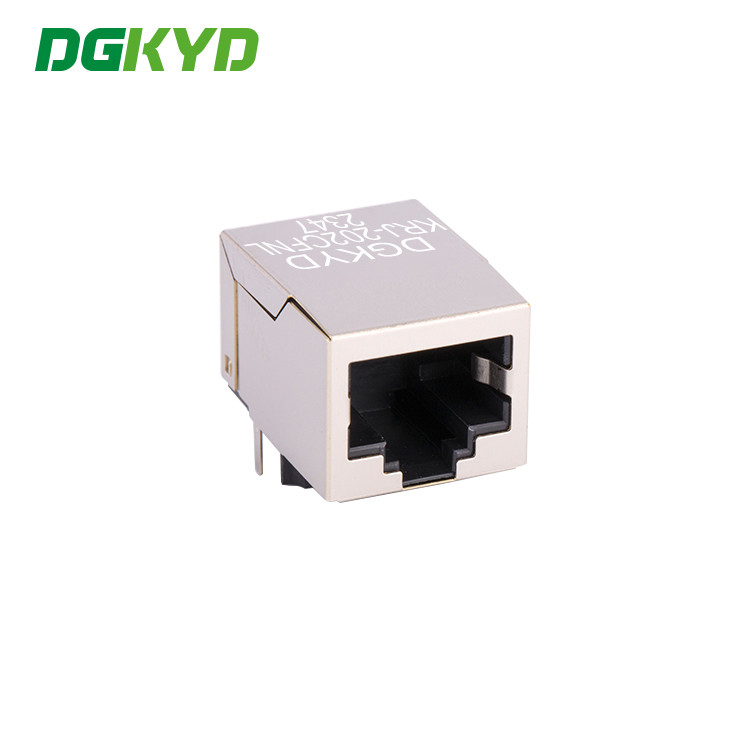

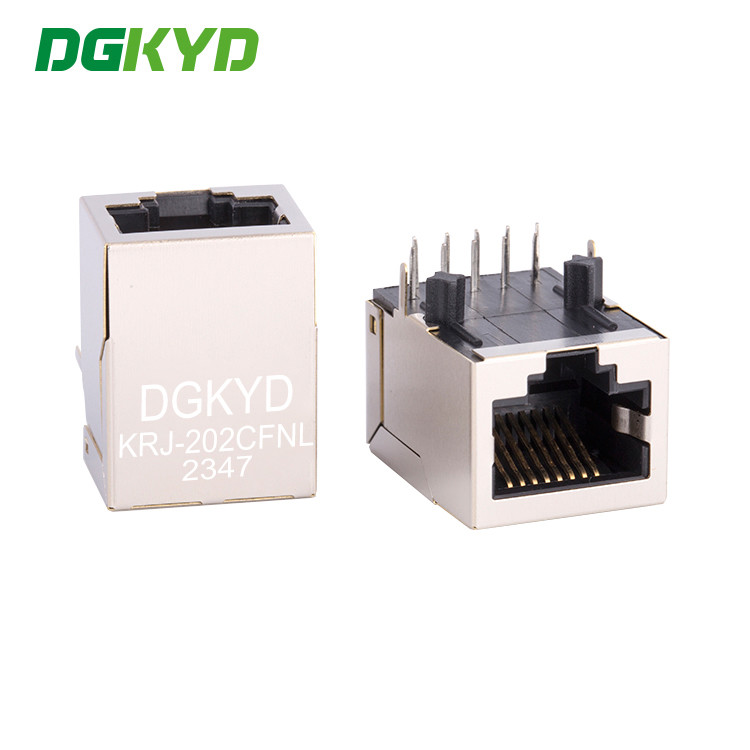

KRJ-202CFNL Gigabit RJ45 Signal Transmission Socket Crystal Head Card Port Downward No Light Belt Shielding

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-202CFNL

Detail Information
Component Type:	PCB Jack	Depth:	2.11mm
Magnetic:	Yes	Performance Category:	1000Mb
Power Over Ethernet (PoE):	Non PoE	Product Name:	Magnetic Jack, Modular Jack
Highlight:	2.11mm Depth Rj45 Connecter , Rj45 Connecter With Transformer , Right Angle Rj45 Connector With Transformer

Product Description

KRJ-202CFNL Gigabit RJ45 Signal Transmission Socket Crystal Head Card Port Downward No Light Belt Shielding

Product Specification Document

KRJ-202CFNL.pdf

Part Number	KRJ-202CFNL	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-DOWN
Filter	With Filter	LED Option	Without LED
LED Color	No	Panel Stops	Without Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	100/1000/BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative).
Port Configuration	Single Ports	Number of Positions	10
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT
Temperature	Standard	UL Flammability Rating	UL 94V-0

Descriptions:

10/100/1000Base-Tx RJ45 single port 1X1 Vertical without LED with side entry
Single port 1X1 Tab-Down RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 260℃
Operating temperarure range :0℃ to +70℃
Storage temperature range :-40℃ to +85℃
Number of positions:10
Number of contacts loaded:8
Shield:YES
Rohs compliant
Length:21.3mm
LEDS:NO
EMI finger:NO
Usage:LA1S109/KRJ-202CFNL

Single-Port RJ45 connectors are robust, high-reliability magnetic jacks that provide an automated reflow-solder assembly solution designed to meet the uppermost customer demands for mechanical, electrical and environmental performance while offering cost advantages associated with increased production output
