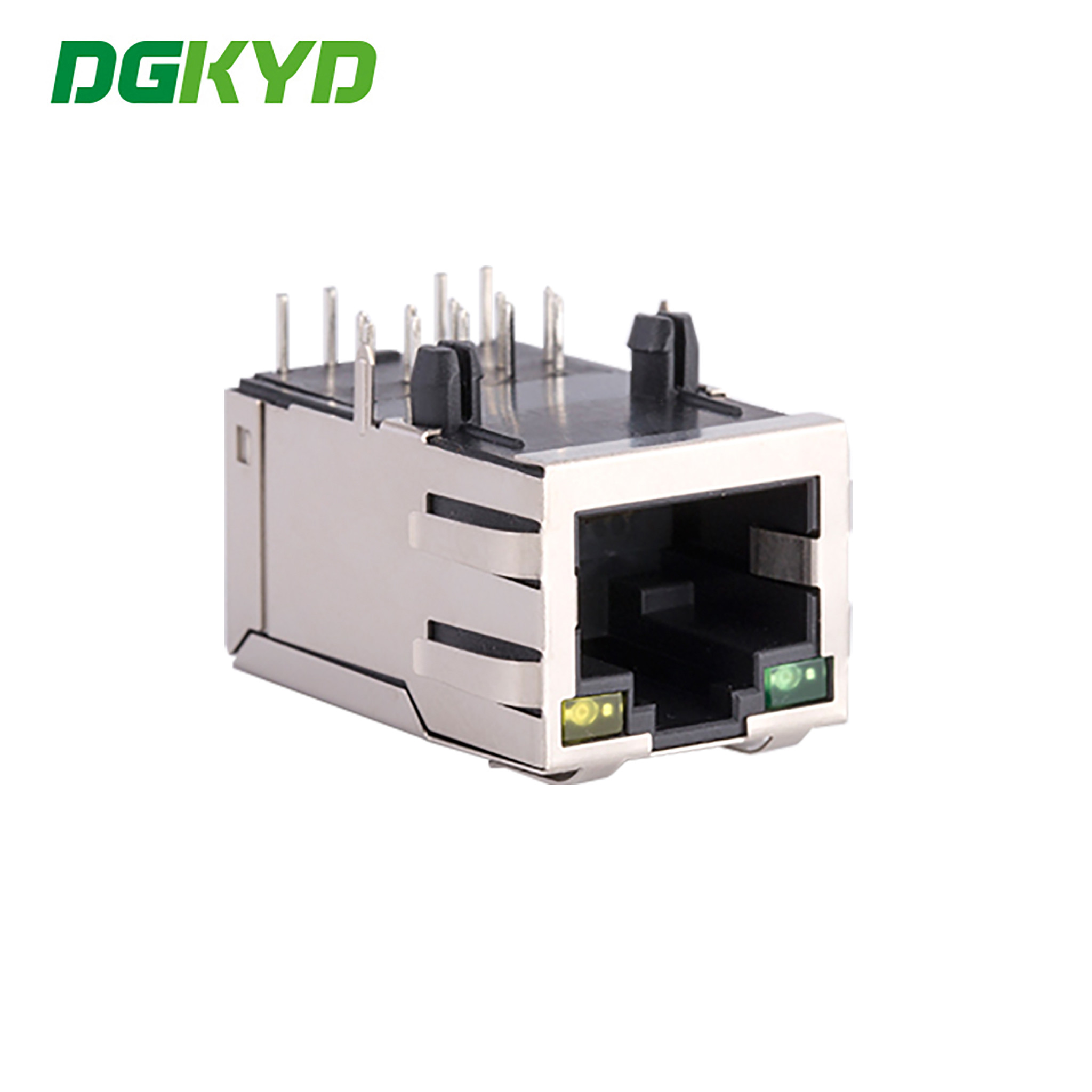

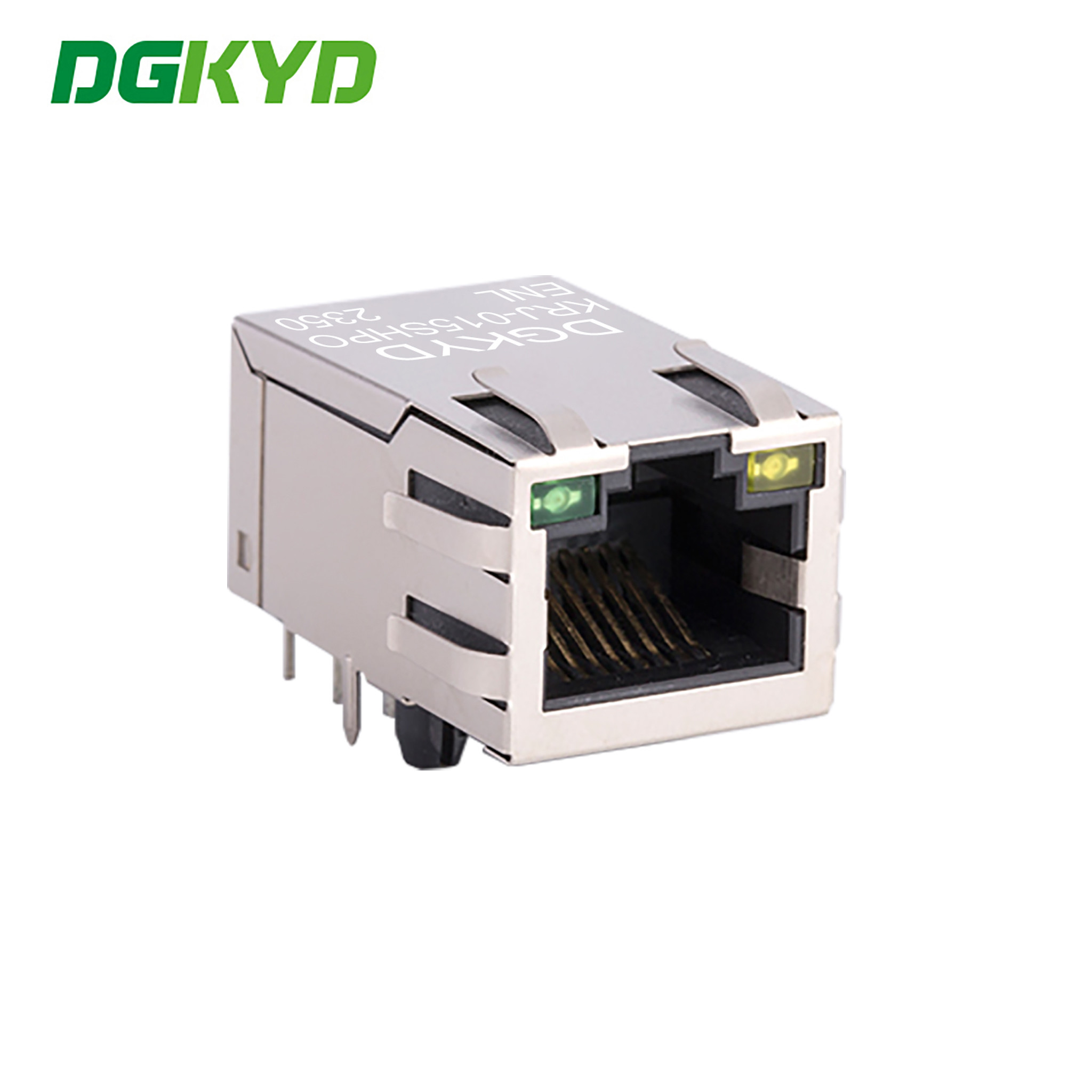

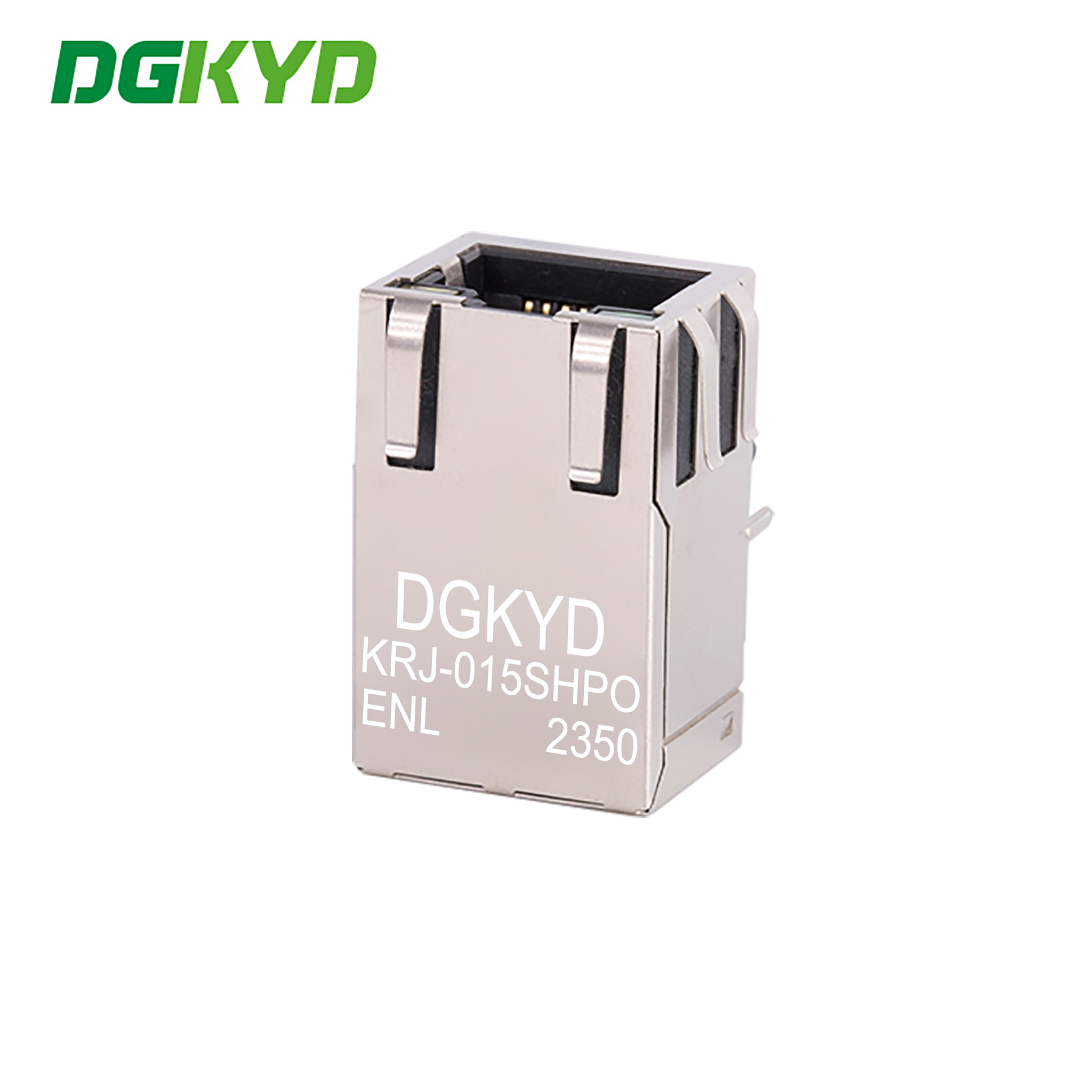

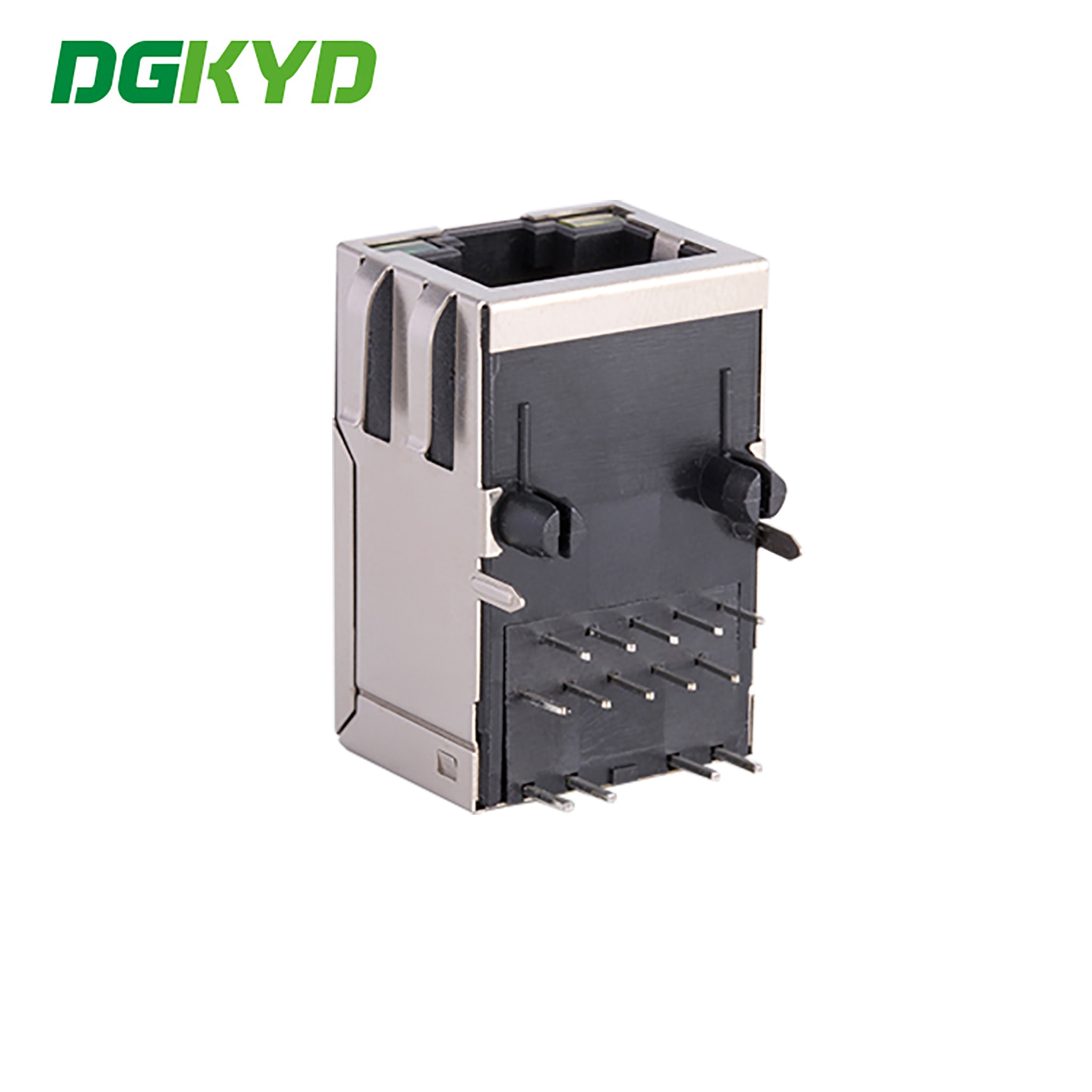

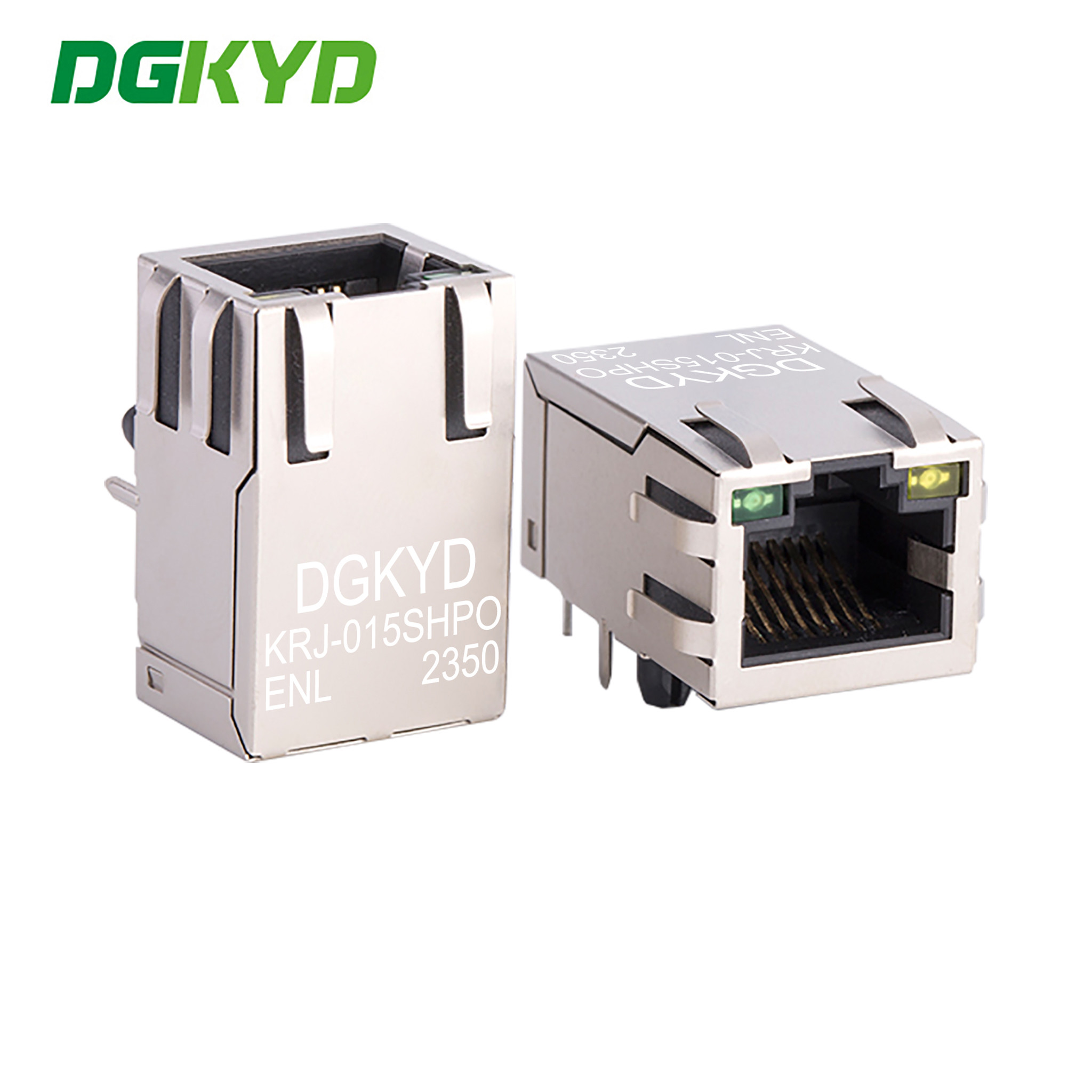

KRJ-015SHPOENL 25.4mm Single Port Rj45 Connector 100Mbps Filtering Integrated Transformer POE

Minimum Order Quantity :	500PCS	Price :	US $0.84-0.89per piece, Get latest price
Packaging Details :	40pieces/tray	Delivery Time :	5-10 days
Payment Terms :	T.T	Supply Ability :	40000pcs per day

Place of Origin:	Dong Guan of China	Brand Name:	DGKYD
Certification:	SGS、ISO9001-2008、ISO14001-2004	Model Number:	KRJ-015SHPOENL

Detail Information
Product Name:	RJ45 With Transformer	Type:	Jack
Housing:	Phenolic, PBT Black (UL94V-0)	Plastic Core:	Glass Fiber Filler PBT Black(UL94V-0),ROHS
Shielded:	Yes	No.Port:	Single Port
Highlight:	25.4mm Single Port Rj45 Connector , Single Port Rj45 Connector With Transformer , Rj45 Single Outlet With Transformer

Product Description

KRJ-015SHPOENL 25.4mm RJ45 network port connector single port 100Mbps filtering integrated transformer POE

Product Specification Document

KRJ-015SHPOENL.pdf

Parameters

Part Number	KRJ-015SHPOENL	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	With LED
LED Color	Green/Yellow	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100 BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative).
Port Configuration	Single Ports	Number of Positions	10
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Plastic core:Glass fiber filler PBT Black(UL94V-0)
Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
Housing:Phenolic, PBT Black (UL94V-0)
Metal shell:Copper Alloy ,Tin and Nickel plated
10/100Base-Tx RJ45 single port 1X1 with LEDS Side Entry (Right Angle)
Single port 1X1 Tab-Up RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 260℃

RJ45 ,in order to keep good touch between gold finger and crystal head,should paint the gold on the surface,there is 6u,15u,30,50u,usually use 6u,according to customer’s request and cost to proceed,

gold finger insert and pull life should be 750 times above

Applications:

Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set top box,internet camera,netbridge,computer, telecommunication, MODEM, HomePNA, DSL／ADSL and so on.

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
