RJ45 100Mbps Ethernet socket 8P8C module with compact window surface DGKYD5A11B048AA1A8DMZ
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | KRJ-008QGYGUSBNL |
|
Detail Information |
|||
| Product Name: | RJ45 Shielded Connector | Feature: | Metal Shielded, Pcb MOUNTABLE Rj45 Jack |
|---|---|---|---|
| Rj45 Port Structure: | USB 3.0 + RJ45 | LED Color: | Green & Yellow |
| Gender: | Female | Applications: | Switch,transceiver,laptop,computer RJ45 And Other Devices |
| Highlight: | USB2.0 Socket Rj45 90 Degree Connector,Rj45 90 Degree Connector With Light,Gigabit Filter 90 Degree Rj45 |
||
Product Description

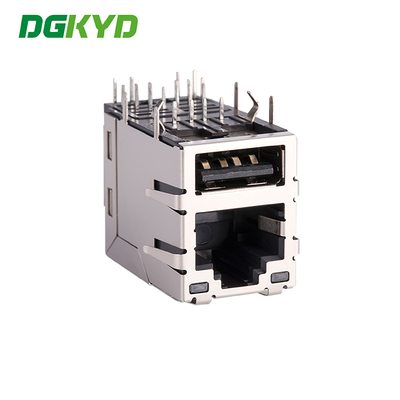

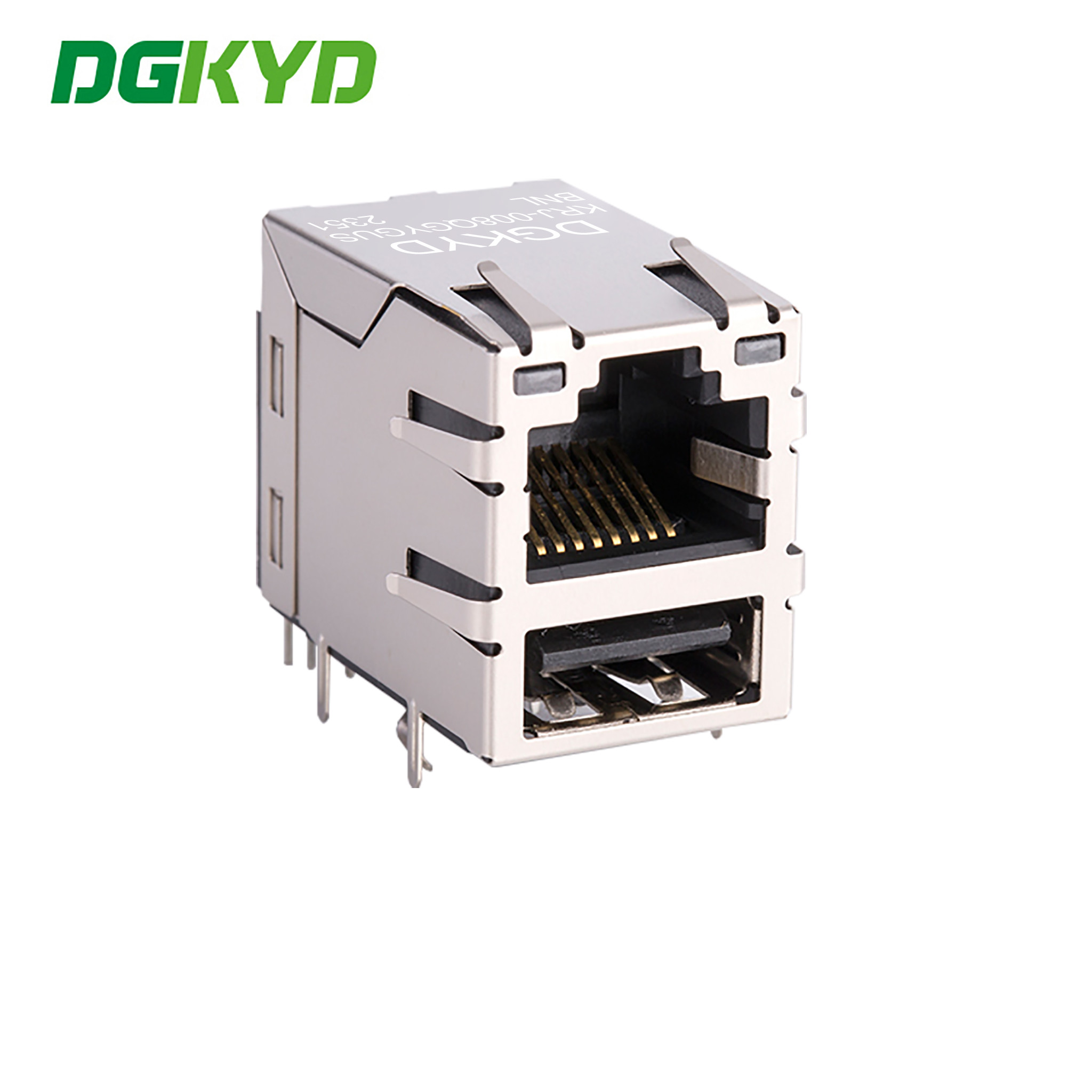

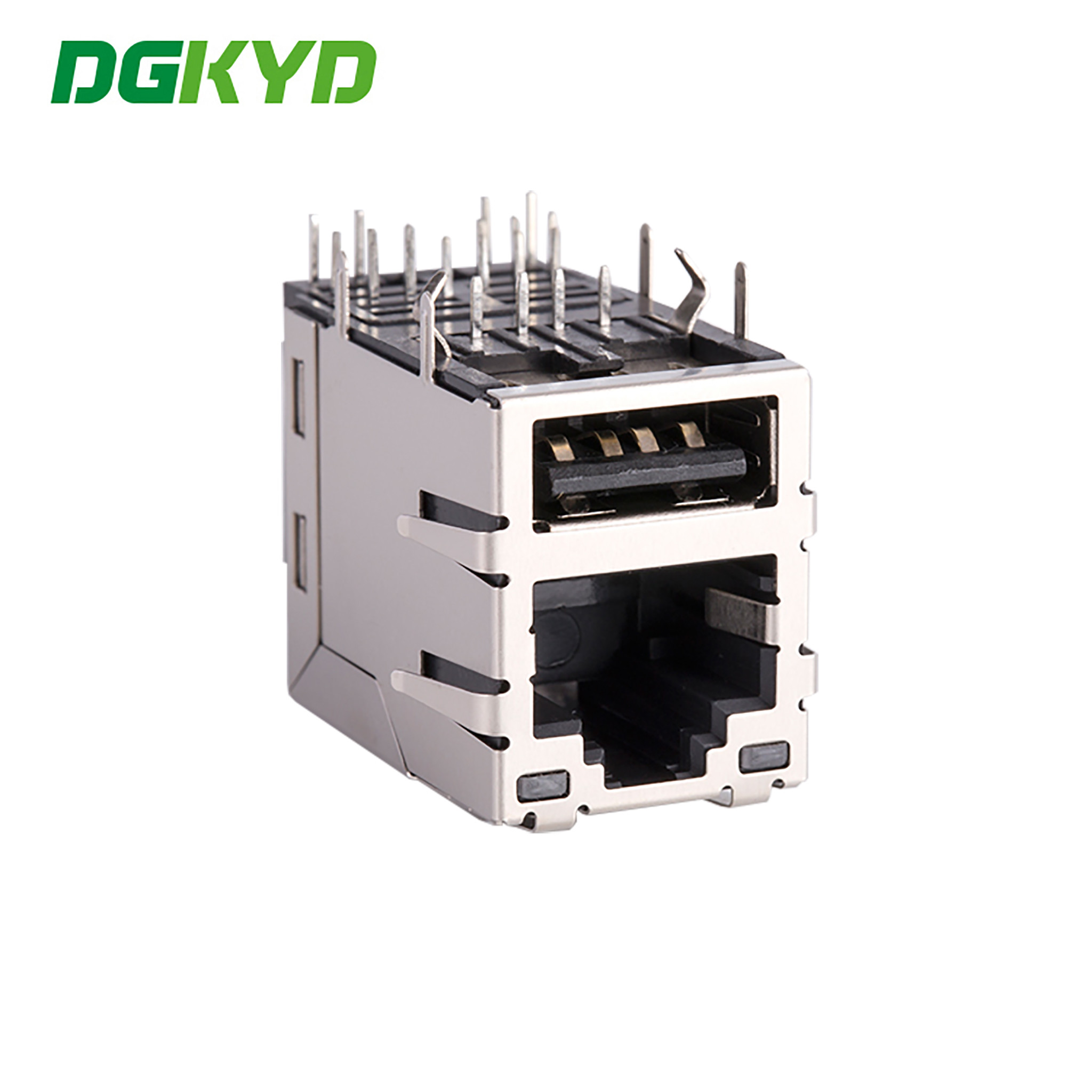

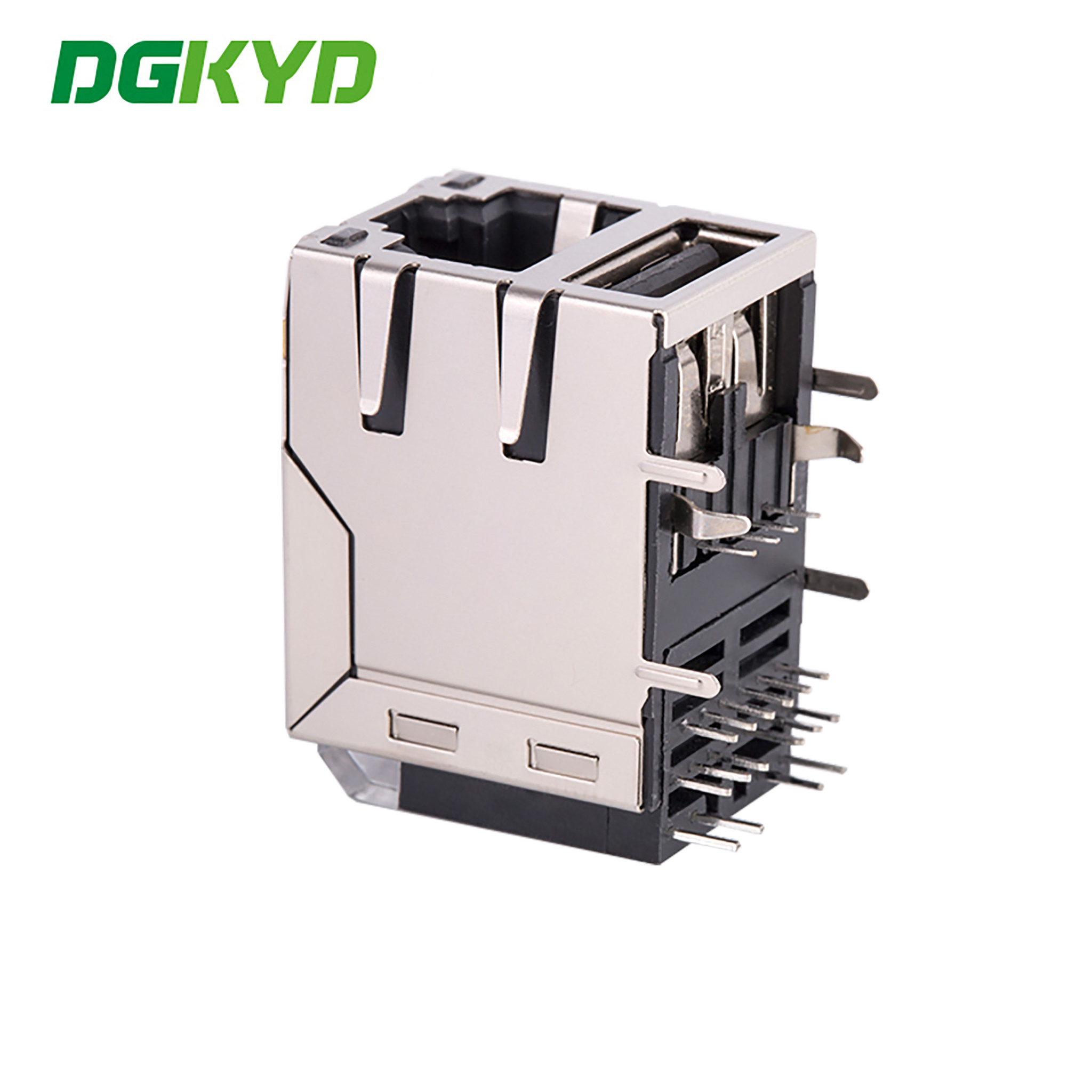

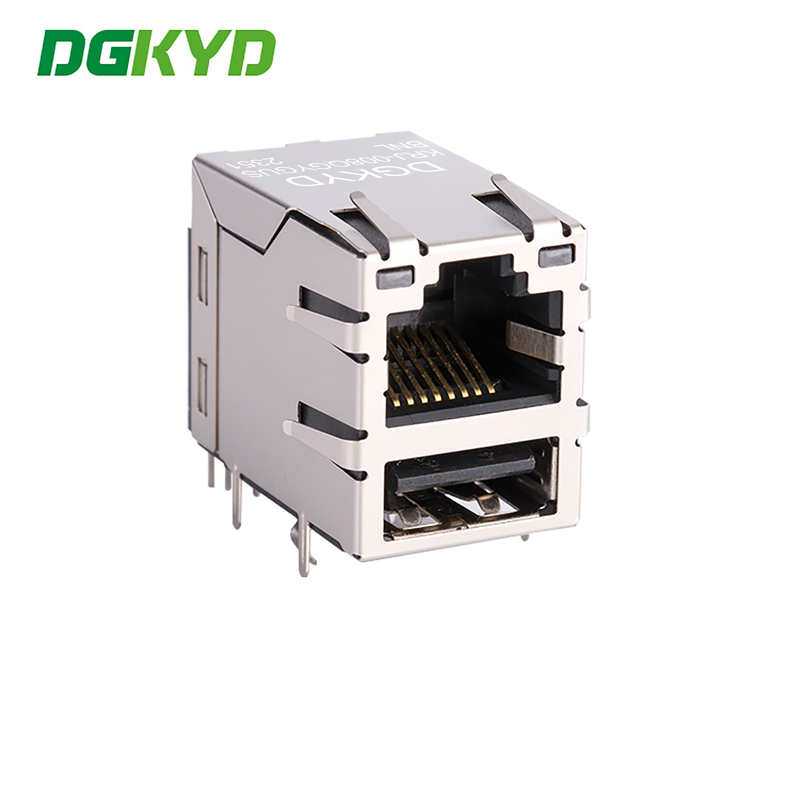

Metal Shield USB RJ45 Connector With Gigabit Ethernet Transformer
Metal shield stacked USB RJ45 Connector with gigabit ethernet transformer
Product Specification Document
Parameters
| Part Number | KRJ-008QGYGUSBNL | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | With Filter | LED Option | With LED |
| LED Color | Green/Yellow-Green | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100 BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | Single Ports | Number of Positions | 12 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |

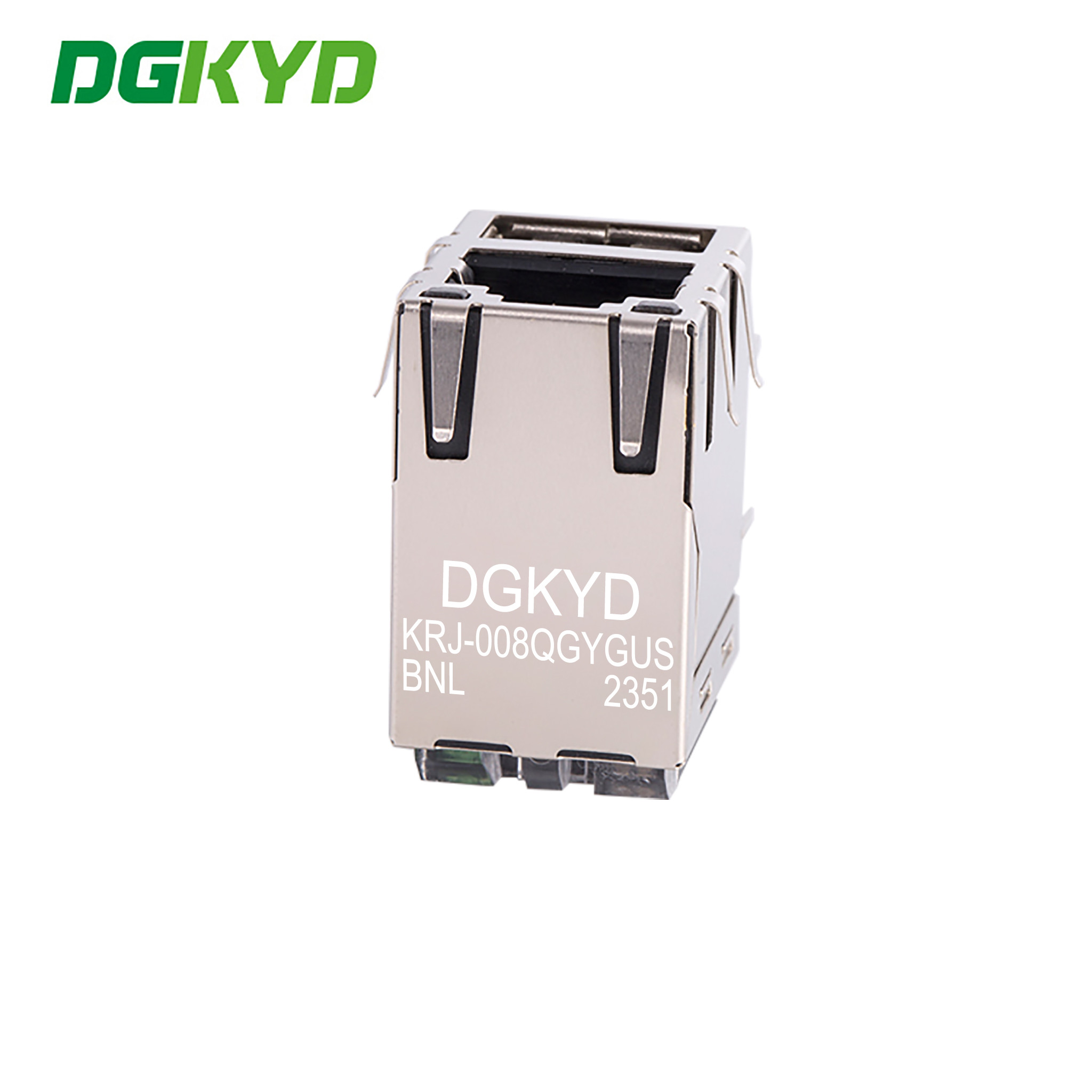

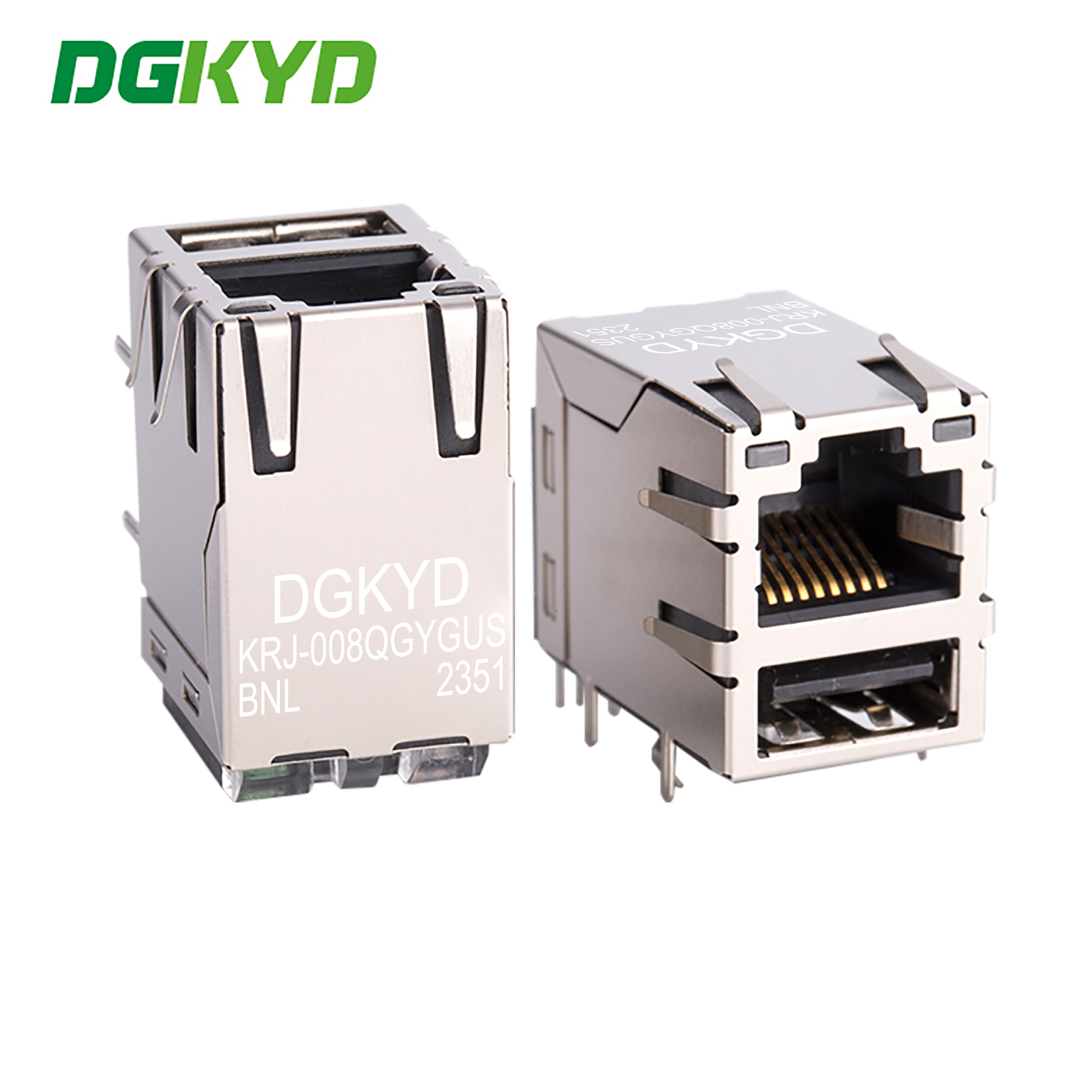

China manufacturer KRJ-008QGYGUSBNL metal shielded USB RJ45 Connector, cat6, with LEDs
Internal magnetics are 100% electrically tested for HI-POT and functionality
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 260℃
Operating temperarure range :0℃ to +70℃
Storage temperature range :-40℃ to +85℃
Length:29.0mm
Electrical Specifications at 25℃
．Insertion Loss:1-100MHZ -1.0dBmax
．Rturn Loss:1-30MHZ -16.0dBmin
30-60MHZ -14.0dBmin
60-80MHZ -10.0dBmin
．Cross Talk:1-30MHZ -40.0dBmin
30-60MHZ -35.0dBmin
60-80MHZ -30.0dBmin
．CMR:1-100MHZ -35dBmin
．Hi-pot:1500v AC 6S 1mA
．Turn Ratio:1CT:1CT±3%
．OCL:350uH @100KHZ 100Mv 8mA DC
Applications:
• Integrated RJ45 connector main used to :
• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical
transceiver,IP phone, internet set- top box,internet camera,netbridge,computer,telecommunication,
MODEM,HomePNA,DSL／ADSL and so on.
