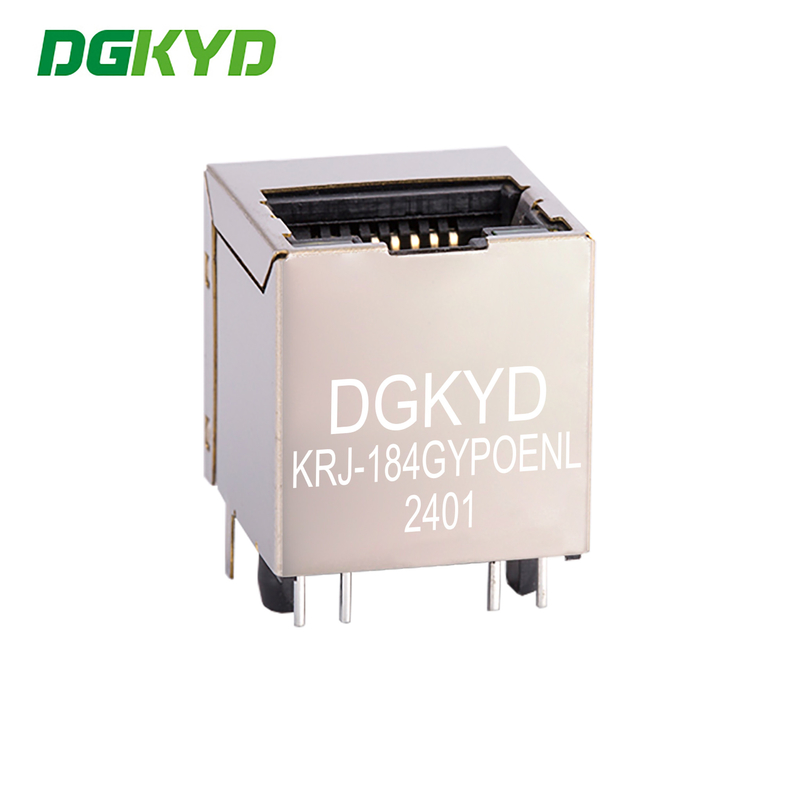

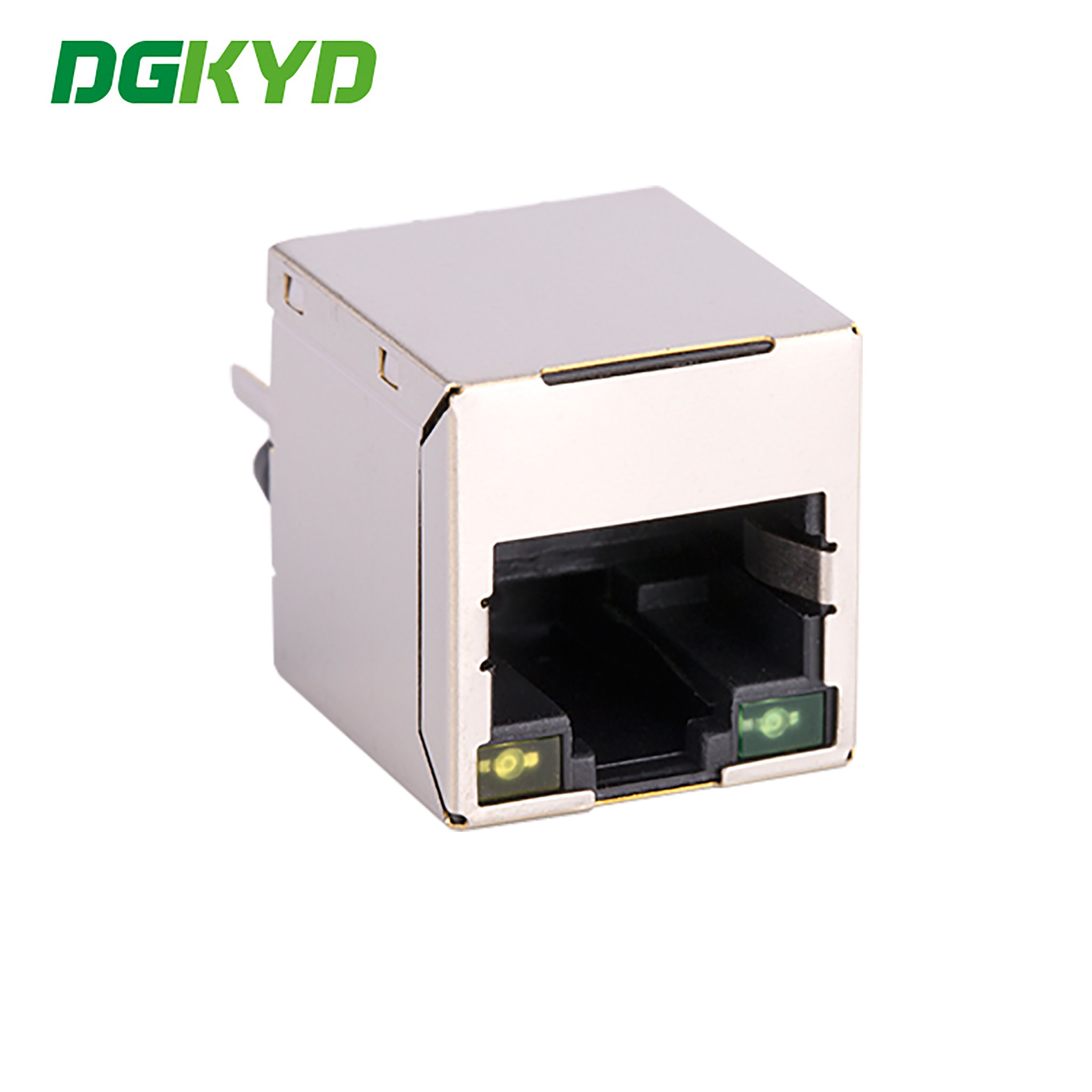

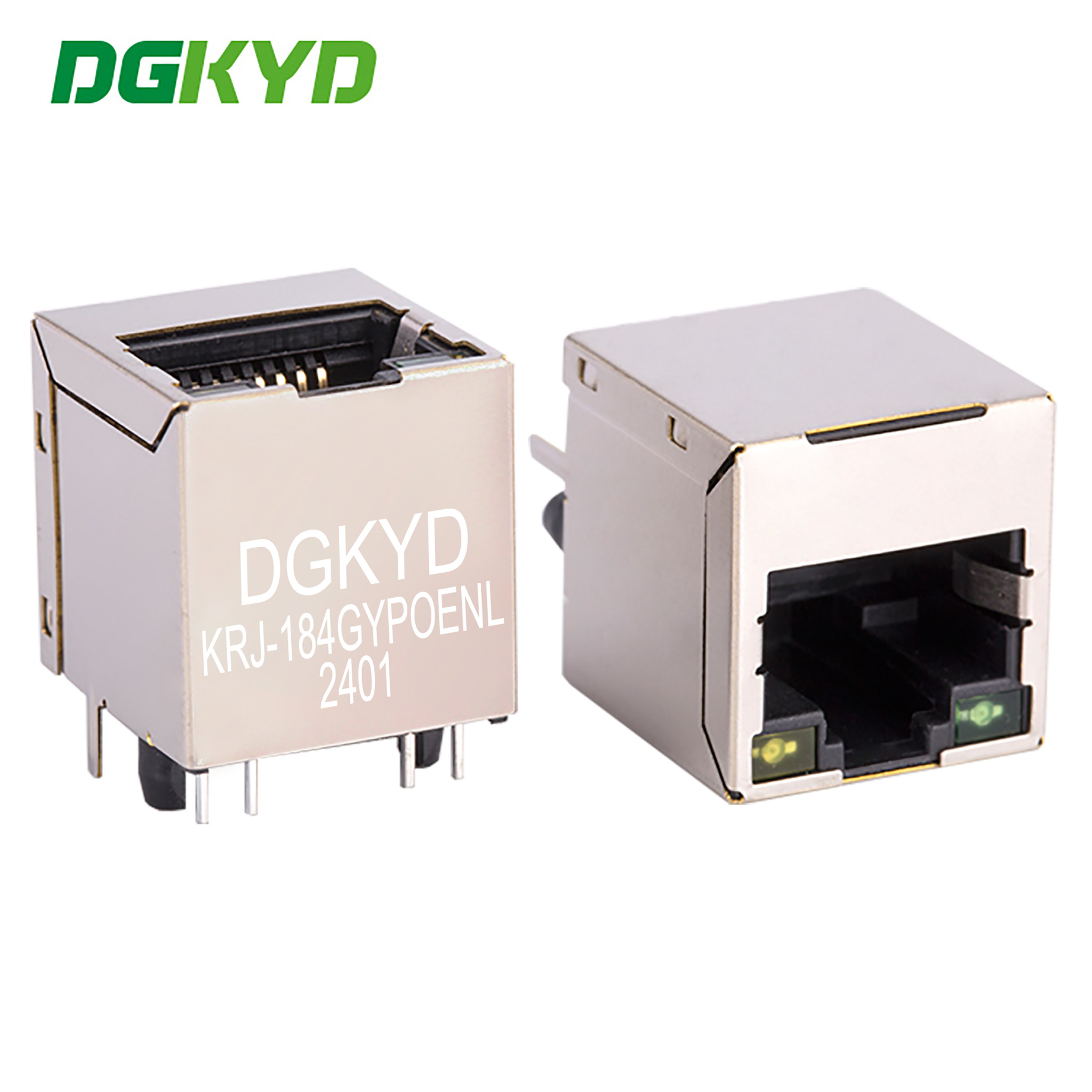

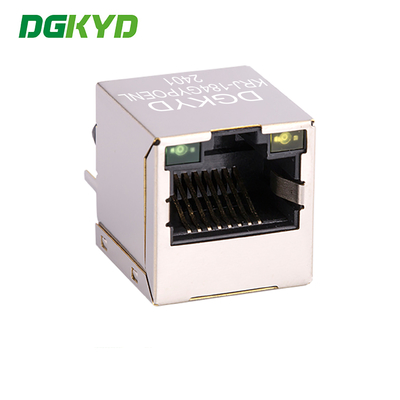

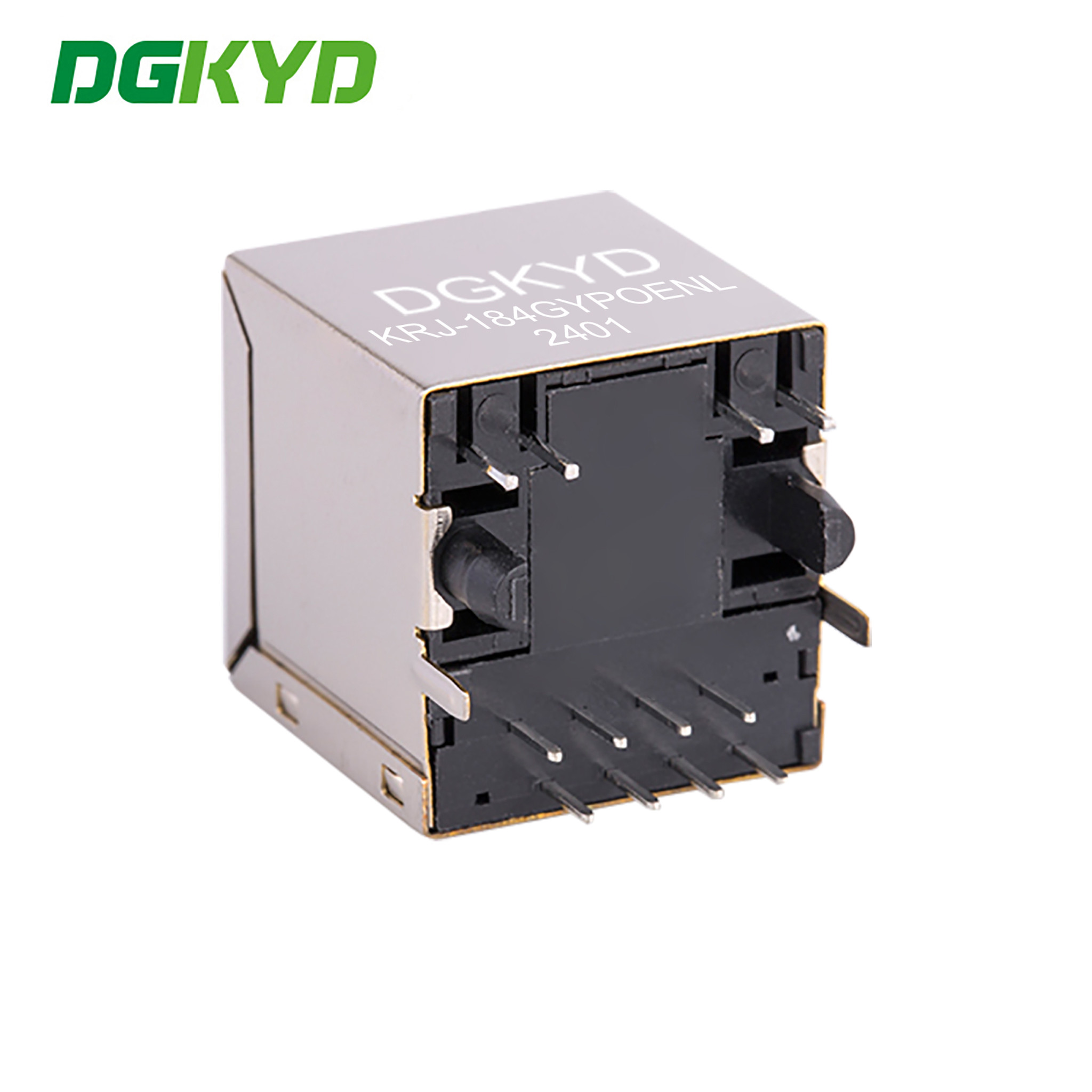

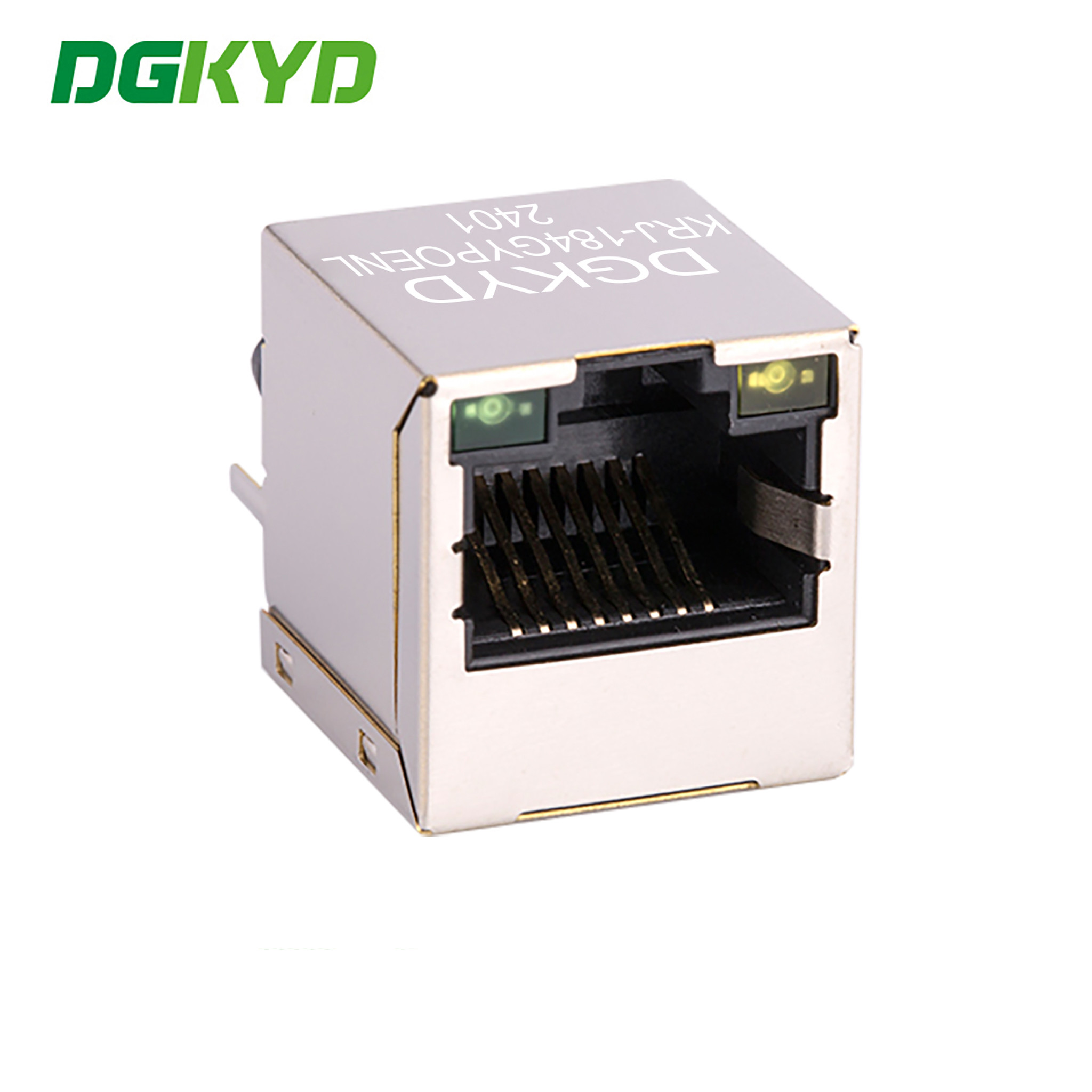

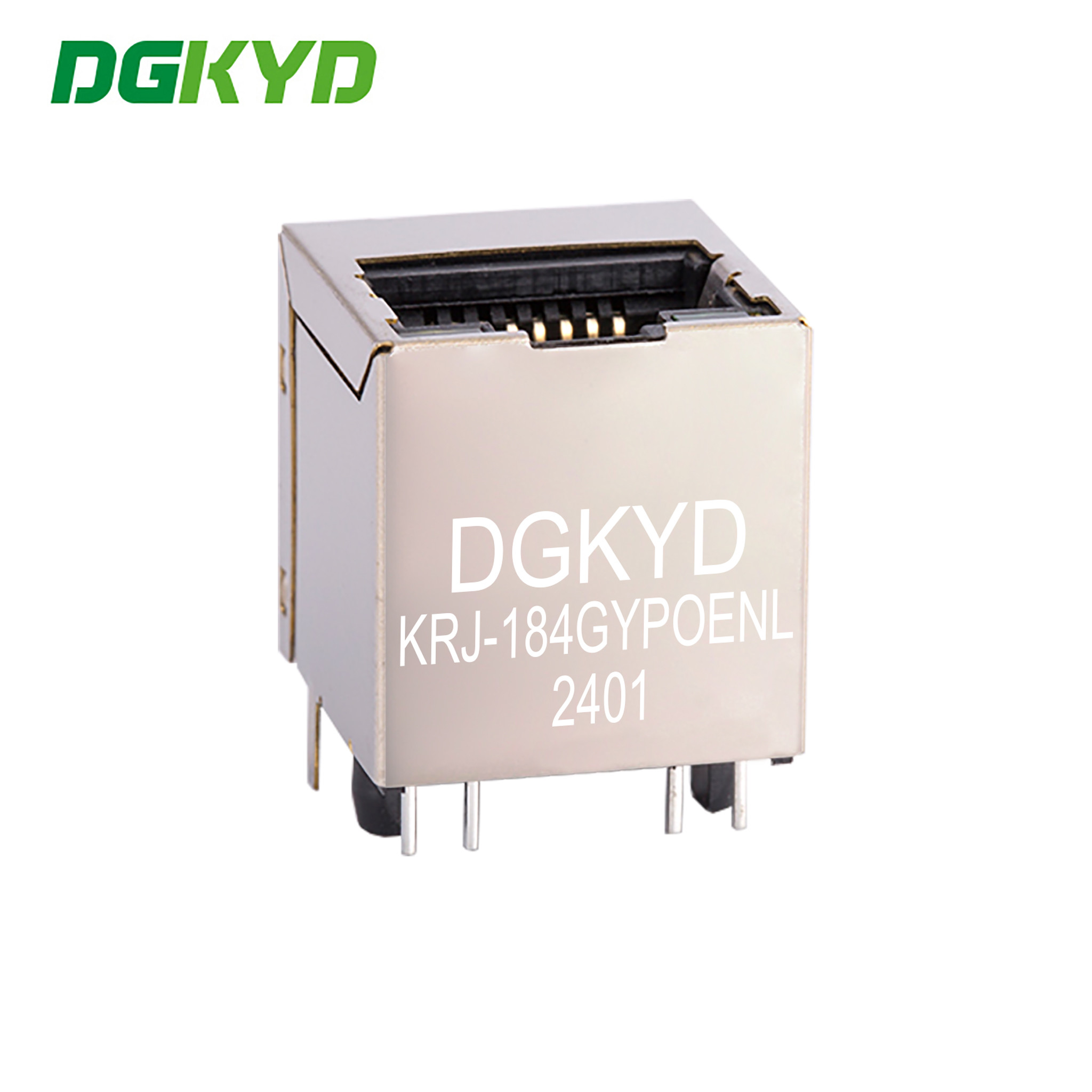

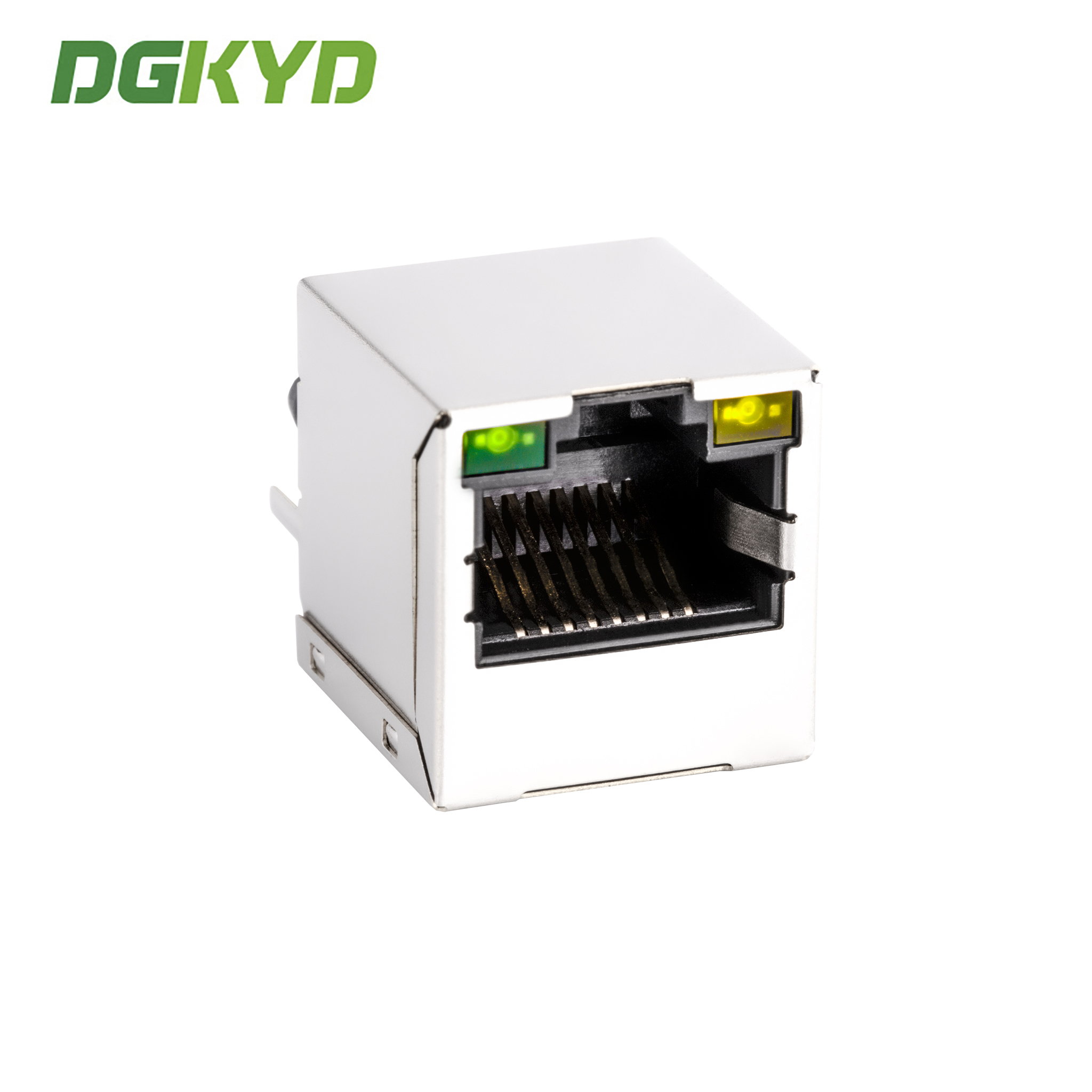

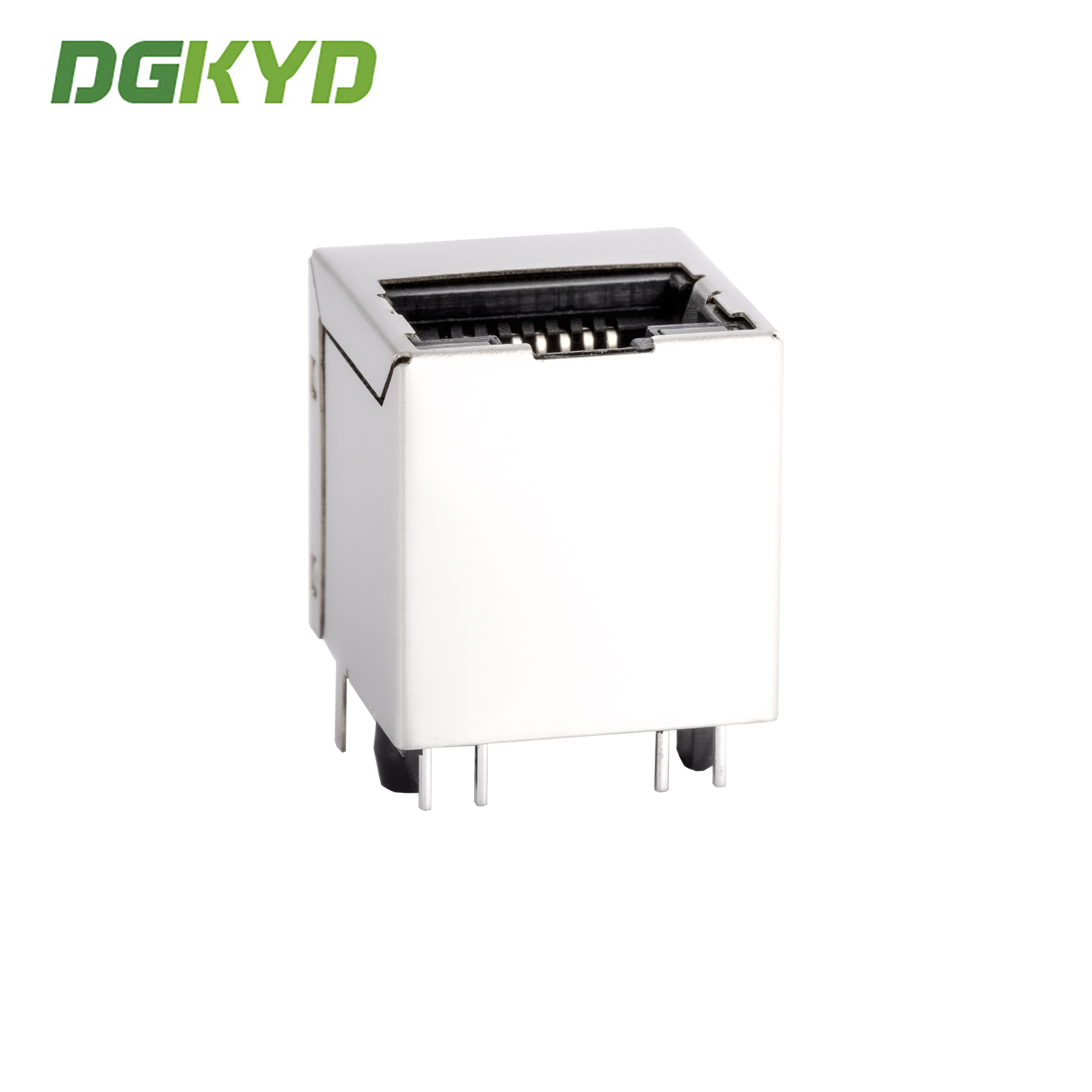

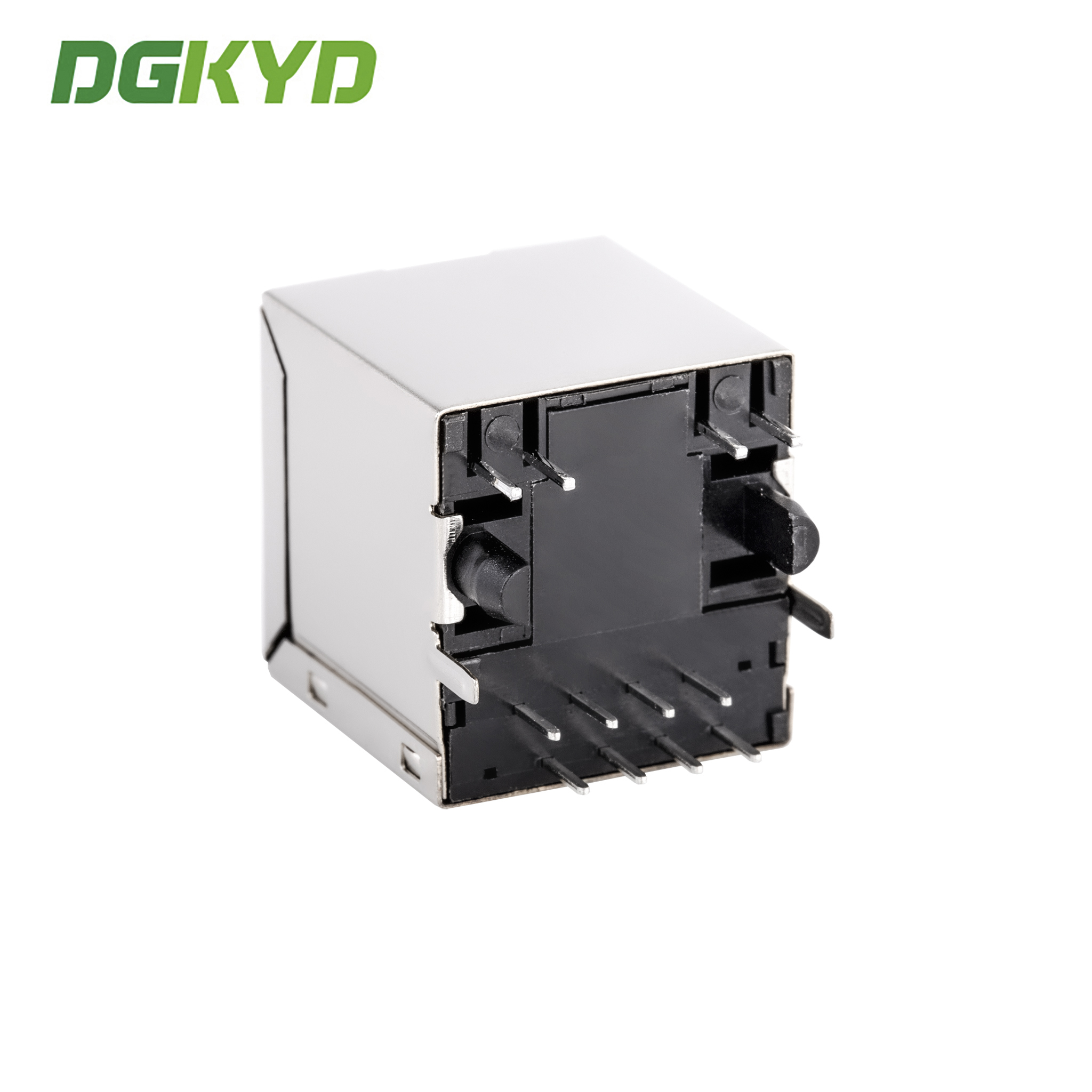

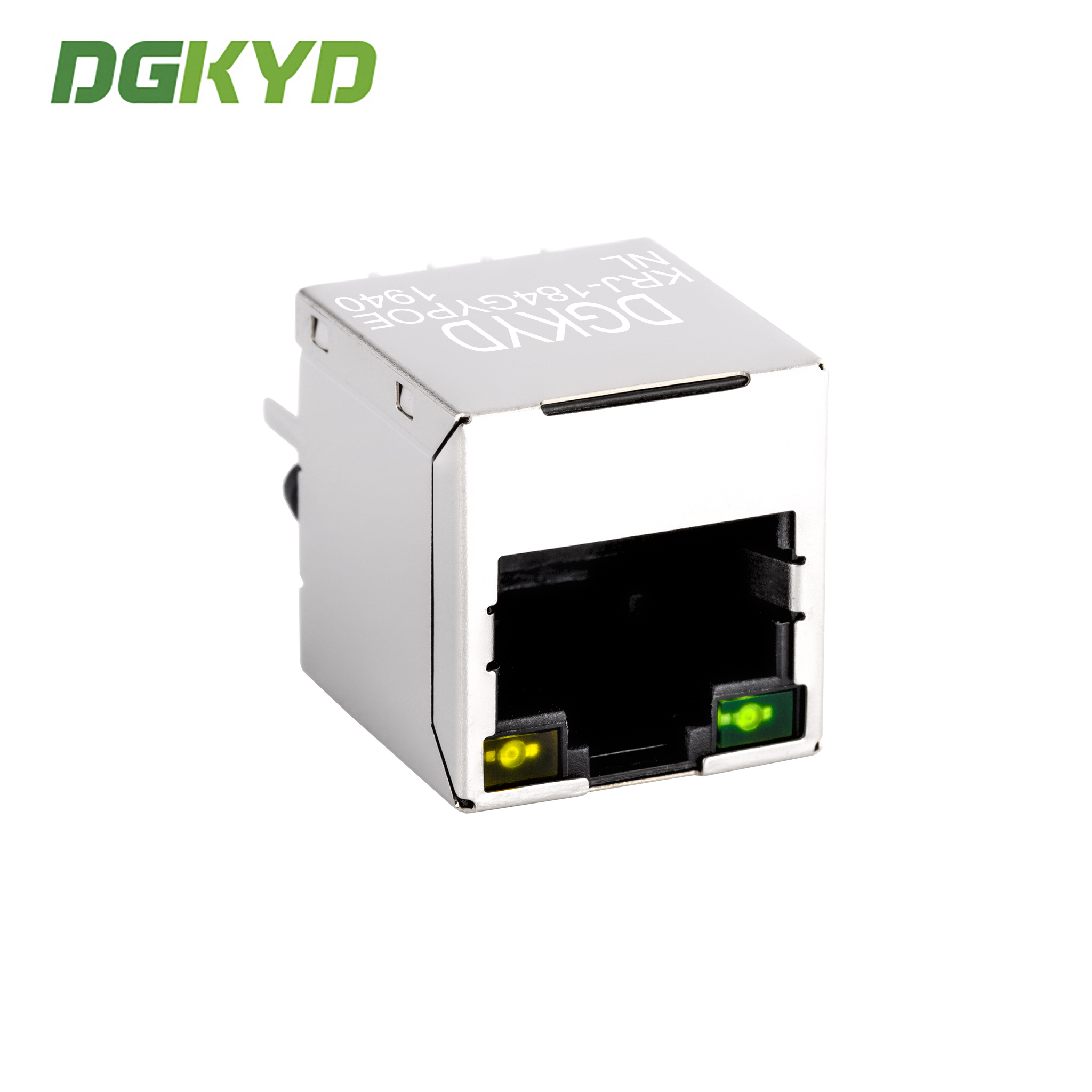

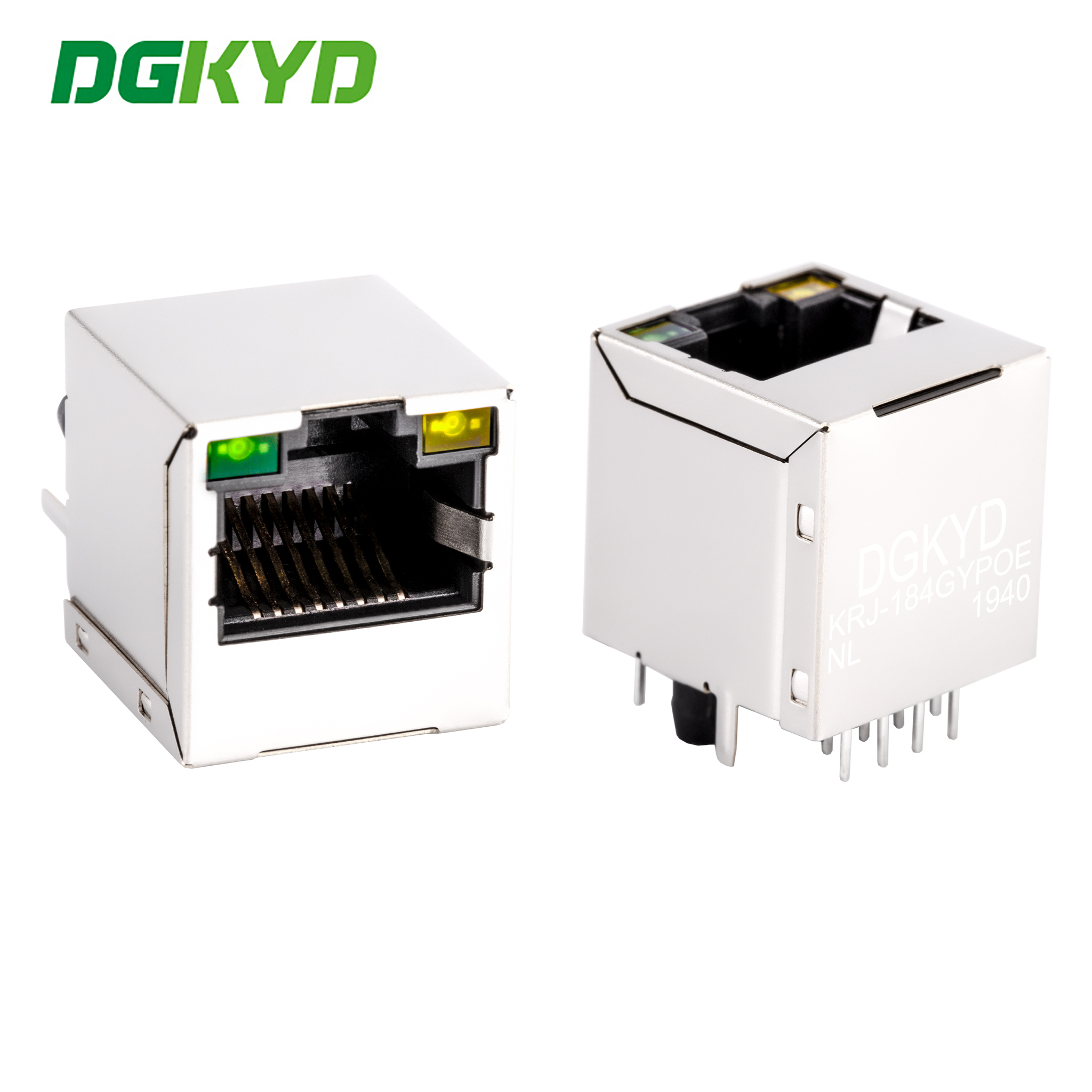

RJ45 100Mbps Ethernet socket 8P8C module with compact window surface DGKYD5A11B048AA1A8DMZ
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | KRJ-184GYPOENL |
|
Detail Information |
|||
| Port Orientation: | Top Entry | PoE: | Power Over Ethernet |
|---|---|---|---|
| Insulation Resistance: | 1000MΩ | Dielectric Withstanding Voltage: | 1000V AC |
| Plating: | Glod Plating 6u/15u/30u/50u | Housing Material: | PBT Black |
| Filter: | With Filter | Application: | PCB |
| LED Color: | Green/Yellow | Speed: | Cat5 |
| Highlight: | Top Entry RJ45 Lan Jack,180 Degree RJ45 Lan Jack,RJ45 Lan Jack With PoE |
||
Product Description
Product Specification Document
Parameters
| Part Number | KRJ-184GYPOENL | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | With Filter | LED Option | With LED |
| LED Color | Green/Yellow | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 100/ BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | Single Ports | Number of Positions | 8 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
MECHANICAL
Durability: 750 Cycle
ENVIRONMENTAL
Operating temperature range: -40℃~+85℃
Storage temperature range: -40℃~+85℃
SOLDER ABILITY
Recommended IR Reflow Temperature: 260℃
Recommended PCB Thickiness: 1.6mm
Applications:
Integrated RJ45 connector main used to :
• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,
IPphone,internet settop box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,
DSL／ADSL and so on.
