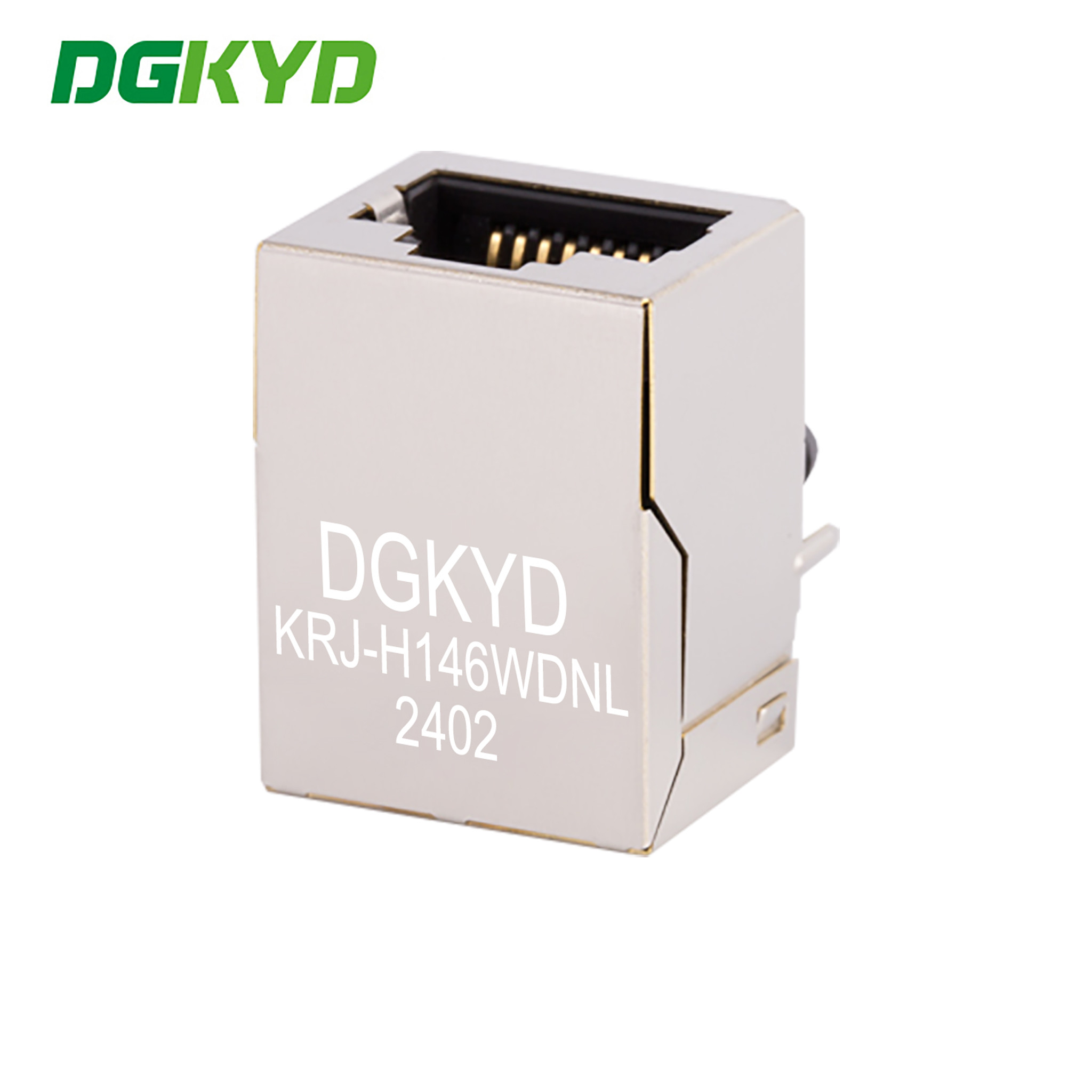

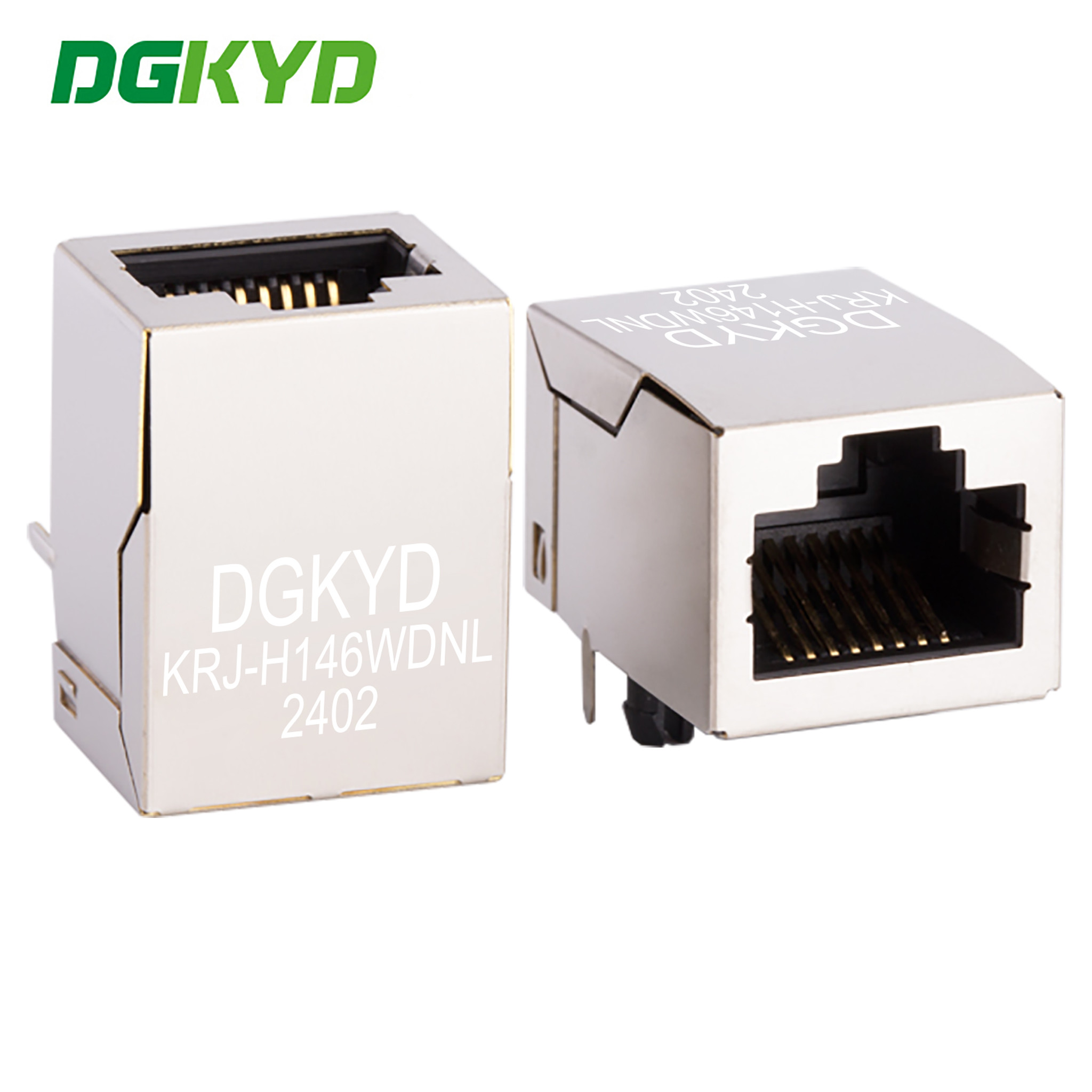

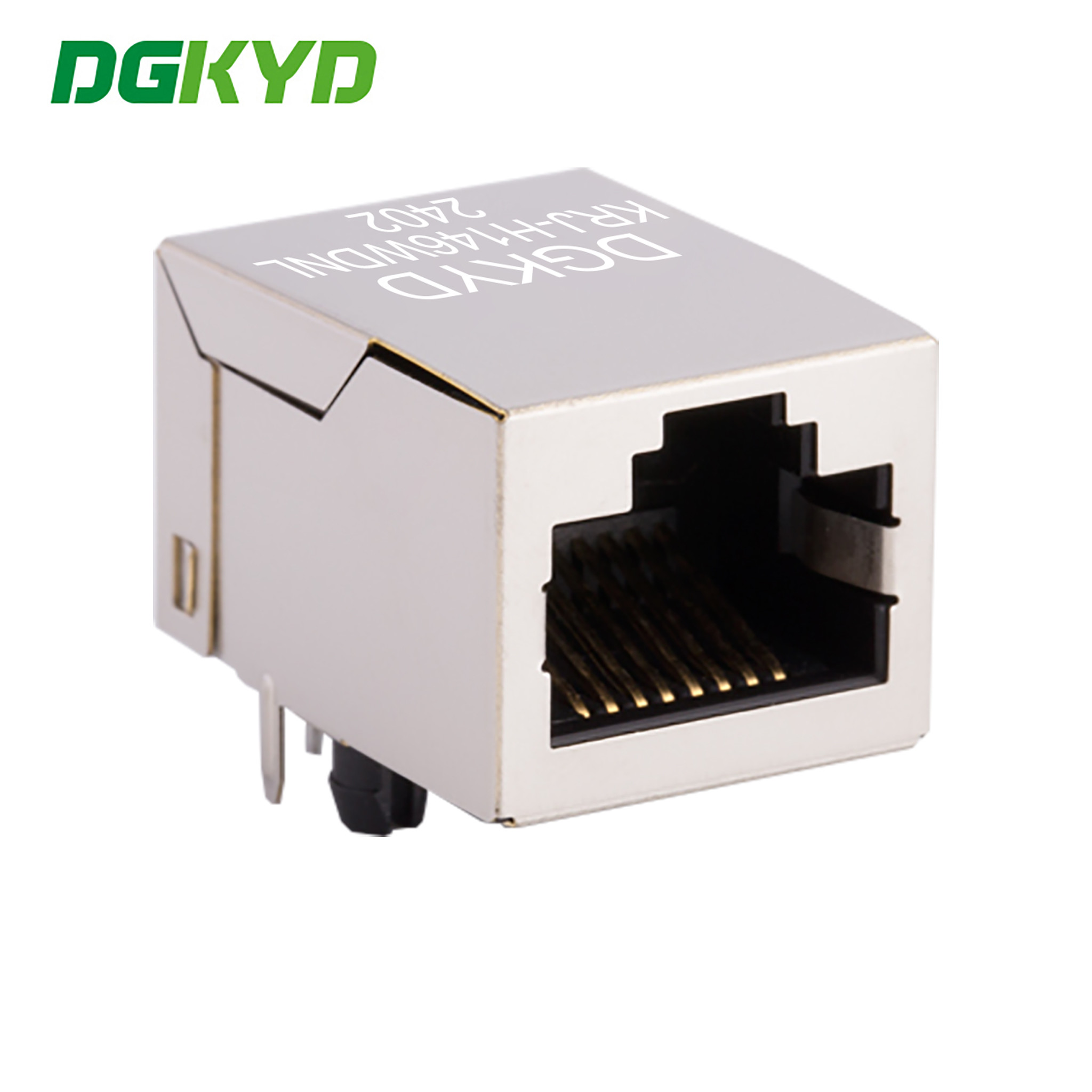

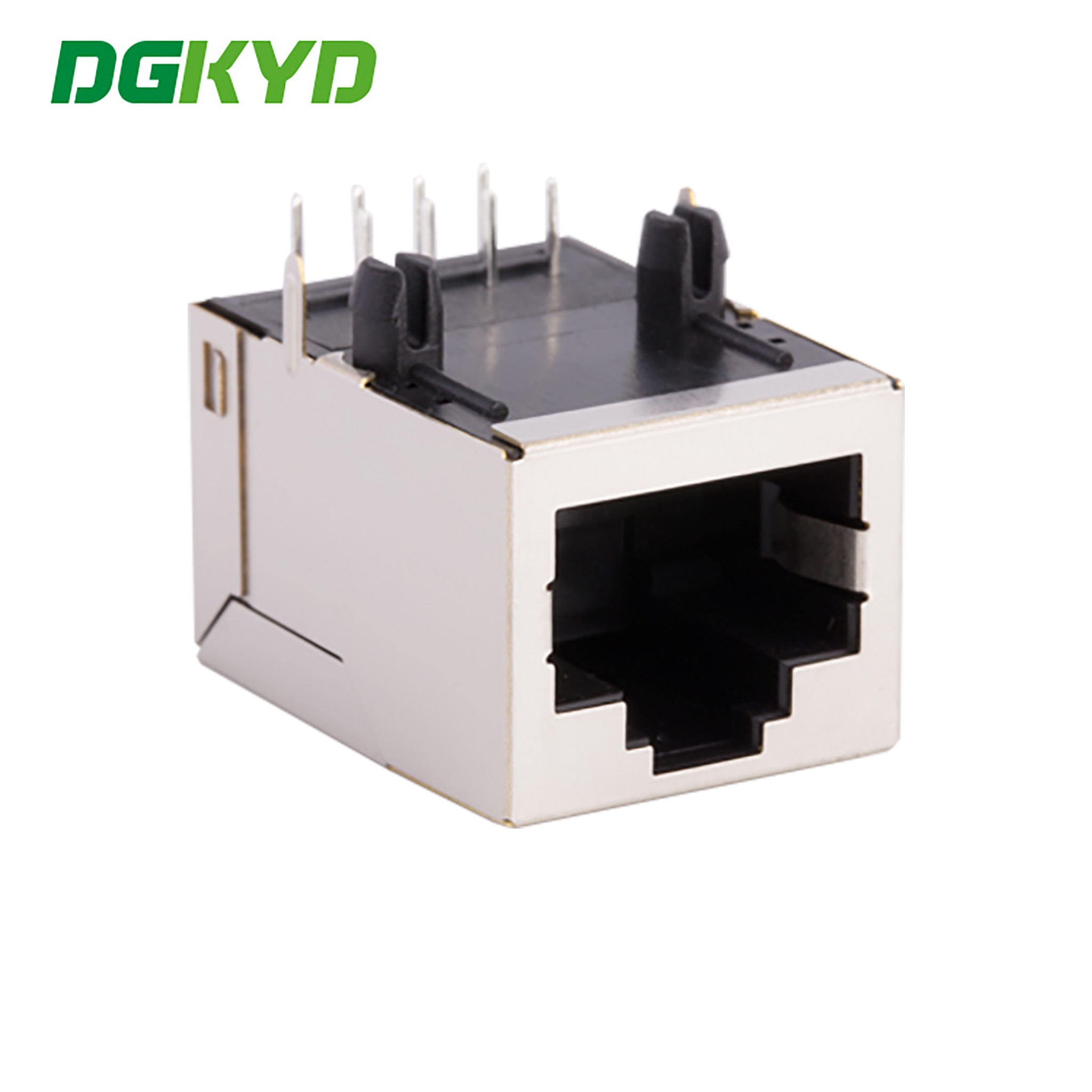

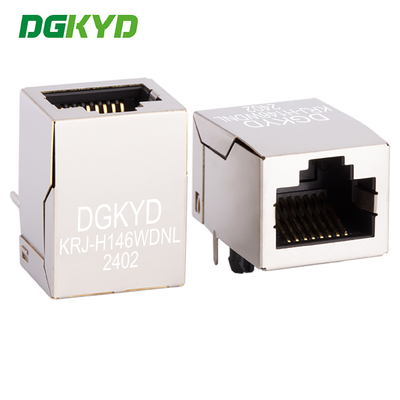

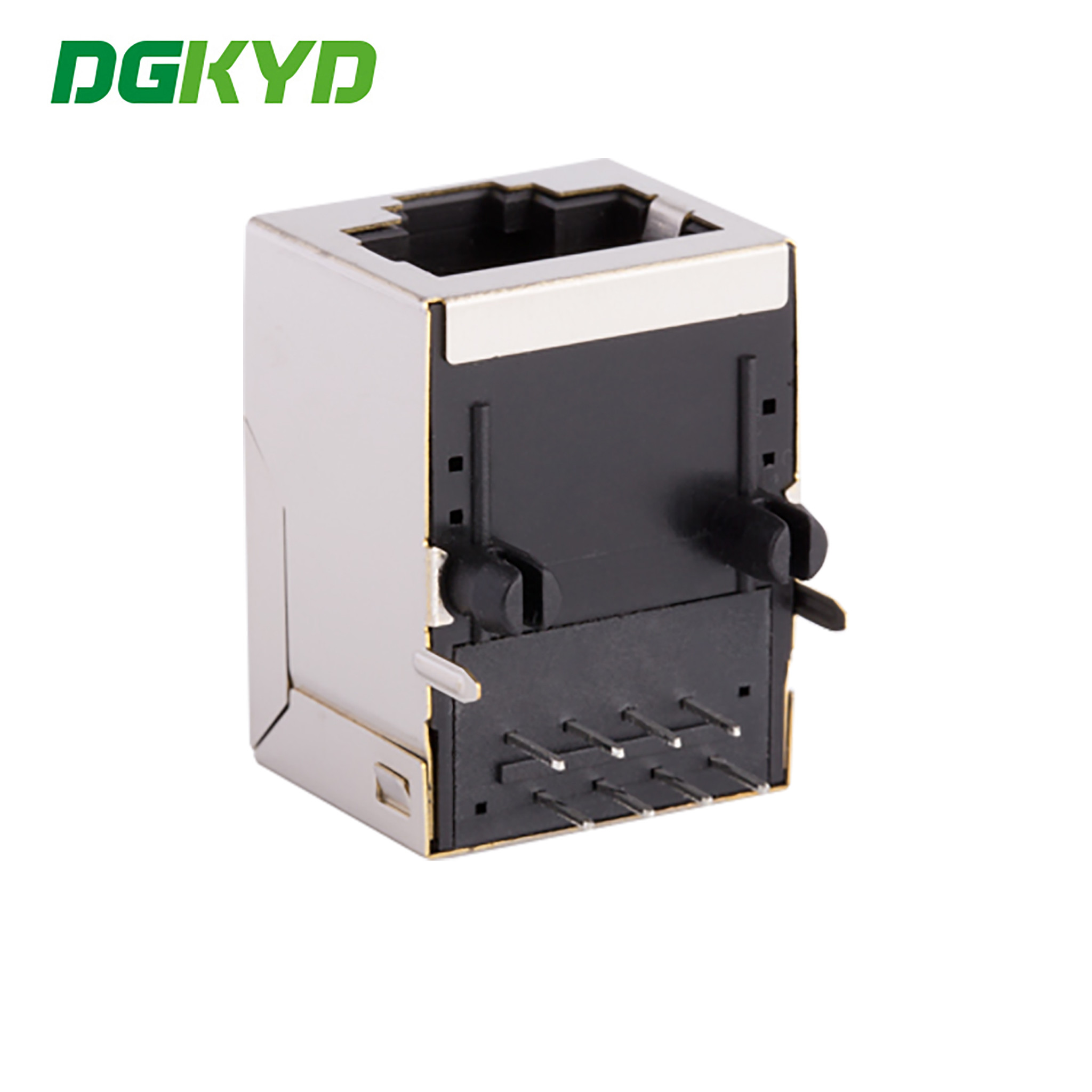

RJ45 100Mbps Ethernet socket 8P8C module with compact window surface DGKYD5A11B048AA1A8DMZ
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | KRJ-H146WDNL |
|
Detail Information |
|||
| Performance Category: | Cat5 | Connector Mounting Style: | PCB |
|---|---|---|---|
| Shield Material: | Copper Alloy | Circuit Application: | Signal |
| LED Option: | Without LED | PCB Mount Angle: | SIDE ENTRY |
| Mount Stlye: | Though Hole | Type: | RJ45 |
| Number Of Contacts: | 8 | Latch: | TAB-UP |
| Highlight: | RJ45 Ethernet Connector Filter,KRJ-H146WDNL RJ45 Connector,8 Pins Cat5 RJ45 Connector |
||
Product Description
Product Specification Document
Parameters
| Part Number | KRJ-H146WDNL | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | With Filter | LED Option | Without LED |
| LED Color | No | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 100/ BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | Single Ports | Number of Positions | 8 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Characteristics Description:
1.RJ45 100 Base-Tx Transformer Jack With Transformer Impedance Resistor/High Voltage Capacitor.
2.Size Same As RJ-45 Modular Jack To Save PCB Space.
3.Reduce EMI Radiation, Improve EMI Performance.
4.Designed For Network Interface Card Application.
5.Designed To Meet IEEE 802.3u Requirement.
6.Designed For 100 Base Transmission over UTP-5 Cable.
Applications:
Integrated RJ45 connector main used to :
10/10/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set- top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.
