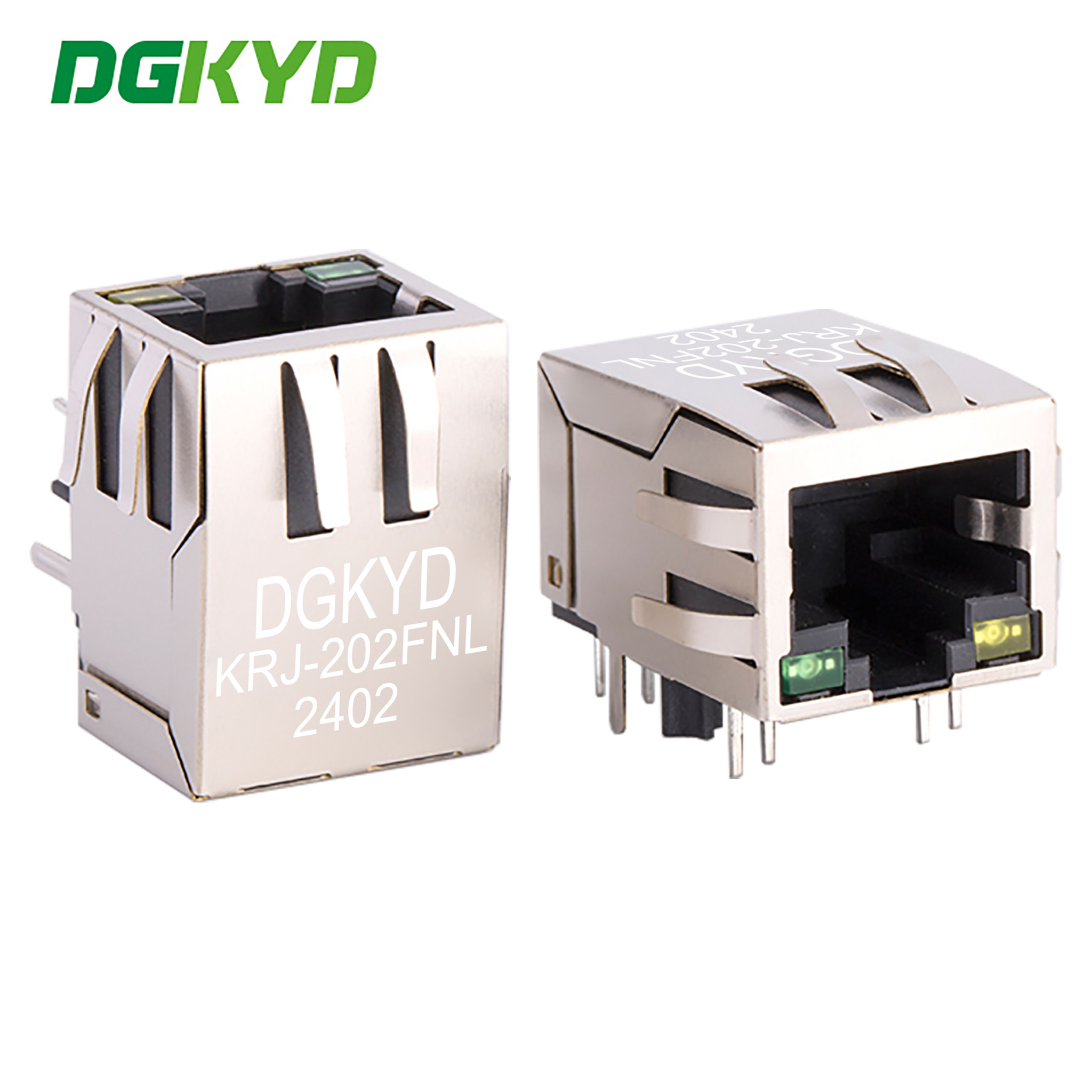

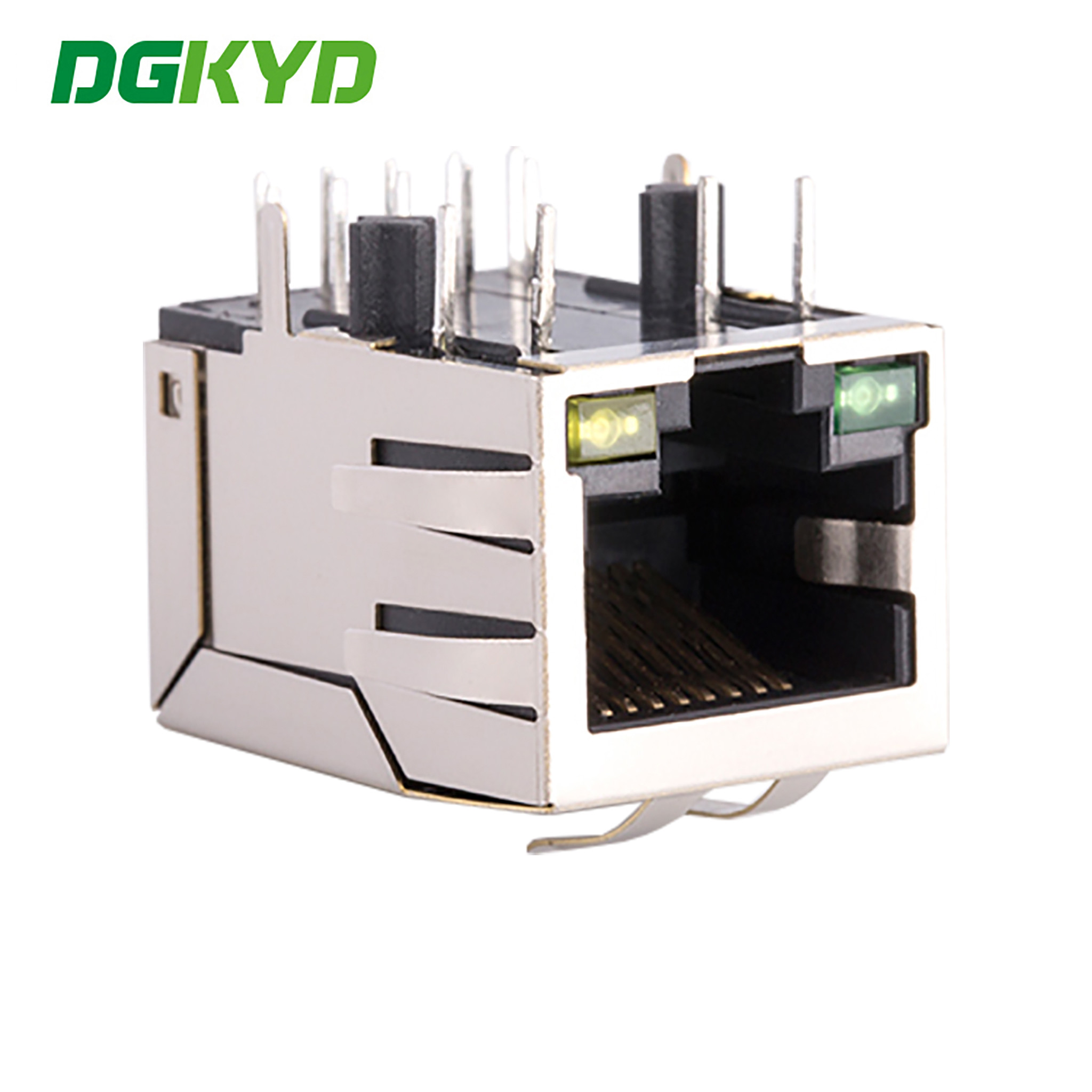

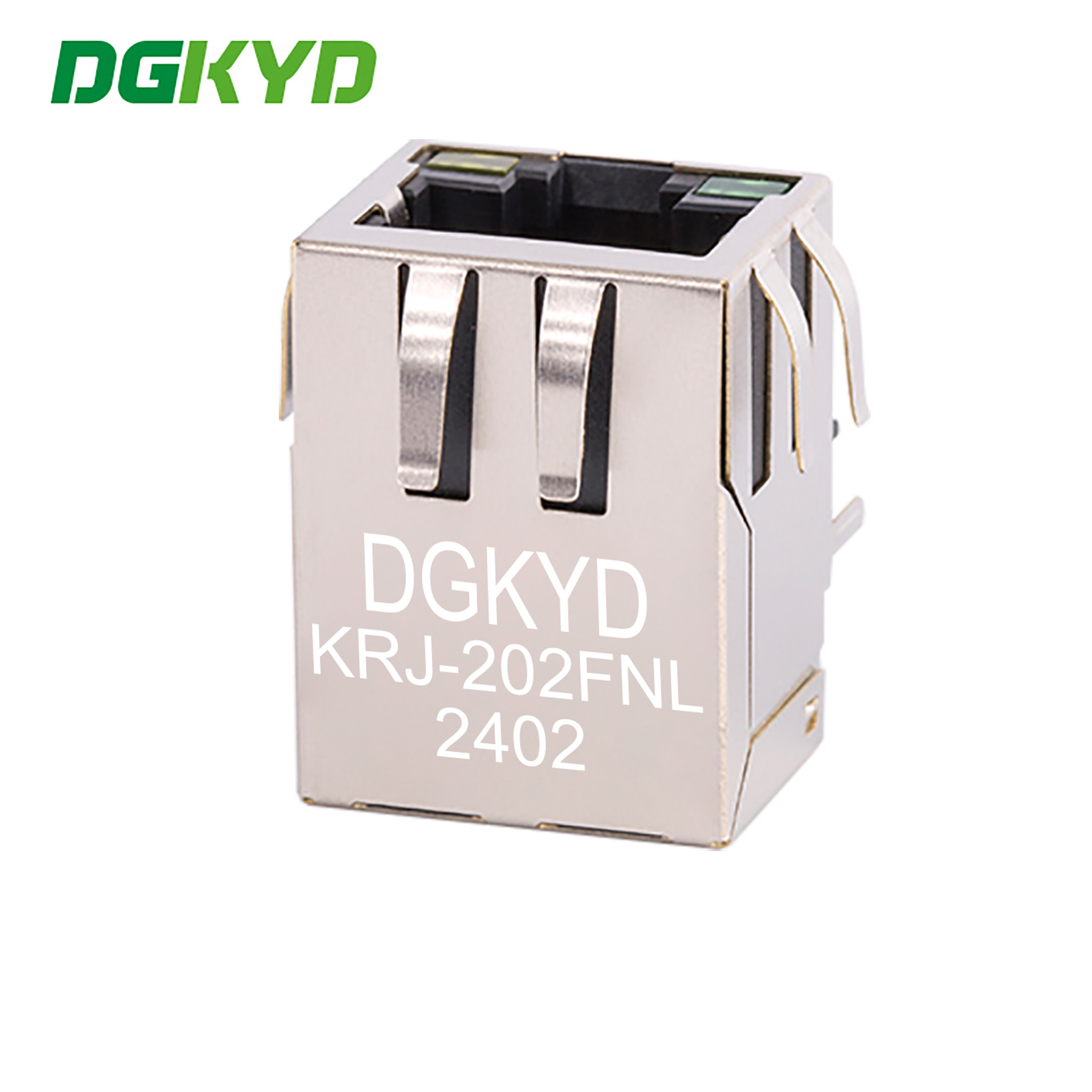

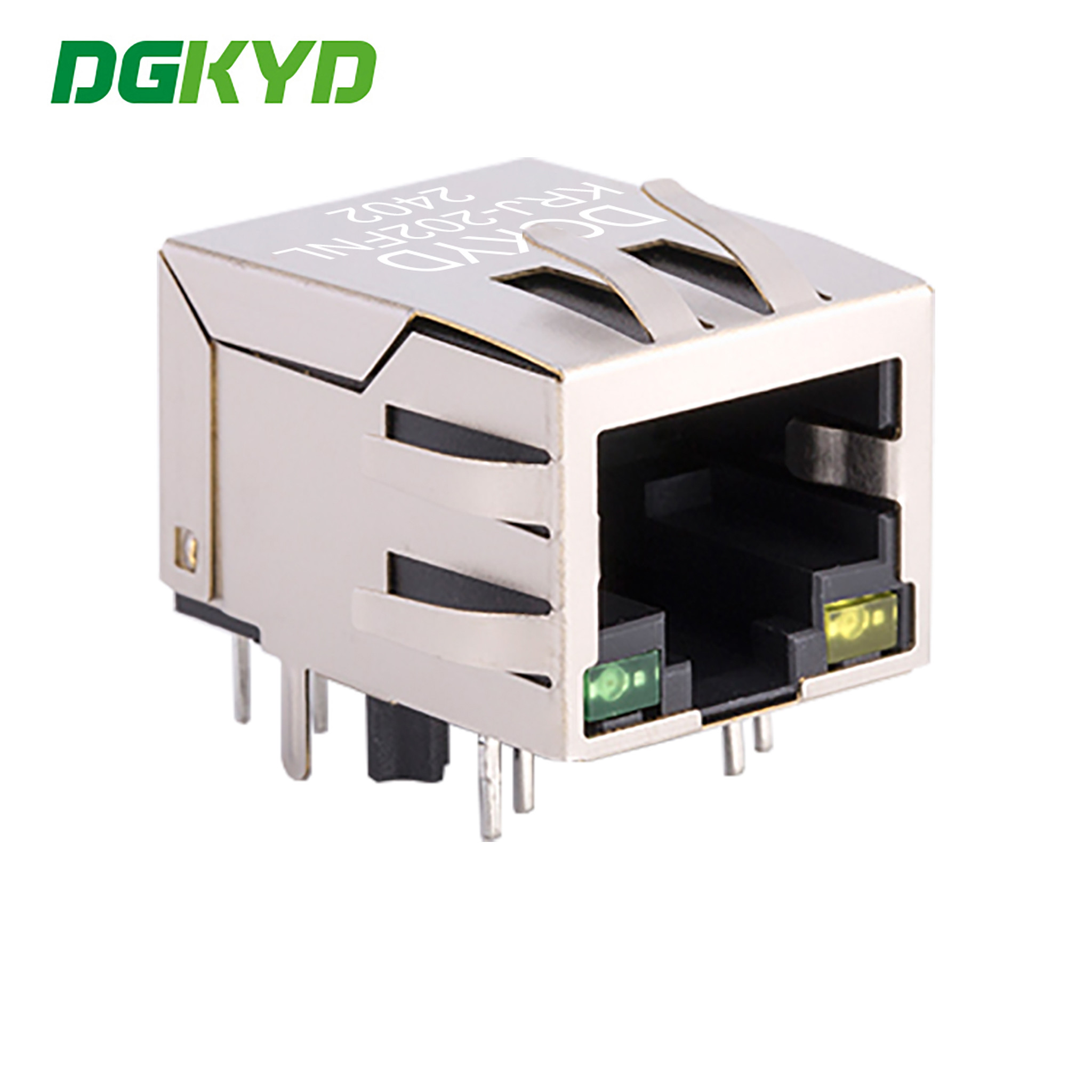

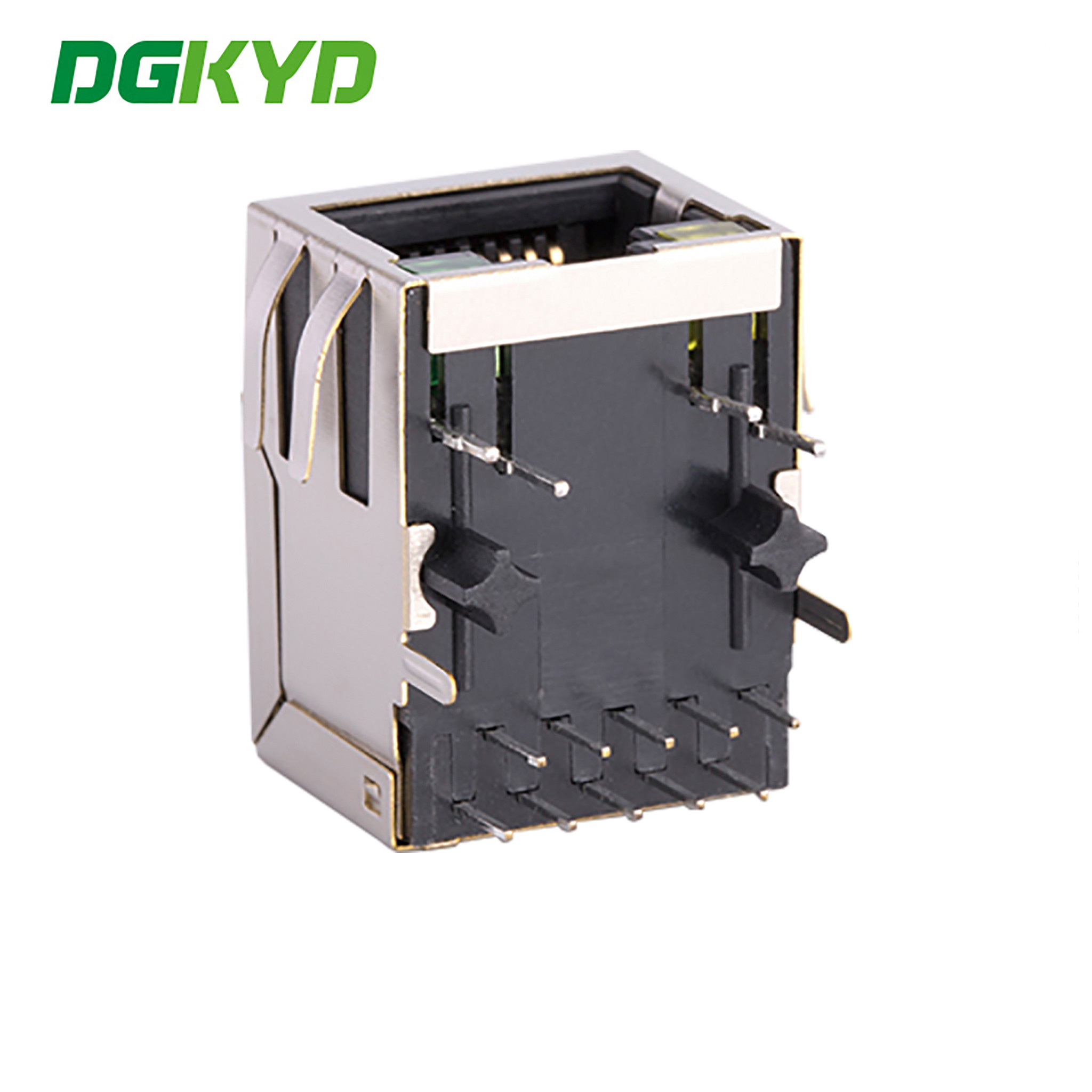

RJ45 100Mbps Ethernet socket 8P8C module with compact window surface DGKYD5A11B048AA1A8DMZ
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | KRJ-202FNL |
|
Detail Information |
|||
| Application: | PCB | Modular Jack Type: | JR45 With Integrated Magnetics |
|---|---|---|---|
| Port Configuration: | Single | Performance Category: | Cat6 |
| Latch: | Tab Down | Main Customer: | JABIL/Panasonic/FOXCONN/Coampal/HUAWEI/ZTE |
| LED Color: | Green/Yellow | Housing Material: | PBT Black |
| Gender: | Female | Operation Temperature: | -40°C~+85°C |
| Storage Temperature: | -40°C~+85°C | ||
| Highlight: | KRJ-202FNL RJ45 Connector,Single Port RJ45 Jack,Integrated Magnetic 1GB RJ45 Jack |
||
Product Description
Product Specification Document
Parameters
| Part Number | KRJ-202FNL | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-Down |
| Filter | With Filter | LED Option | With LED |
| LED Color | Green/Yellow | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 1000/ BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | 1X1 Ports | Number of Positions | 10 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
► Product Datasheet
| Connector Type | RJ45 |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Applications | 1000 Base-T |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| LED Color | Green - Yellow |
| Number of Cores per Jack | 8 |
| Shielding | Shielded, EMI Finger |
| Features | Board Guide |
| Tab Direction | down |
| Contact Finish | Gold |
| Shield Material | Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Connector Type | 8 Pin Shield LED Female RJ45 Connector |
| Number of Positions/Contacts | 10p8c (RJ45, Ethernet) |
| Termination | Solder |
| Shield | 0.20~0.25mm thickness brass with tin plated |
| Contact Material | Copper Alloy |
| Contact Finish Thickness | flash |
| Housing Material | Thermoplastic |
| Operating Temperature | -40 to 85°C | Withstand Voltage | AC1000V(50Hz)/min |
| Rated voltage: | 125VAC | Actuating Force | 5~15N |
| Contact Resistance | ≤0.03Ω | Life | 750 times |
| Insulation Resistance | ≥1000MΩ |
► Product Drawing
►Applications
Integrated RJ45 connector main used to :
10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,
internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.
For example:
