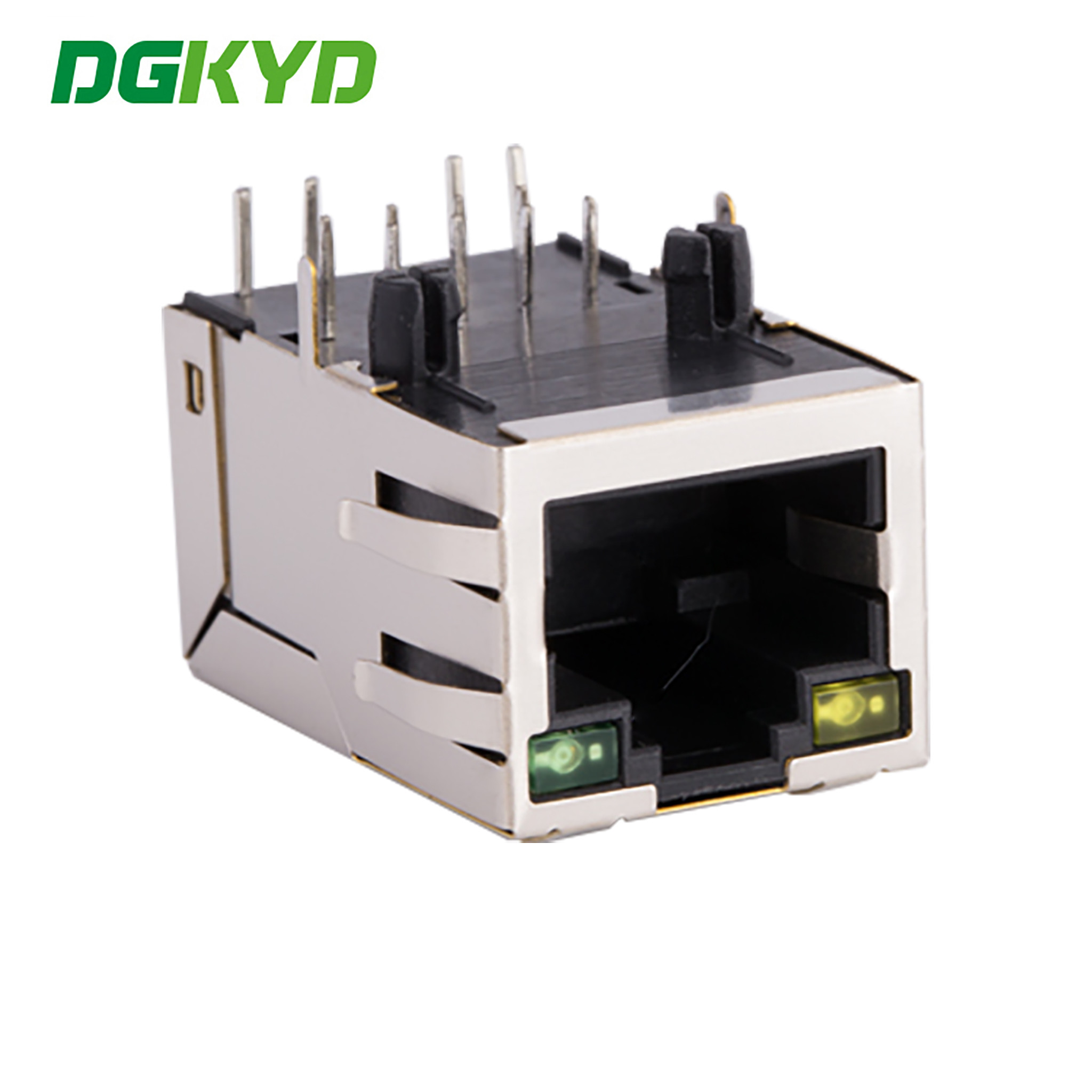

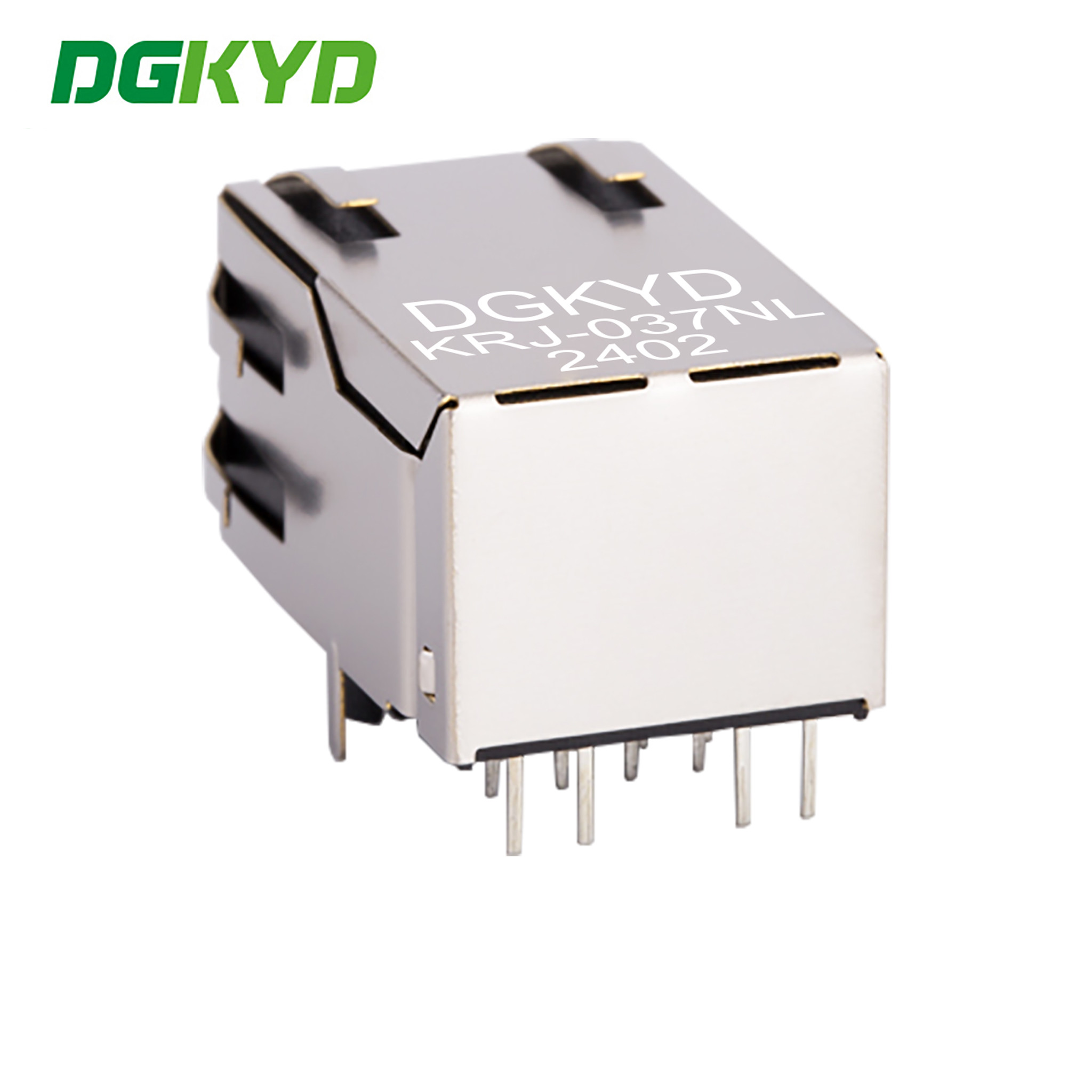

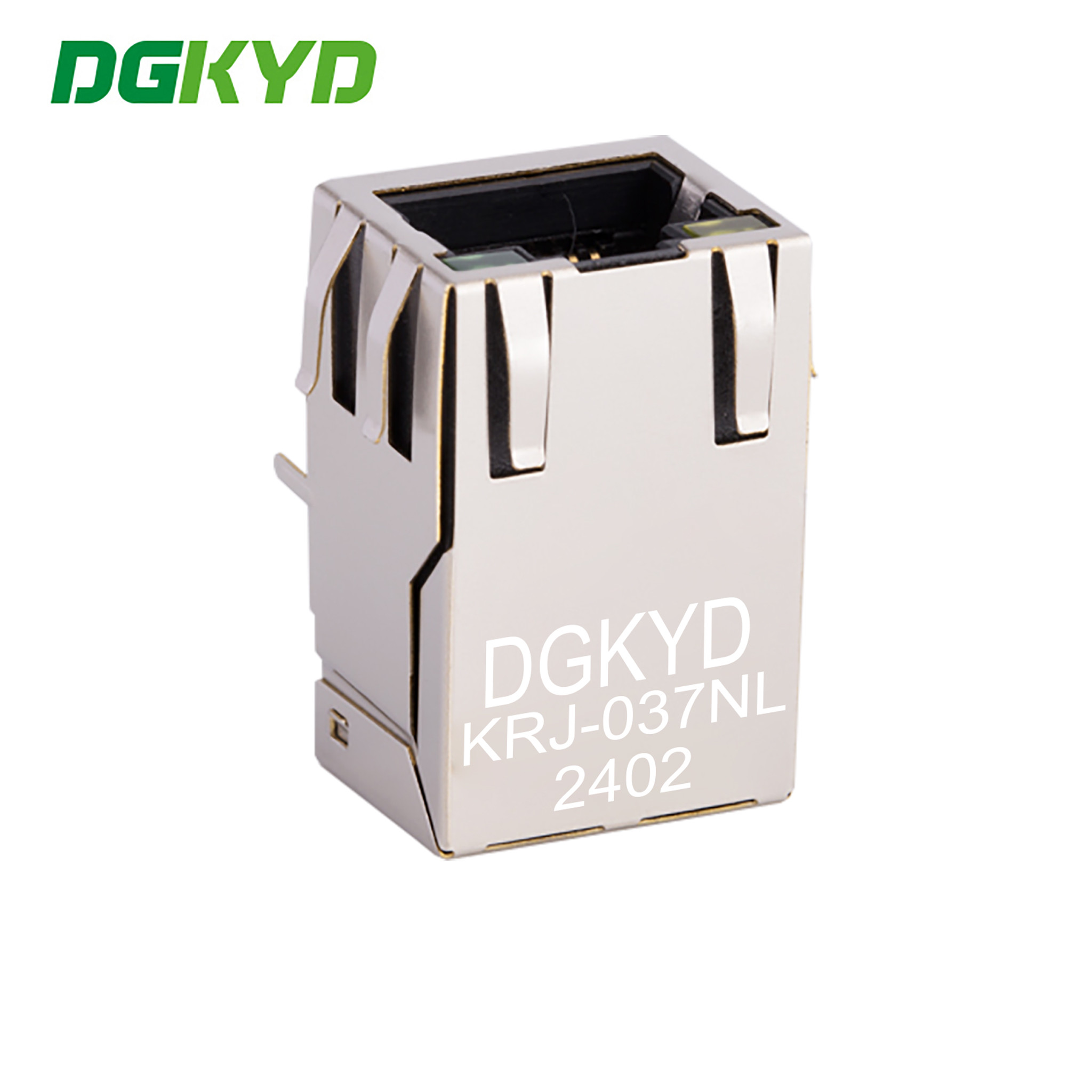

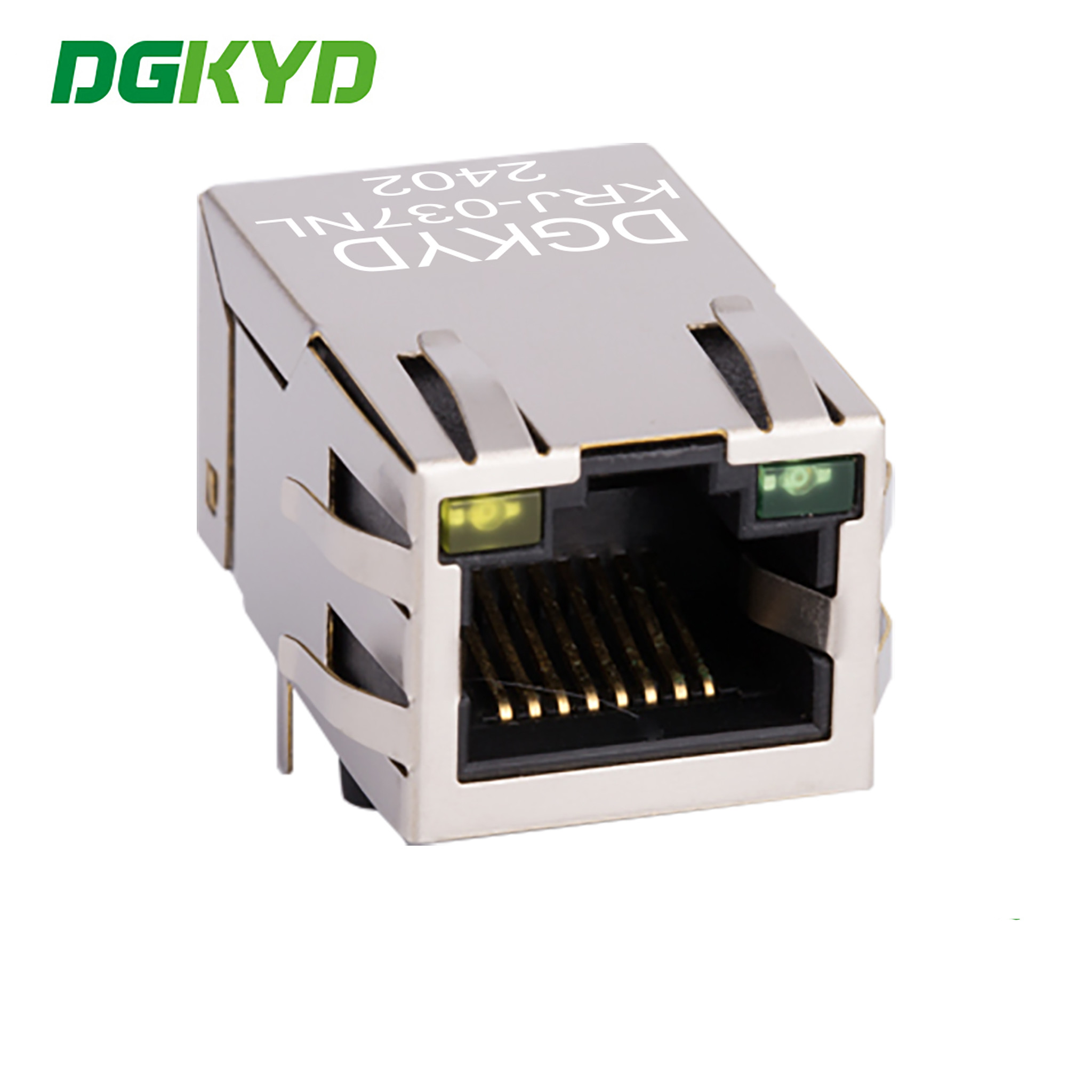

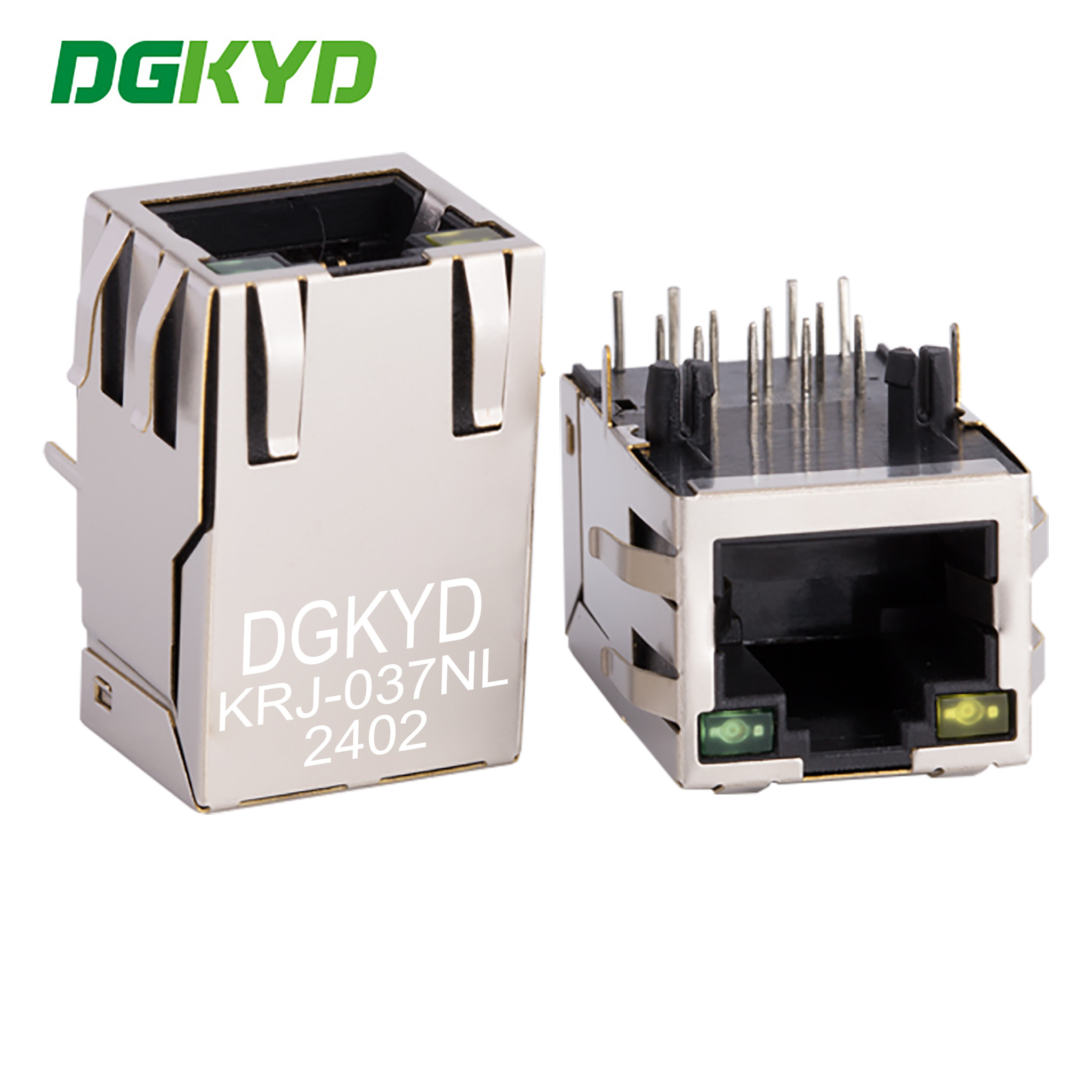

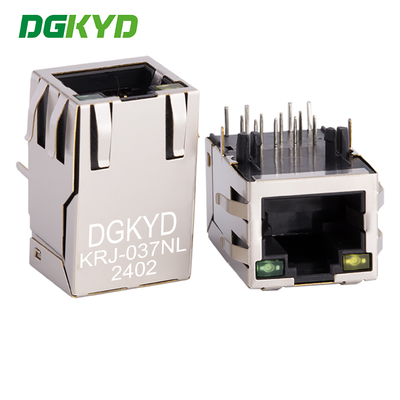

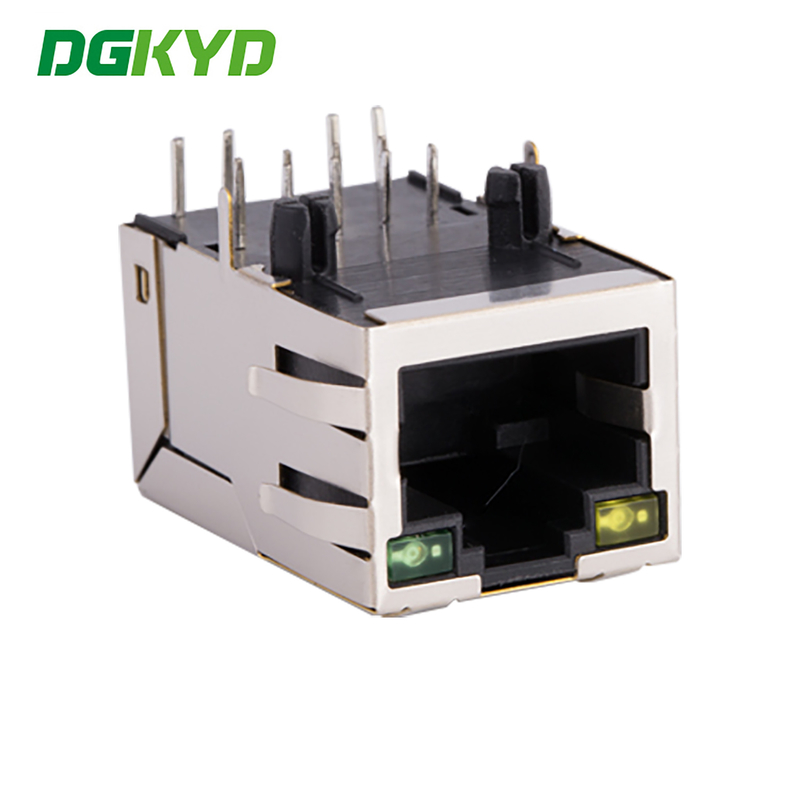

RJ45 100Mbps Ethernet socket 8P8C module with compact window surface DGKYD5A11B048AA1A8DMZ
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | KRJ-037NL |
|
Detail Information |
|||
| Performance: | 100Mb | Contact Mating Area Plating: | 6u Gold Plating |
|---|---|---|---|
| Contact Base Material: | Phosphor Bronze | RoHS Compliance: | Compliant |
| Application: | PCB | Housing Material: | PBT Black |
| Gender: | Female | Latch: | TAB-UP |
| LED Option: | Yellow/Green | Mount Stlye: | Though Hole |
| Highlight: | Cat5 RJ45 Magnetic Connector,100M RJ45 Computer Connector,Single Core RJ45 Transformer |
||
Product Description
Product Specification Document
Parameters
| Part Number | KRJ-037NL | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | With Filter | LED Option | With LED |
| LED Color | Yellow/Green | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 100/ BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | 1X1 Ports | Number of Positions | 8 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Material specifications:
Note:RJ45 ,in order to keep good touch between gold finger and crystal head,should paint the gold on the surface,there is 6u,15u,30,50u,usually use 6u,according to customer’s request and cost to proceed, gold finger insert and pull life should be 750 times above
Electrical Specifications:
．Insertion Loss:1-100MHZ -1.0dBmax
．Rturn Loss:1-30MHZ -16.0dBmin
30-60MHZ -14.0dBmin
60-80MHZ -10.0dBmin
．Cross Talk:1-30MHZ -40.0dBmin
30-60MHZ -35.0dBmin
60-80MHZ -30.0dBmin
．CMR:1-100MHZ -35dBmin
．Hi-pot:1500v AC 6S 1mA
．Turn Ratio:1CT:1CT±3%
．OCL:350uH @100KHZ 100Mv 8mA DC
Applications:
Integrated RJ45 connector main used to :
• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.
Competitive Advantage:
Keyouda has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,
100% test, 0 defect, short lead time are our best advantages
