RJ45 stacked interface 2X2 Ethernet socket with light strip shielding POE Gigabit connector DGKYD22Q277DB2A4DP068 (POE+)
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | Negotiation | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | 360 Tray in Carton | Delivery Time : | 20 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD21Q145DE3A2DDBB057 |
|
Detail Information |
|||
| Connection Type: | Pcb Mounting | HOUSING: | PA66 |
|---|---|---|---|
| Connector Type : | Modular Jack | LED Color: | Yes.L-Green/R-Green-Yellow |
| Filter: | With Filter | Contact Mating Area Plating Material : | Gold 30u |
| Housing Material: | Brass/plastic | Contact Base Material : | Phosphor Bronze |
| Storage Temperature: | - 40 ℃ ~ 85 ℃ | Contacts: | 10PIN |
| Latch: | TAB-UP/down | ||
| Highlight: | 2X1 Dual Port Modular Interface,RJ45 Integrated Transformer 30U,2X1 RJ45 Integrated Transformer |
||
Product Description

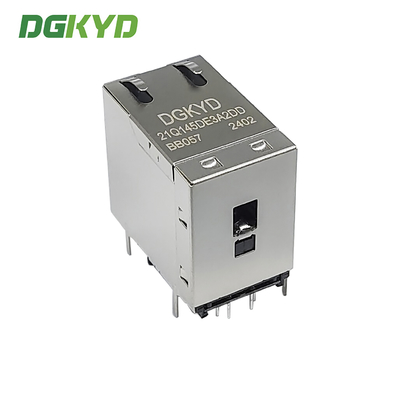

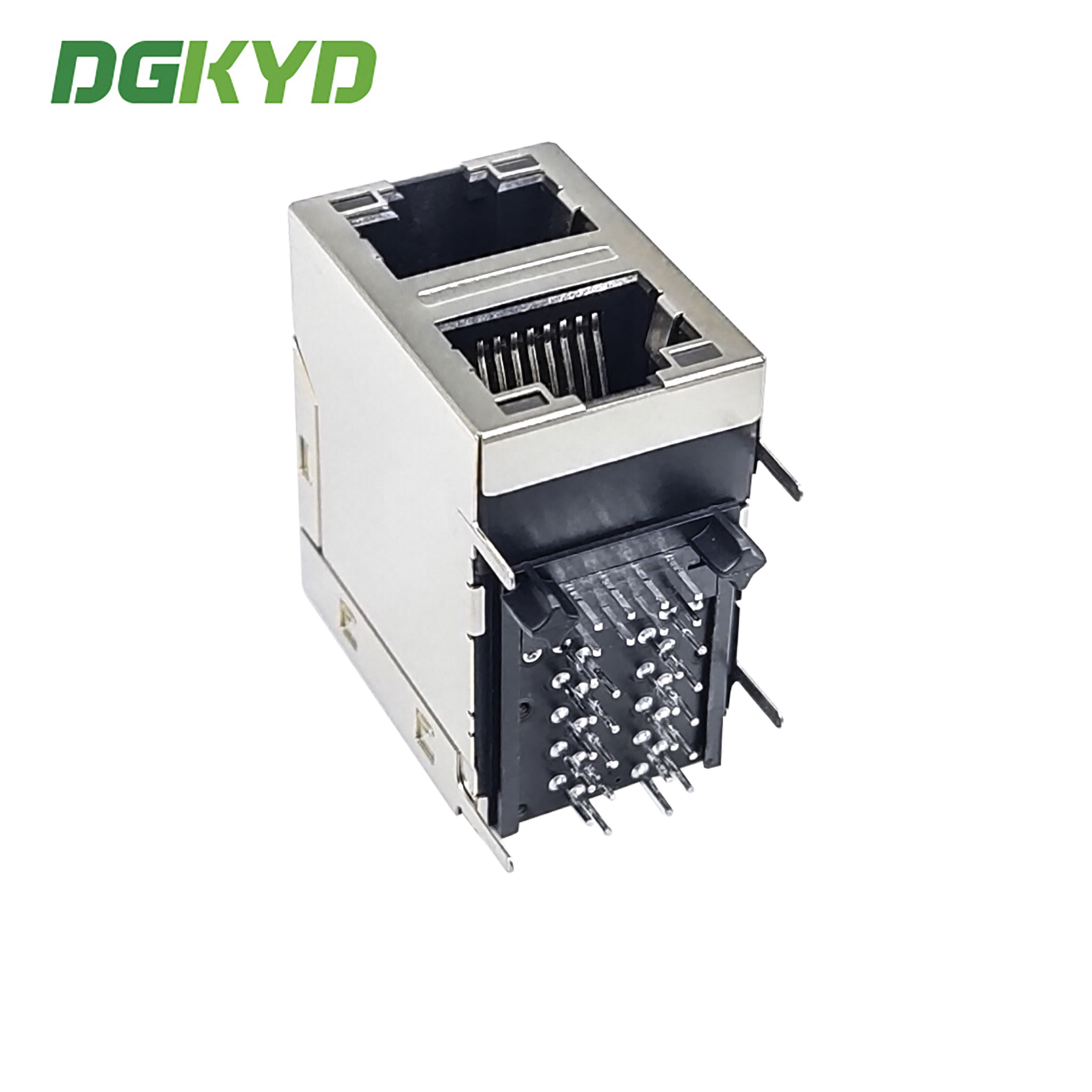

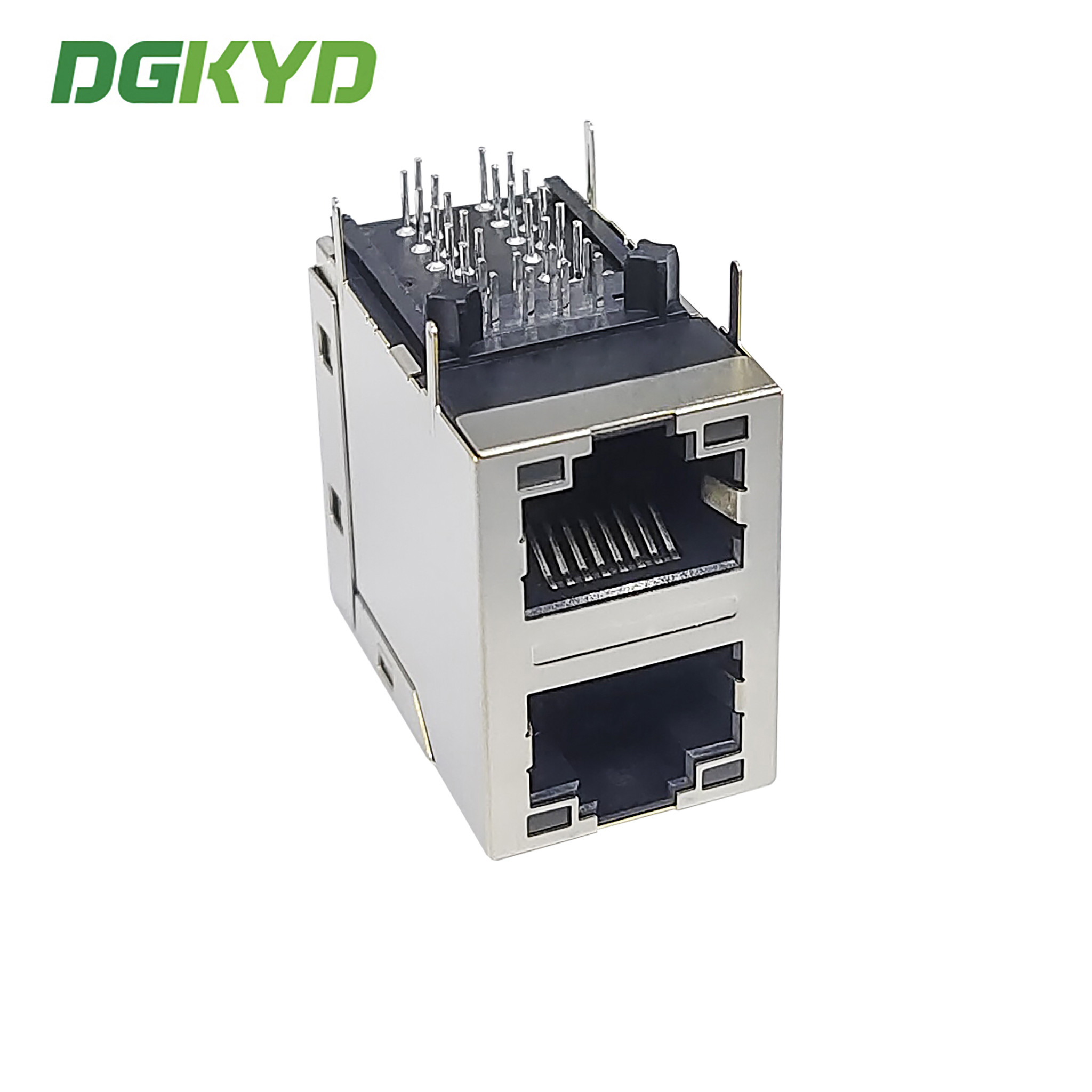

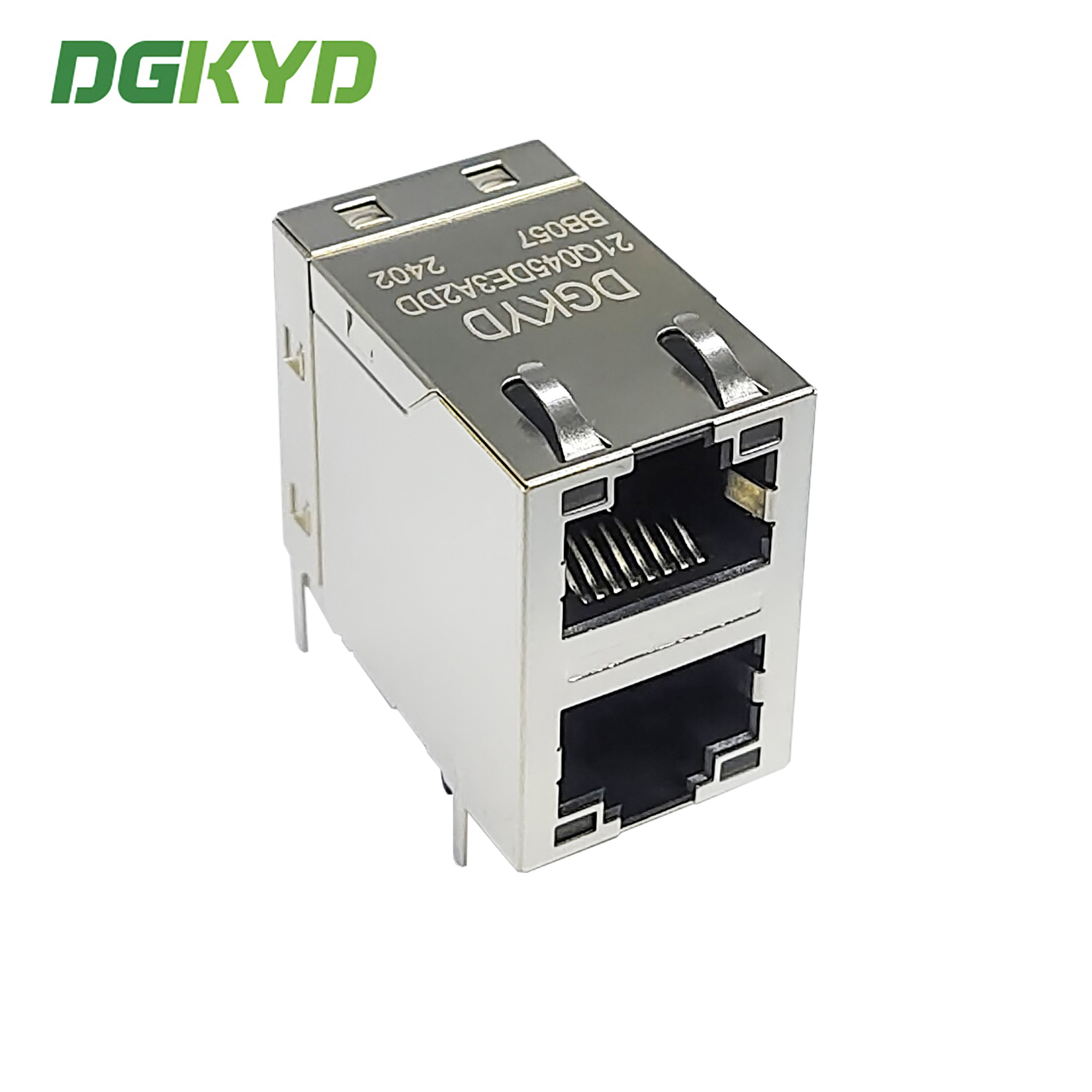

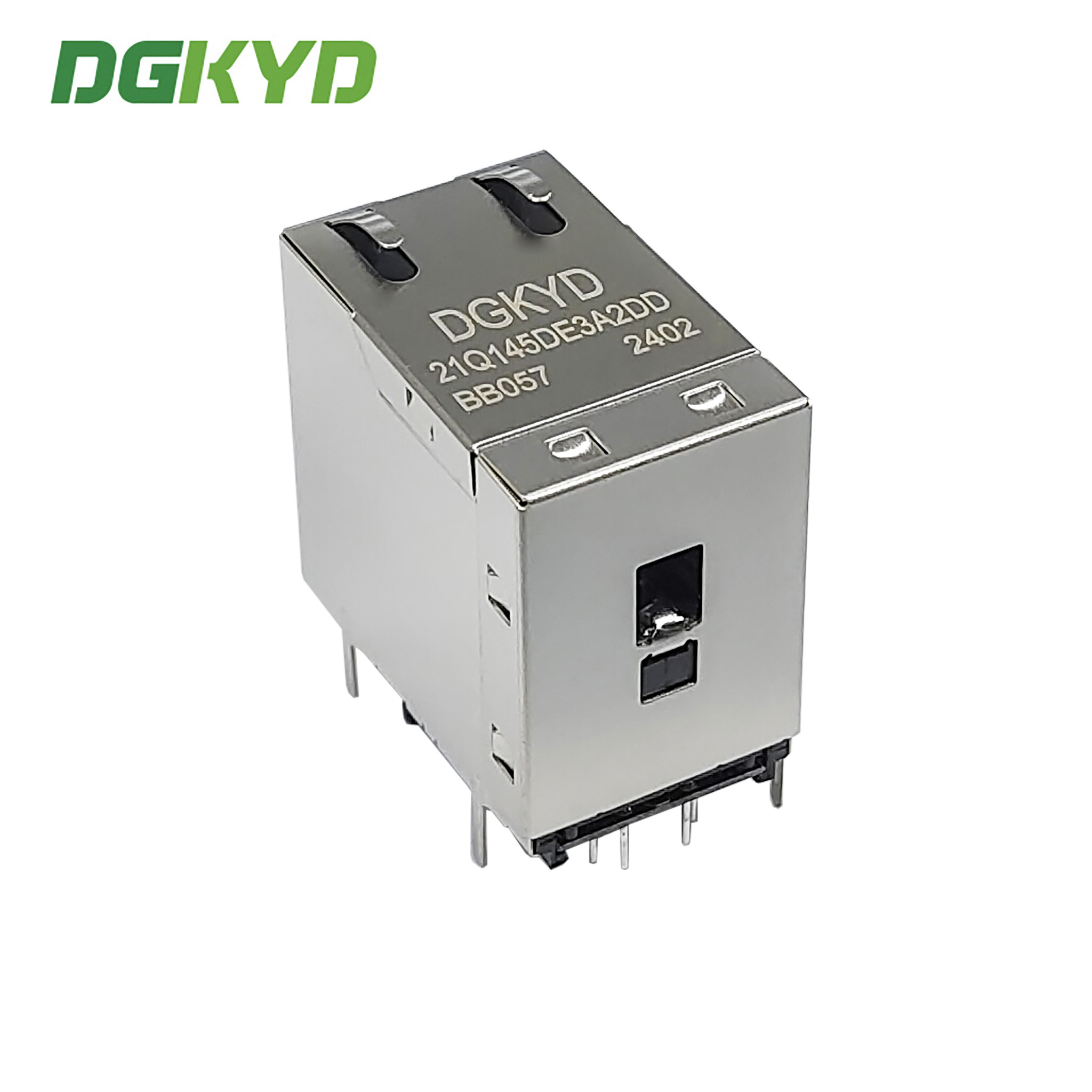

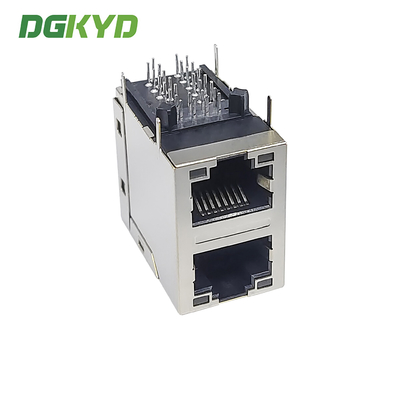

DGKYD21Q145DE3A2DDBB057 2X1 dual port modular interface RJ45 Ethernet Gigabit filtering integrated transformer 30U
Product Specification Document
Parameters
| Part Number |
DGKYD21Q145DE3A2DDBB057 |
Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-Up/down |
| Filter | With Filter | LED Option | With LED |
| LED Color | L-Green/R-Green-Yellow | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000 BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | Multi Ports | Number of Positions |
10 |
| Jack Configuration | 2X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 30u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | WithWithout Board Lock |
| Housing Material | PA66 Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Whu Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector,Discrete Magnetic Transformers And
Professional Certification
• ISO 9001:2008
• UL Certification
• Reach Cetitifaction
• RoHS Compliance
• Active Environmental Policy
100% Guarantee Qualtiy
• Manufactured Under Strict Controls.
• 100% Tested
• Quality Guarantee:6 Years
Competitive Price And Service
• Delivery Time:2-3 Weeks After Orders
• Free Samples Are Available
• Provide New Design For Customer Requirements
• The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• The Company Standard Is Defect-Free Products And Services

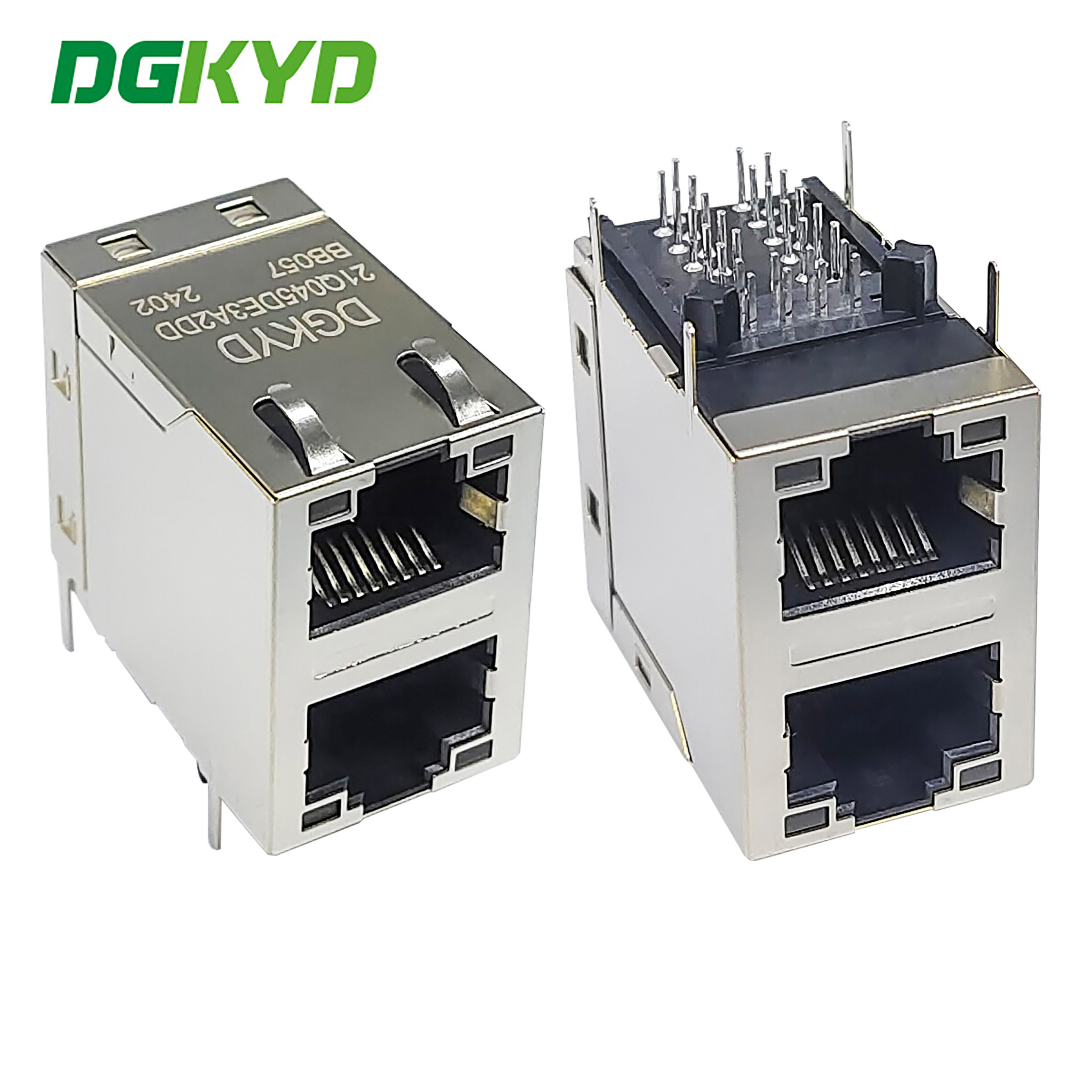

2X1 RJ45 Connector with Integrated Magnetics
