DGKYD111B002GWA1D Single Port RJ45 100M Integrated Transformer Without Light
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | Negotiation | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | 760Tray in Carton | Delivery Time : | 15 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD811B198FF5A10DQ057 |
|
Detail Information |
|||
| Application: | PCB | Material: | LCP |
|---|---|---|---|
| Shield: | Brass | Number Of Positions/Contacts: | 8p6c (RJ45, Ethernet) |
| Contact Plating: | 6u Glod Plating | Number Of Ports: | Single Port |
| Storage Temperature: | - 40 ℃ ~ 85 ℃ | Configuration: | With Transformer And Intergrate Magnetic |
| RJ45 Connector Tab Direction: | Tap UP | Certificate: | ISO9001/ROHS/SGS |
| Product Type: | 100 Base-T RJ45 Connector | ||
| Highlight: | Integrated Transformer RJ45 Network Connector,100Mbps RJ45 Network Connector,8Pins RJ45 Connector |
||
Product Description

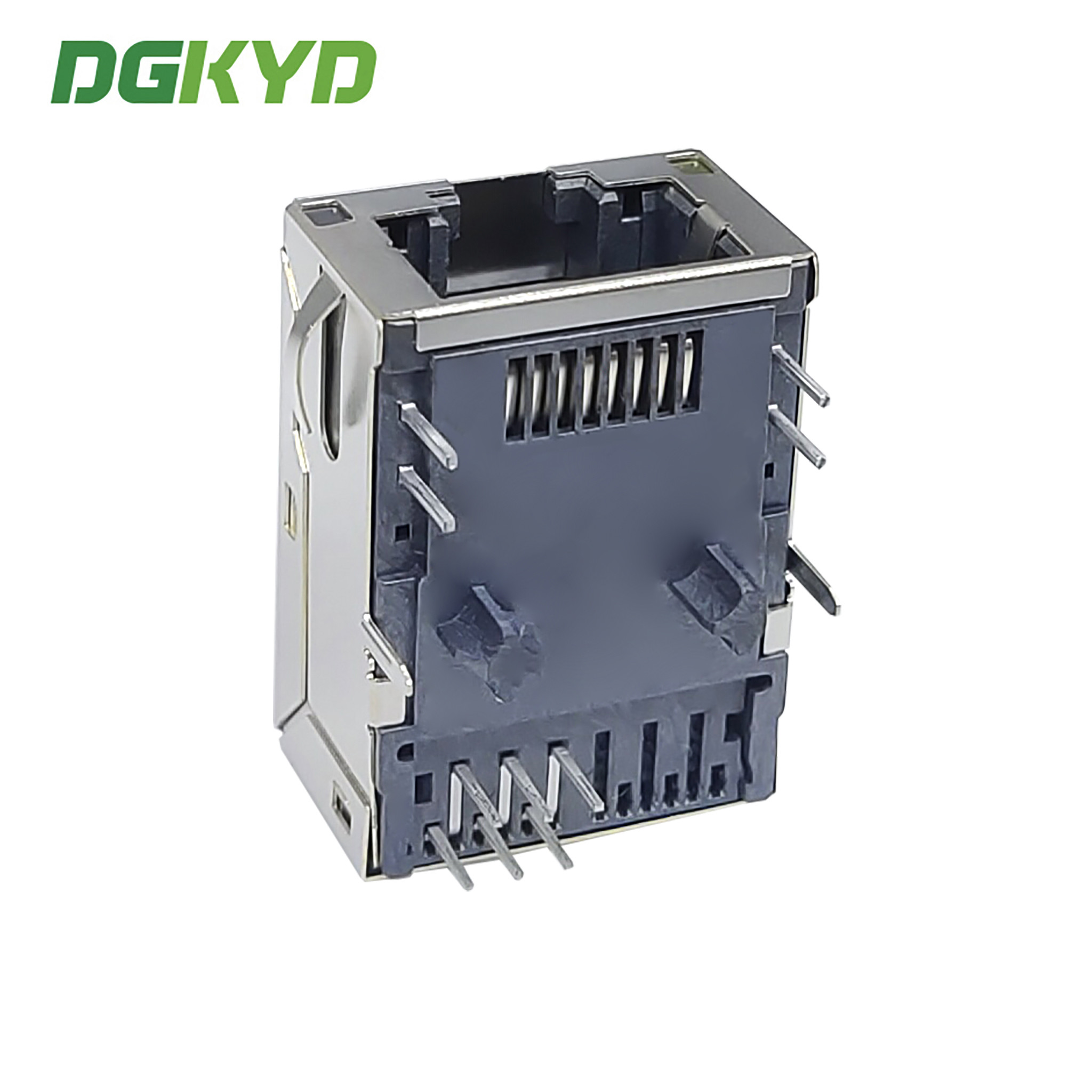

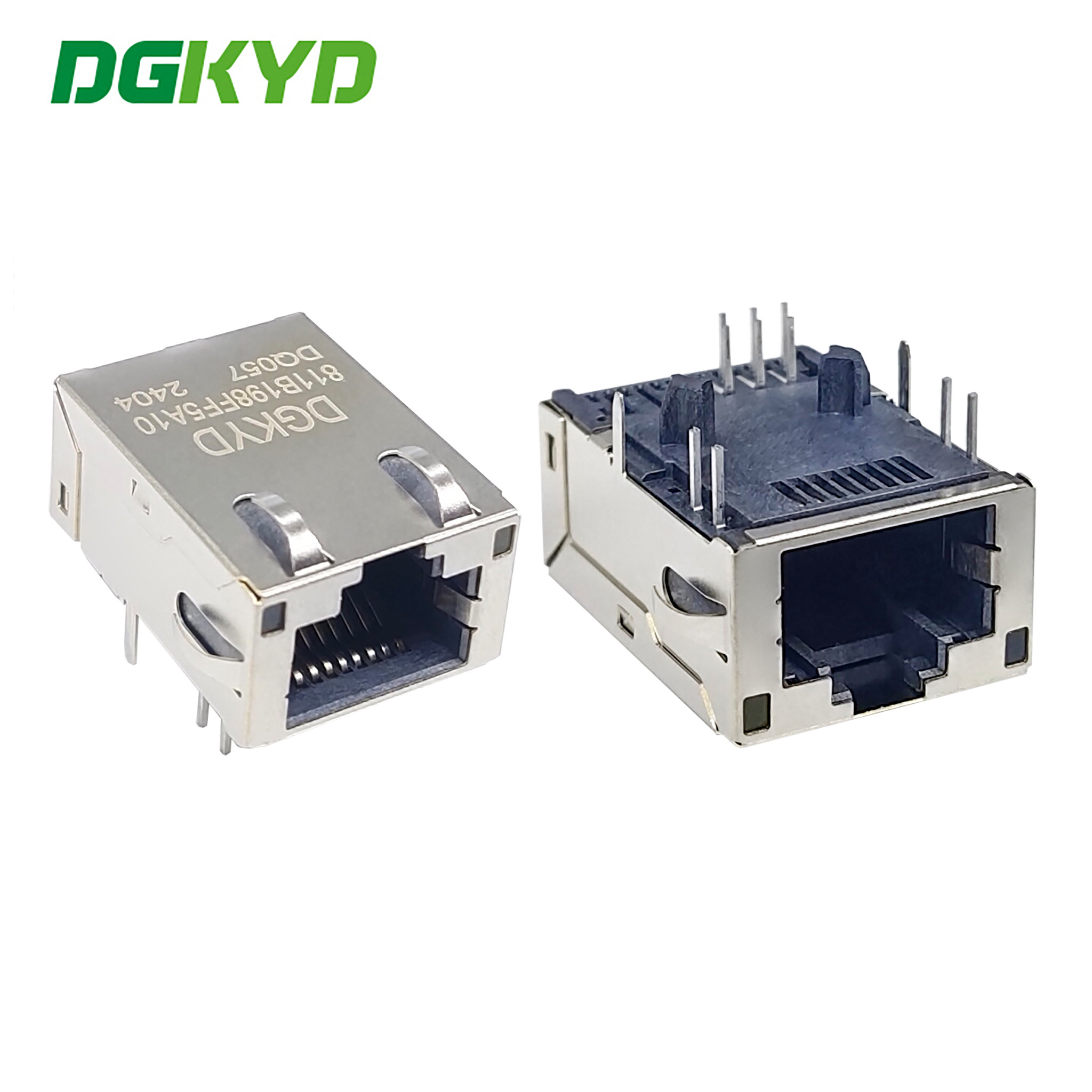

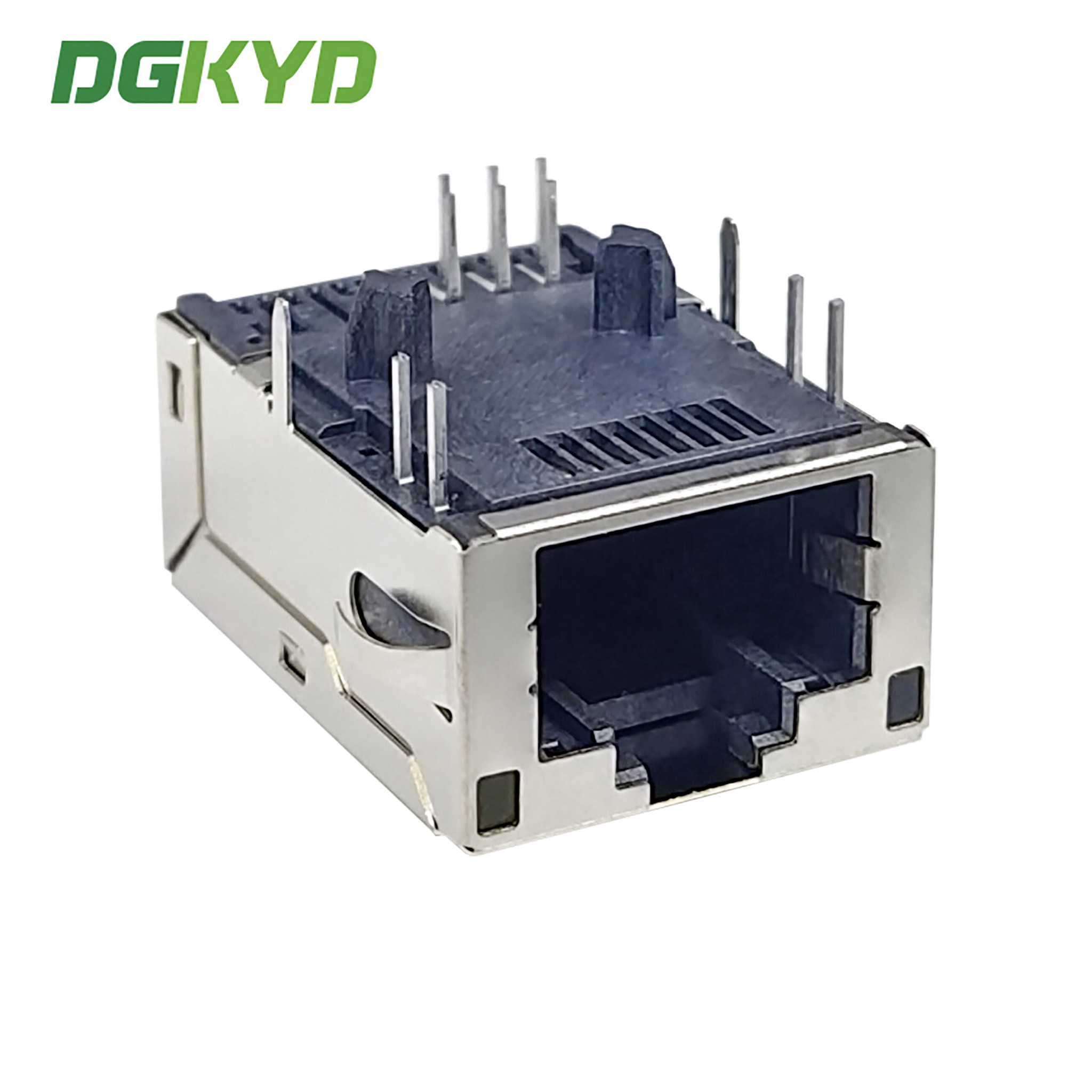

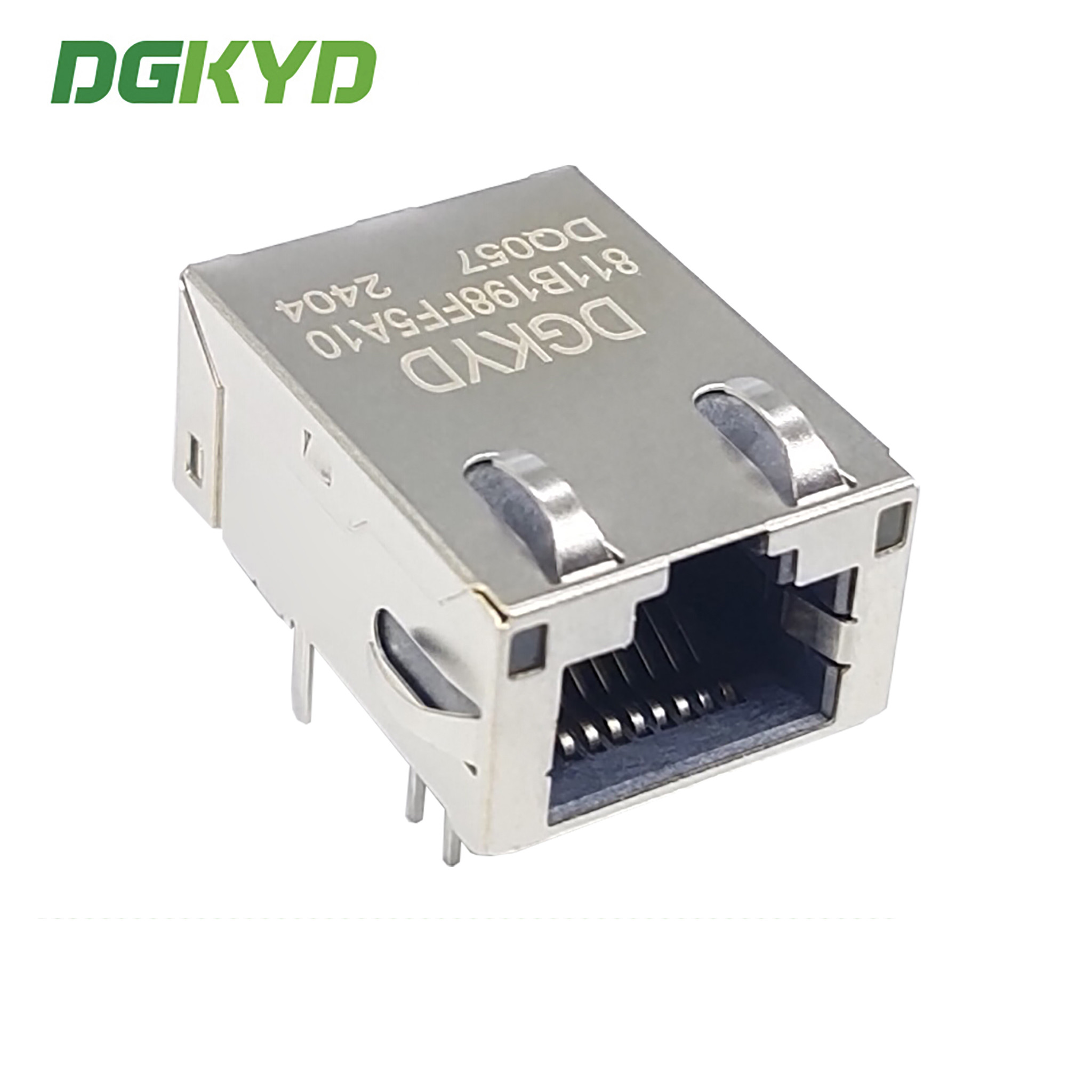

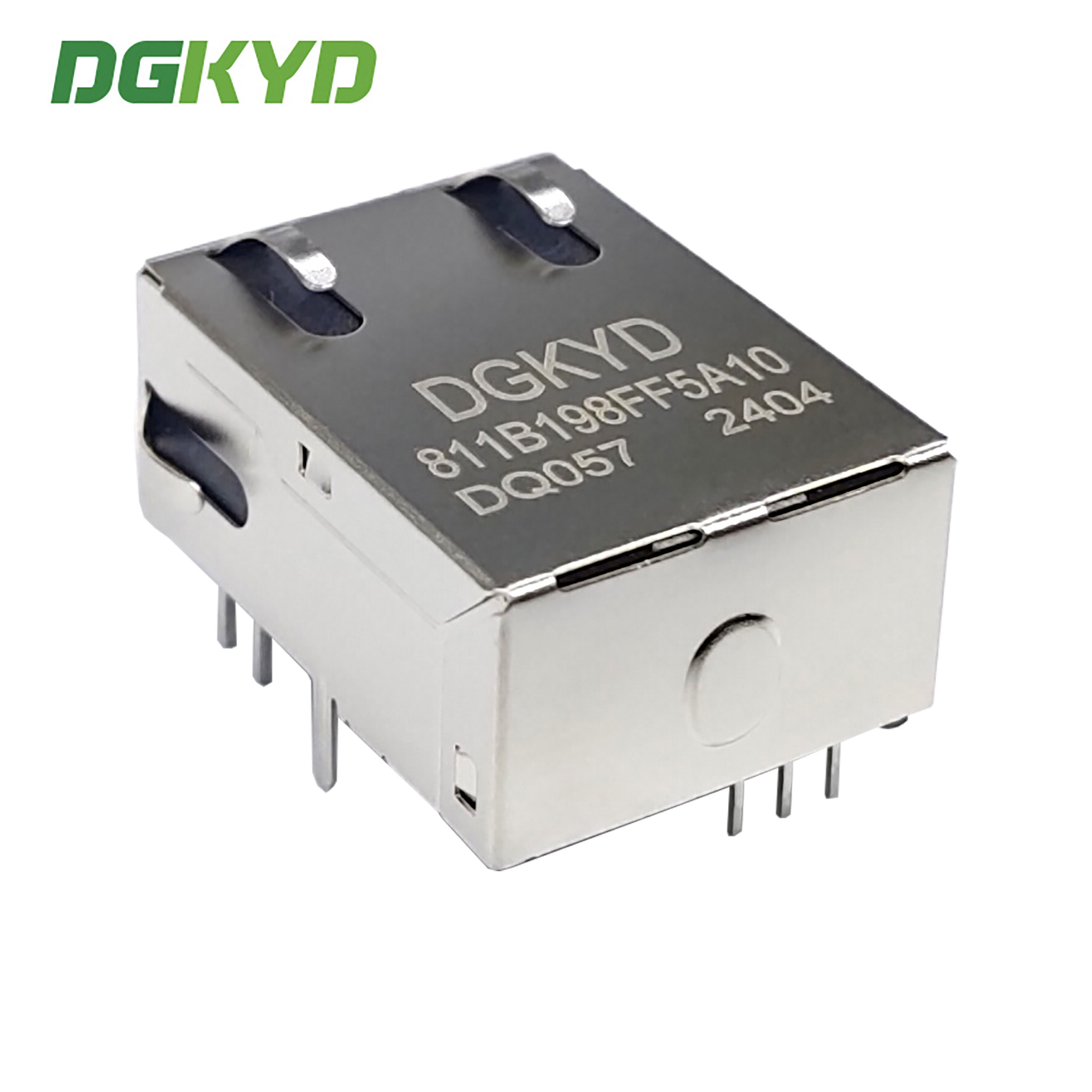

RJ45 network connector 100Mbps integrated transformer (without pins 1.2.3.7.8.9) DGKYD811B198FF5A10DQ057
Product Specification Document
Description:
100/1000Base-TX RJ45 single port (1*1)vertical with LEDs Integrated magnetics connector (ICM),designed to support applications, Such as Network Interface Cards (NIC), LAN-on Motherboard (LOM), and PC applications.
Features and Benefits :
* Single port (1X1) vertical RJ45 with internal magnetics.
* RoHS-6 peak wave solder temperature rating 260 0C.
* Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP.
* Internal magnetics are 100% electrically tested for HI-POT and functionality..
Electrical Performance :
* Meets or exceeds IEEE 802.3 standard for 100Base-T.
* 350 uH minimum OCL with 8 mA bias current.
* High performance for maximum EMI suppression.
* Minimum 1500 Vrms isolation per IEEE 802.3 requirement.
* Operating temperature range: -40 0C to +85 0C.
* Storage temperature range: -40 0C to +85 0C.
Why Choose Us
DGKYD specializes in manufacturing RJ45 connectors and network transformers, and a high-tech enterprise integrating R&D, production, sales and service, with years of manufacturing history in connectors and transformers.
Our strengths:
Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: 0 ℃ - 70 ℃,
Storage temperature: - 40 ℃ - 85 ℃
Lead free soldering: wave soldering height up to 265 ℃
DGKYD is a young professional communication components supplier.
Main Products:
The main independent brand DGKYD, products by domestic leading enterprises OEM OEM production.
Our own brand products include: network interface integrated inductance POE power transformer.
Products are widely used in Ethernet network switches, home and enterprise VPN routers, computers and laptop peripheral, building security, medical equipment, smart TV, smart home, TV box, digital audio and other network communication equipment and terminals.
We believe that we are professional because we are focused. We want to continue to develop our expertise and stay ahead of the curve in our chosen field. Meet customers' needs on time with quality, efficiency and commitment.
Parameters
| Part Number |
DGKYD811B198FF5A10DQ057 |
Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-up |
| Filter | With Filter | LED Option | With LED |
| LED Color | Green-Orange/Yellow | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/ BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | Single Ports | Number of Positions |
6 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u/15u/30u/50u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | LCP Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
