DGKYD111B002GWA1D Single Port RJ45 100M Integrated Transformer Without Light
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | Negotiation | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | 4800Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD56221118IWA1DY4 |
|
Detail Information |
|||
| Product Type: | RJ45 | Interface Typemethod: | RJ45（Crystal Head） |
|---|---|---|---|
| Working Frequency: | High Frequency | Shape: | Rectangle |
| Number Of Positions/Contacts: | 8P8c (RJ45, Ethernet) | HOUSING: | PBT |
| Latch: | TAB-DOWN | Dimension (mm): | 15 * 18*11.5mm |
| Gold Plating On Contact Pins: | 6U | Operating Temperature: | - 40 ℃ ~ 85 ℃ |
| Storage Temperature: | - 40 ℃ ~ 85 ℃ | ||
| Highlight: | Plastic Mesh Socket 6U,RJ45 10P8C Socket,DGKYD56221118IWA1DY4 |
||
Product Description

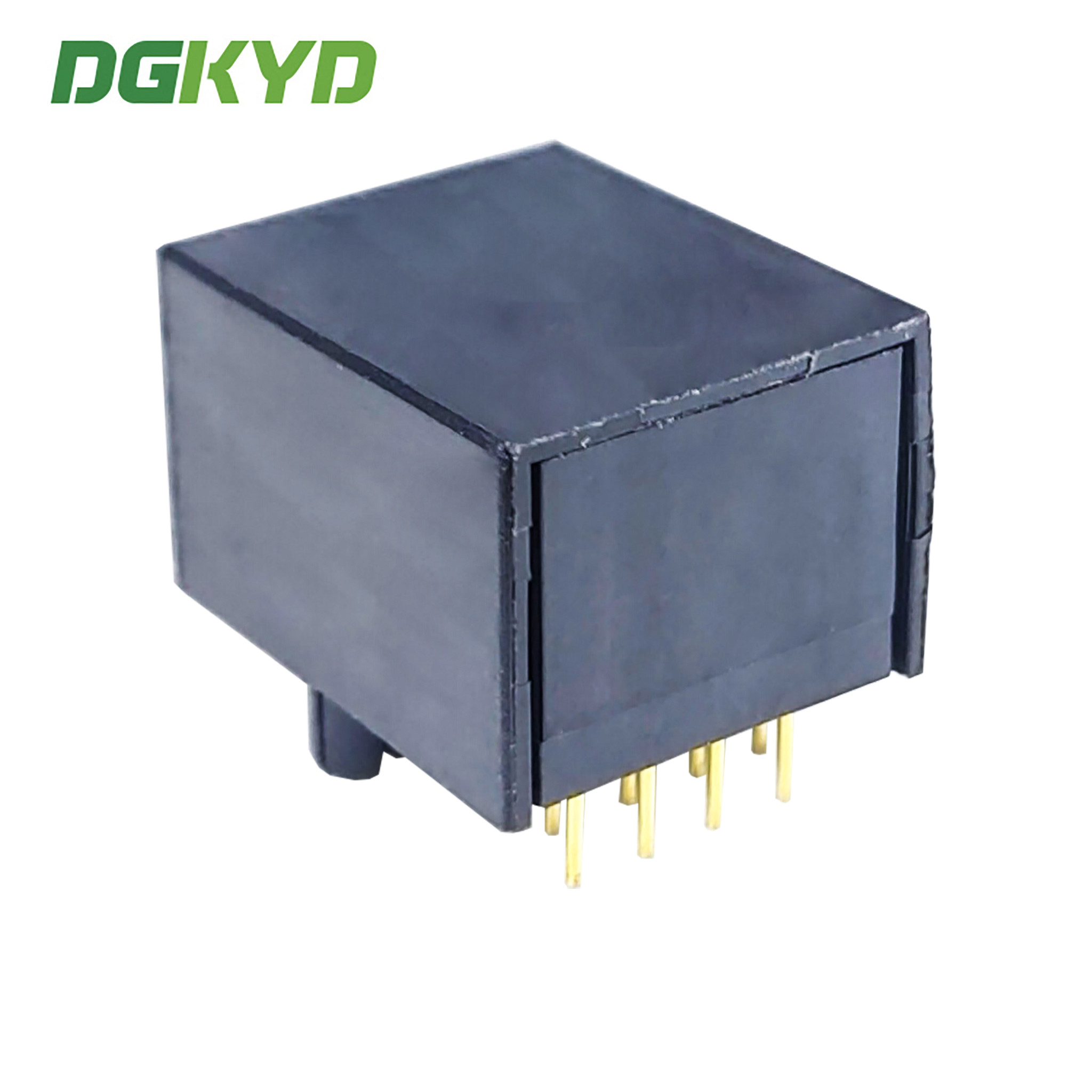

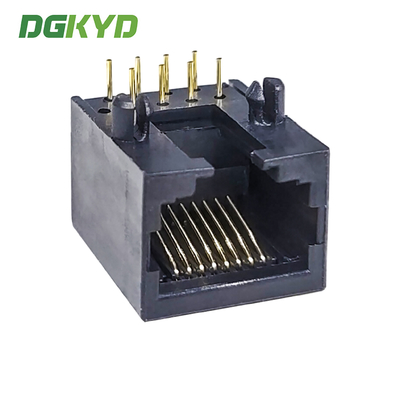

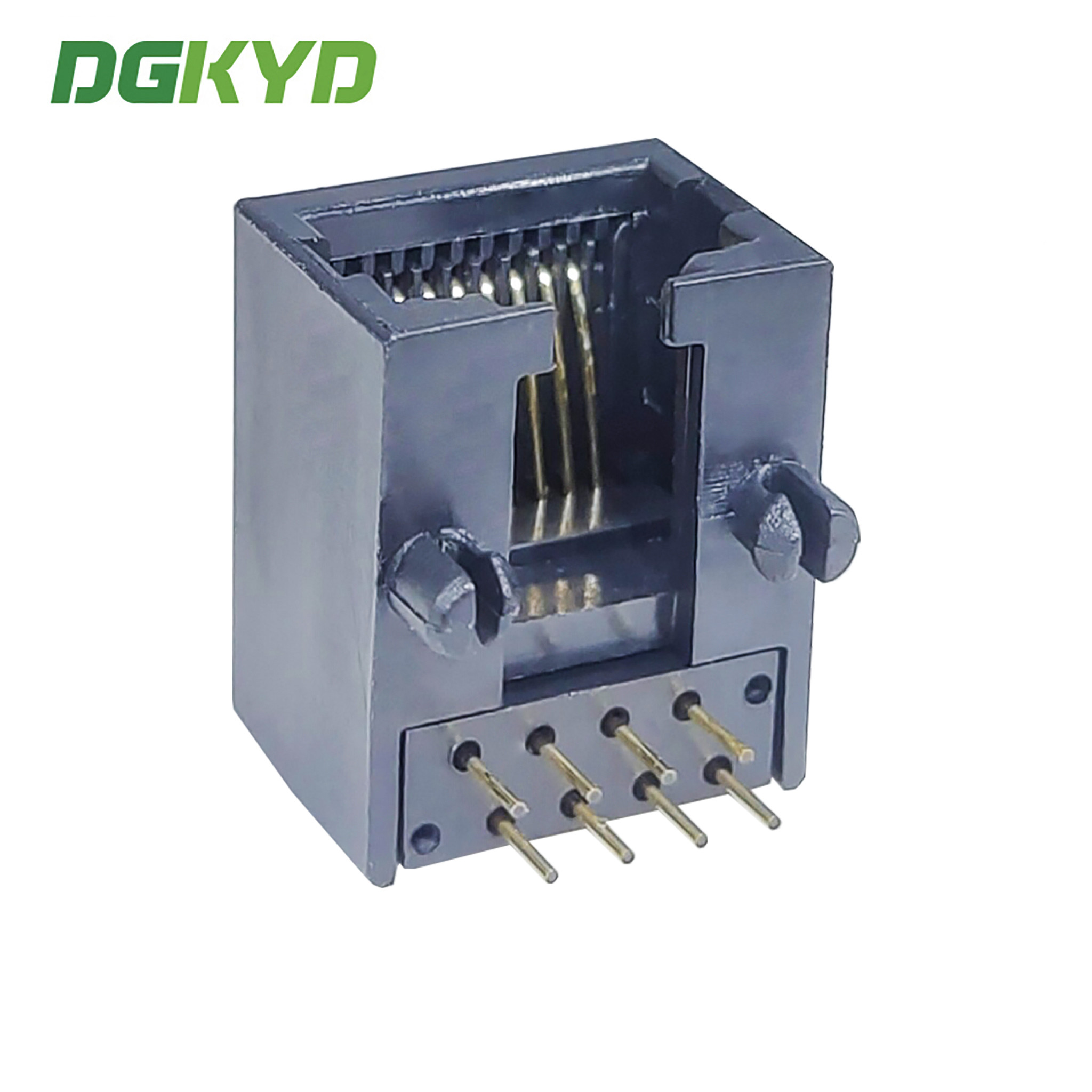

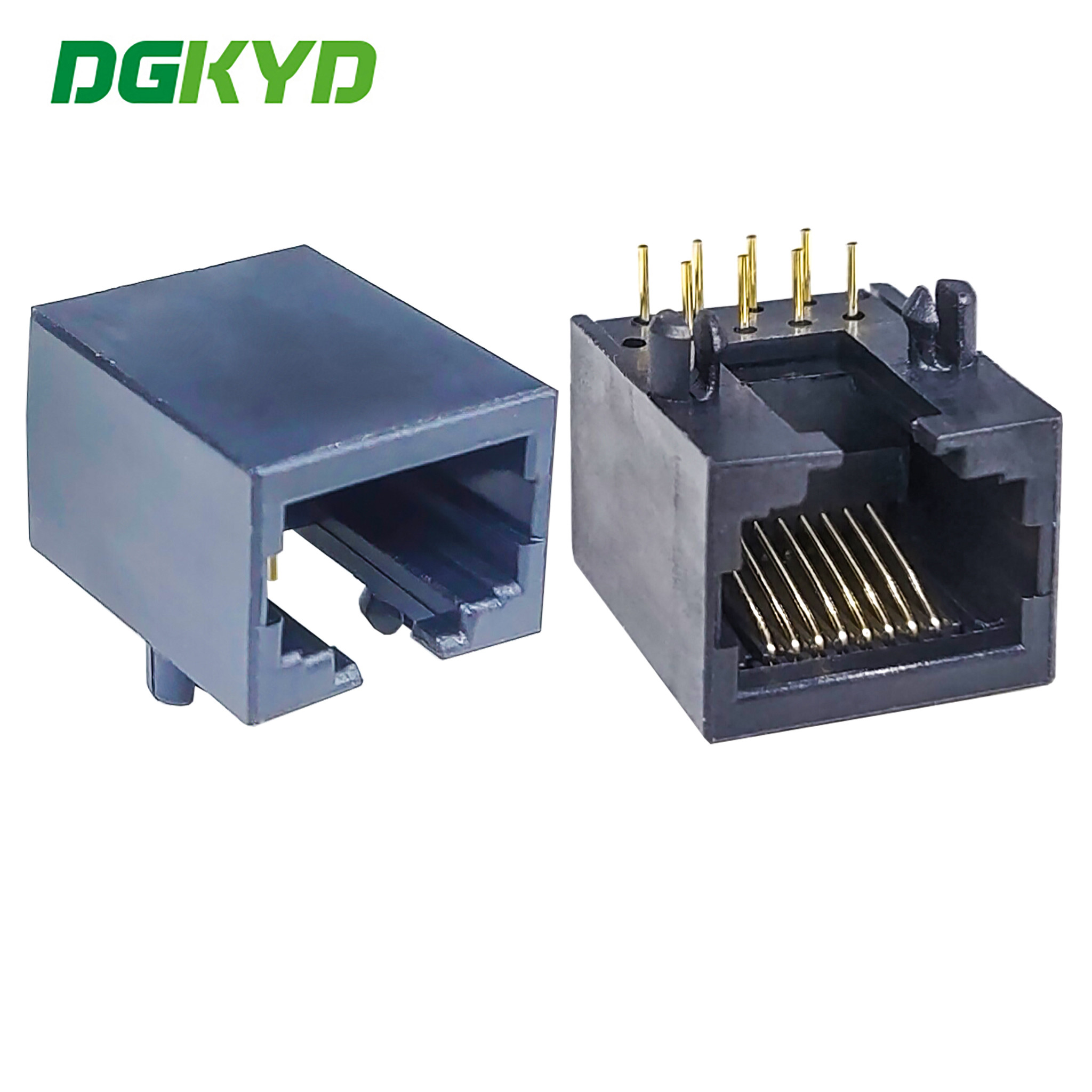

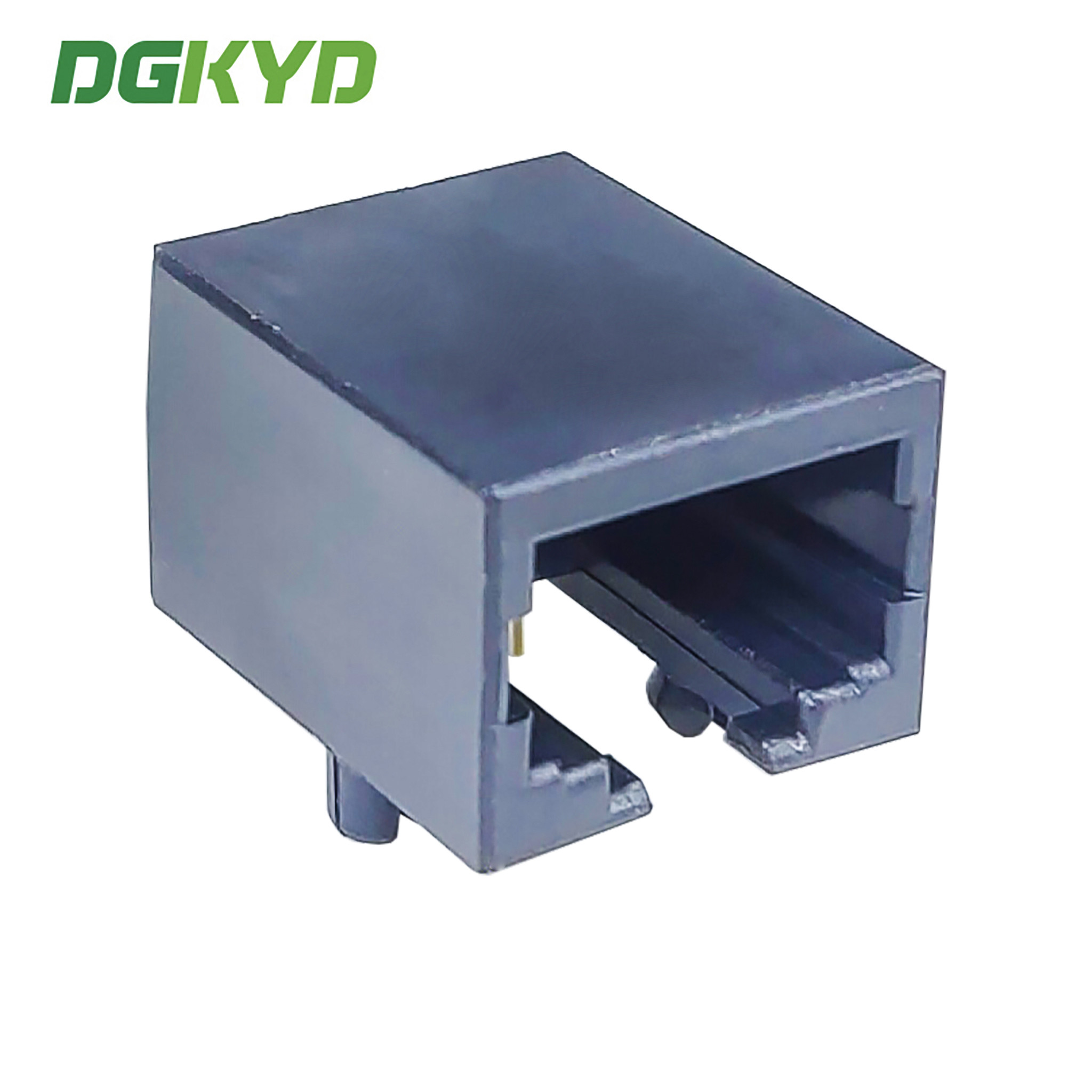

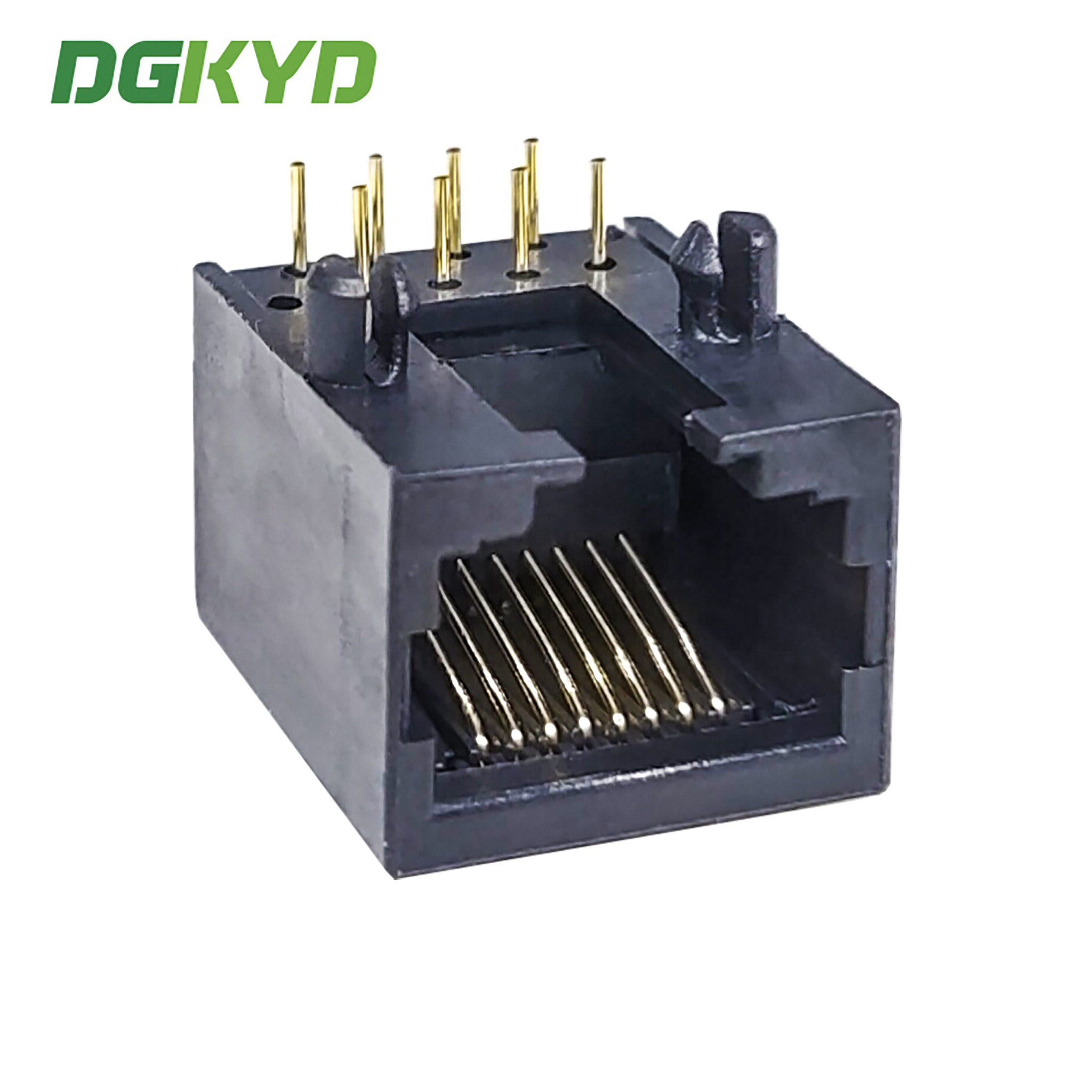

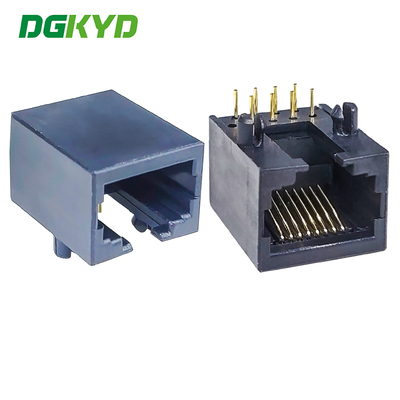

DGKYD56221118IWA1DY4 single cell RJ45 10P8C light free all plastic mesh socket 6U
Product Specification Document
Our strengths:
1. Professional connector manufacturer, a variety of styles to choose from, we are factory direct sales, not only quality assurance but also affordable.
2. We can provide free samples for you to test, and then purchase if appropriate.
3. If the product is not what you want, please contact us directly and provide the product specifications you need.
4. Large-scale production workshop, fast delivery, immediate delivery from the spot, no need to worry about delivery.
5. One-to-one after-sales service, please feel free to contact us if you have any questions.
Parameters
| Part Number |
DGKYD56221118IWA1DY4 |
Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-DOWN |
| Filter | Without Filter | LED Option | Without LED |
| LED Color | No | Panel Stops | Without Panel Stops |
| Shielded | No | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000 BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | Single Ports | Number of Positions | 8 |
| Jack Configuration | 1X1 | Terminals per Port | 10 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u/15u/30u/50u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
