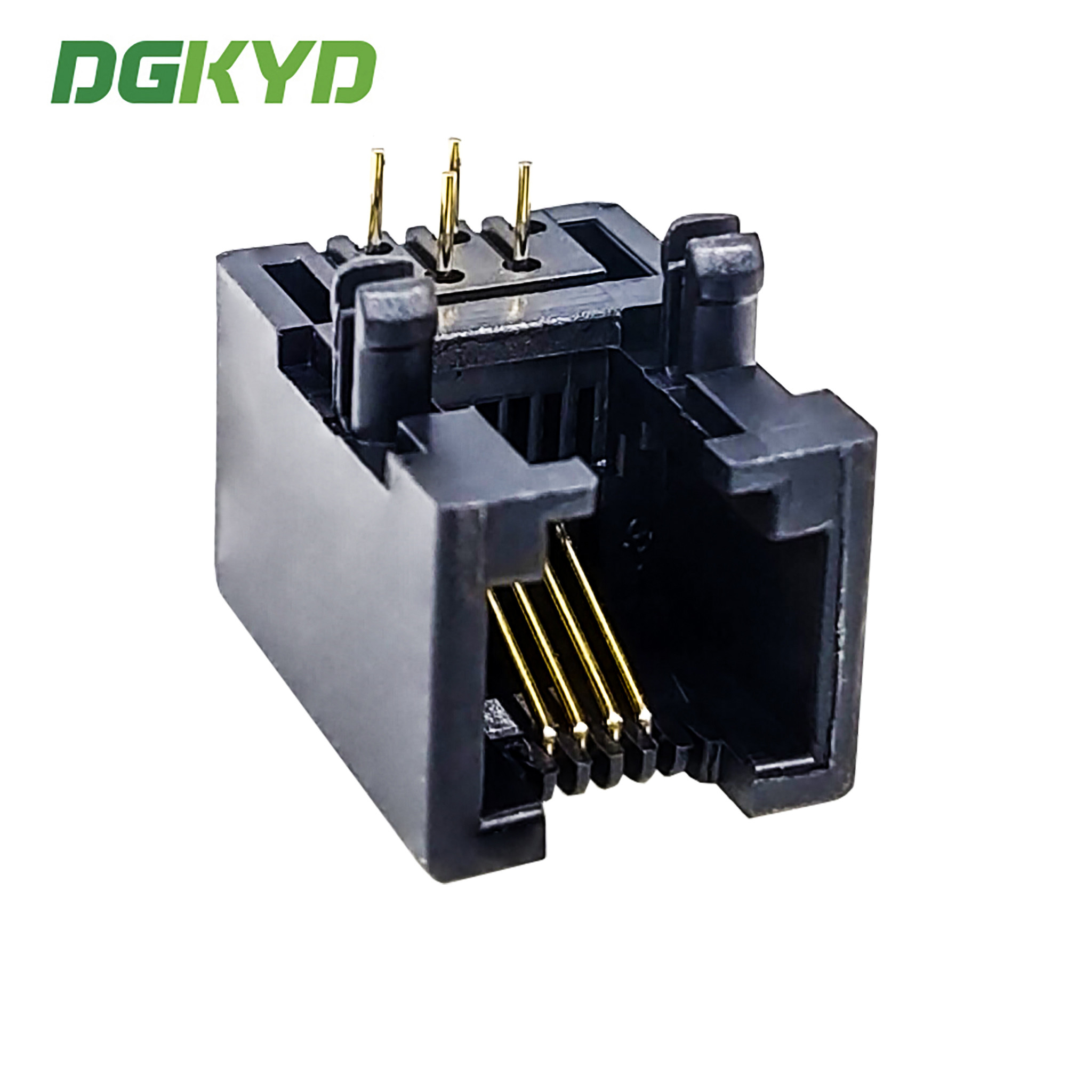

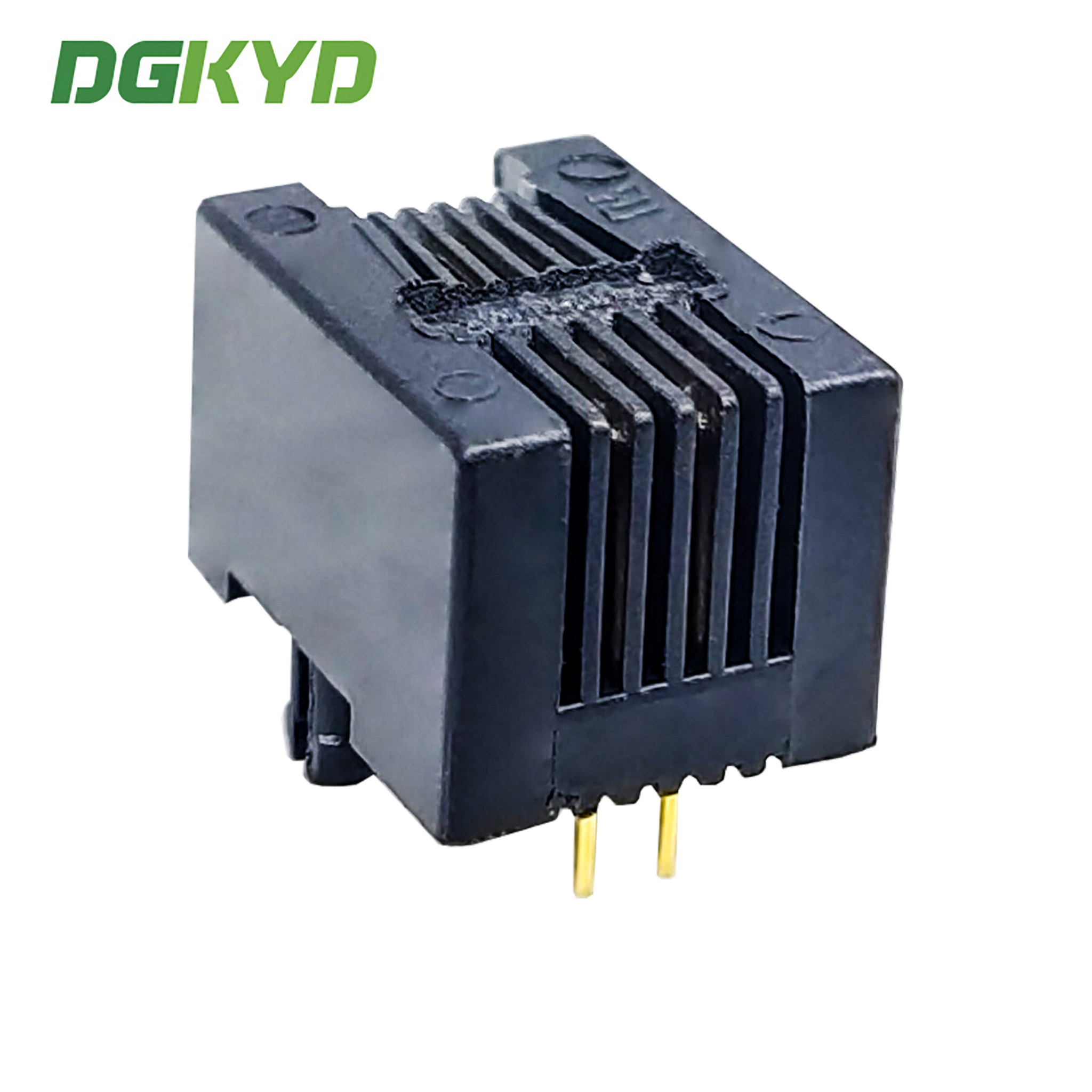

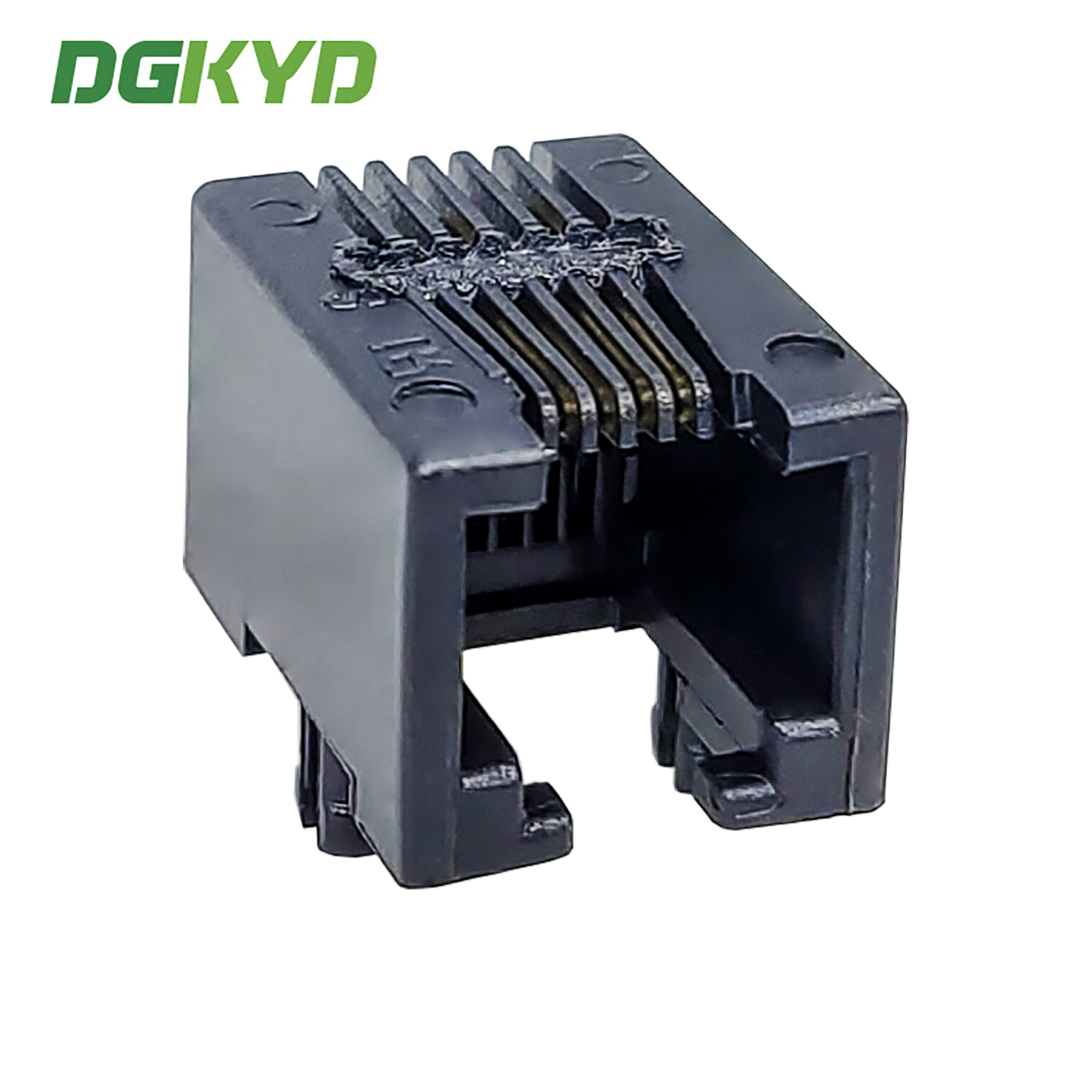

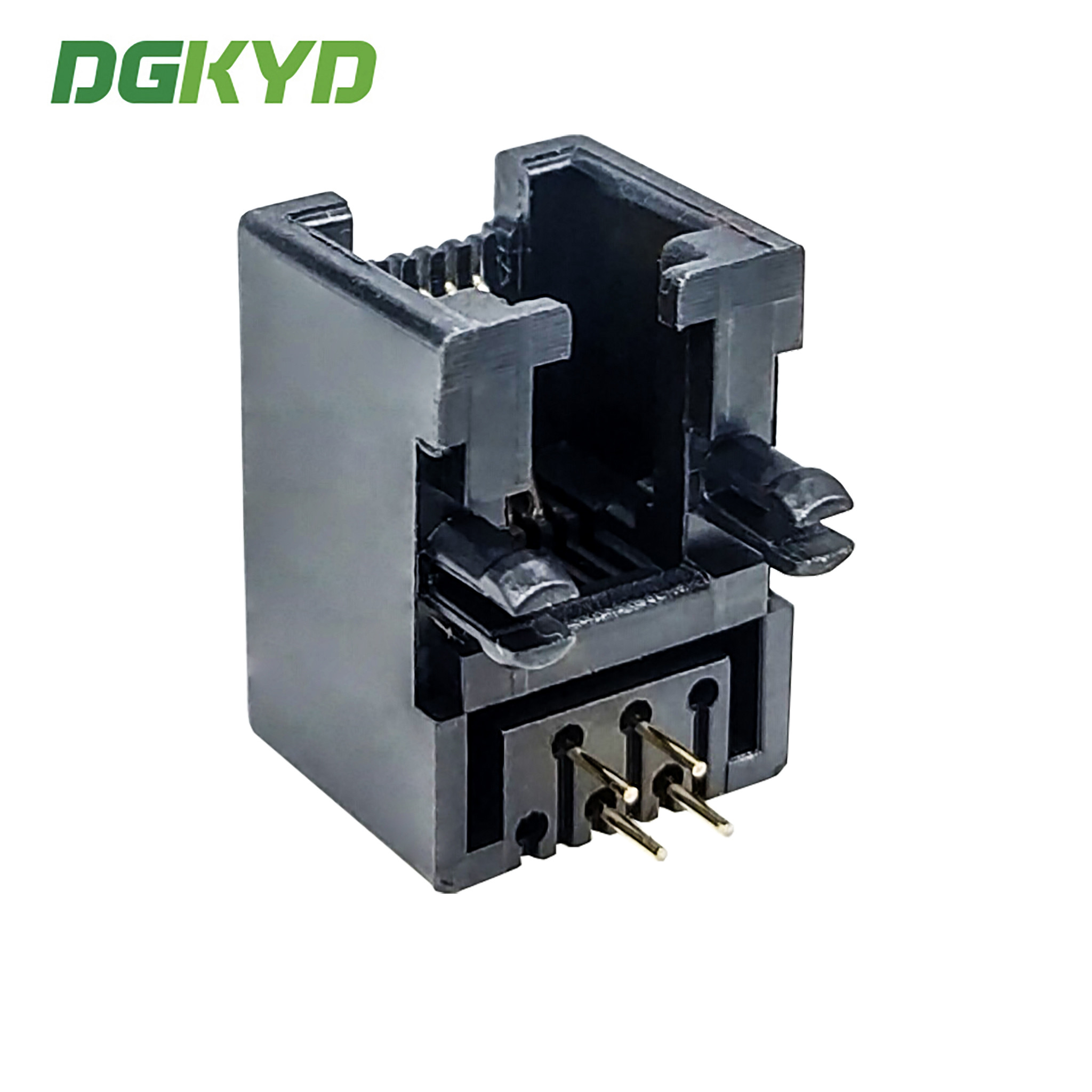

RJ45 Ethernet port connector flat pin 6U interface with shield 8P8C DGKYD59211188AB2A1DB4
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD53211164IWA1DY4 |
|
Detail Information |
|||
| LEDS/EMI Fingers: | For Optional | Feature: | High Performance With Magnetics And LED |
|---|---|---|---|
| RJ45 Suitable: | For CAT5&6 Ethernet Cable Or UTP | Application: | Lan,bridge,PC,router,usb Hub Network Rj11 And All Ethernet Devices |
| Gender: | Female | Product Name: | RJ11 Lan Jack |
| RJ45 Connector Tab Direction: | Tap UP | Storage Temperature: | - 40 ℃ ~ 85 ℃ |
| Number Of Pins: | 4 | Material: | PBT |
| Highlight: | plastic RJ11 interface 6P4C connector,RJ11 interface 6P4C connector,direct insertion RJ11 interface connector |
||
Product Description
Product Specification Document
| Part Number |
DGKYD53211164IWA1DY4 |
Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | CE /UL/FCC/Reach/RoHS |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ11 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | Without internal filter | LED Option | Without LED |
| LED Color | No | Panel Stops | Without Panel Stops |
| Shielded | No | Applies To | Printed Circuit Board |
| Performance Speed | Grounding Options | Panel Ground and PCB Ground | |
| Port Configuration | single port | Number of Positions | 4 |
| Jack Configuration | 1 x 1 | Terminals per Port | 6 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board |
Through Hole-Press-Fit
|
Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Descriptions:
► Our Service
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•DGKYD Is OEM Of FOXCONN For 6 Years
•Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE…
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:1-2 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
DGKYD Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• DGKYD Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
