RJ45 100Mbps Ethernet socket 8P8C module with compact window surface DGKYD5A11B048AA1A8DMZ
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | 480pcs/carton | Delivery Time : | 7-14days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 60000pcs per day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD411Q008DB2A1D |
|
Detail Information |
|||
| Product Name: | RJ45 With Transformer | Feature: | High Performance |
|---|---|---|---|
| Transformer: | With Transformer | Housing Material: | PBT Black |
| Filter: | With Internal Filter | Port Configuration: | Singer Port |
| LED: | Green/Yellow | Number Of Contacts: | 12 |
| Gold Plating: | 6U | Shield: | Metal Shield |
| Highlight: | Gigabit Integrated Transformer network port connector,RJ45 network port connector,Light Spring Clip network port connector |
||
Product Description

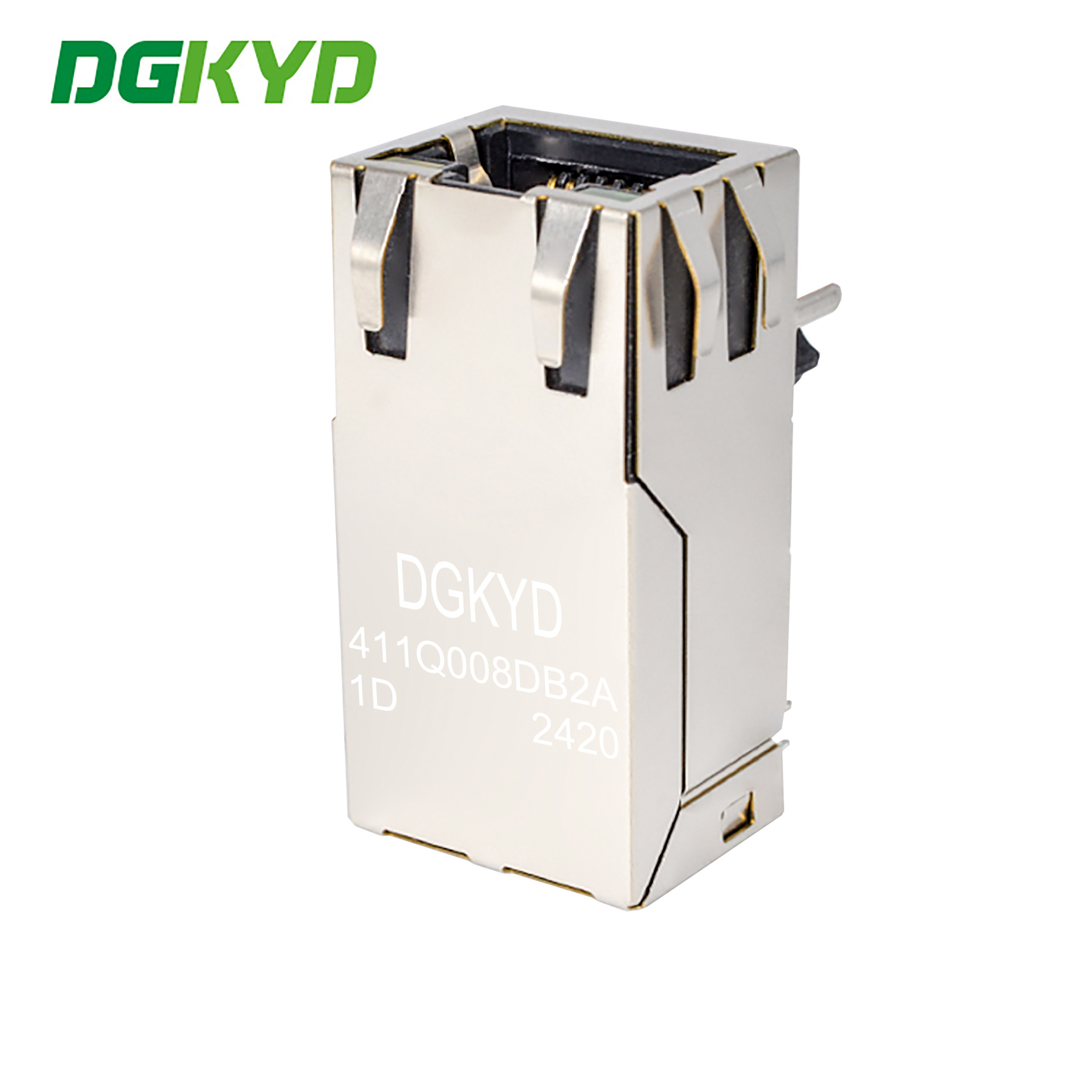

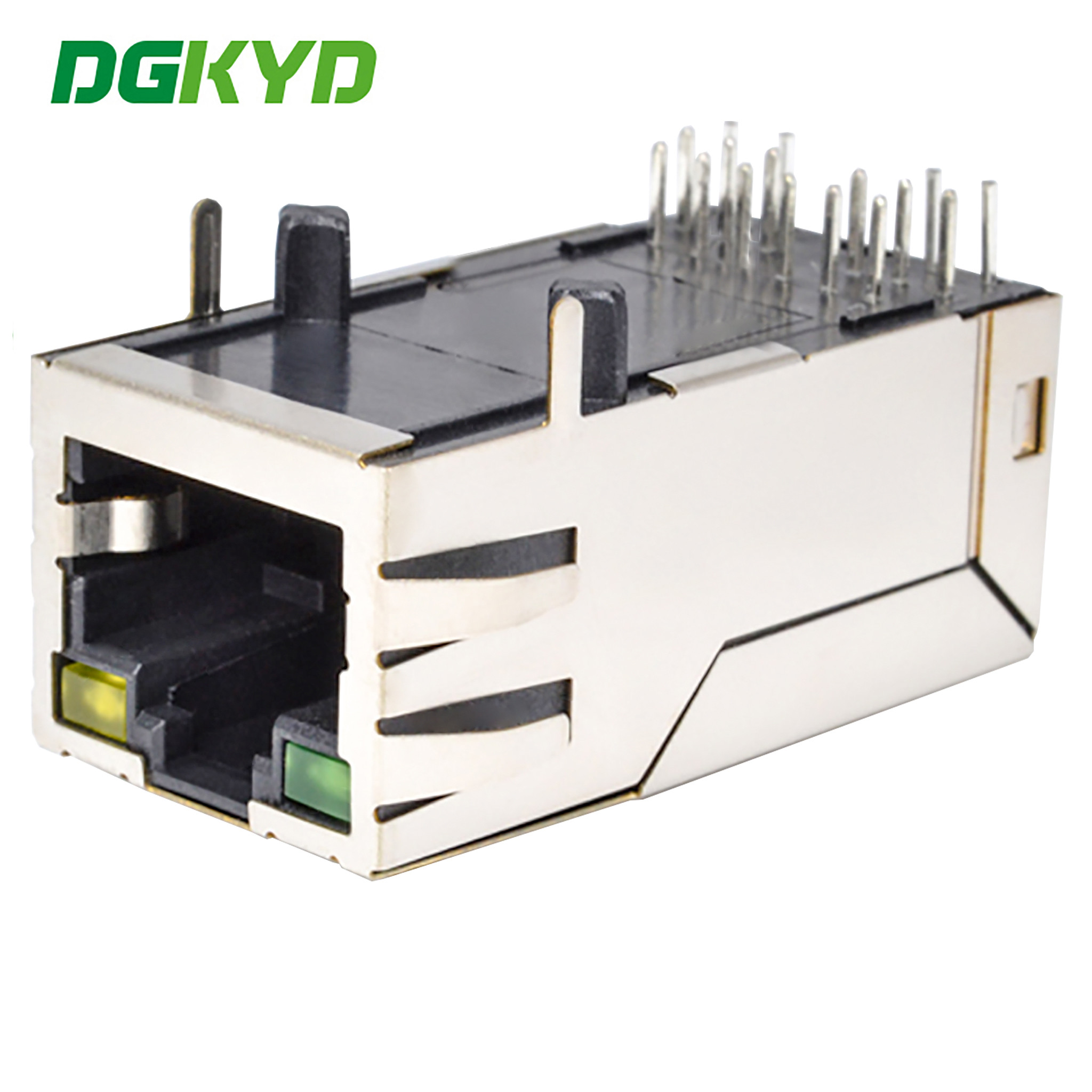

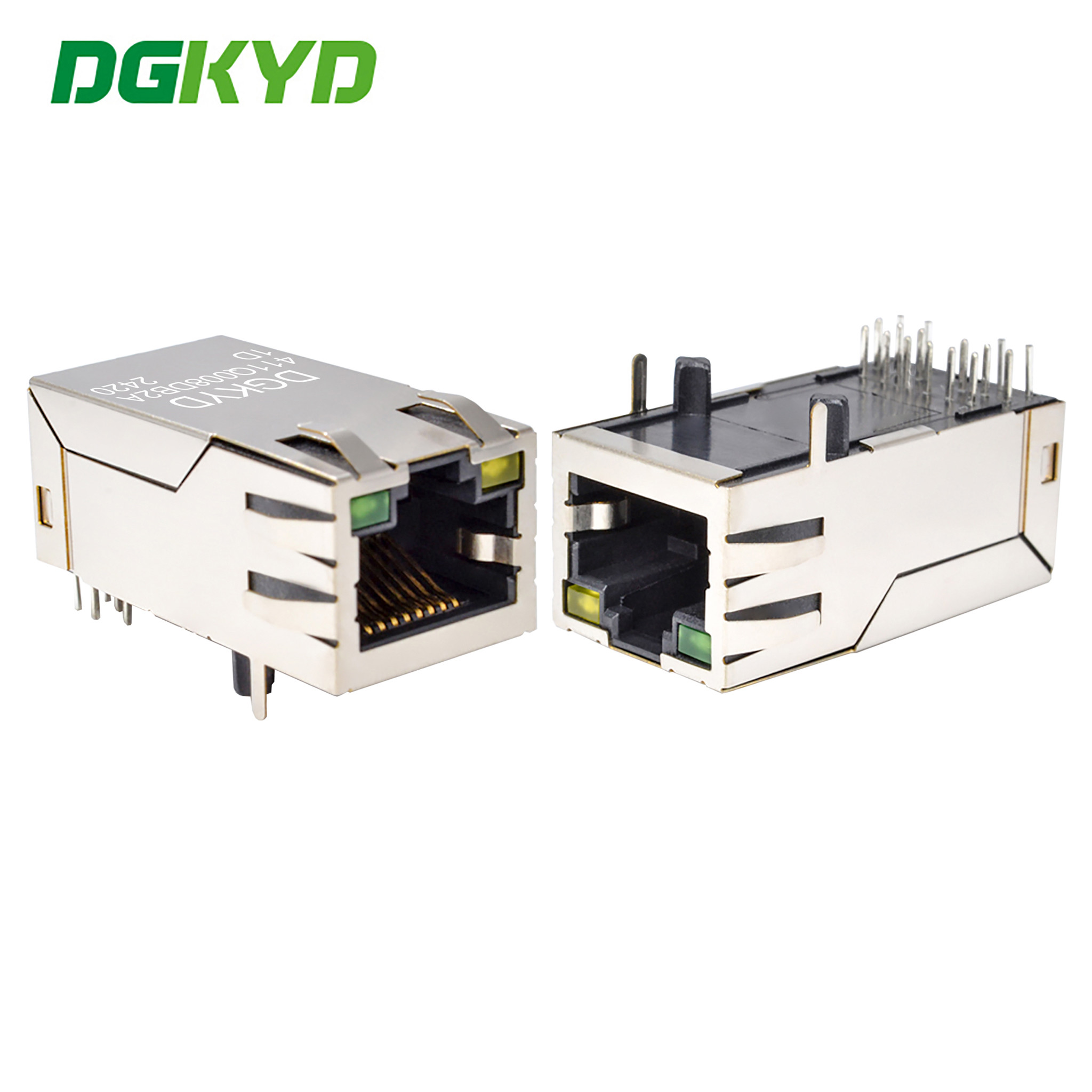

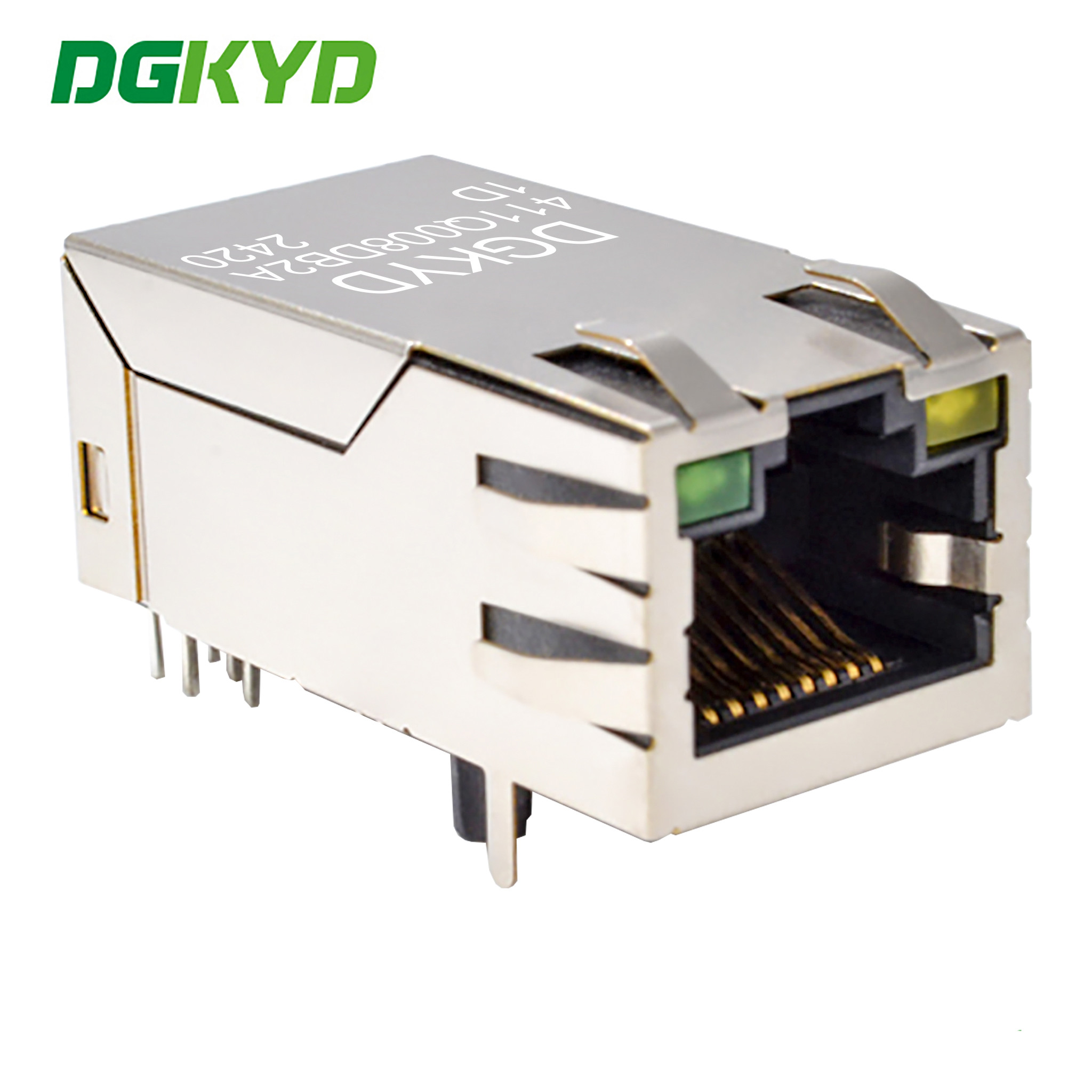

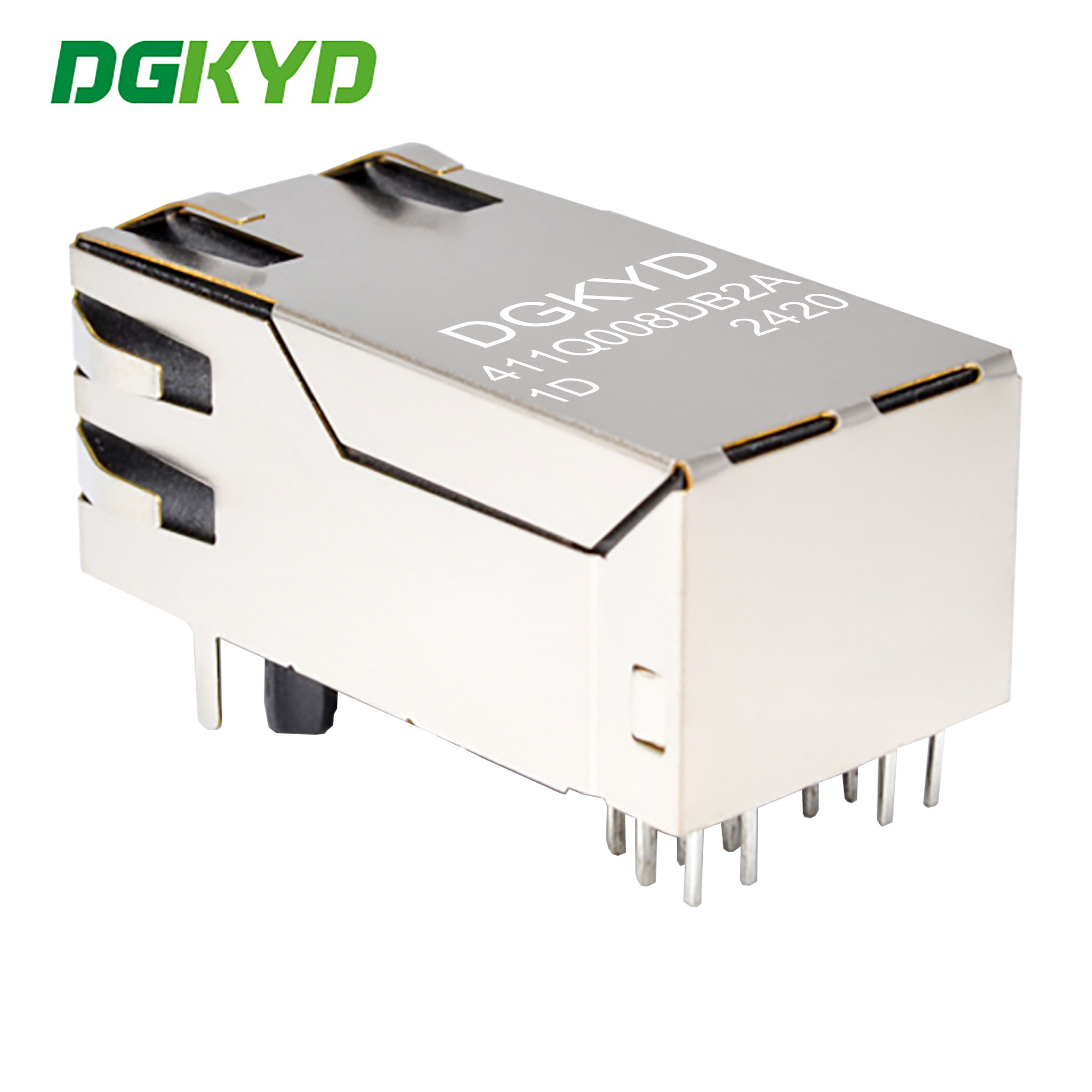

RJ45 network port connector, gigabit integrated transformer with light and spring clip,connector DGKYD411Q008DB2A1D
Product Specification Document
DGKYD411Q008DB2A1D.pdf
Paramters
| Part Number | DGKYD411Q008DB2A1D | Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | With internal Filter | LED Option | With LED |
| LED Color | L-Green/R-Yellow | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 1000M BASE-TX | Grounding Options | Panel Ground and PCB Ground |
| Port Configuration | Singer port | Number of Positions | 12 |
| Jack Configuration | 1X 1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6/15/30/50 Microinch | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Our Service
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•DGKYD Is OEM Of FOXCONN For 6 Years
•Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE…
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:1-2 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
DGKYD Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• DGKYD Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
