RJ45 100Mbps Ethernet socket 8P8C module with compact window surface DGKYD5A11B048AA1A8DMZ
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD511B109AC2A8D |
|
Detail Information |
|||
| LEDS/EMI Fingers: | Custom | Feature: | High Performance,magnetic |
|---|---|---|---|
| RJ45 Suitable: | For CAT5&6 Ethernet Cable Or UTP | Application: | Lan,bridge,PC,router,usb Hub Network Rj45 |
| Gender: | Female RJ45 | Product Name: | RJ45 Ethernet Jack |
| Highlight: | RJ45 Ethernet Connector,180 degree Ethernet Connector,Top insertion Ethernet Connector |
||
Product Description

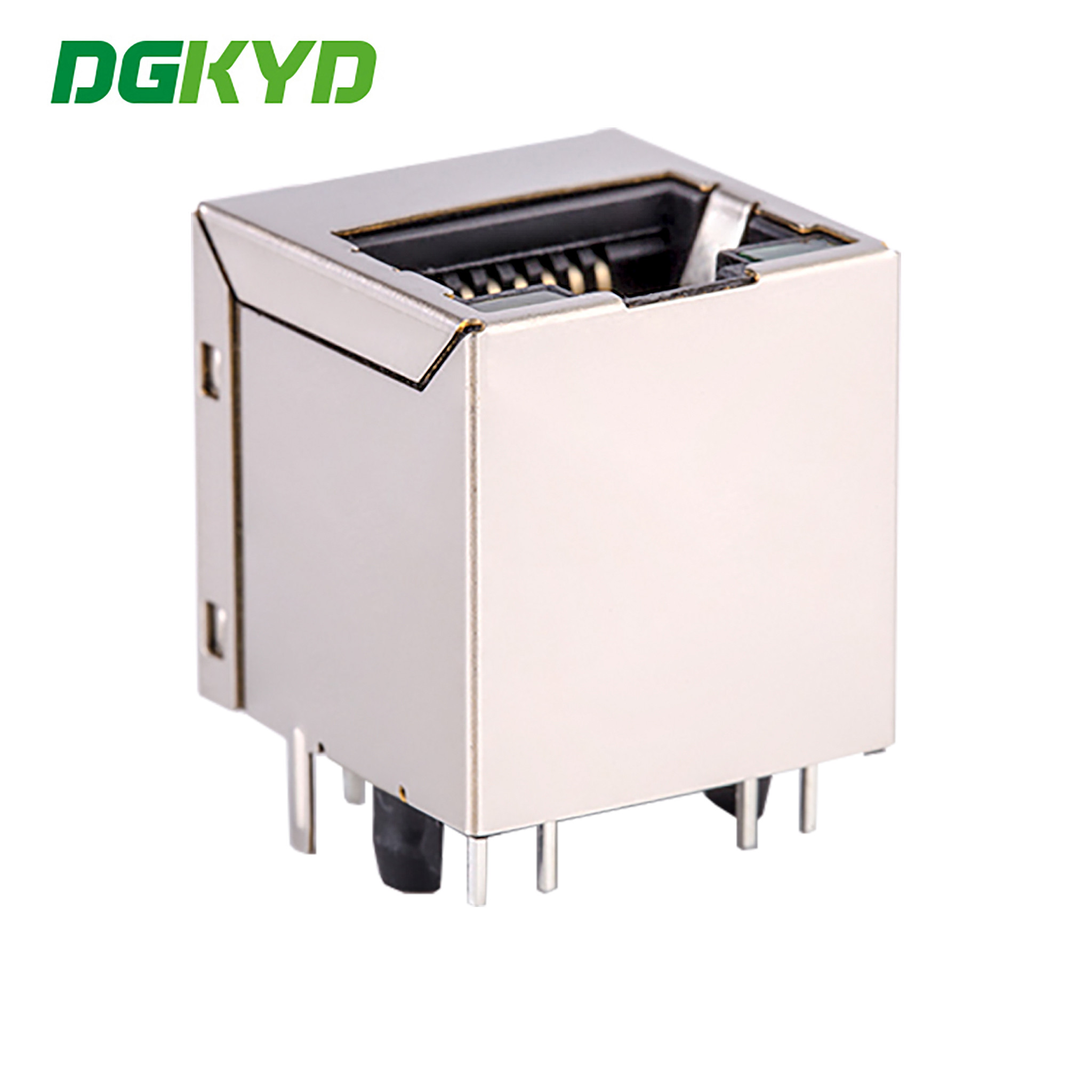

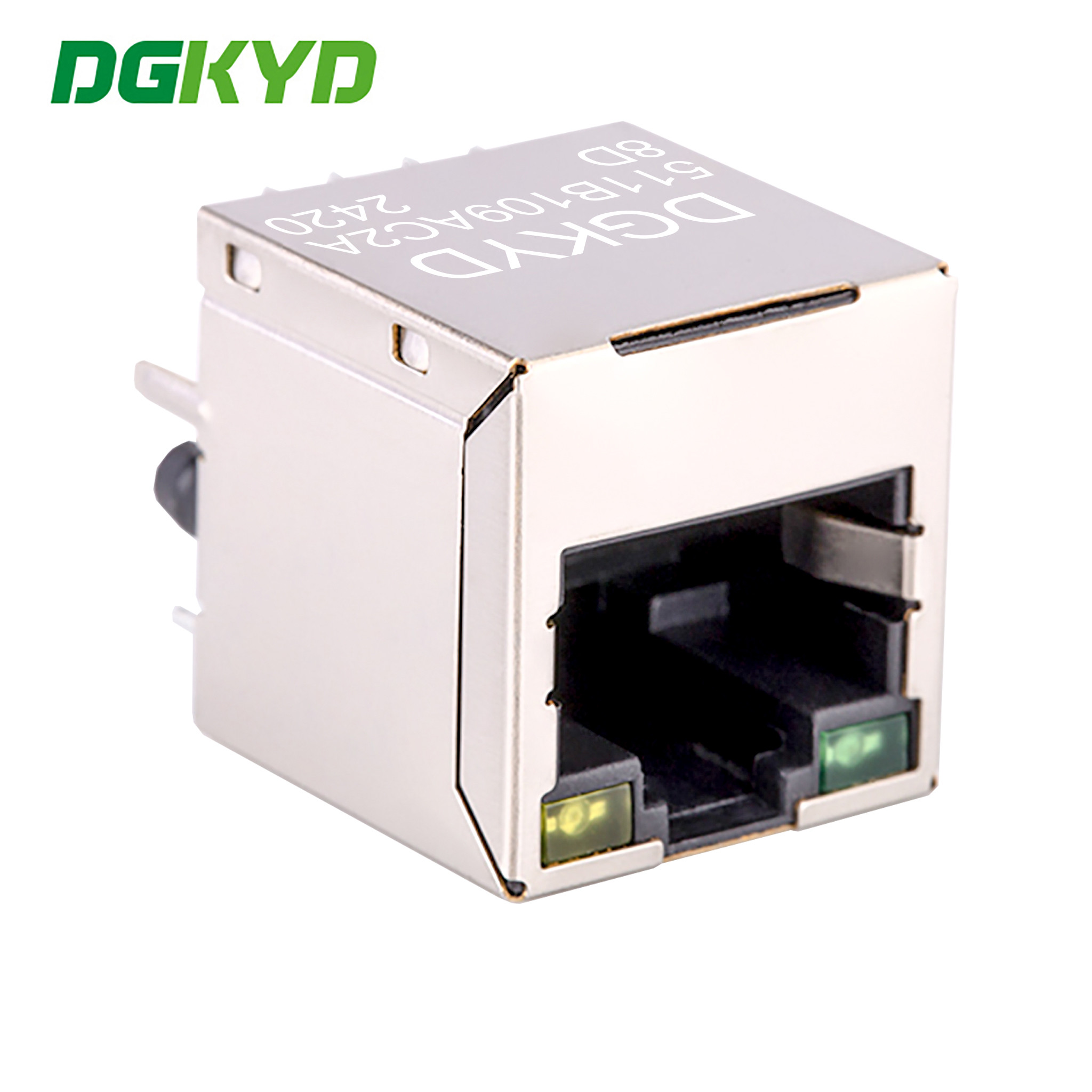

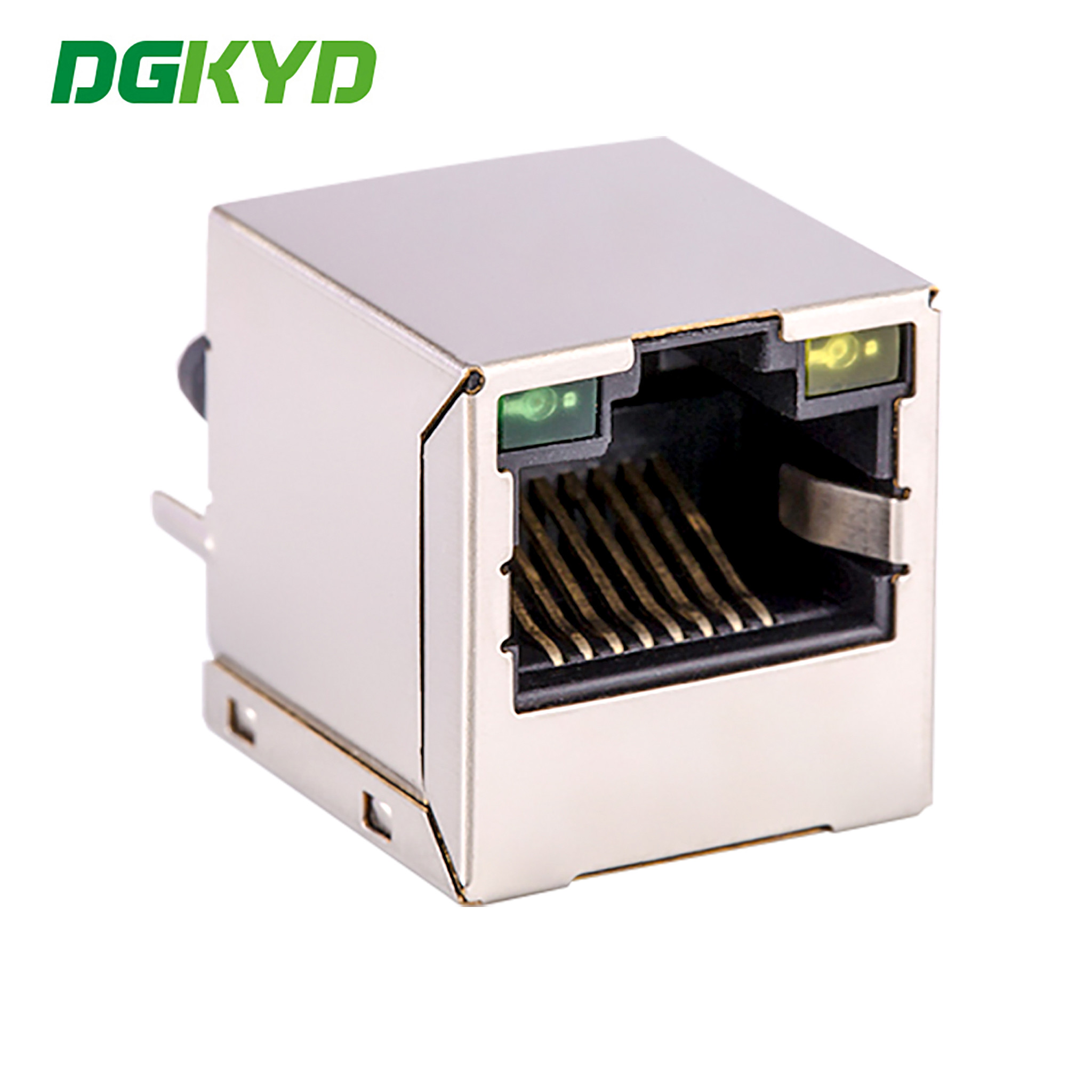

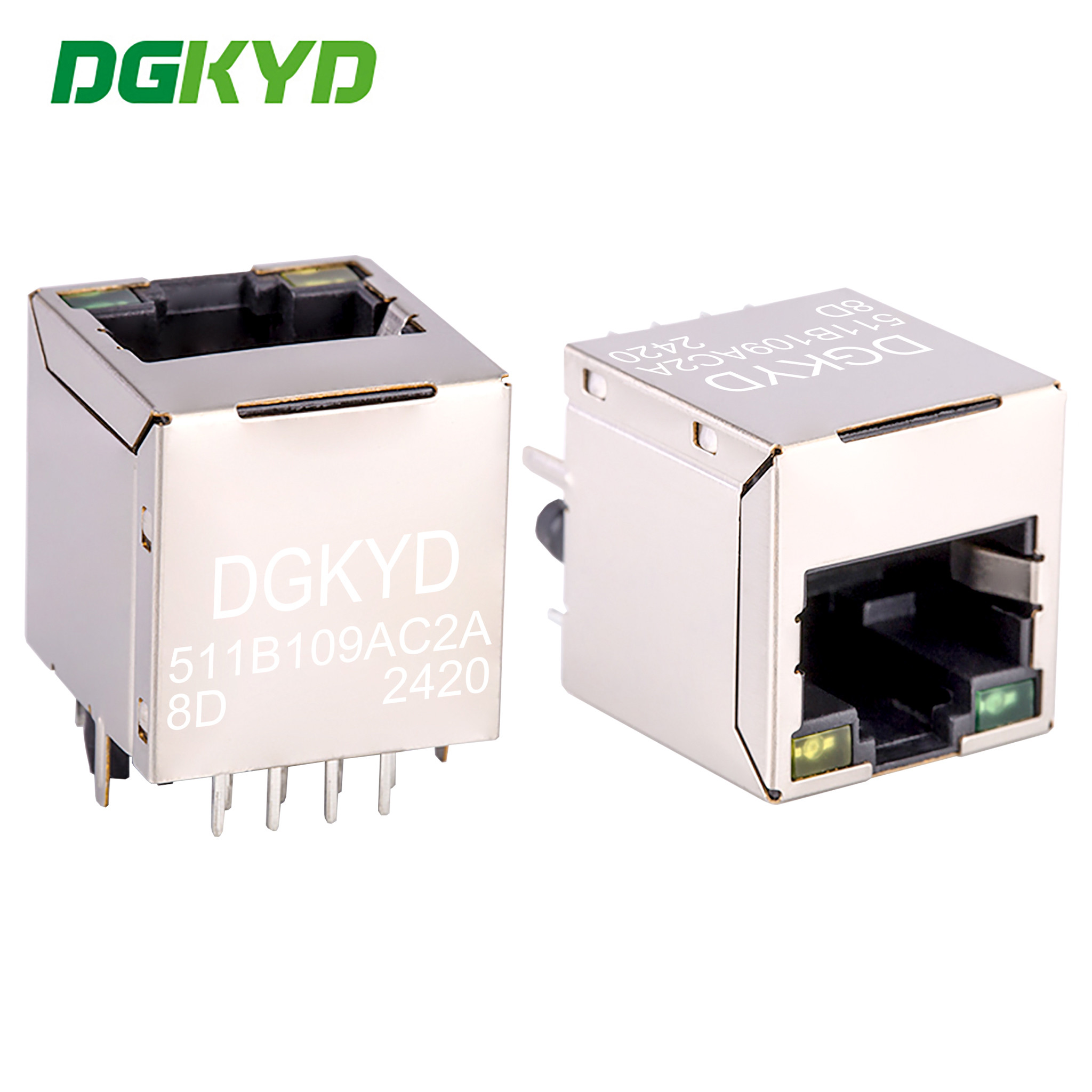

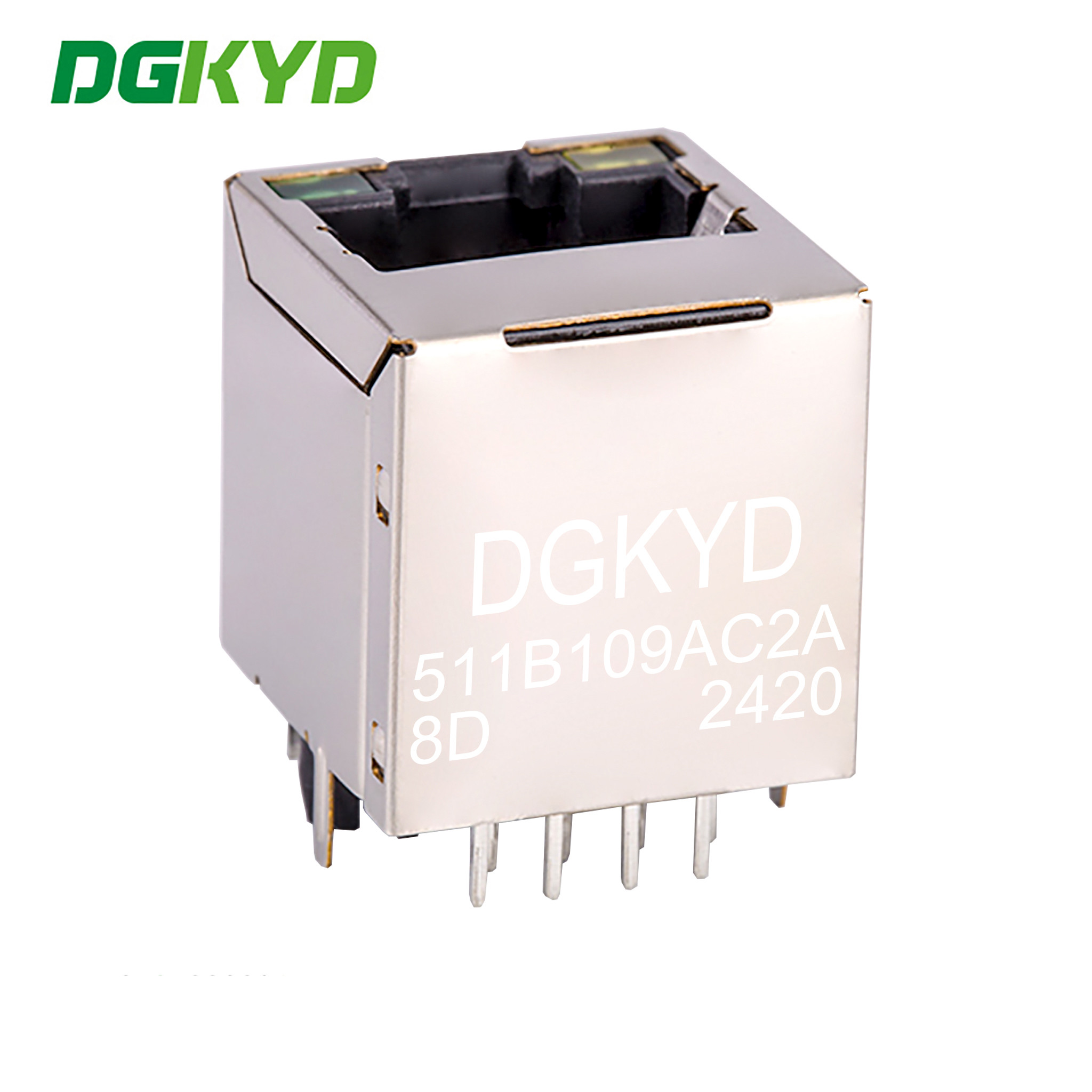

Top insertion RJ45 Ethernet Connector with internal isolation transfomer 180 degree straight insertionDGKYD511B109AC2A8D
Product Specification Document
DGKYD511B109AC2A8D.pdf
Paramters
| Part Number | DGKYD511B109AC2A8D | Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | With internal Filter | LED Option | With LED |
| LED Color | L-Green/R-Yellow | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 100M BASE-TX | Grounding Options | Panel Ground and PCB Ground |
| Port Configuration | Singer port | Number of Positions | 8 |
| Jack Configuration | 1X 1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6U Microinch | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Applications:
Integrated RJ45 connector main used to :
10/100 net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication, MODEM,HomePNA,DSL／ADSL and so on.
Competitive Advantage:
Keyouda has various types of appearance and many kinds of internal schematic products,
high quality,customer firstly ,100% test,0 defect, short lead time are our best advantages
