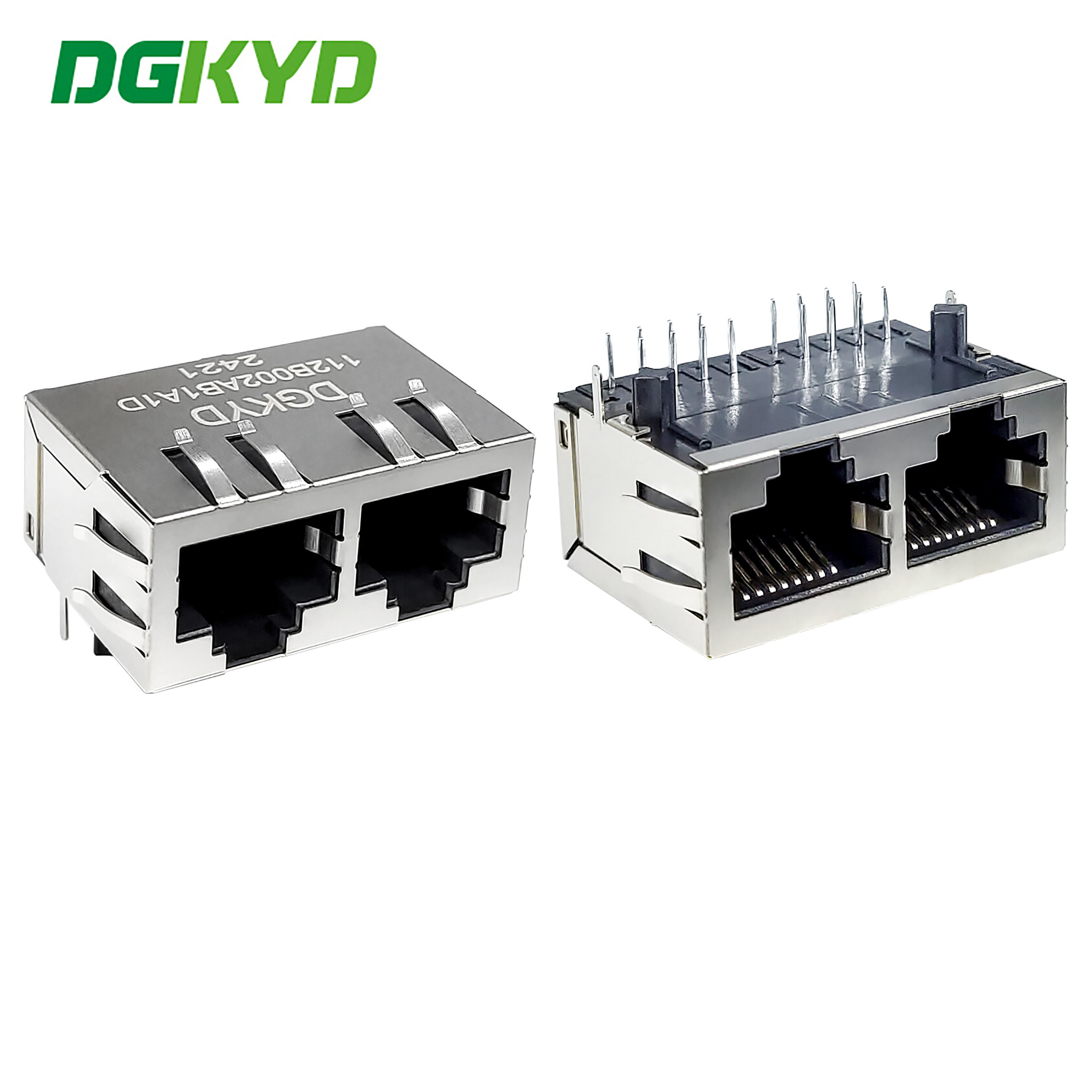

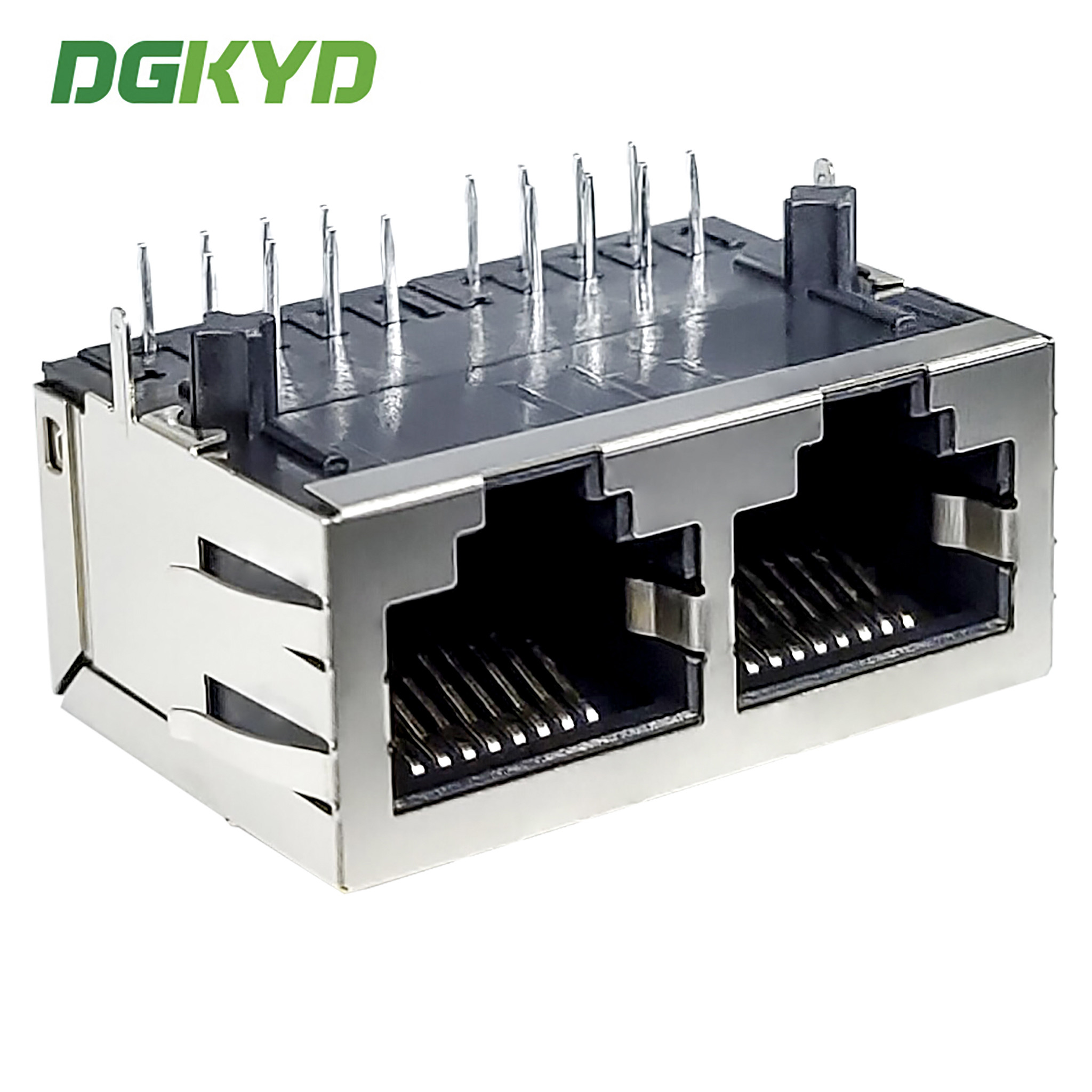

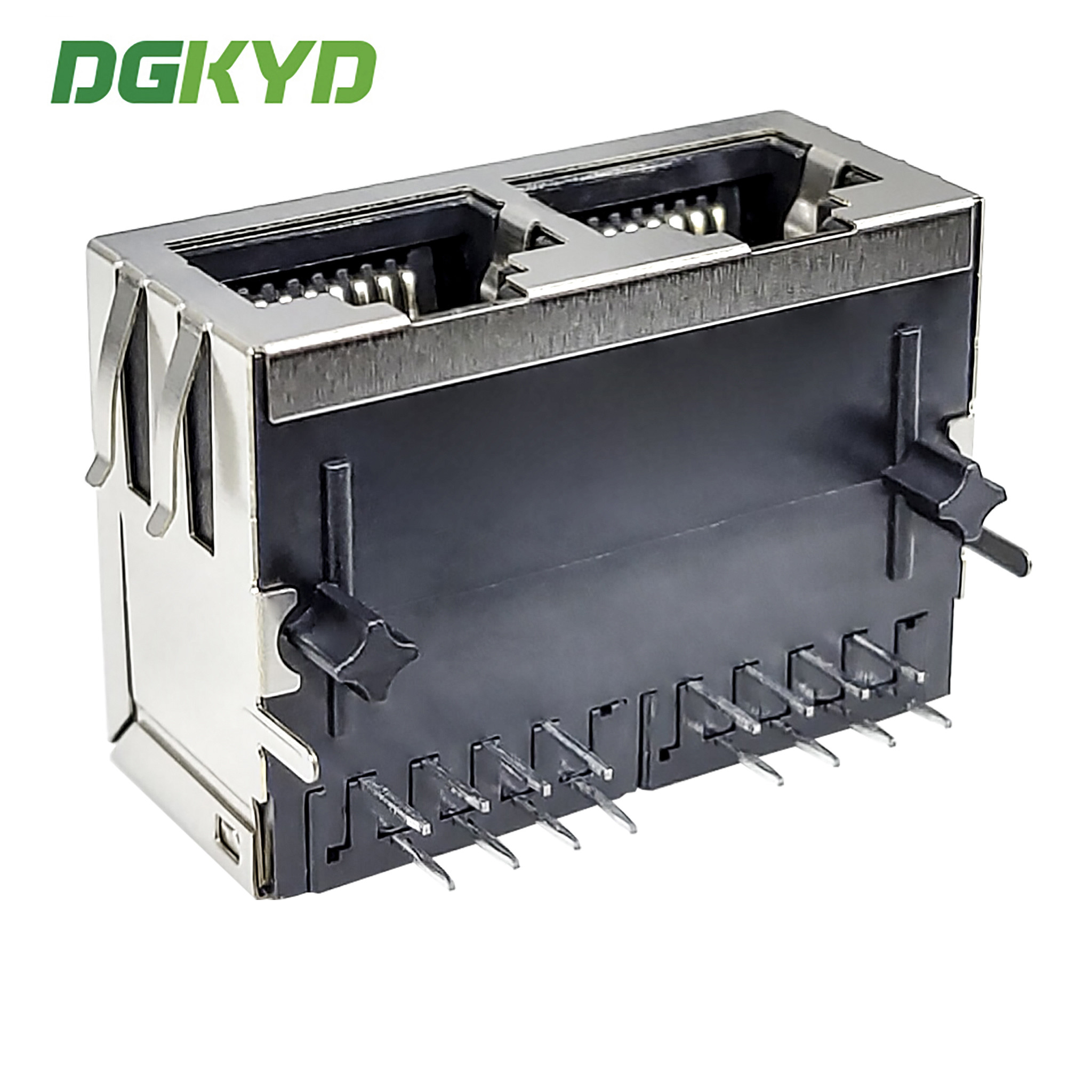

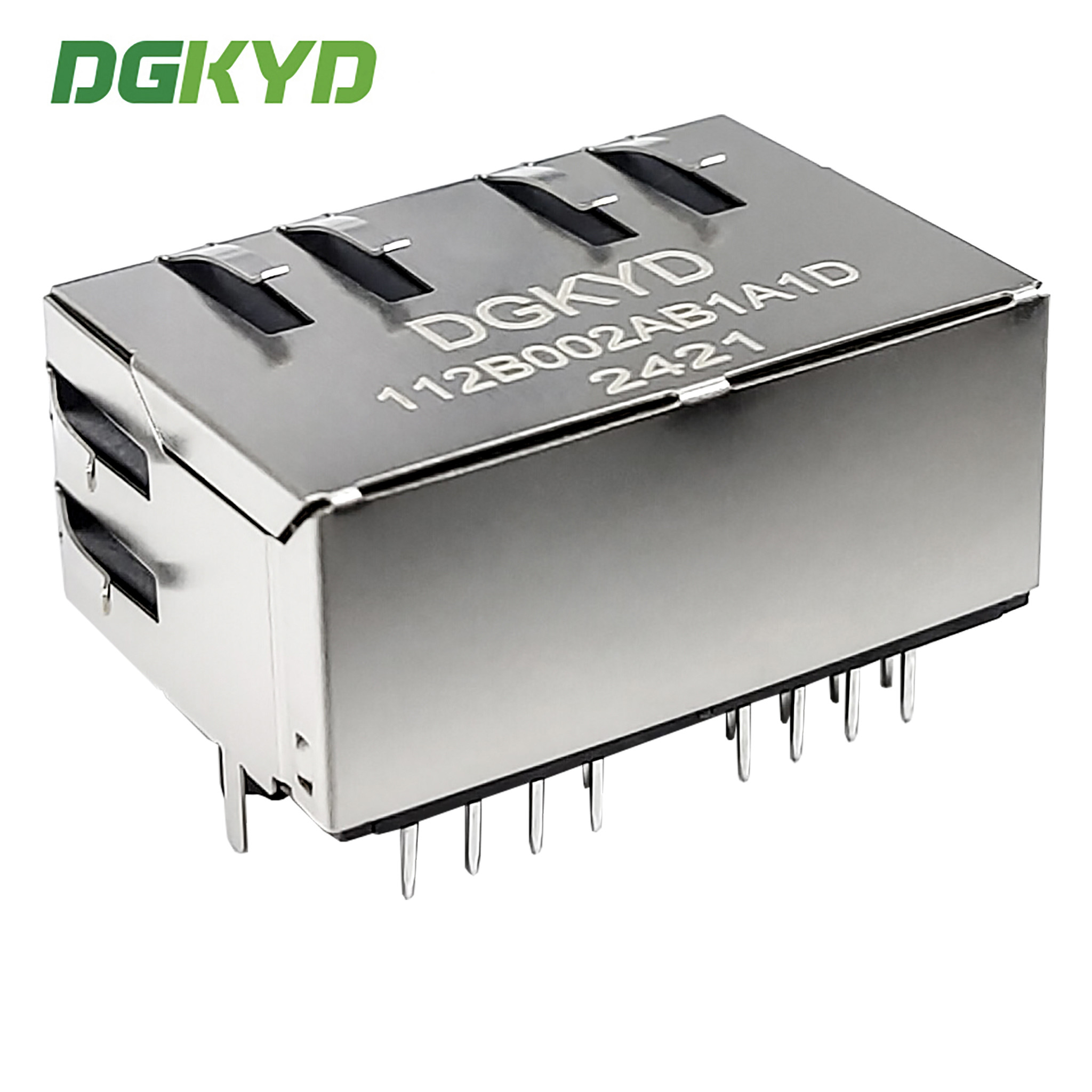

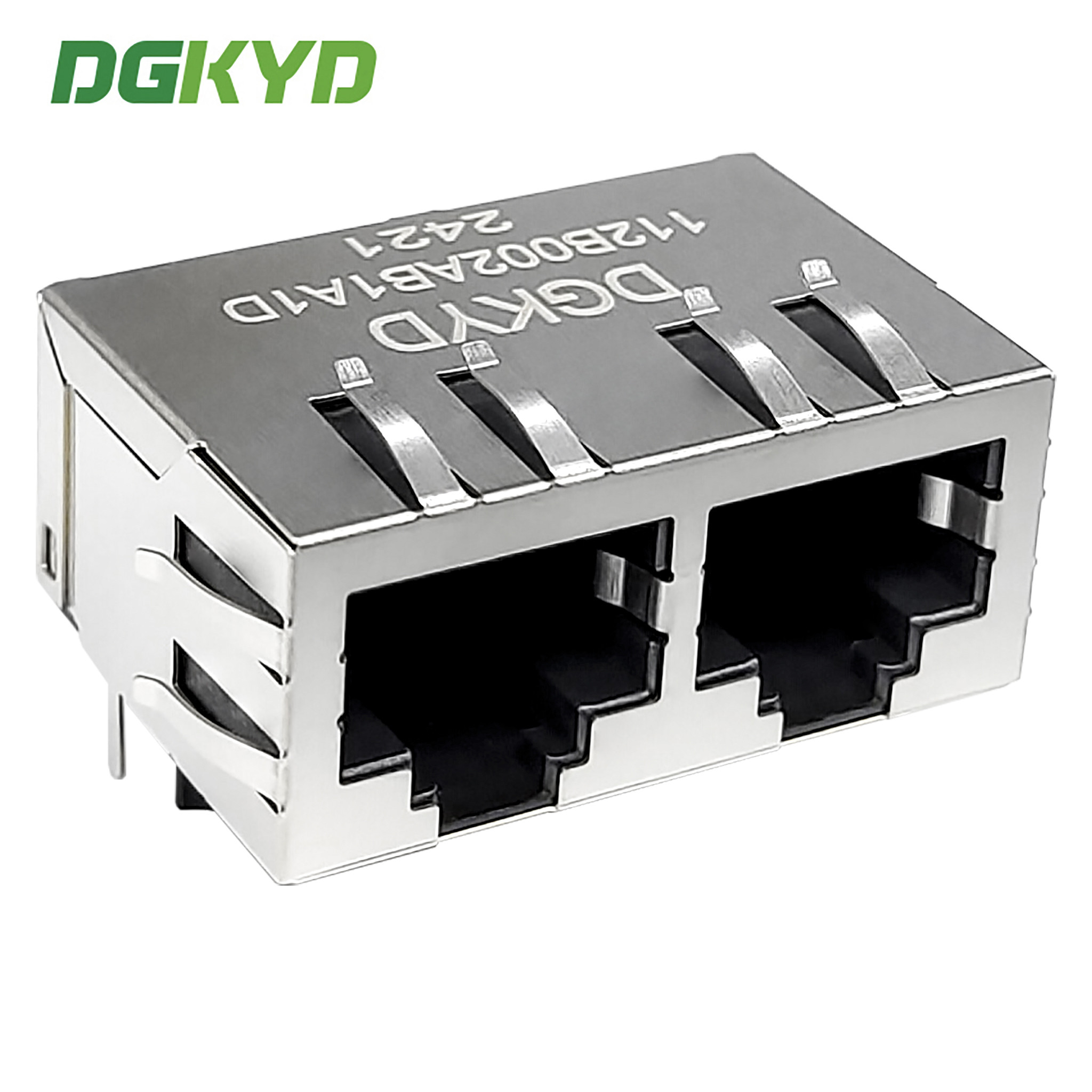

RJ45 Network Filter Interface 2 Joint Interface Communication Integrator DGKYD112B002HWA1D

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD112B002HWA1D

Detail Information
Application:	PCB	Gender:	Female
Housing Material:	PBT BLACK	Contact Mating Area Plating:	GOLD 6u'' / 15u"/ 30u"/ 50u" For Optional
Latch:	DOWN	LED Option:	No
Number Of Ports:	Double Port	Number Of Contacts:	8PIN
PCB Mount Angle:	SIDE ENTRY
Highlight:	RJ45 Network Filter Interface , DGKYD112B002HWA1D RJ45 Network Filter Interface , 2 Joint Interface Communication Integrator

Product Description

RJ45 Network Filter Interface 2 Joint Interface Communication Integrator DGKYD112B002HWA1D

Product Specification Document
DGKYD112B002HWA1D.pdf

Paramters

Part Number	DGKYD112B002HWA1D	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	CE /UL/FCC/Reach/RoHS
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	DOWN
Filter	With Filter	LED Option	Without LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100/1000/10G BASE-T	Grounding Options	Panel Ground and PCB Ground
Port Configuration	Double ports	Number of Positions	8
Jack Configuration	1 x 2	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly,100% test, 0 defect, short lead time are our best advantages
