RJ45 100Mbps Ethernet socket 8P8C module with compact window surface DGKYD5A11B048AA1A8DMZ
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | KRJ-008QUSBNL |
|
Detail Information |
|||
| Product Name: | RJ45 With Transformer | Type: | Connector Combo |
|---|---|---|---|
| Housing: | Phenolic, PBT Black (UL94V-0) | Shield RJ45: | Yes |
| No.Port: | RJ45 Single Port With USB | RoHS: | Yes |
| Highlight: | 1000MB SFP Connector RJ45,RoHS SFP Connector RJ45,1000MB Stacked RJ45 Connector |
||
Product Description

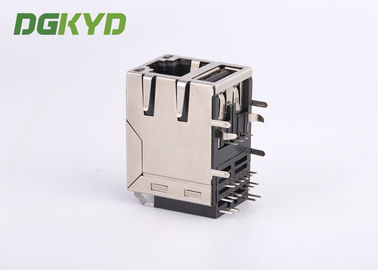

High Performance Stacked 1000MB SFP Connector RJ45 Combo With LEDs

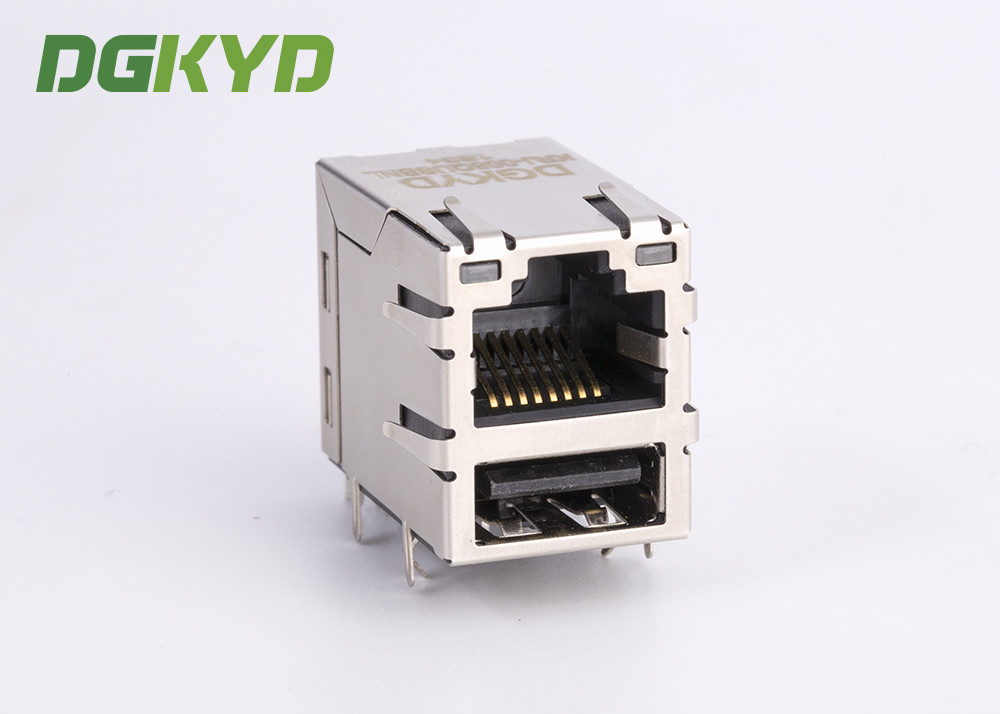

High Performance Stacked USB RJ45 connector combo, 1000Mb, with LEDs

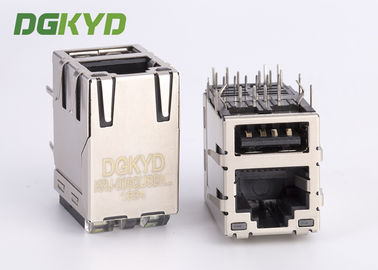

KRJ-008QUSBNL High Performance Shielded USB RJ45 connector, 1000 BASE, with LEDs
Part Number: KRJ-008QUSBNL
10/100Base-Tx RJ45 single port 1X1 Right Angle with LEDS with USB
Single port 1X1 Tab-Up RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 260℃
Operating temperarure range :0℃ to +70℃
Storage temperature range :-40℃ to +85℃
Number of positions:8
Number of contacts loaded:8
Shield:YES
Rohs compliant
LEDS:YES
EMI fingers:YES
LEFT LED:Green,RIGHT LED:Yellow
Usage: KRJ-008QUSBNL
Specifications:
Material specifications:
Plastic core:Glass fiber filler PBT Black(UL94V-0)
Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
Housing:Phenolic, PBT Black (UL94V-0)
Metal shell:Copper Alloy ,Tin and Nickel plated
RJ45 ,in order to keep good touch between gold finger and crystal head, should paint the gold on the surface,there is 6u,15u,30,50u,usually use 6u, according to customer’s request and cost to proceed, gold finger insert and pull life should be 750 times above.
