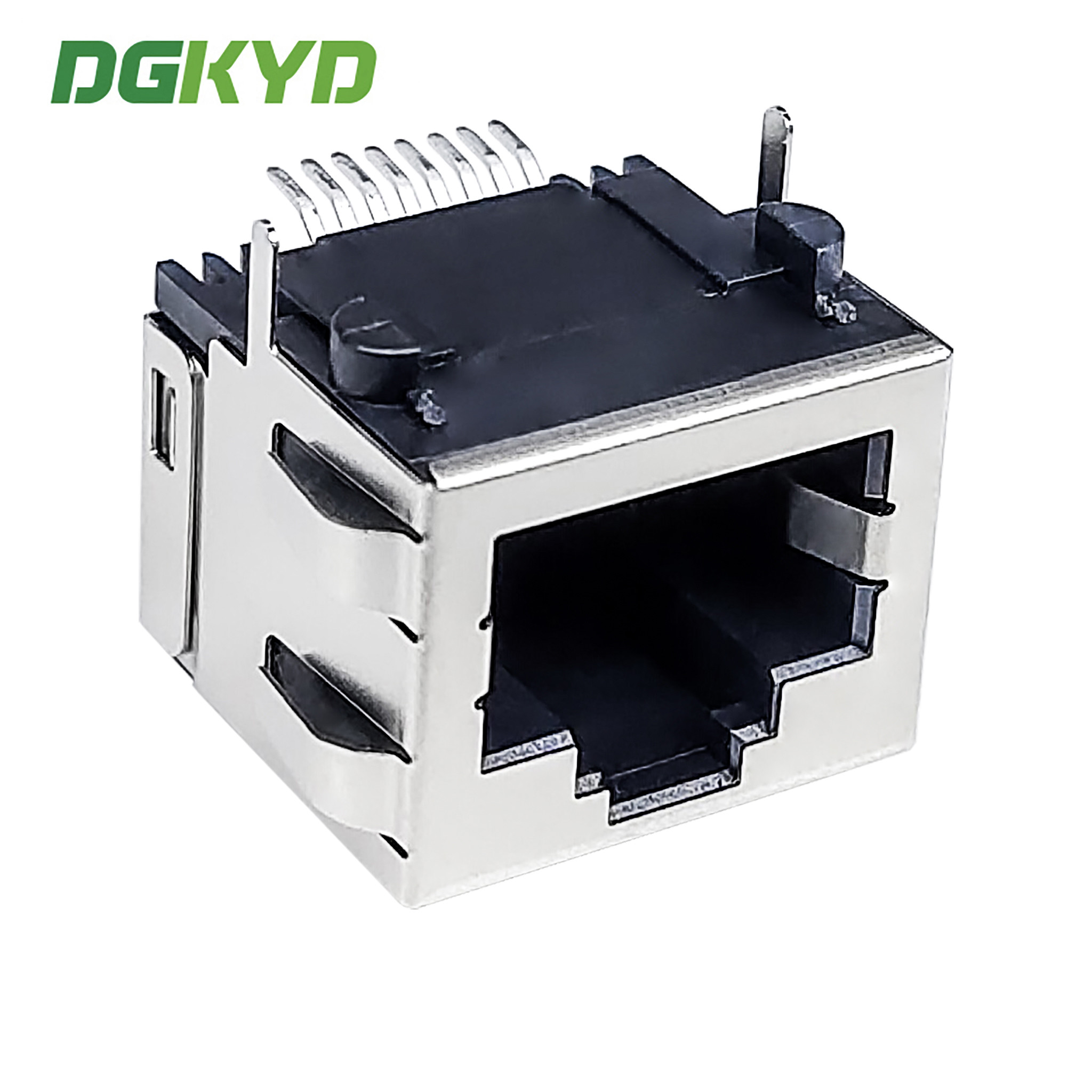

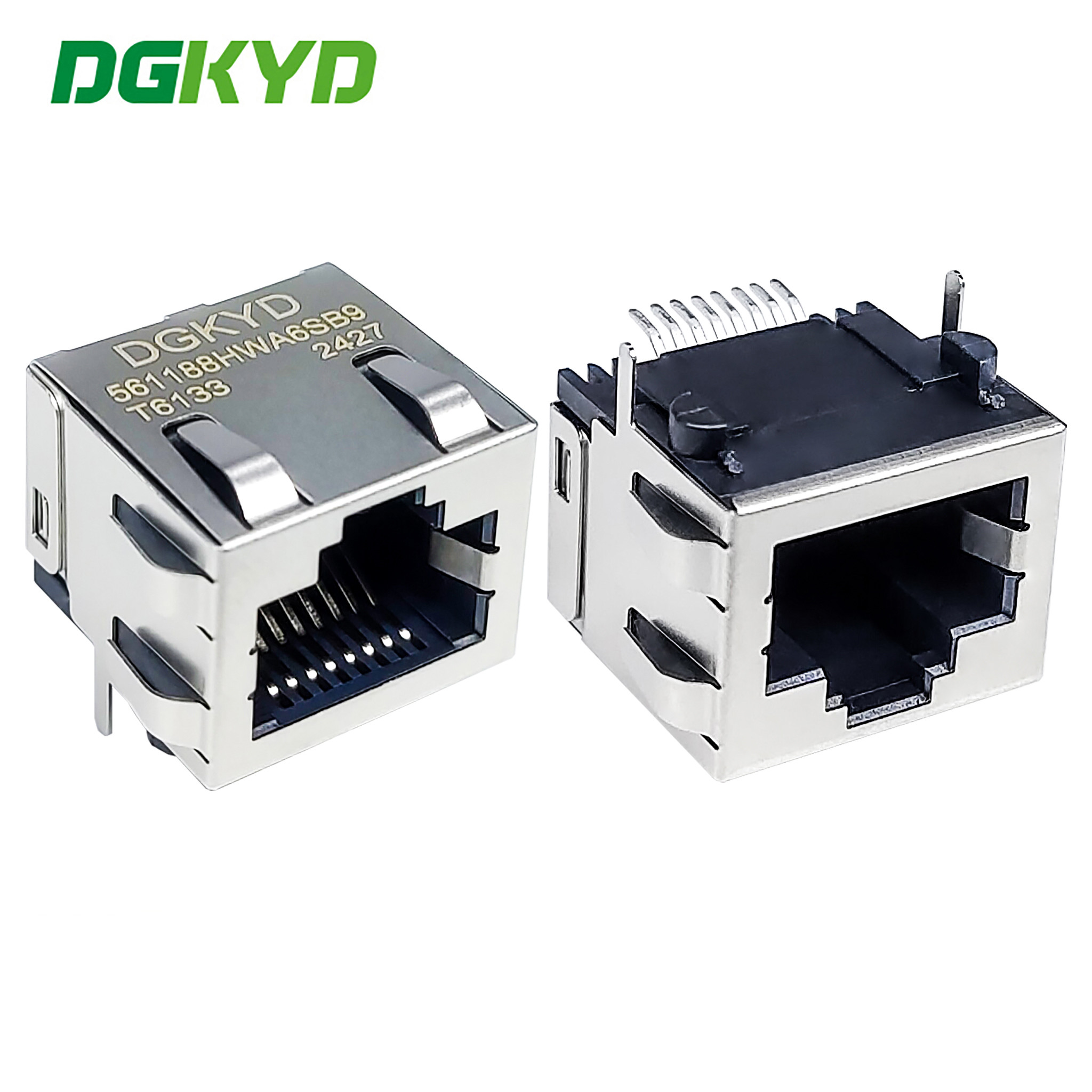

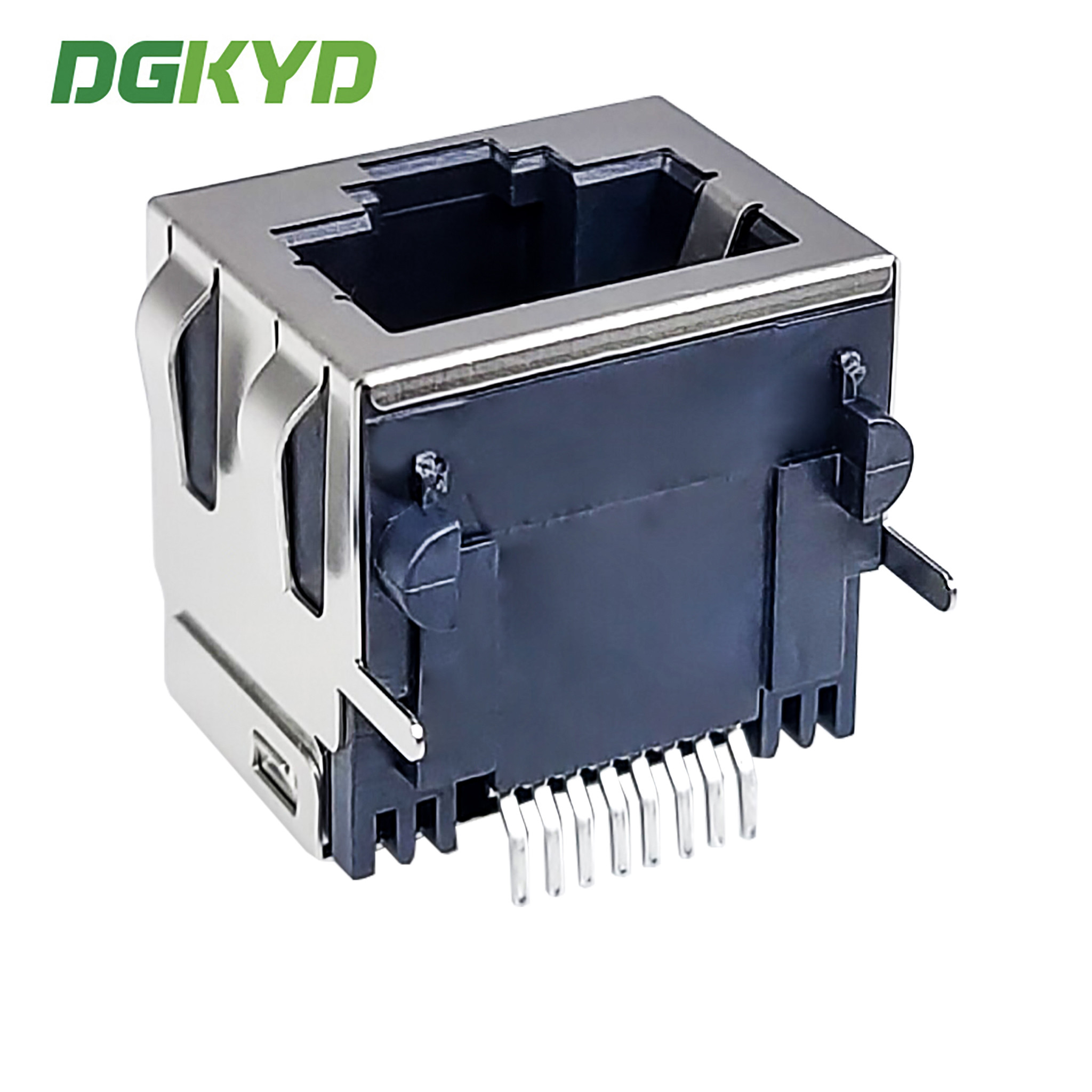

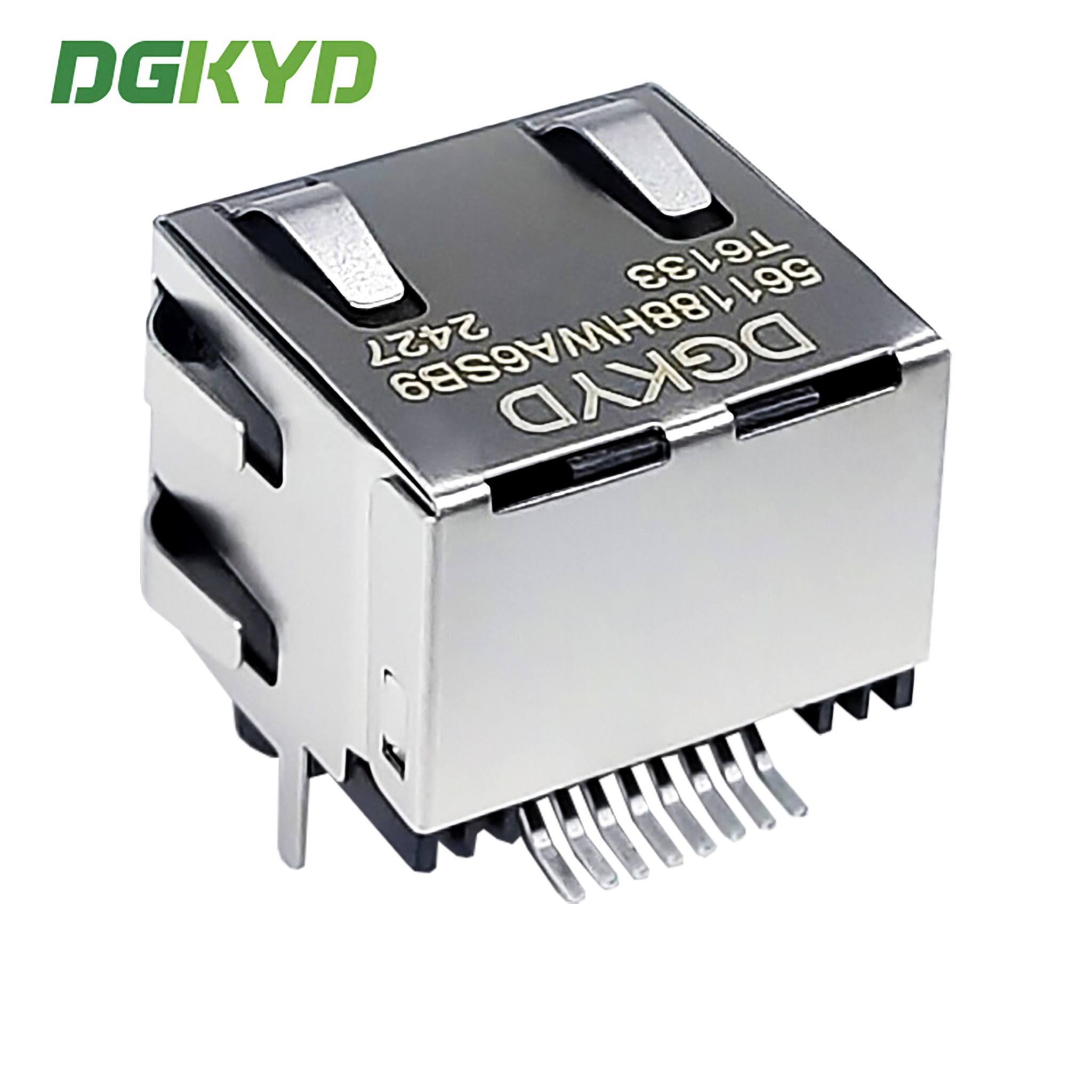

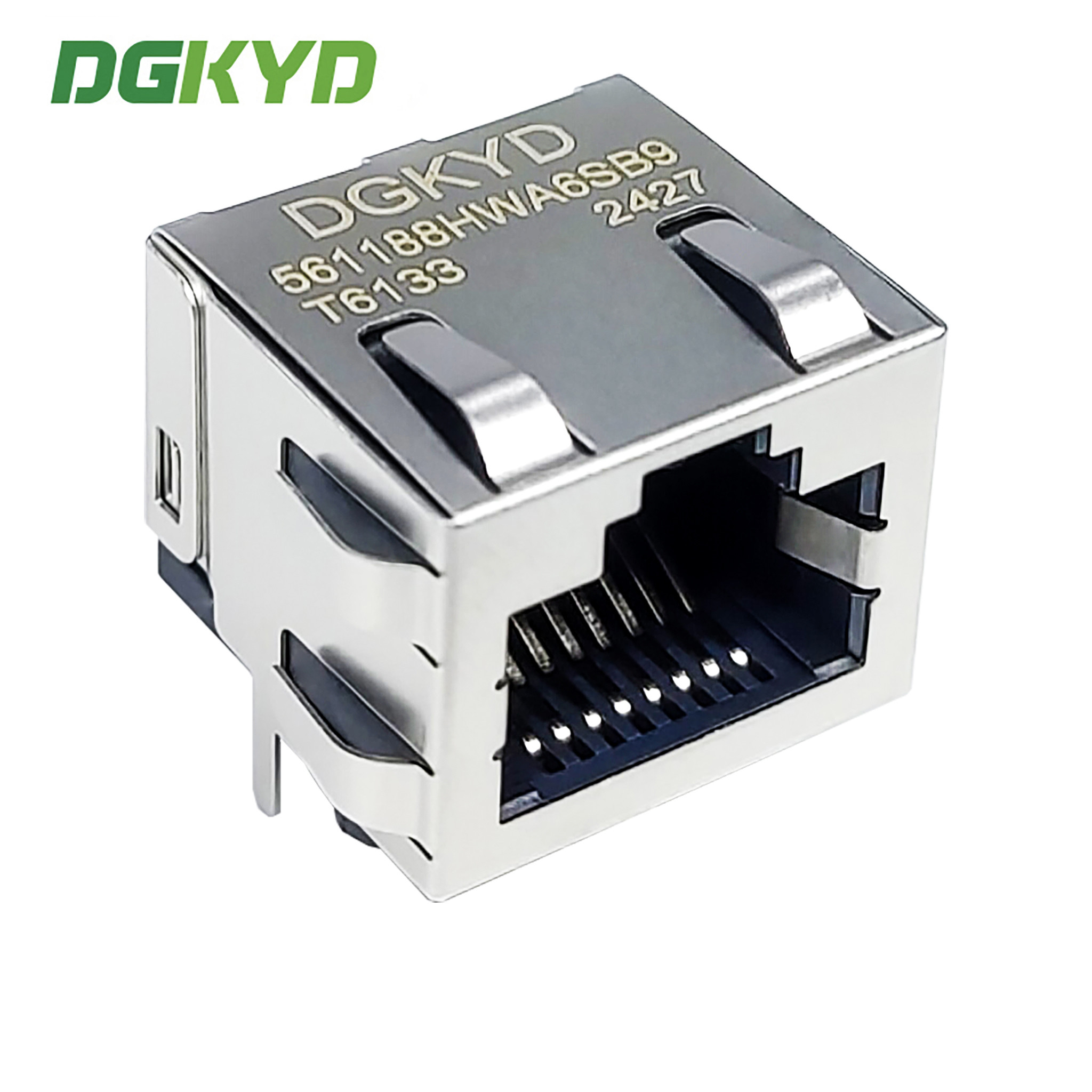

56 Single Port RJ45 Connector With Shielded Interface SMT DGKYD561188HWA6SB9T6133

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD561188HWA6SB9T6133

Detail Information
Application:	PCB	Gender:	Female
Housing Material:	LCP BLACK	Contact Mating Area Plating:	GOLD 6u'' / 15u"/ 30u"/ 50u" For Optional
Latch:	UP	LED Option:	No
Number Of Ports:	Single Port	Number Of Contacts:	8PIN
PCB Mount Angle:	SIDE ENTRY
Highlight:	RJ45 Connector With Shielded Interface , 56 Single port RJ45 Connector

Product Description

56 Single port connector RJ45 with shielded interface SMT DGKYD561188HWA6SB9T6133

Product Specification Document
DGKYD561188HWA6SB9T6133.pdf

Paramters

Part Number	DGKYD561188HWA6SB9T6133	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	CE /UL/FCC/Reach/RoHS
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	up
Filter	Without Filter	LED Option	Without LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	.	Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single	Number of Positions	8
Jack Configuration	1 x 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 1u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	LCP Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0
