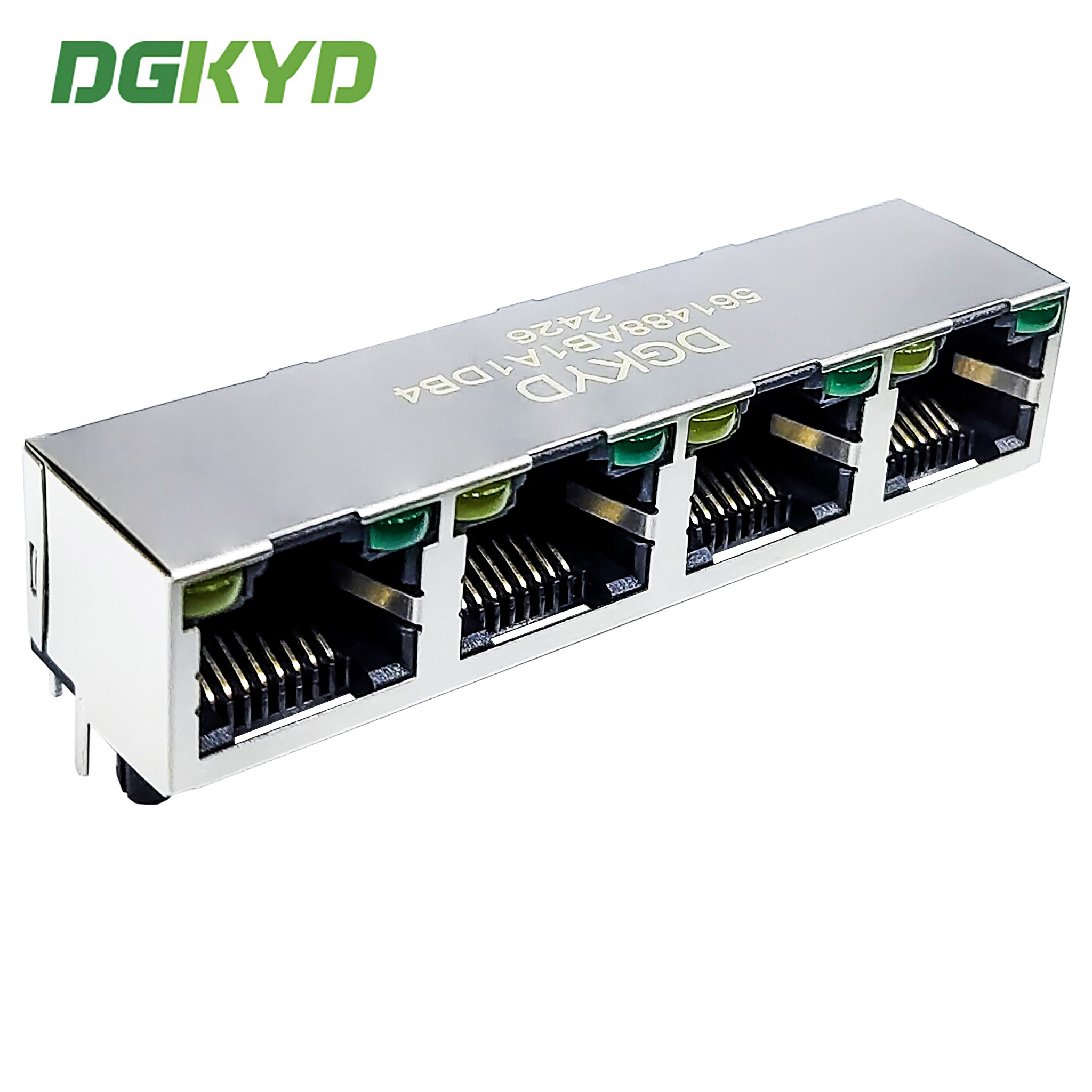

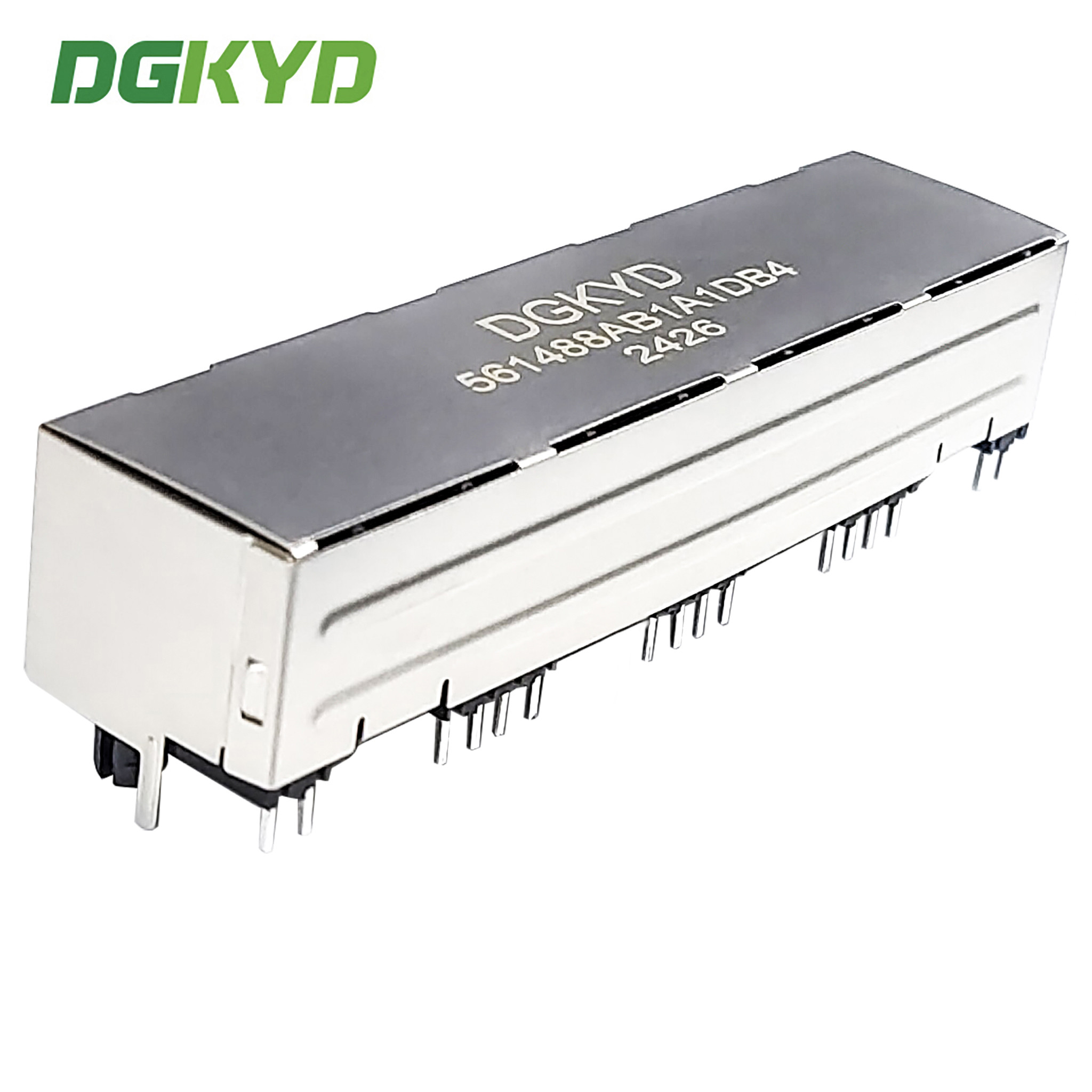

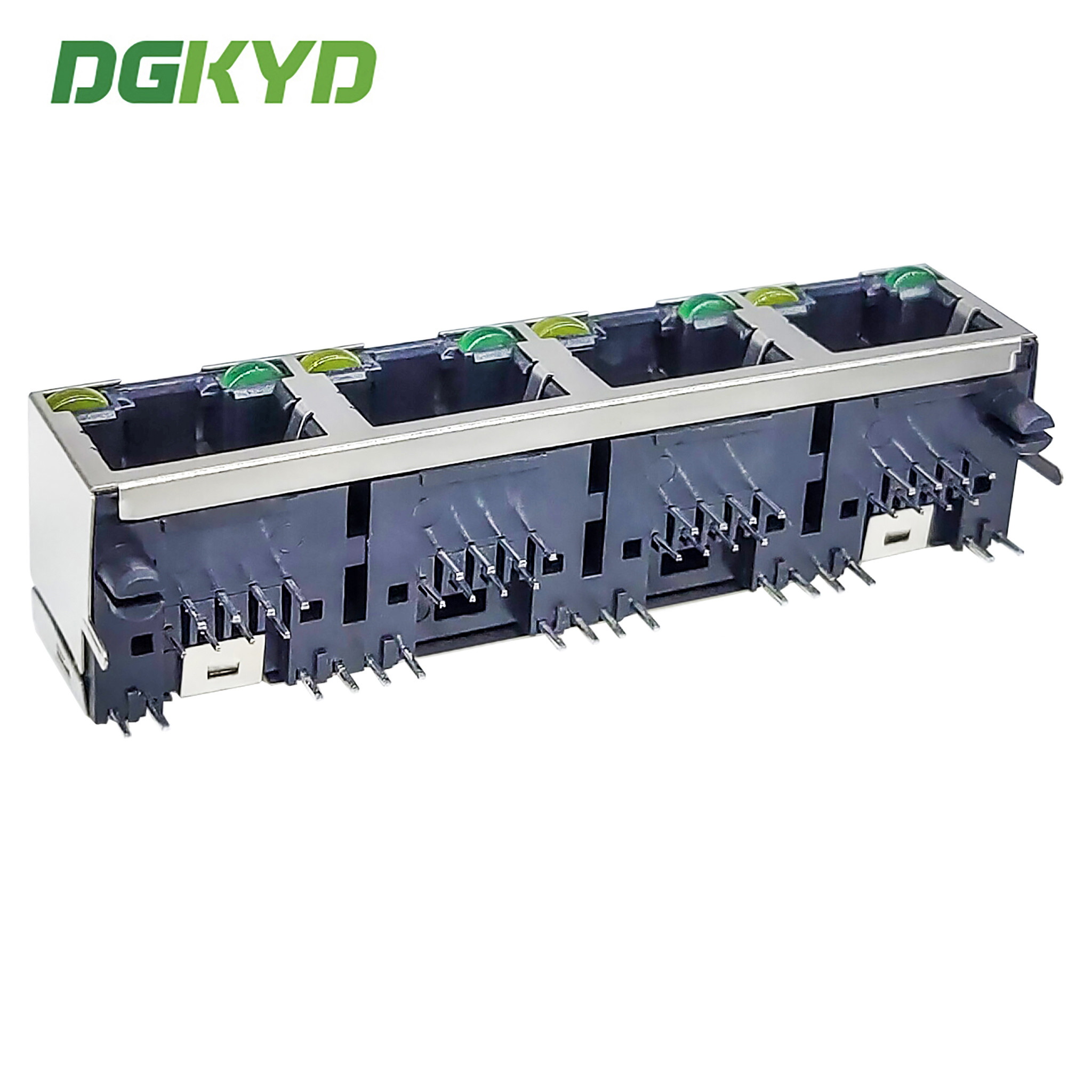

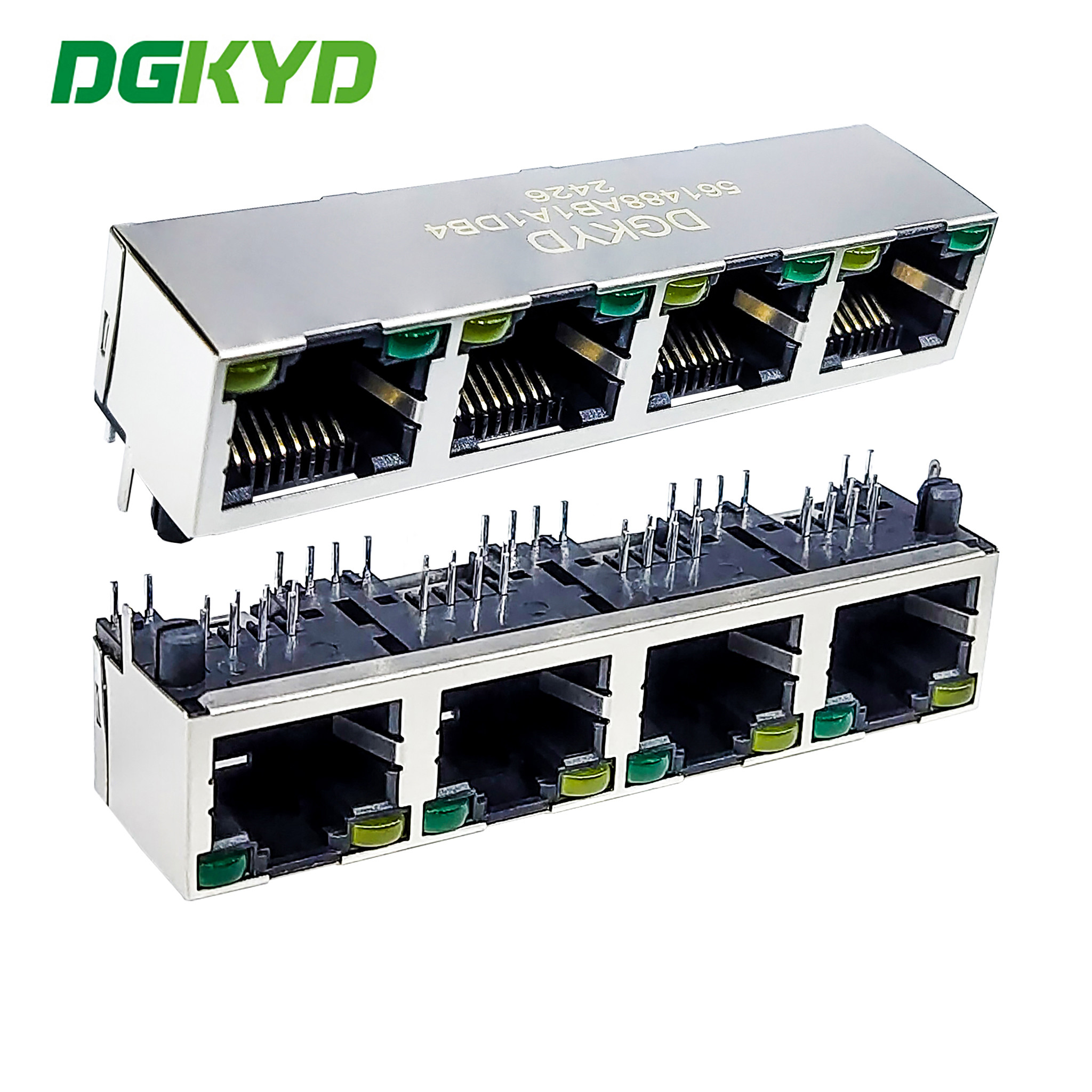

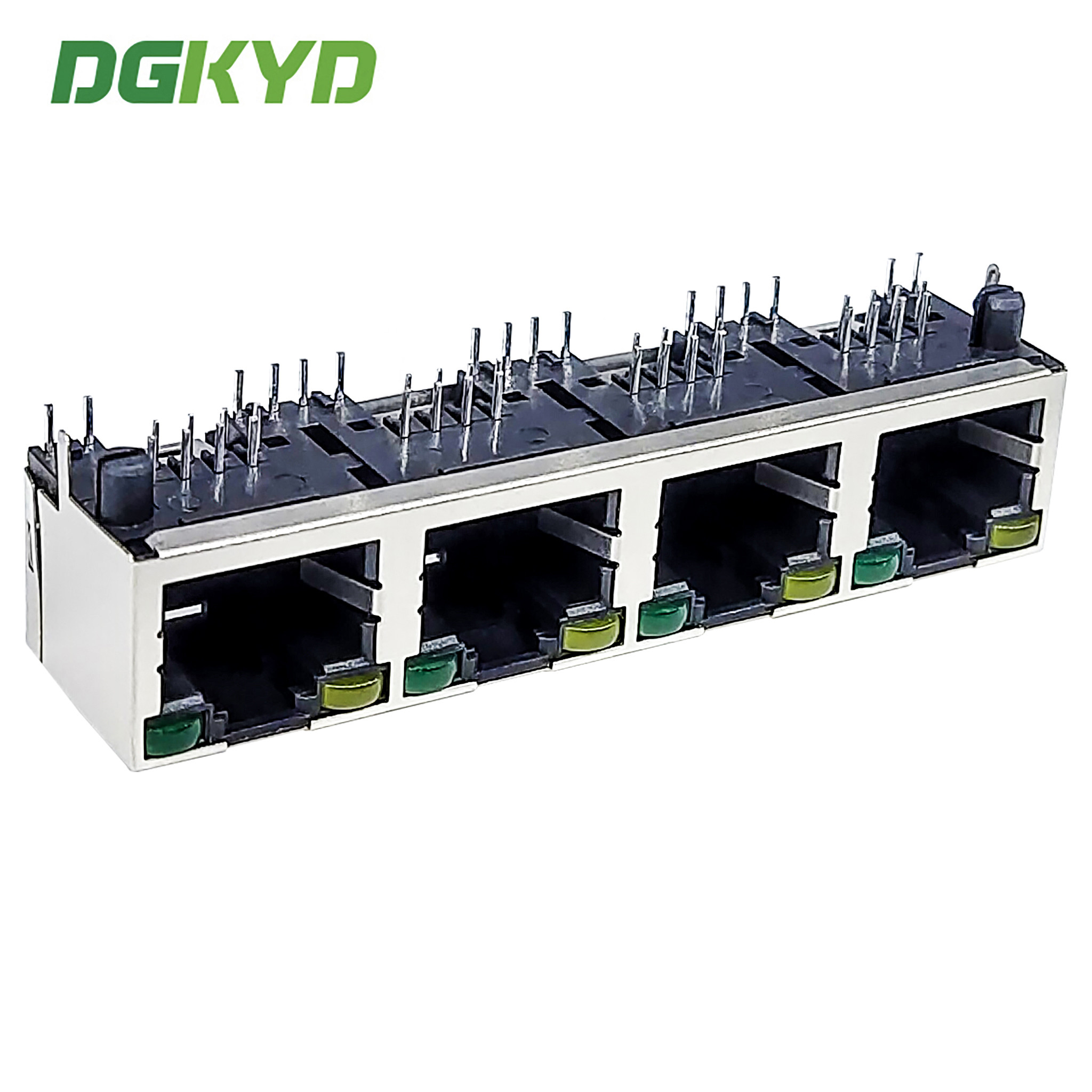

Four Port RJ45 90 Degree Straight Plug Connector 8P8C With Light Gold-plated 6U Modular Socket DGKYD561488AB1A1DB4

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD561488AB1A1DB4

Detail Information
Application:	PCB	Gender:	Female
Housing Material:	PBT BLACK	Contact Mating Area Plating:	GOLD 6u'' / 15u"/ 30u"/ 50u" For Optional
Latch:	UP	LED Option:	Yellow/Green
Number Of Ports:	Multi Port	Number Of Contacts:	8PIN
PCB Mount Angle:	SIDE ENTRY
Highlight:	Four port RJ45 plug connector , 90 degree straight plug connector , 6U modular socket plug connector

Product Description

Four port RJ45 90 degree straight plug connector 8P8C with light gold-plated 6U modular socket DGKYD561488AB1A1DB4

Product Specification Document
DGKYD561488AB1A1DB4.pdf

Paramters

Part Number	DGKYD561488AB1A1DB4	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	CE /UL/FCC/Reach/RoHS
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	up
Filter	Without Filter	LED Option	With LED
LED Color	Yellow/Green	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	brass	Grounding Options	Panel Ground and PCB Ground
Port Configuration	1X4	Number of Positions	8
Jack Configuration	1X4	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly,100% test, 0 defect, short lead time are our best advantages

Payment Terms:

There are many payment methods available such as Paypal,Escrow,Bank wire,Western Union and Moneygram ect

Return Policy:

If you want to exchange your items received ,you must contact us within 5 days of the receipt of your order .And you should pay addtional shipping fees incurred and items returned should be kept in their original status.

Feedback:

Since your feedback is very important to our busines's development ,we sincerely invite you to leave positive feedback for us if you are satisfied with our products and service ,it will just take you one minute .Thanks a lot !

FAQ:

1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.

2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
