25.4mm Tab up Cat5 8 pin rj45 connector with LEDs , 100 BASE - TX
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD111B093BA2A1D |
|
Detail Information |
|||
| Data Rate: | 100 Base-T | PoE: | Non-PoE |
|---|---|---|---|
| LED: | Green/Yellow | Operating Temperature: | -40 °C Up To +85 °C |
| Gold-plating: | 6U | Shielded: | Metal Shielded |
| Connector Style: | Jack | Port Configuration: | SIngle Port |
| Modular Jack & Plug Interface Type: | RJ45 With Transformer | Storage Temperature: | -40°C~+85°C |
| Number Of Stitches: | 8P8C | ||
Product Description

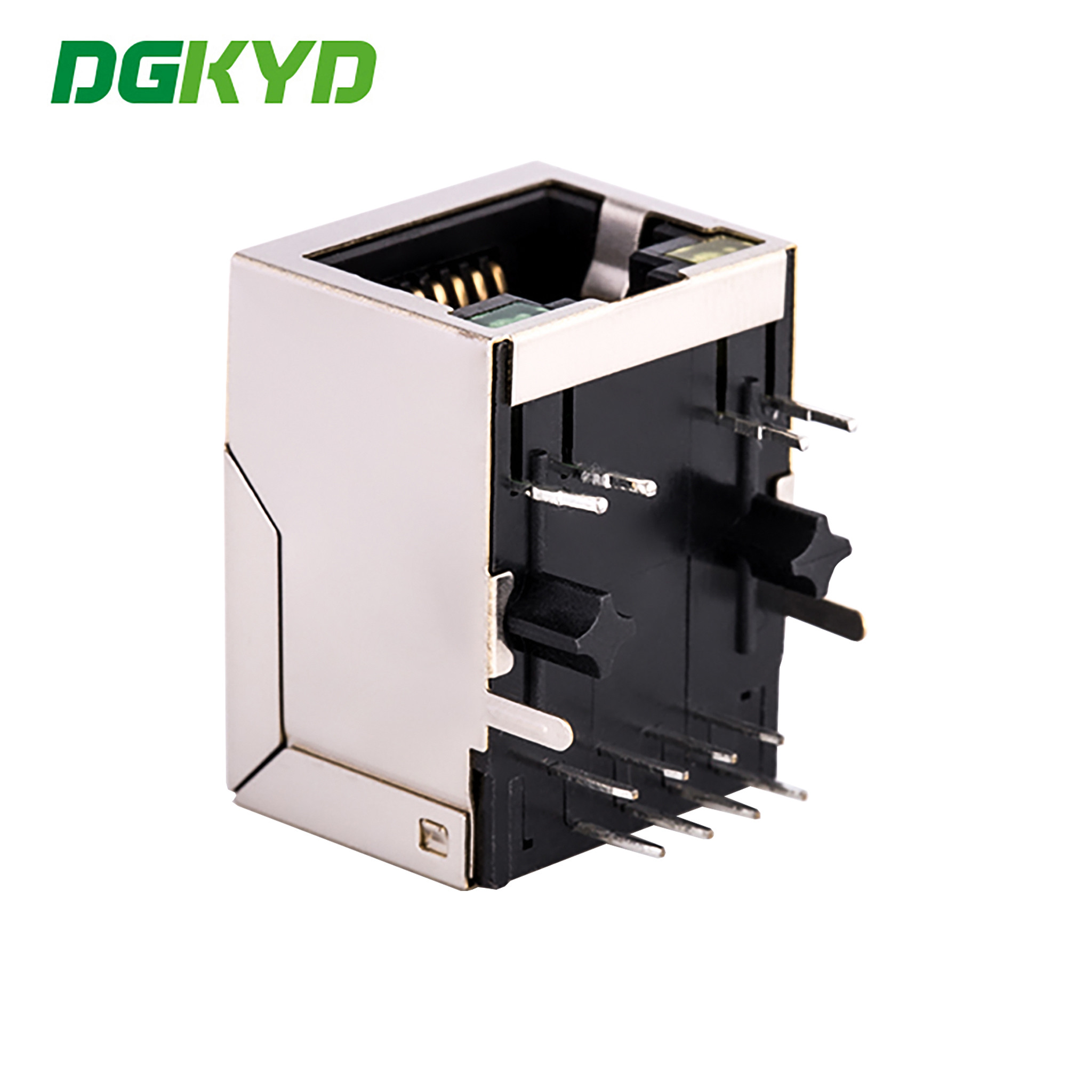

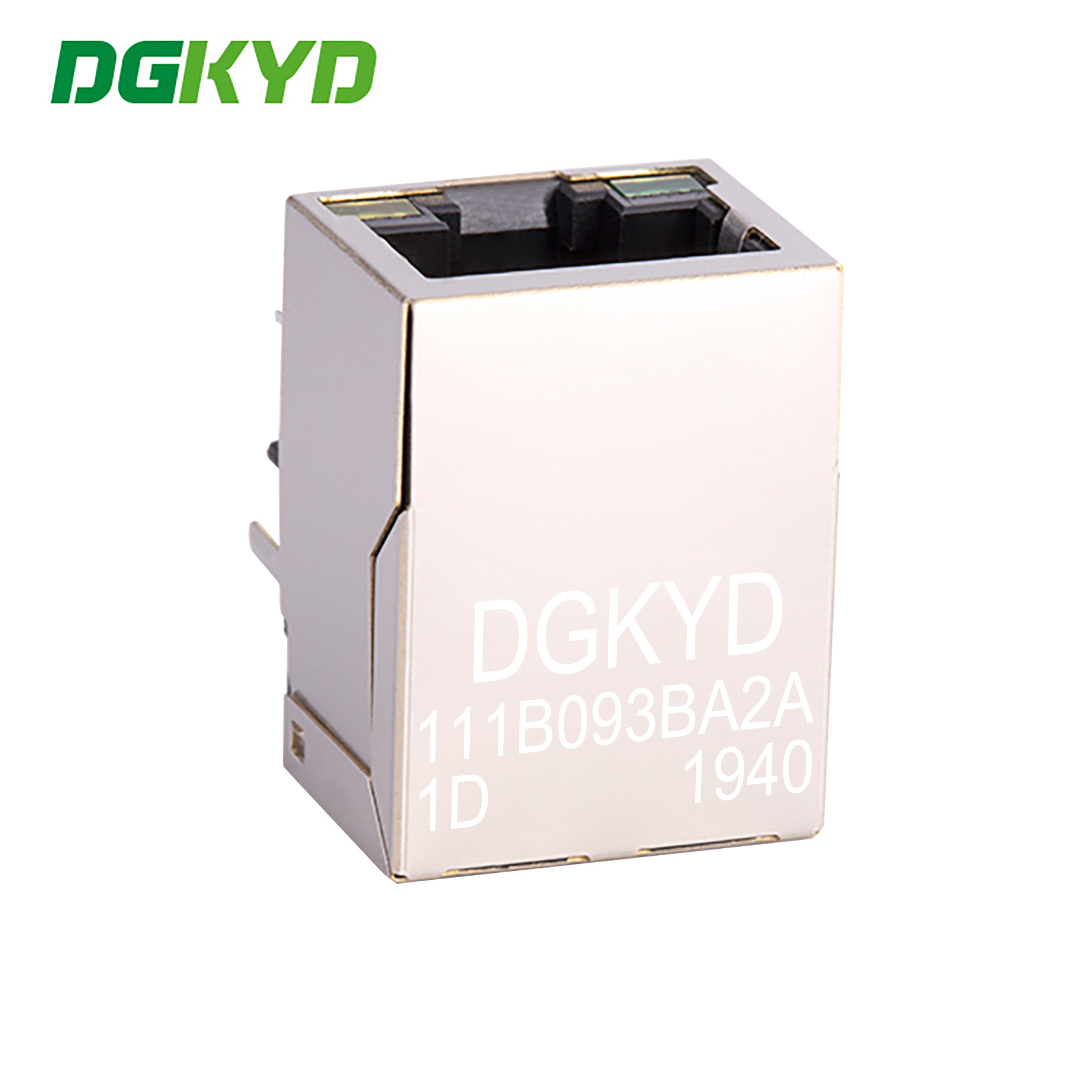

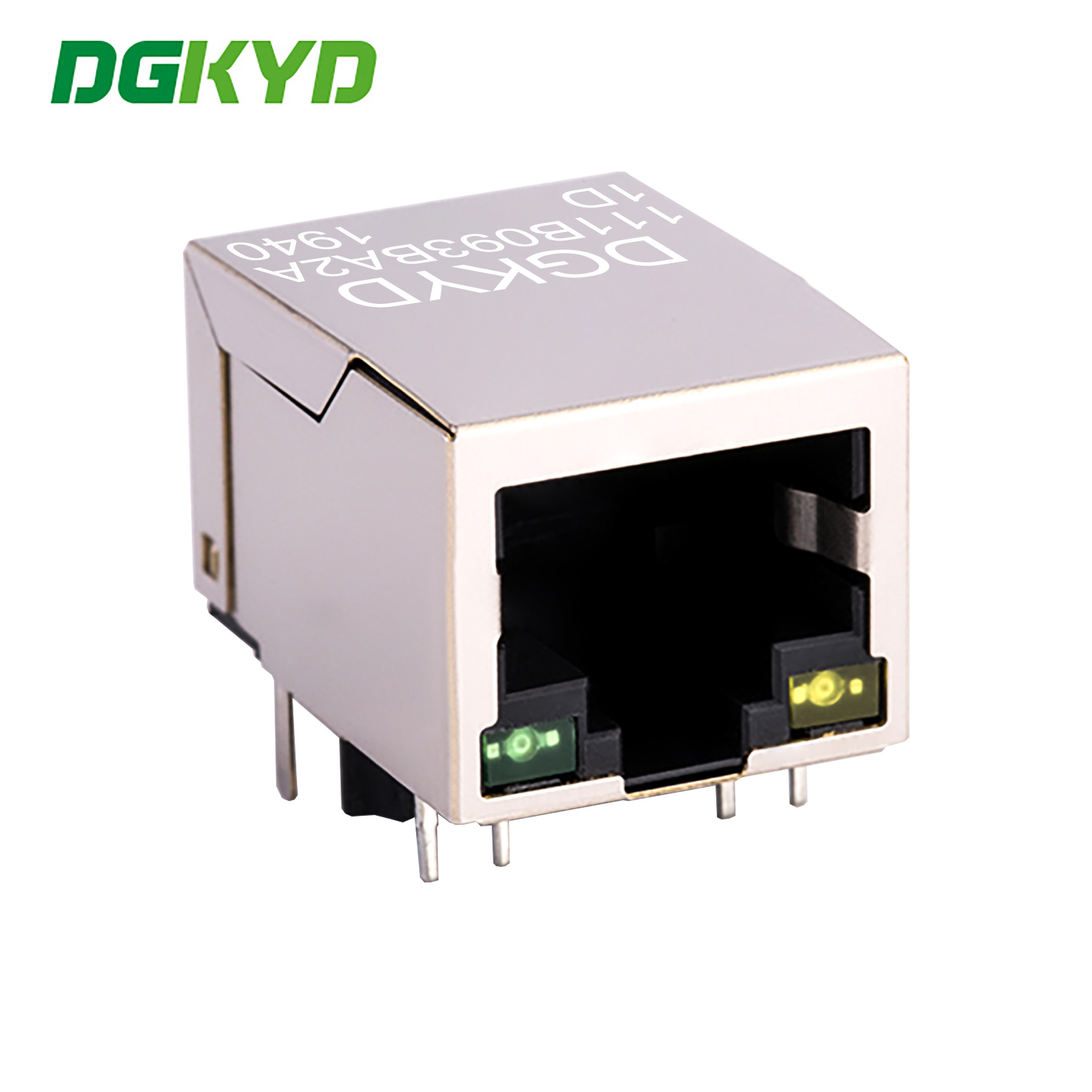

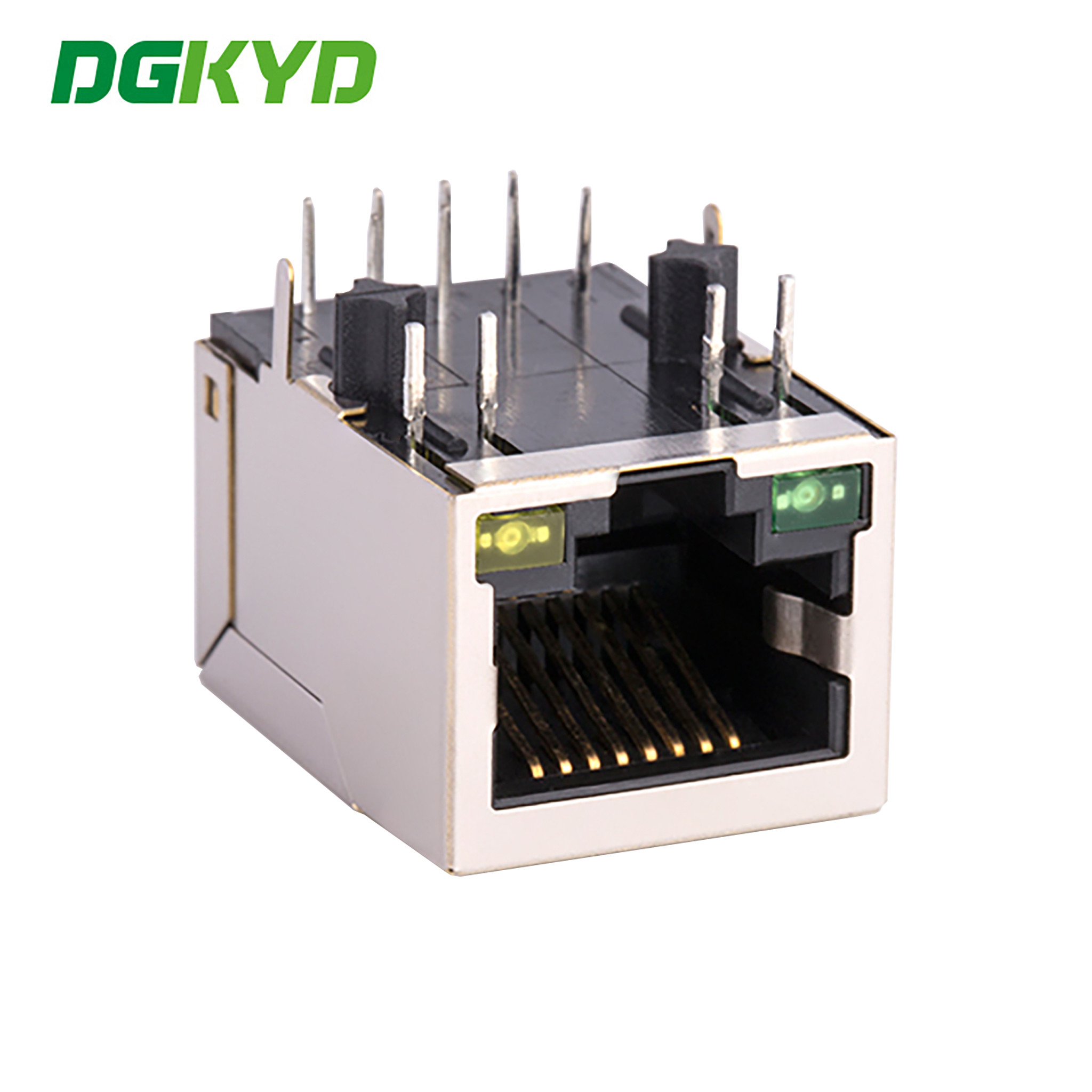

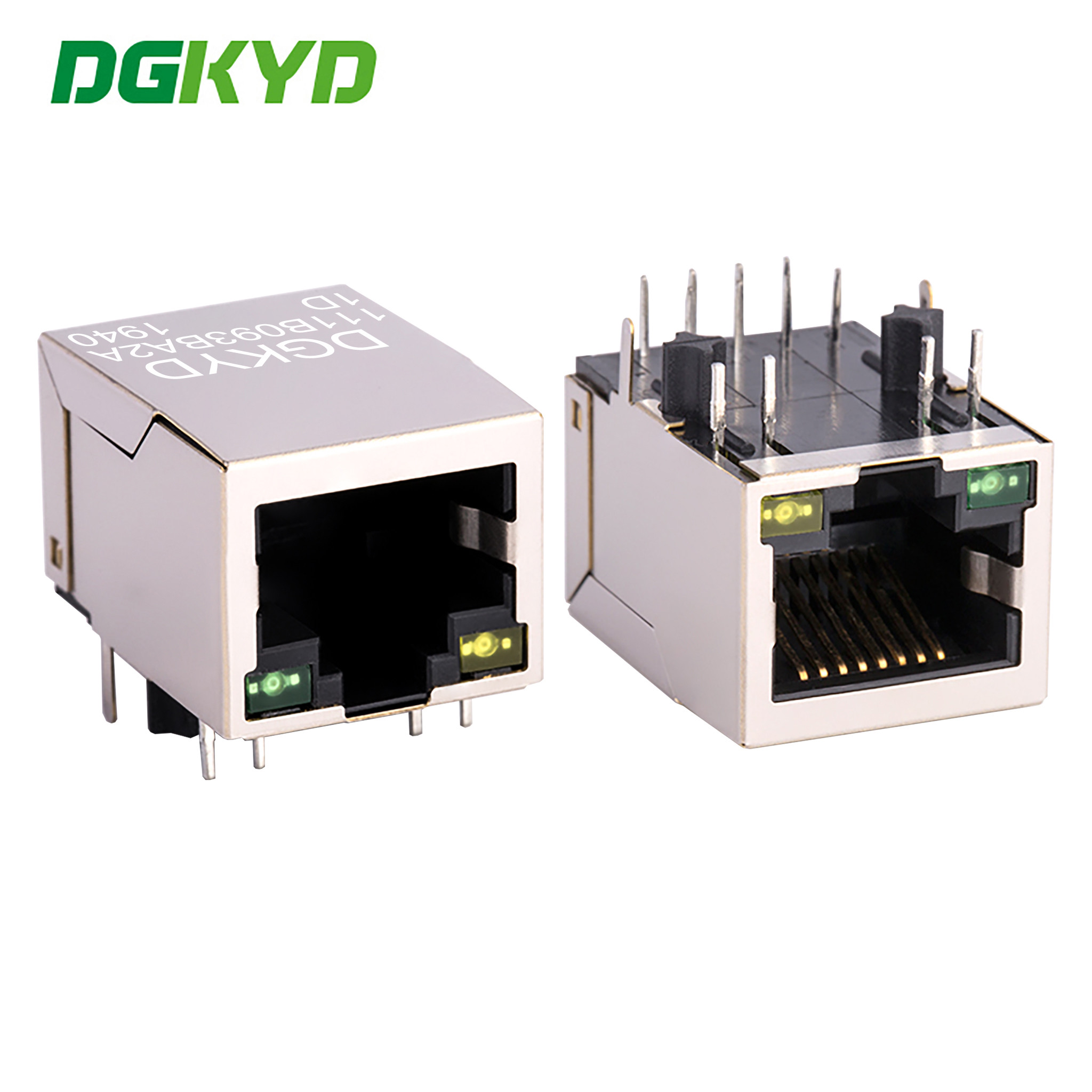

RJ45 Ethernet port, single port, all inclusive with lights, 8PIN DIP with filter DGKYD111B093BA2A1D
Product Specification Document
| Part Number | DGKYD111B093BA2A1D | Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-DOWN |
| Filter | With Filter | LED Option | With LED |
| LED Color | Green/Yellow | Panel Stops | With Panel Stops |
| Shielded | With metal shield | Applies To | Printedout Circuit Board |
| Port Configuration | 1X1 Ports | Number of Positions | 8 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold 6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
FAQ:
1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
