RJ45 Connector Multi Port 2X4 Socket 8P10C Connector Gigabit Modular Block Interface DGKYD24Q042DB2A5D068
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | KRJ-5921S14F457NL |
|
Detail Information |
|||
| PIN: | 8 PINS | RJ45 Suitable: | For CAT5&6 Ethernet Cable Or UTP |
|---|---|---|---|
| Application: | Lan,bridge,PC,router,usb Hub Network Rj45 And All Ethernet Devices | Gender: | Female |
| Product Name: | RJ45 NETWORK Connector | ||
| Highlight: | multi rj45 connector,rj45 multi port jack,quad port rj45 keystone jack |
||
Product Description
► Product Description

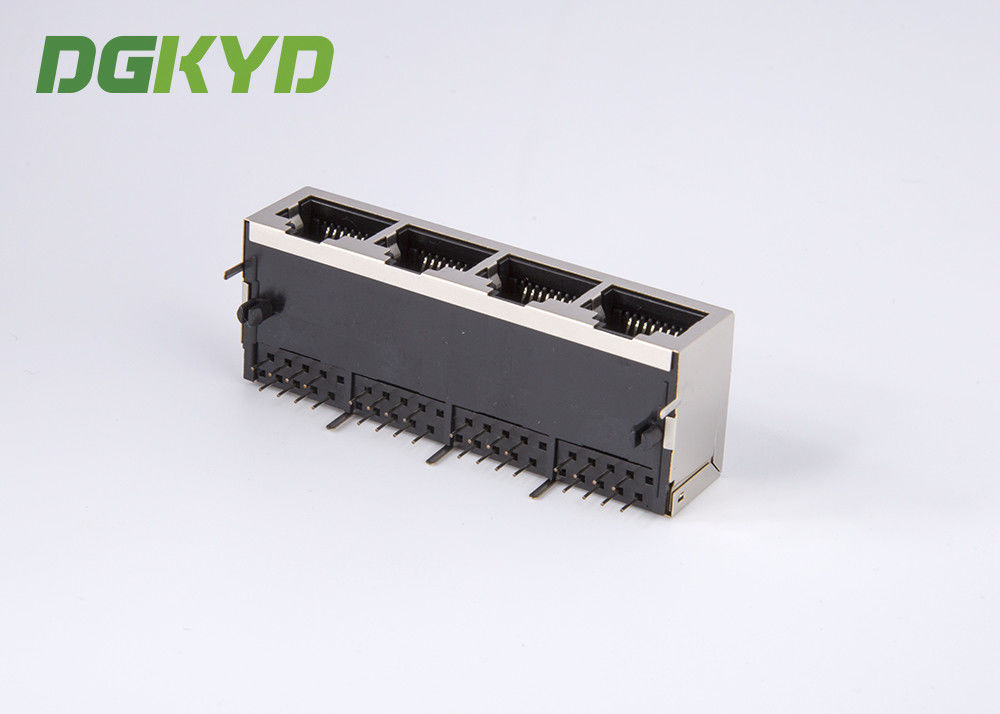

KRJ-5921S14F457NL metal shielded quad port rj45 connector
► Product Datasheet
| Part Number | KRJ-5921S14F457NL | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | CE /UL/FCC/Reach/RoHS |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | down |
| Filter | Without internal filter | LED Option | Without LED |
| LED Color | N/A | Panel Stops | Without Panel Stops |
| Shielded | shielded | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000 BASE-TX | Grounding Options | Panel Ground and PCB Ground |
| Port Configuration | 4 port | Number of Positions | 8 |
| Jack Configuration | 1 x 4 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 0.6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board |
Through Hole-Press-Fit
|
Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Data transmission
• Supports 10/100 Base-T, 1G Base-T, and
10G Base-T Ethernet
• Options available to support CAT5E and CAT6A premise wiring systems (Consult Factory)
Applications
• Rugged computing equipment
• Industrial Environments
• Military Communication
• Marine Equipment
• Medical devices
• Test Equipment
• Connectivity for non-office environments
• Renewable Energy Industry
► Product Drawing
