KRJ -5921S1X8NL Metal Shielded RJ45 Multiple Port Connectors Ethernet Interface

Contact Now

KRJ -5921S1X8NL Metal Shielded RJ45 Multiple Port Connectors Ethernet Interface

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-5921S1X8NL

Detail Information
Jack Type :	RJ45 Jack	Port:	1*8 Multiport
Tab:	Down	Mount Angle:	Right Angle
Connector Type :	Connector Assembly	Housing Material:	PBT Black
Highlight:	multi rj45 connector , rj45 multi port jack , Metal Shielded RJ45 Multiple Port Connectors

Product Description

Metal shielded KRJ-5921S1X8NL 8 port rj45 ethernet interface, for network switch

Configuration Features

Port Configuration Multiple
Jack Configuration 1 x 8
Number of Positions 8
Number of PCB Ground Tabs 8

Body Features

LED Color (Top Right) n/a
Color Orange
Shield Material N/A
Shield Plating Material N/A
LED Color (Top Left) n/a

Contact Features

Solder Tail Contact Plating Material Tin over Nickel
Contact Mating Area Plating Thickness 0.6 µin
Contact Base Material Phosphor Bronze
Number of Contacts Loaded 8
Contact Mating Area Plating Material Gold

Termination Features

Termination Method to PC Board Through Hole - Press-Fit

Mechanical Attachment

Panel Mount Retention Without
PCB Mounting Style Through Hole

Housing Features

Housing Material PBT Polyester
Housing Color Black

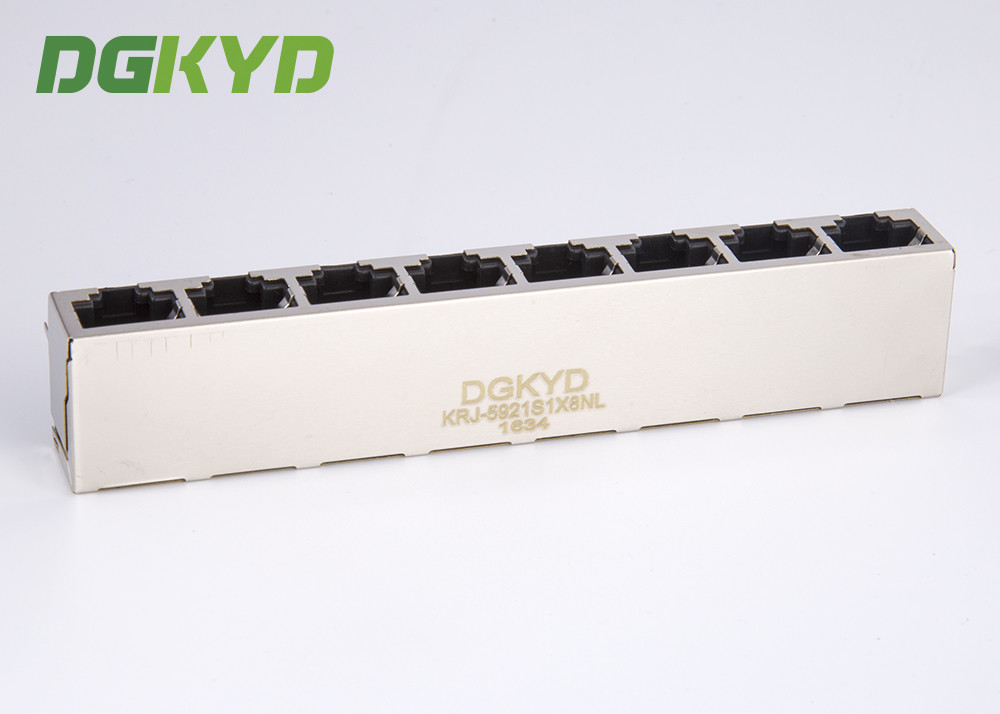

KRJ -5921S1X8NL Metal Shielded RJ45 Multiple Port Connectors Ethernet Interface 0
