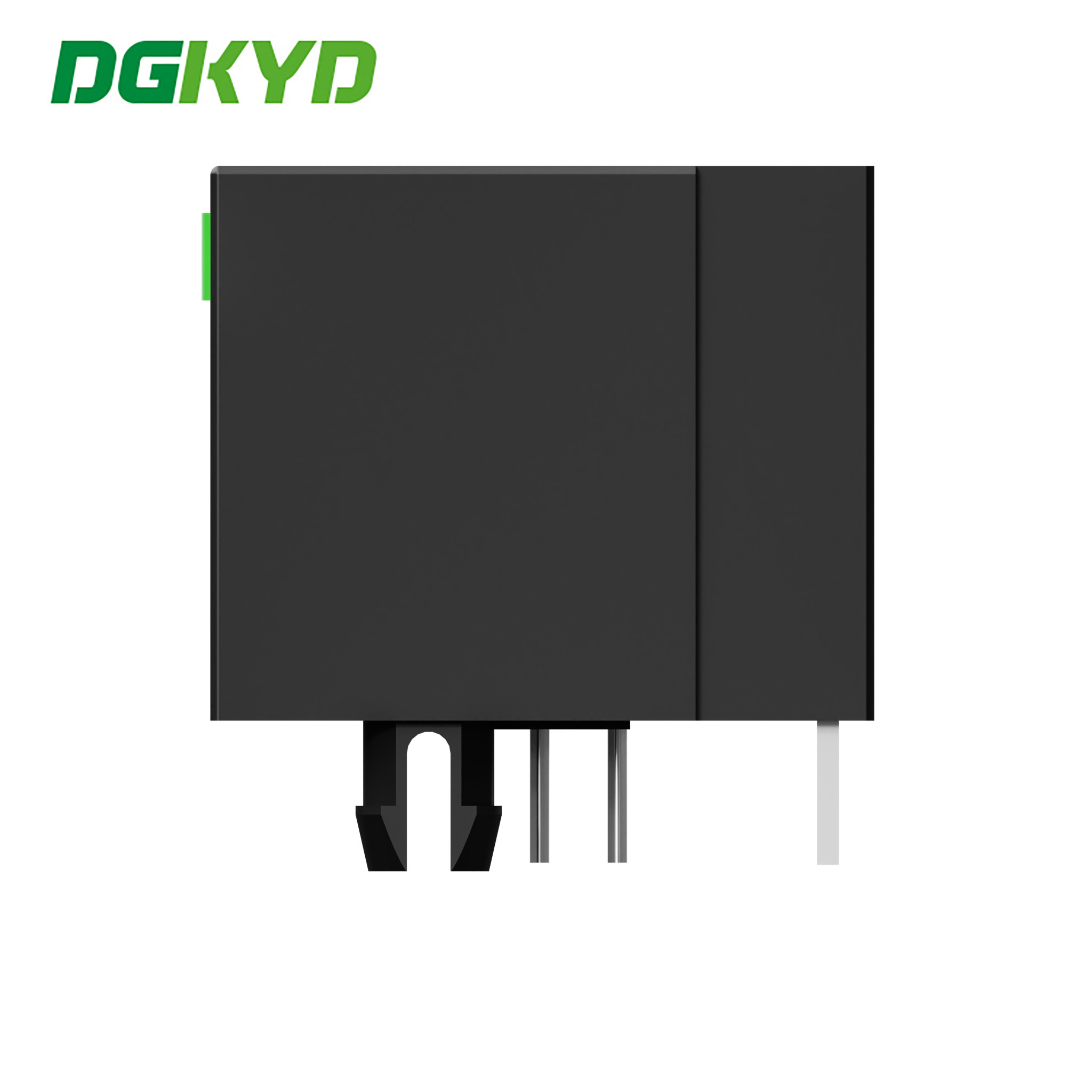

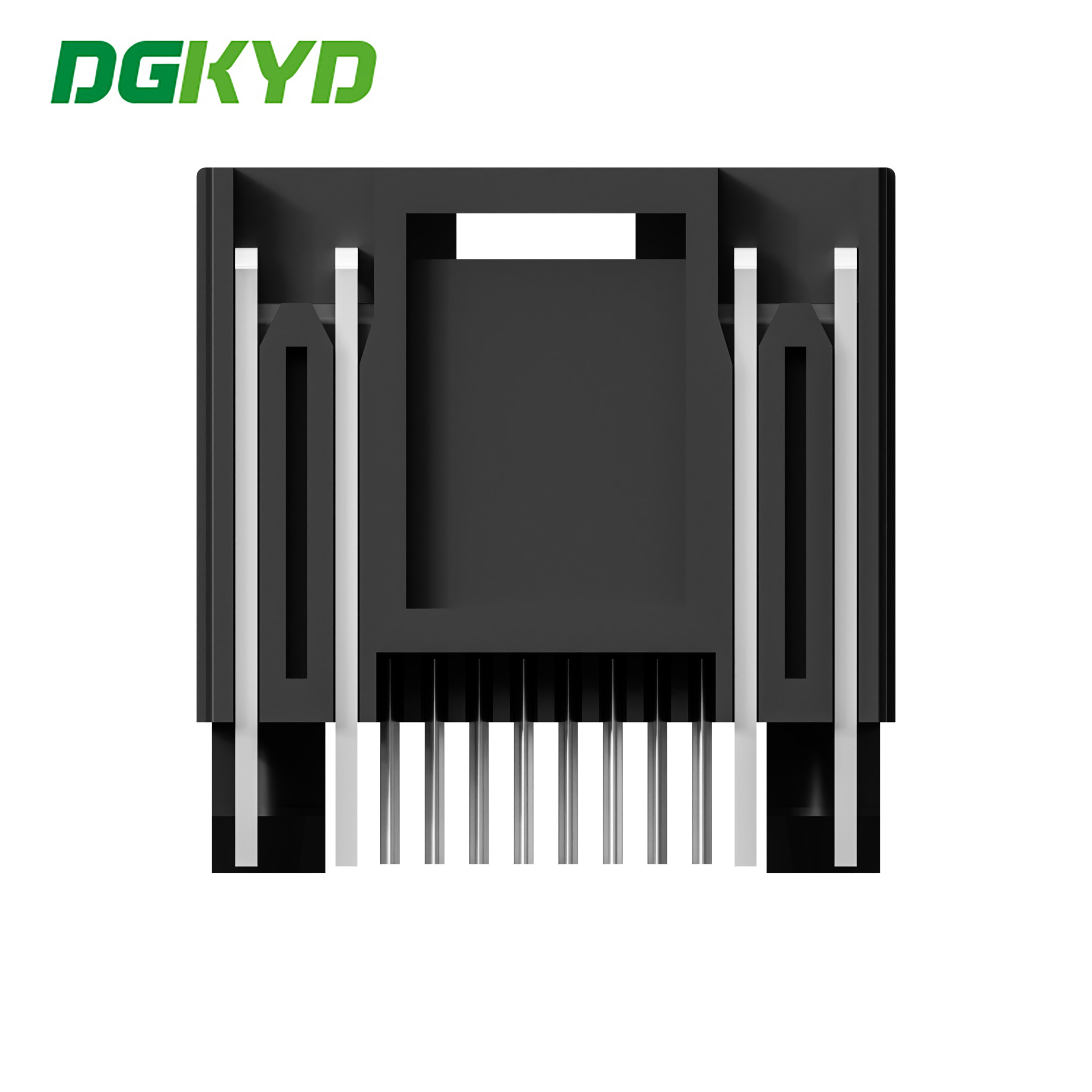

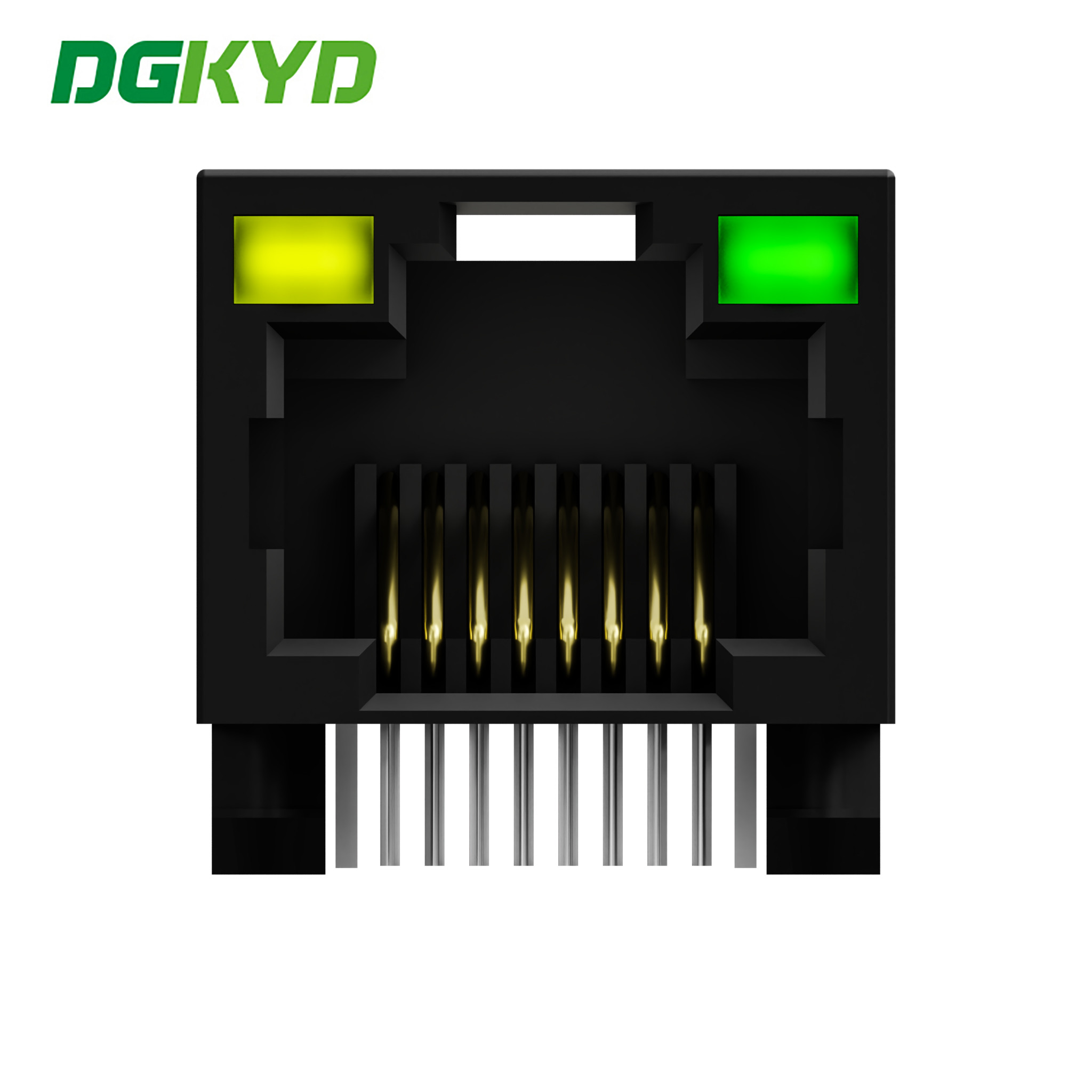

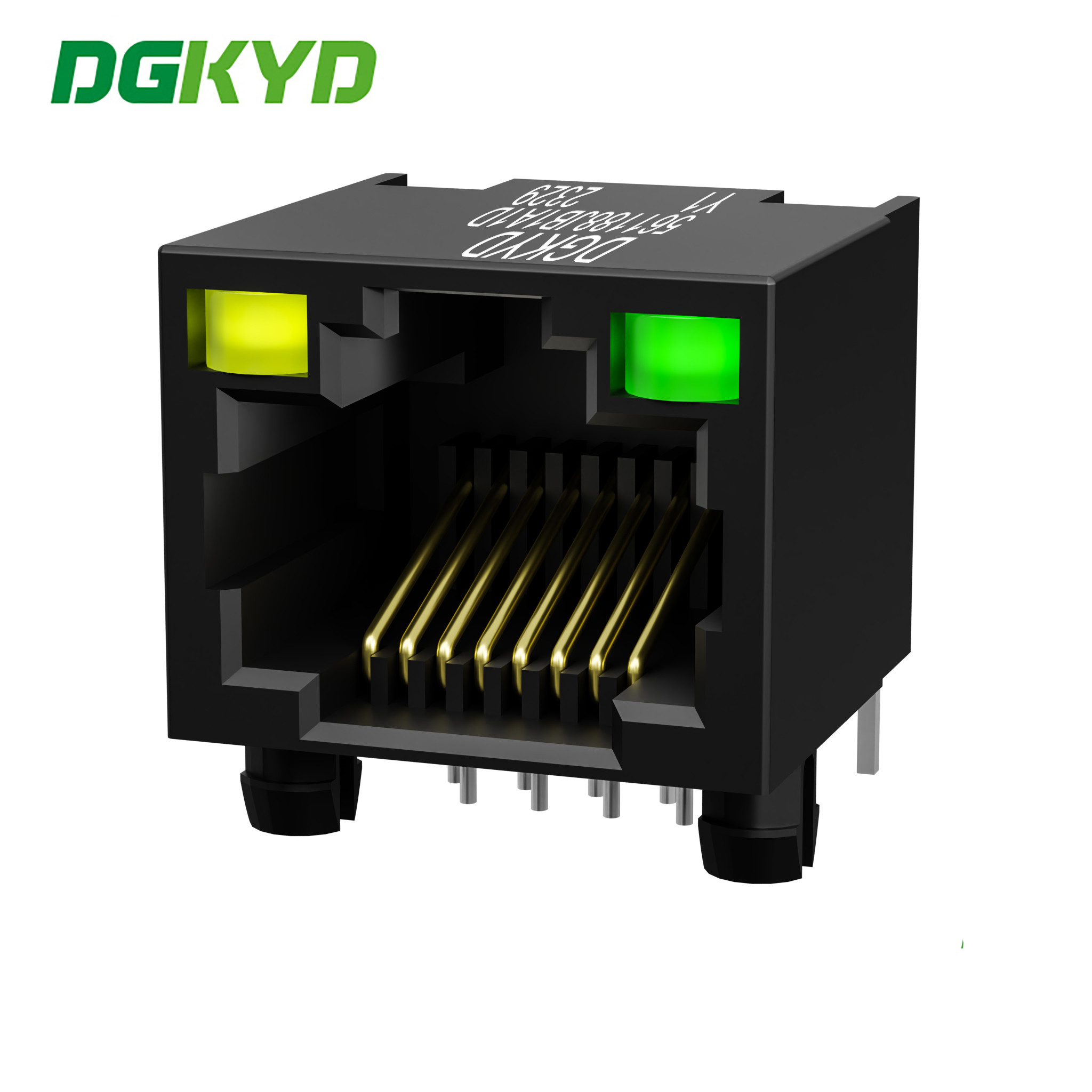

Four Port RJ45 90 Degree Straight Plug Connector 8P8C With Light Gold-plated 6U Modular Socket DGKYD561488AB1A1DB4
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD561188JB1A1DY1 |
|
Detail Information |
|||
| Component Type: | PCB Jack | Magnetic: | Yes |
|---|---|---|---|
| Performance Category: | 5.5E | Product Name: | Ethernet Socket |
| PCB Mount Style: | DIP | Shield: | Phosphor Copper Nickel Plating |
| Plastic Housing Material: | Black PBT | Number Of Pins: | 8 |
| Operating Temperature: | - 40 ℃ ~ 85 ℃ | Gold Plating On Contact Pins: | G/Fu |
| Encapsulation Method: | Single In-line Package | ||
| Highlight: | black rj45 straight through connector,rj45 straight through connector without transformer,straight through rj45 connector without transformer |
||
Product Description
Paramters
| Part Number | DGKYD561188JB1A1DY1 | Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | Without Filter | LED Option | With LED |
| LED Color | Yellow/Green | Panel Stops | Without Panel Stops |
| Shielded | Without metal shield | Applies To | Printedout Circuit Board |
| Port Configuration | 1X1 Ports | Number of Positions | 8 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold G/Fu | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
FAQ:
Q: What is the maximum working temperature of the KRJ-138ENL 8P8C Network 100 Megabit CAT6 RJ45 Connector with Internal Magnetics Registered Jack?
A: The maximum working temperature of this connector is -40℃ to 85℃.
Q: Does this connector come with a registered jack and internal magnetics?
A: Yes, the KRJ-138ENL 8P8C Network 100 Megabit CAT6 RJ45 Connector comes with a registered jack and internal magnetics.
Q: What is the interface type of this connector?
A: This connector is equipped with an RJ45 interface type.
Q: What is the working frequency of this connector?
A: This connector is designed with high-frequency characteristics to provide filtering and anti-interference properties.
Q: Can this connector be used with routers, switches, and other networking equipment?
A: Yes, the KRJ-138ENL 8P8C Network 100 Megabit CAT6 RJ45 Connector with Internal Magnetics Registered Jack is ideal for use in a wide range of Ethernet applications, including routers, switches, hubs, and other networking equipment.
