Four Port RJ45 90 Degree Straight Plug Connector 8P8C With Light Gold-plated 6U Modular Socket DGKYD561488AB1A1DB4
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD52T1188AB1A1DY1008 |
|
Detail Information |
|||
| Component Type: | PCB Jack | Performance Category: | 3/5/6 |
|---|---|---|---|
| Gender: | Female | Product Name: | RJ45 Connector |
| Type: | RJ45 | Magnetics: | Without Magnetics |
| Plating: | Glod Plating G/Fu | Number Of Pins: | 8 |
| Operating Temperature: | - 40 ℃ ~ 85 ℃ | Housing Material: | PBT Polyester |
| Highlight: | 180Degree Direct Insertion RJ45 network connector,RJ45 Network Connector,DGKYD52T1188AB1A1DY1008 Network Connector |
||
Product Description

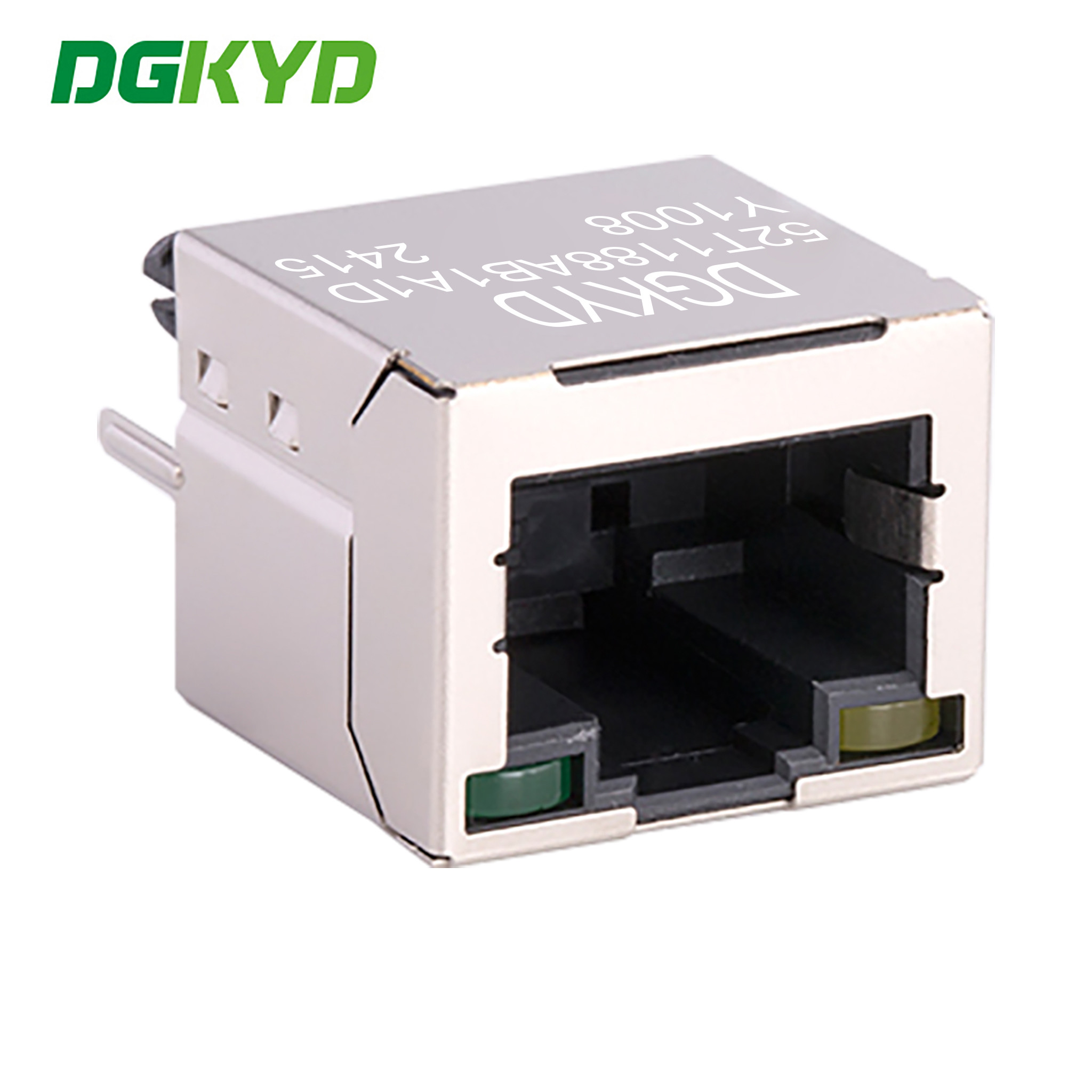

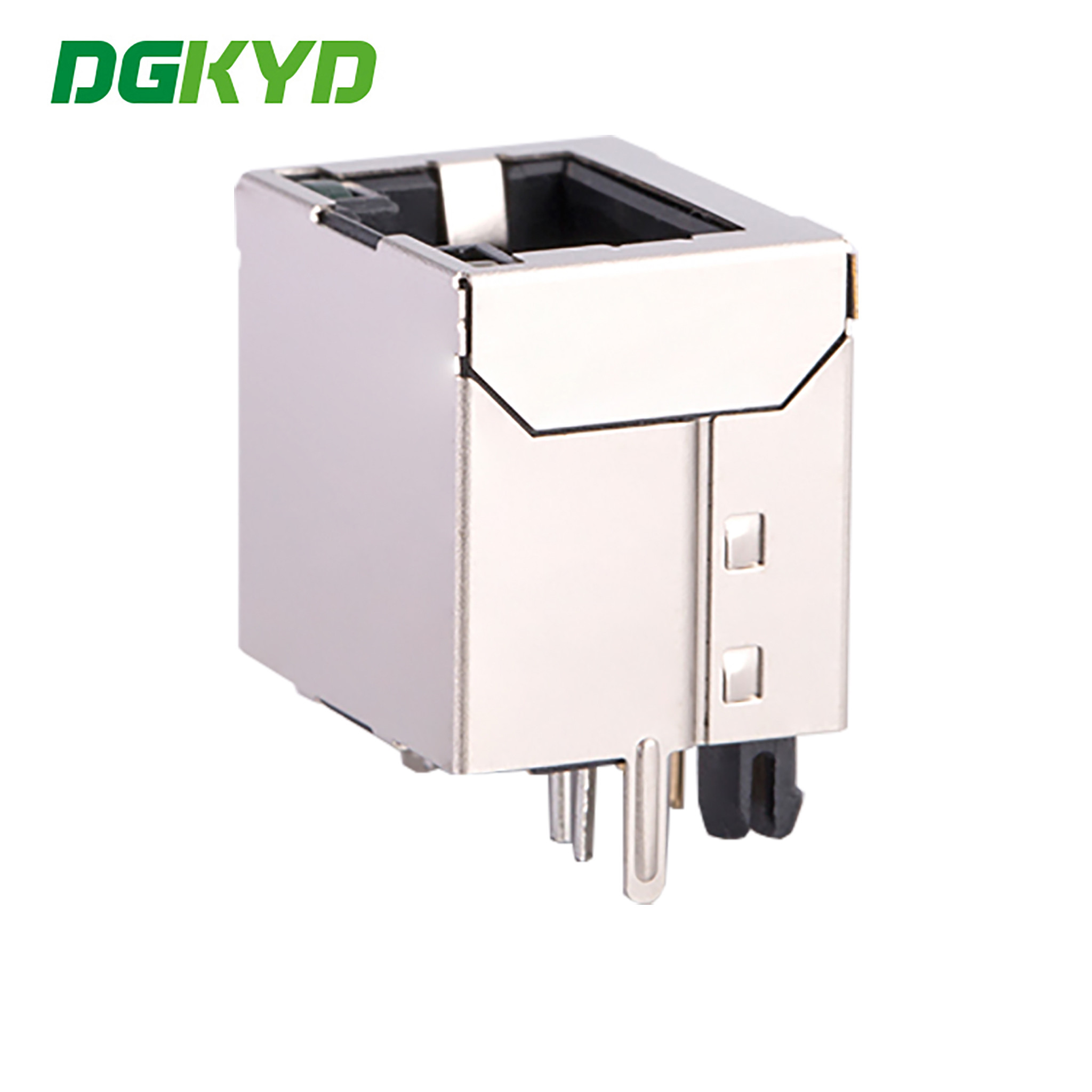

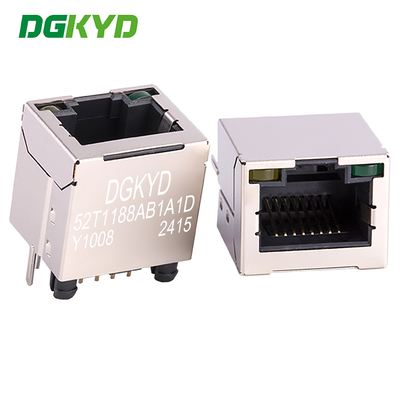

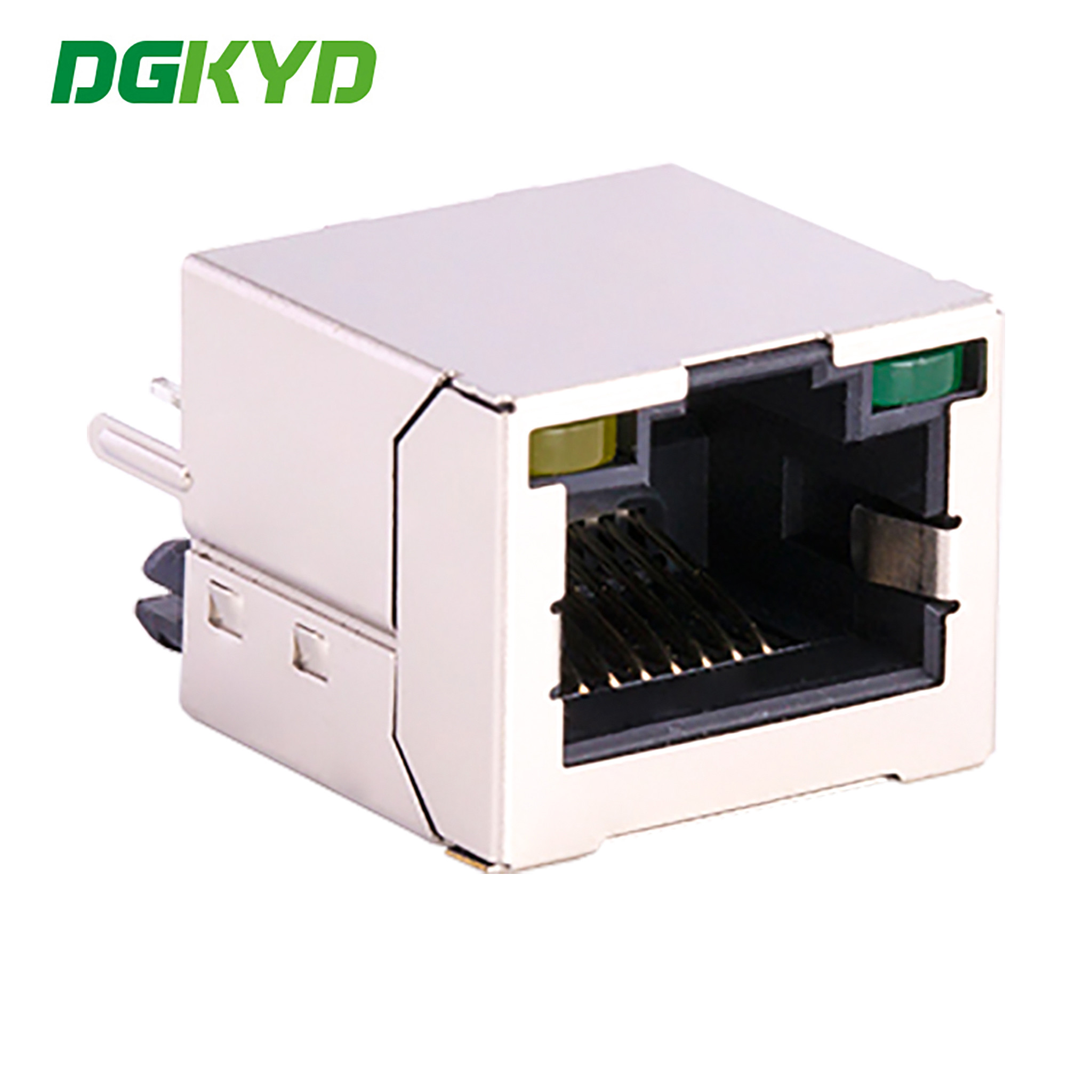

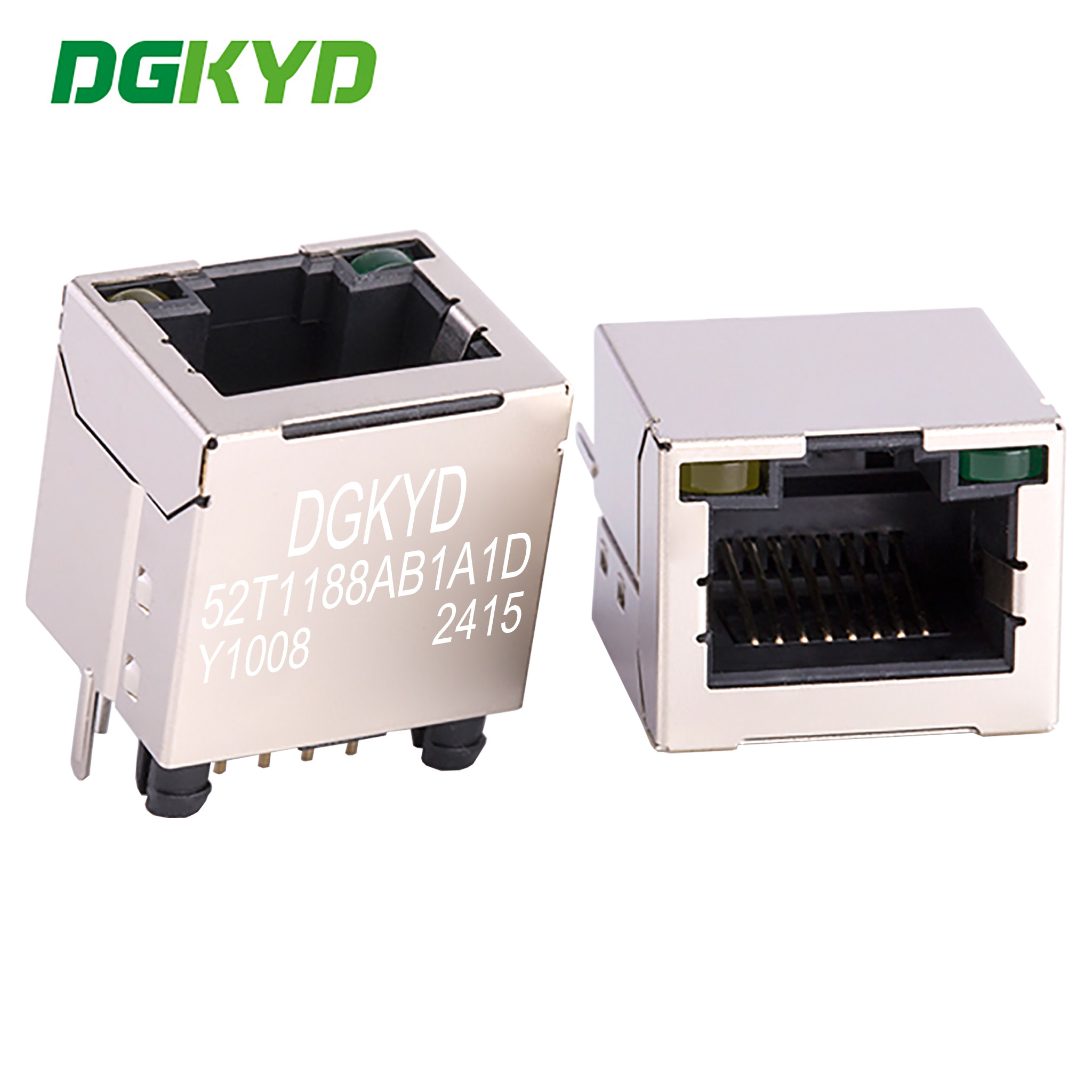

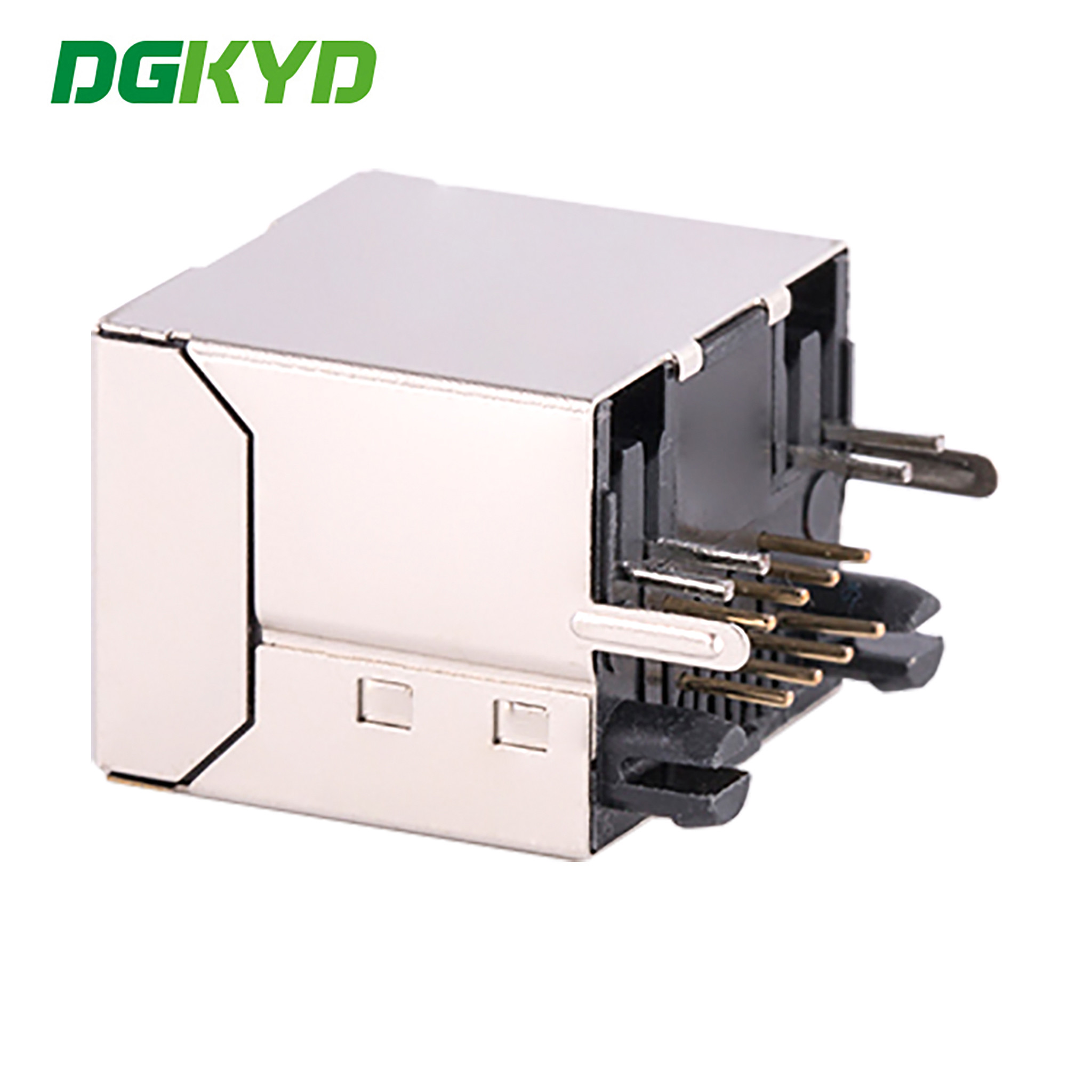

DGKYD52T1188AB1A1DY1008 180 degree direct insertion RJ45 network connector network cable socket
Product Specification Document
Parameters
| Part Number | DGKYD52T1188AB1A1DY1008 | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | Without Filter | LED Option | With LED |
| LED Color | Yellow/Green | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | Single Ports | Number of Positions | 8 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold G/Fu | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Complies with requirement of IEEE 802.3u standards.
RJ-45 connector integrated with transformer/impedance resistor/high voltage capacitor.
Size same as RJ-45 connector to save PCB board space.
Reduced EMI radiation to improve EMI performance.
Design for 10/100 BASE transmission over UTP-5 cable.
Compliance with ROHS requirements.
