Four Port RJ45 90 Degree Straight Plug Connector 8P8C With Light Gold-plated 6U Modular Socket DGKYD561488AB1A1DB4
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD59212188DE6A1DY1C022 |
|
Detail Information |
|||
| Product Name: | RJ45 Jack | LEDS/EMI Fingers: | Green-Green/Orange |
|---|---|---|---|
| Gender: | Female | Application: | Lan,bridge,PC,router,usb Hub Network Rj45 |
| RJ45 Suitable: | For CAT5&6 Ethernet Cable Or UTP | Feature: | CAT5 |
| Working Temperature: | -40°C~+85°C | Storage Temperature: | -40°C~+85°C |
| Number Of Contacts: | 8 | PCB Mount Angle: | SIDE ENTRY |
| Highlight: | 2X1 port Ethernet socket,RJ45 interface Ethernet socket,5921 series Ethernet socket |
||
Product Description

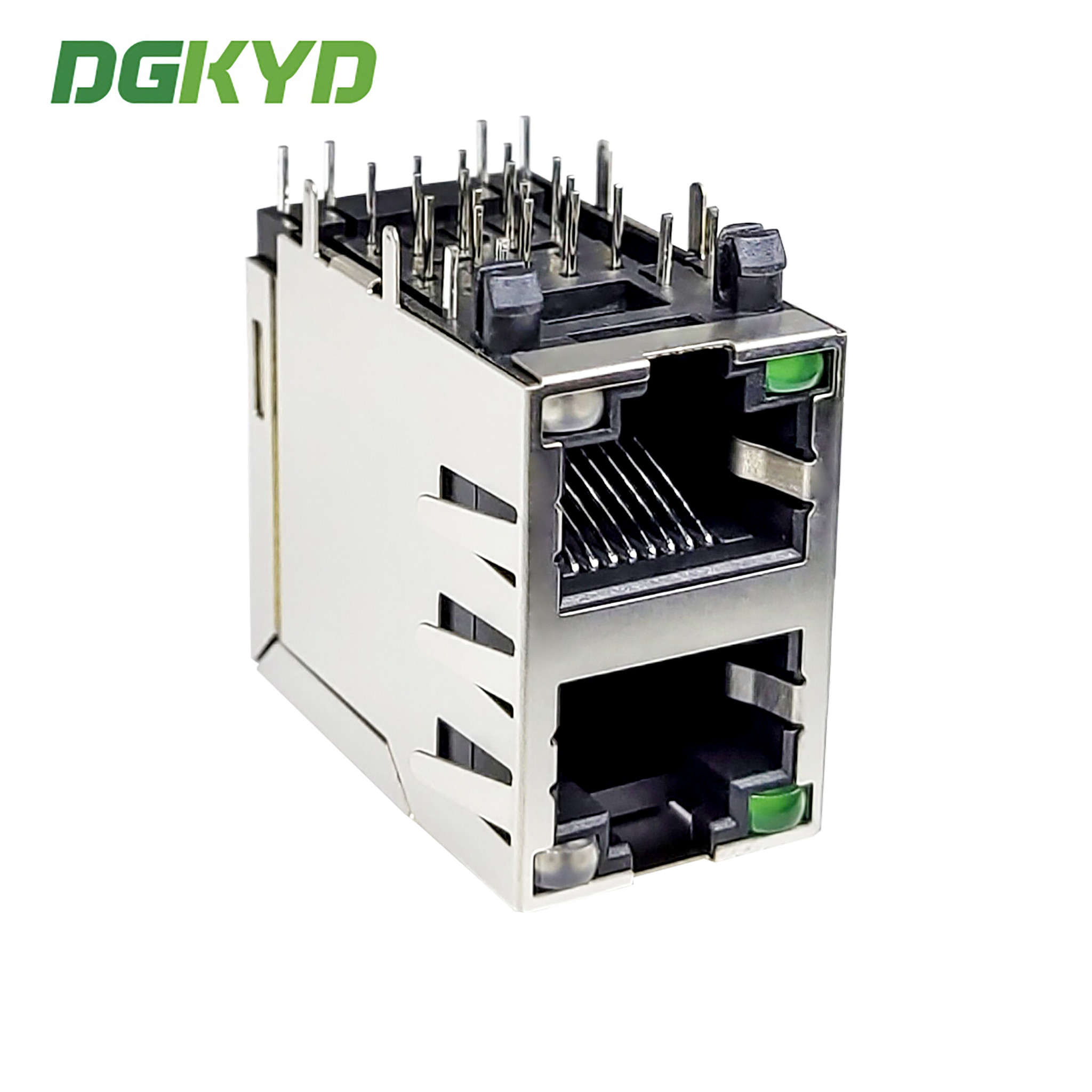

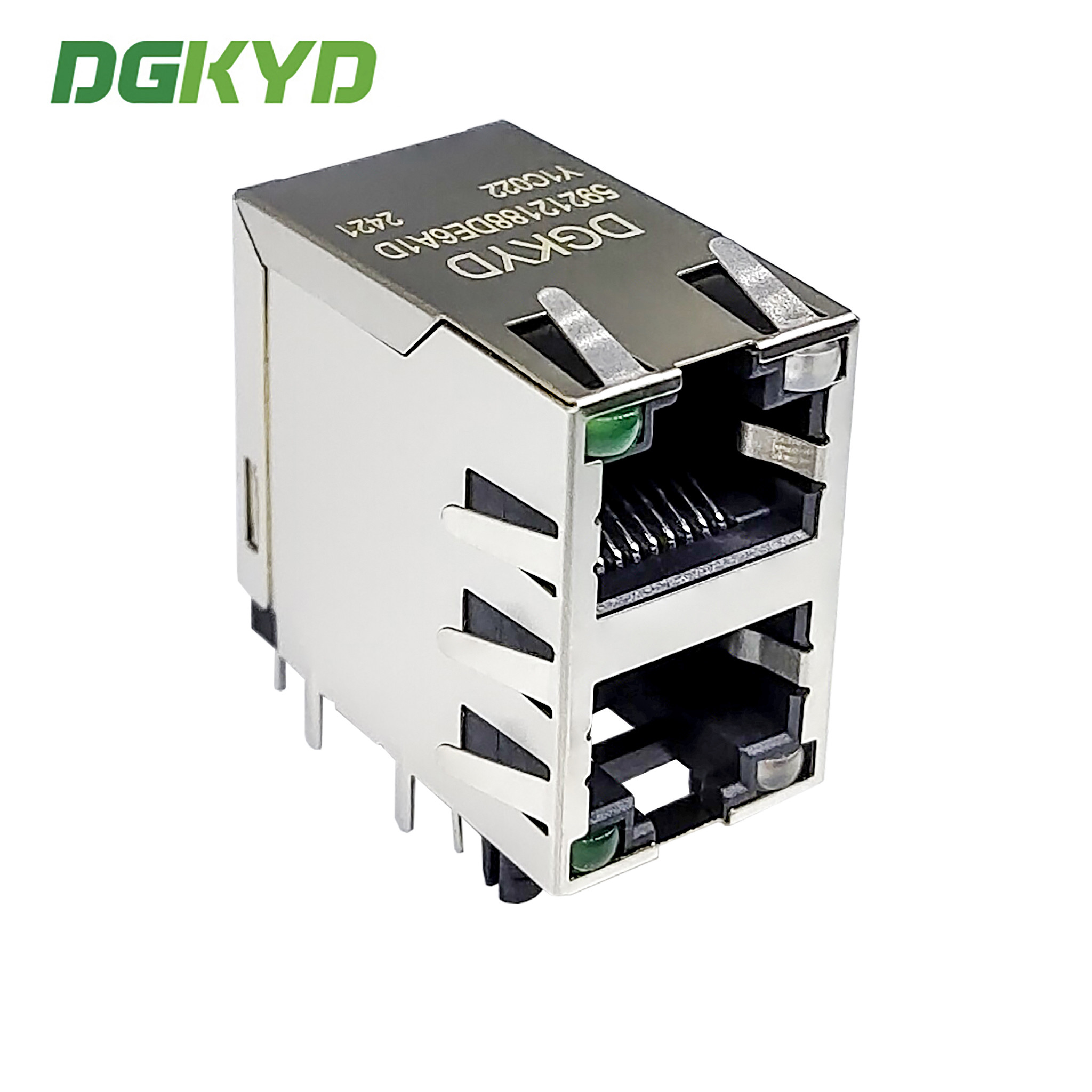

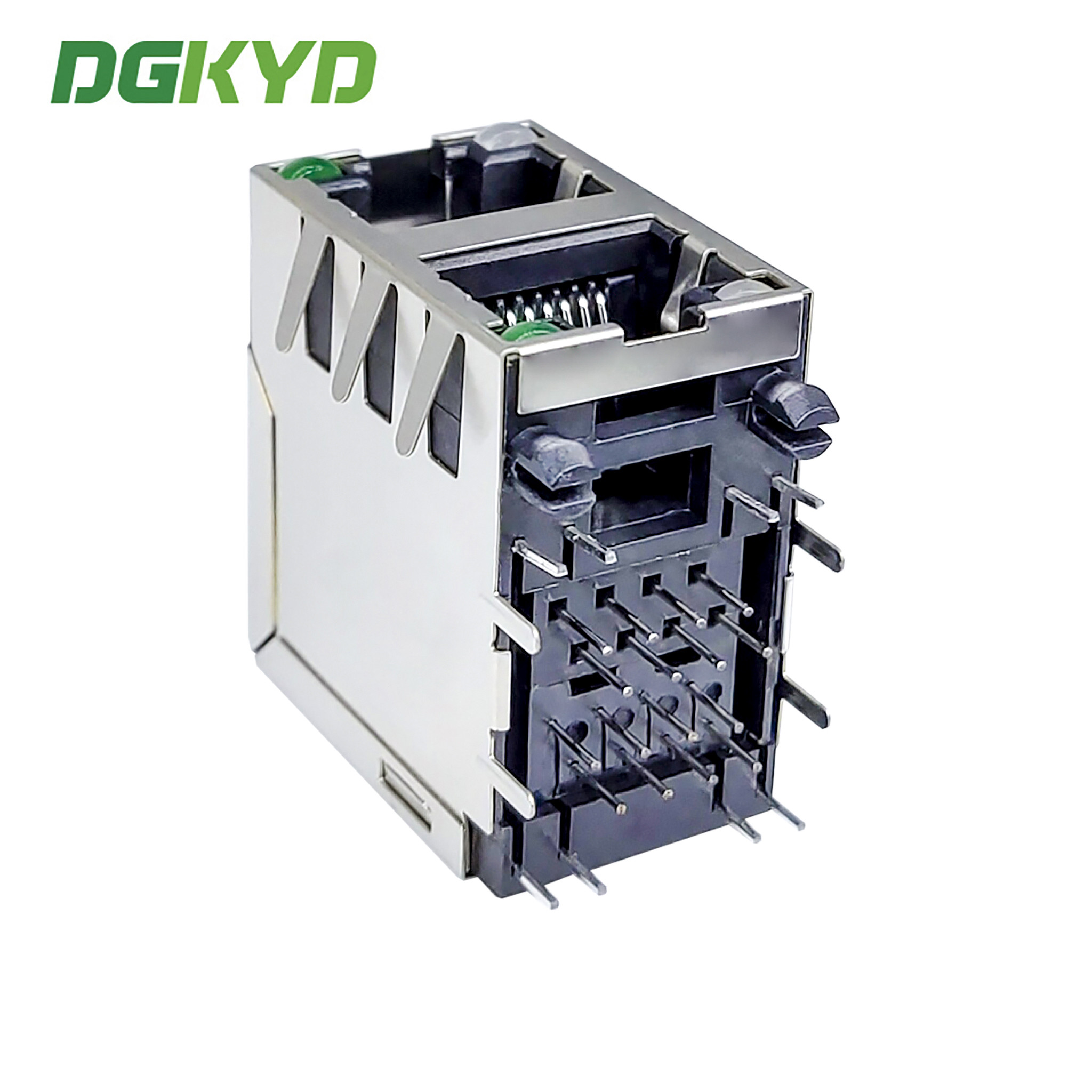

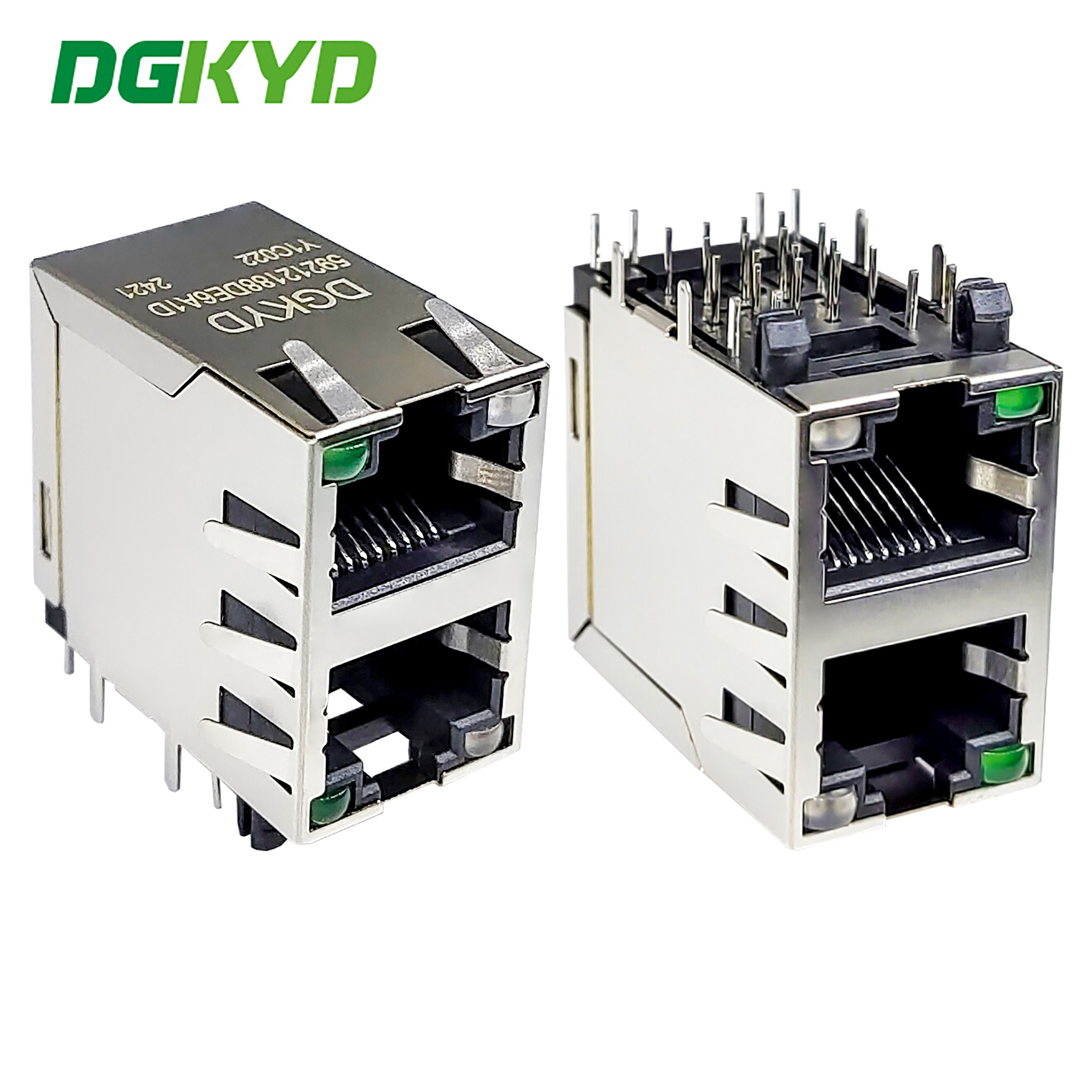

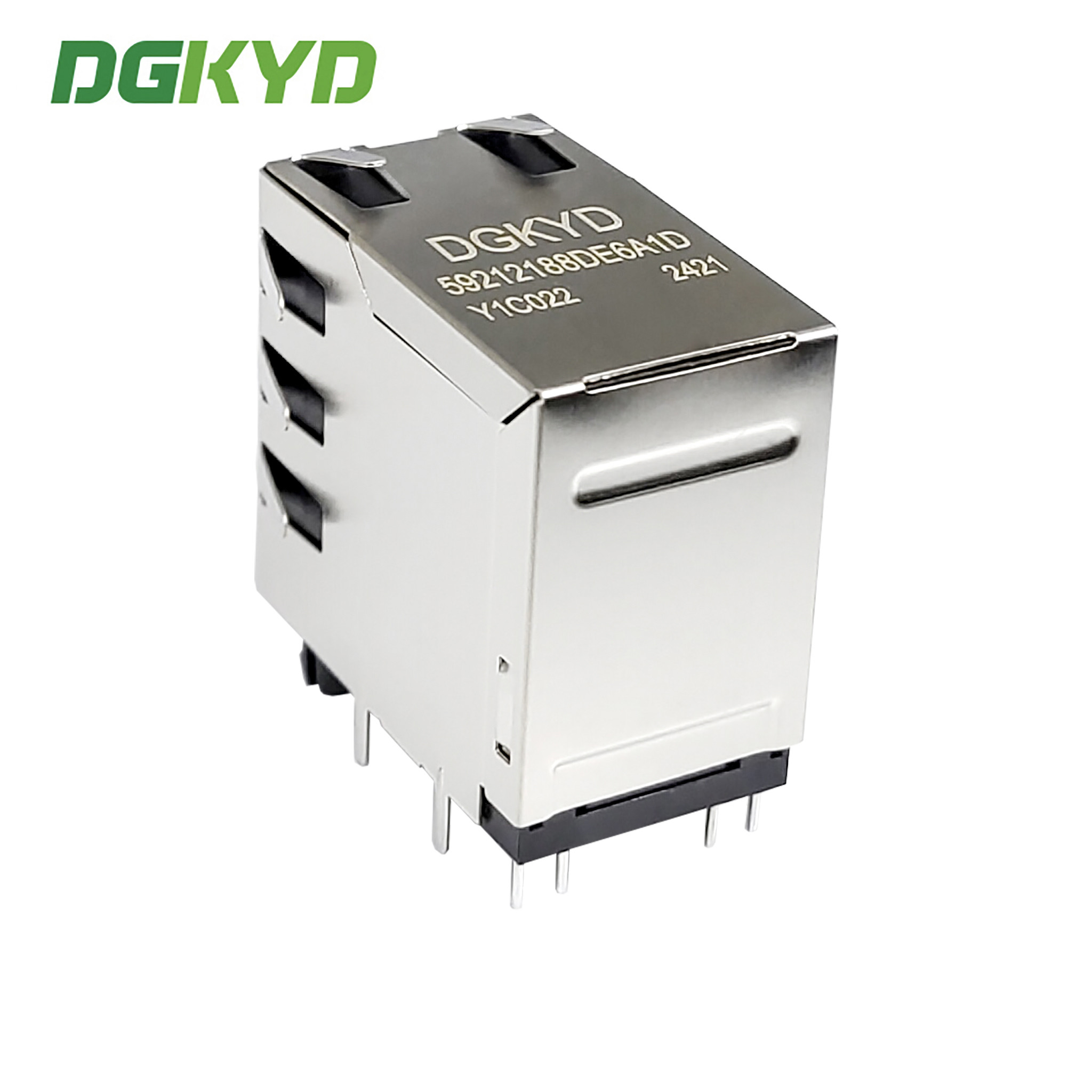

RJ45 interface 5921 series Ethernet socket 2X1 port 8P8C modular socket with isolation spring DGKYD59212188DE6A1DY1C022
Product Specification Document
DGKYD59212188DE6A1DY1C022.pdf
Paramters
| Part Number | DGKYD59212188DE6A1DY1C022 | Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP/DOWN |
| Filter | Without Filter | LED Option | With LED |
| LED Color | L-Green/R-Green/Orange | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 1000M BASE-TX | Grounding Options | Panel Ground and PCB Ground |
| Port Configuration | Double port | Number of Positions | 8 |
| Jack Configuration | 2 X 1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold G/Fu Microinch | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Our Service
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•DGKYD Is OEM Of FOXCONN For 6 Years
•Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE…
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:1-2 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
DGKYD Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• DGKYD Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
Applications:
• Integrated RJ45 connector main used to :
• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,
optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,
telecommunication,MODEM,HomePNA, DSL／ADSL and so on.
